Simpson Anchors | SKU:
ATR7/8X18HDG

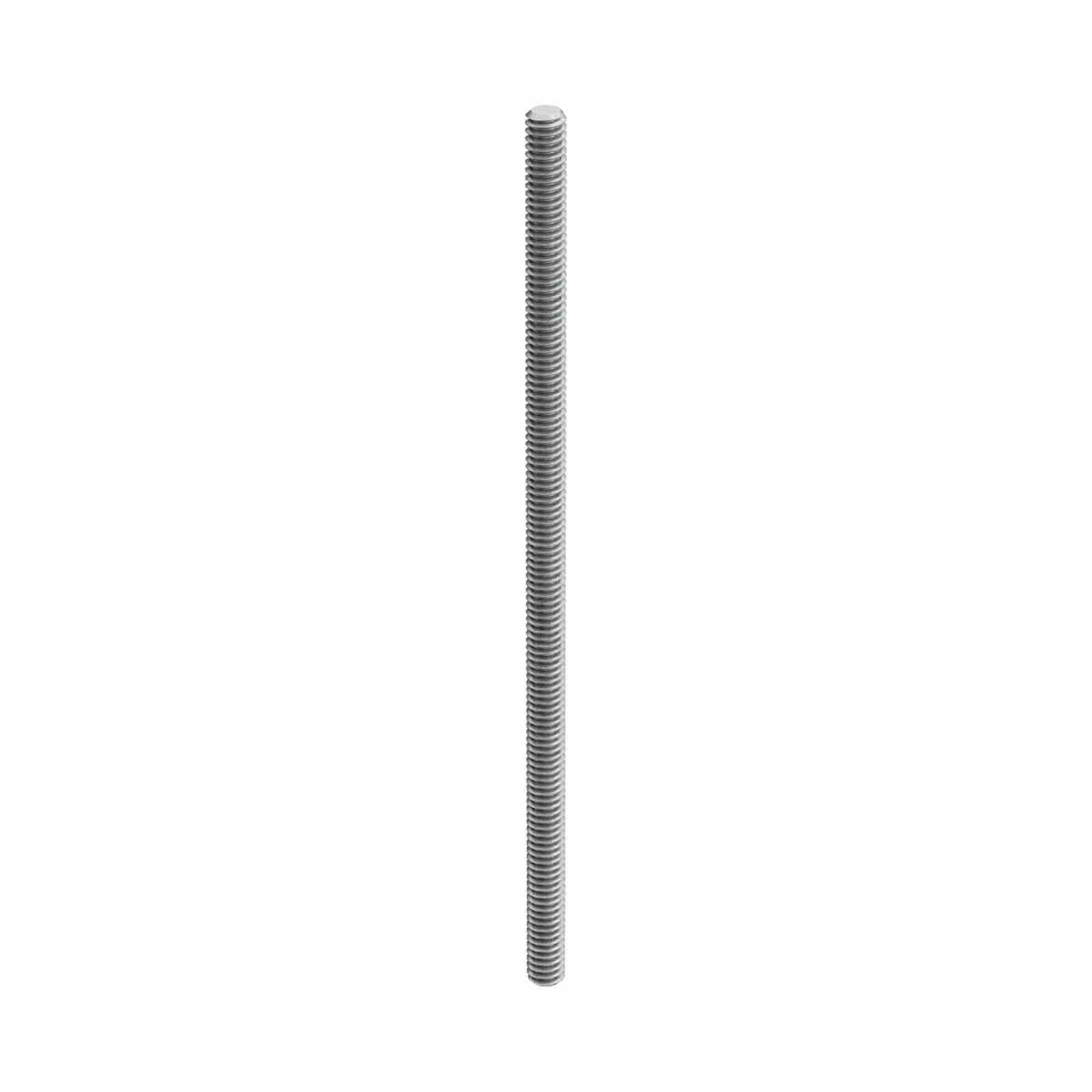

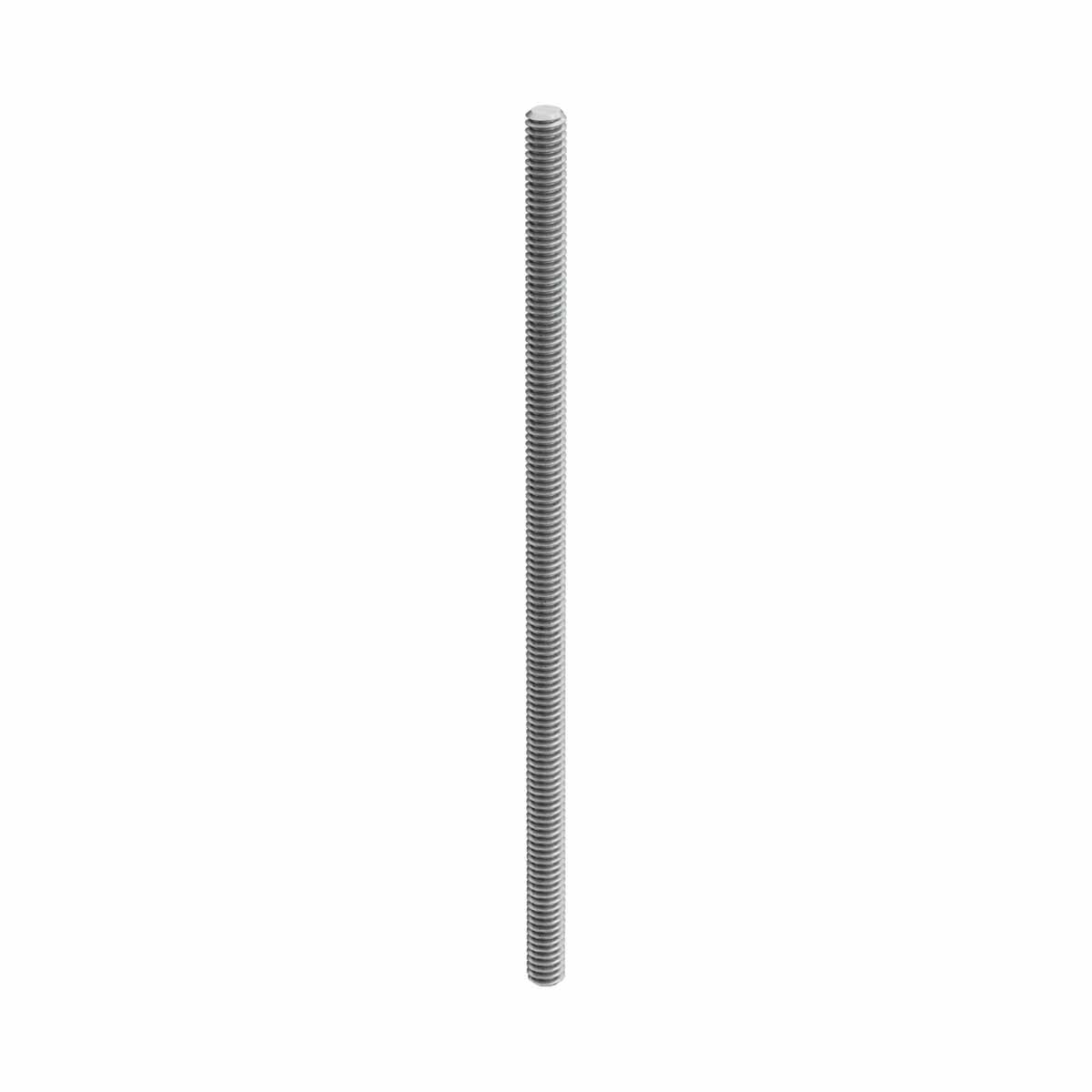

Simpson Strong-Tie ATR7/8X18HDG (7/8" x 18") Hot-Dip Galvanized All-Thread Rod for Tension Transfer and Anchoring
$20.68
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ATR7/8X18HDG Description
The Simpson Strong-Tie ATR Hot-Dip Galvanized All Thread Rod is a fully threaded, high-strength rod designed for tension transfer in various construction applications.
Simpson Strong-Tie ATR7/8X18HDG Includes
- (1) 7/8" x 18" Hot-Dip Galvanized All-Thread Rod
Simpson Strong-Tie ATR7/8X18HDG Features
- Fully threaded design for easy cutting and adaptation
- High-strength material meeting ASTM A307 specifications
- Hot-dip galvanized finish for enhanced corrosion resistance
- Versatile applications in anchoring systems and structural connections
Simpson Strong-Tie ATR7/8X18HDG Applications
- Anchoring systems: Compatible with Simpson Strong-Tie adhesive anchoring systems in concrete and masonry
- Suspension systems: Supports the hanging of pipes, conduits, and other fixtures
- Structural connections: Facilitates the joining of structural elements in wood, steel, and concrete constructions
Simpson Strong-Tie ATR7/8X18HDG Specifications
| Material | Carbon Steel |
| Finish | Hot-Dip Galvanized |
| Thread Type | UNC Class 2A or 1A |
| Diameter | 7/8" |
| Length | 18" |
| Tension Capacity | 13,080 lbs |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
