Simpson Anchors | SKU:
ATR7/8X48

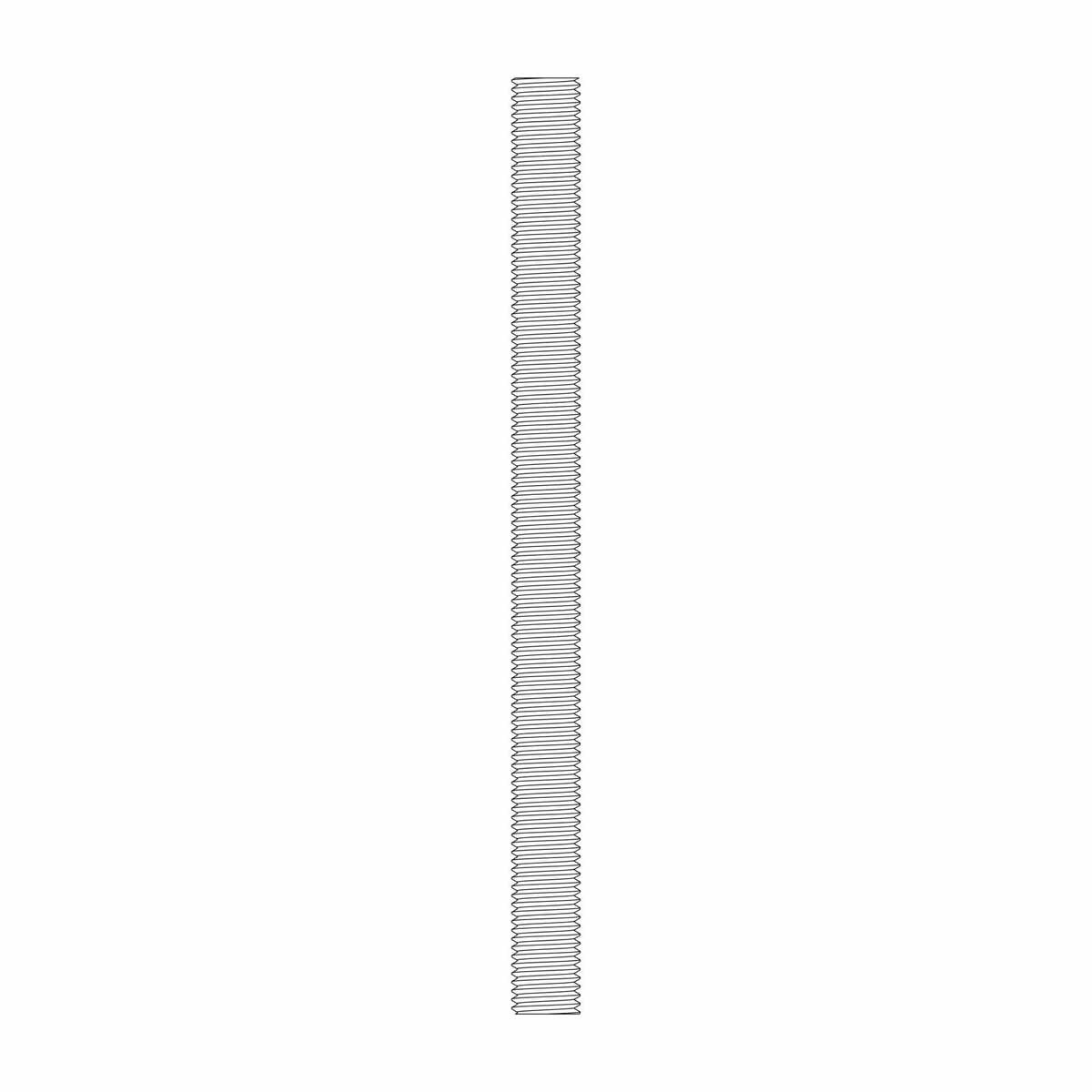

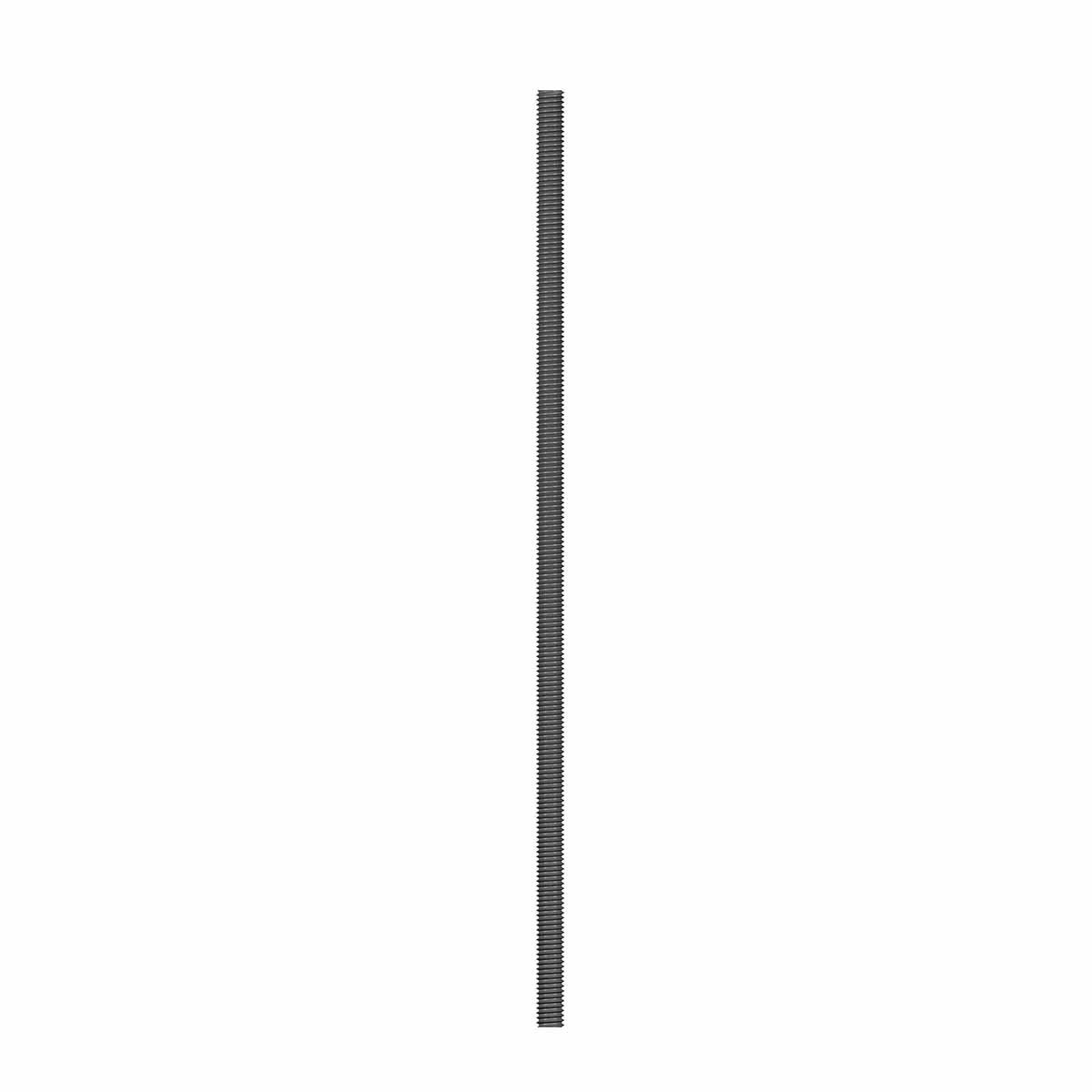

Simpson Strong-Tie ATR7/8X48 (7/8" x 48") Fully Threaded All-Thread Rod for Structural Anchoring
$33.74
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ATR7/8X48 Description
The ATR7/8X48 Fully Threaded All-Thread Rod is designed for structural anchoring applications, offering high strength and reliability.
Simpson Strong-Tie ATR7/8X48 Includes
- (1) Fully Threaded All-Thread Rod
Simpson Strong-Tie ATR7/8X48 Features
- Precut for convenience
- Models available in standard-strength material
- UNC Class 2A or 1A thread specifications
Simpson Strong-Tie ATR7/8X48 Applications
- Multi-Story High-Wind anchoring
- Structural anchoring in construction projects
Simpson Strong-Tie ATR7/8X48 Installation Overview
- Drop or push the rod through drilled holes in the flooring system after framing is completed
- Drill holes 1/4" larger than the rod diameter
- Ensure drilled holes through the sole plate and flooring system are completed with one continuous drilling action
Simpson Strong-Tie ATR7/8X48 Specifications
| Material | ASTM F1554 Grade 36 or ASTM A307 Grade A; Fu = 58 ksi |
| Finish | Uncoated black steel |
| Size | 7/8 in. x 48 in. |
| Packaging Quantity | 1 |
