Simpson Anchors | SKU:
ATS7517
Simpson Strong-Tie ATS7517 (17") Stainless Steel Acrylic Adhesive Screen Tube for 3/4" Rod
$10.27
Unit price
/
Unavailable
Description
Description

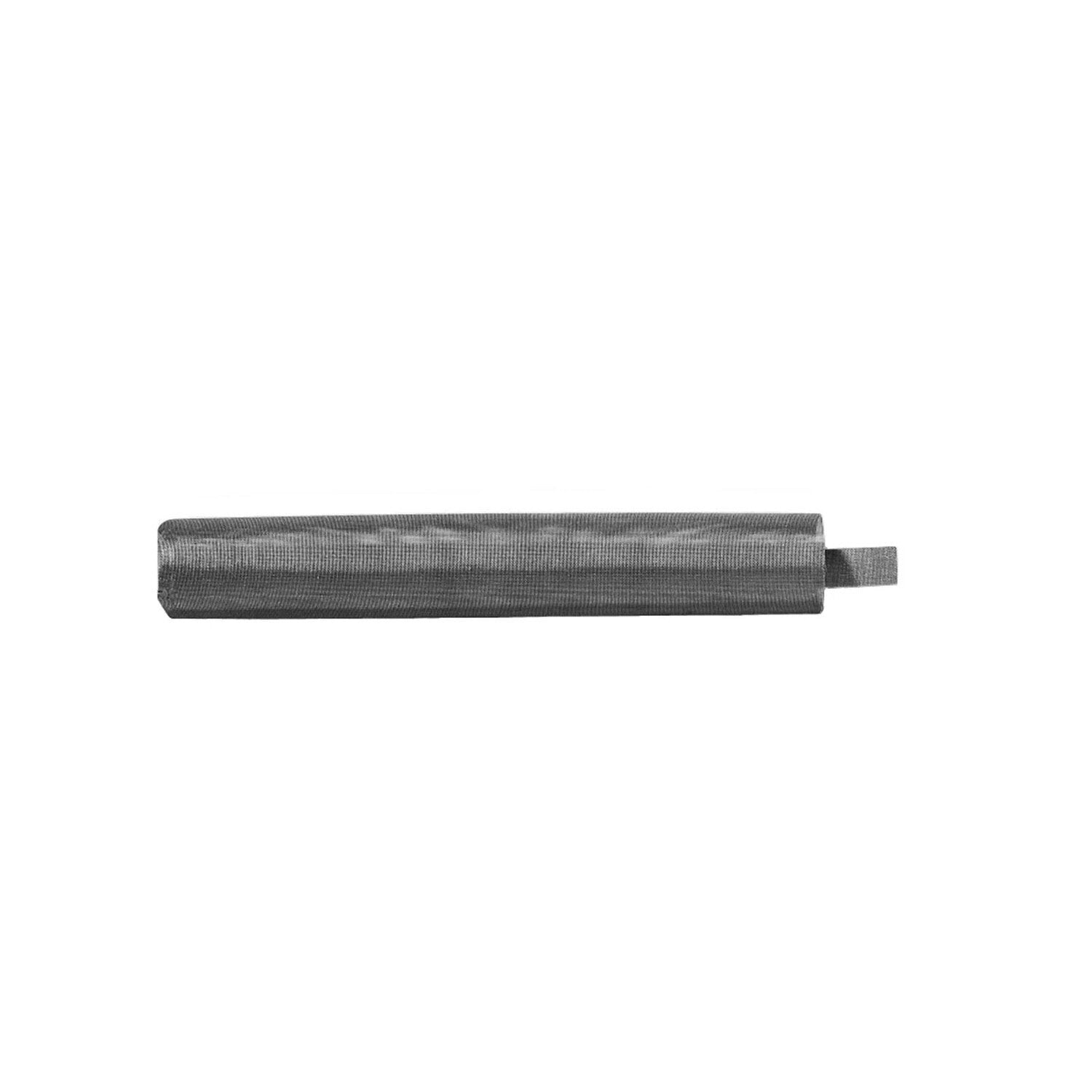

Simpson Strong-Tie ATS7517 Description
Simpson Strong-Tie Adhesive Anchor Steel Screen Tubes securely fasten rods or mechanical anchors to hollow base materials using Simpson adhesives.
Simpson Strong-Tie ATS7517 Includes
- (1) 17" Stainless Steel Acrylic Adhesive Screen Tube
Simpson Strong-Tie ATS7517 Features
- Made from stainless steel mesh for durability
- Compatible with AT adhesives
- Prevents excess adhesive from running into void spaces
- Designed for use with hollow base materials
- Easy installation process
Simpson Strong-Tie ATS7517 Applications
- Hollow base material anchoring
- Masonry applications
- CMU and hollow brick anchoring

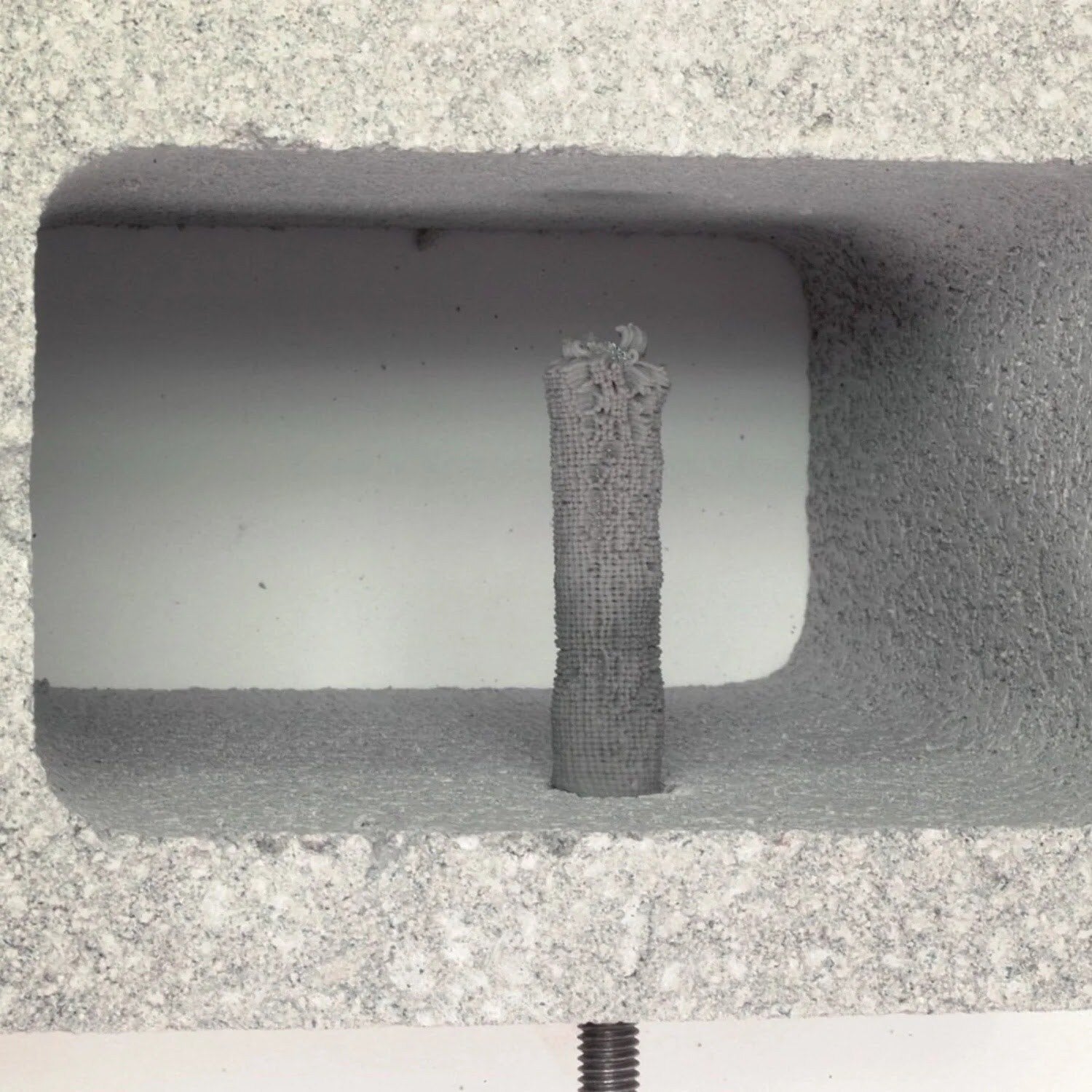

Simpson Strong-Tie ATS7517 Installation Overview
- Fill the screen tube with the appropriate adhesive
- Insert the filled tube into the pre-drilled hole
- Slowly turn and insert the rod into the filled tube
- Allow to cure according to adhesive instructions
Simpson Strong-Tie ATS7517 Specifications
| Length | 17" |
| Material | Stainless Steel |
| Accepts rod size | 3/4" |
| Hole diameter | 1" |
| Manufacturer name | Simpson Strong-Tie |
| Outside Diameter | 31/32" |
| Quantity | 1 |
| Type | Acrylic Screen Tube |
NOTE: Screen Tubes are designed specifically for certain types of adhesives. Acrylic Screen Tubes are made from stainless steel mesh, and are compatible with AT adhesives. Epoxy Screen Tubes are made from carbon steel mesh and are compatible with SET and ET-HP adhesives.
