Simpson Anchors | SKU:
ATS758
Simpson Strong-Tie ATS758 (8") Stainless Steel Acrylic Adhesive Screen Tube for 3/4" Rod
$6.33
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ATS758 Description

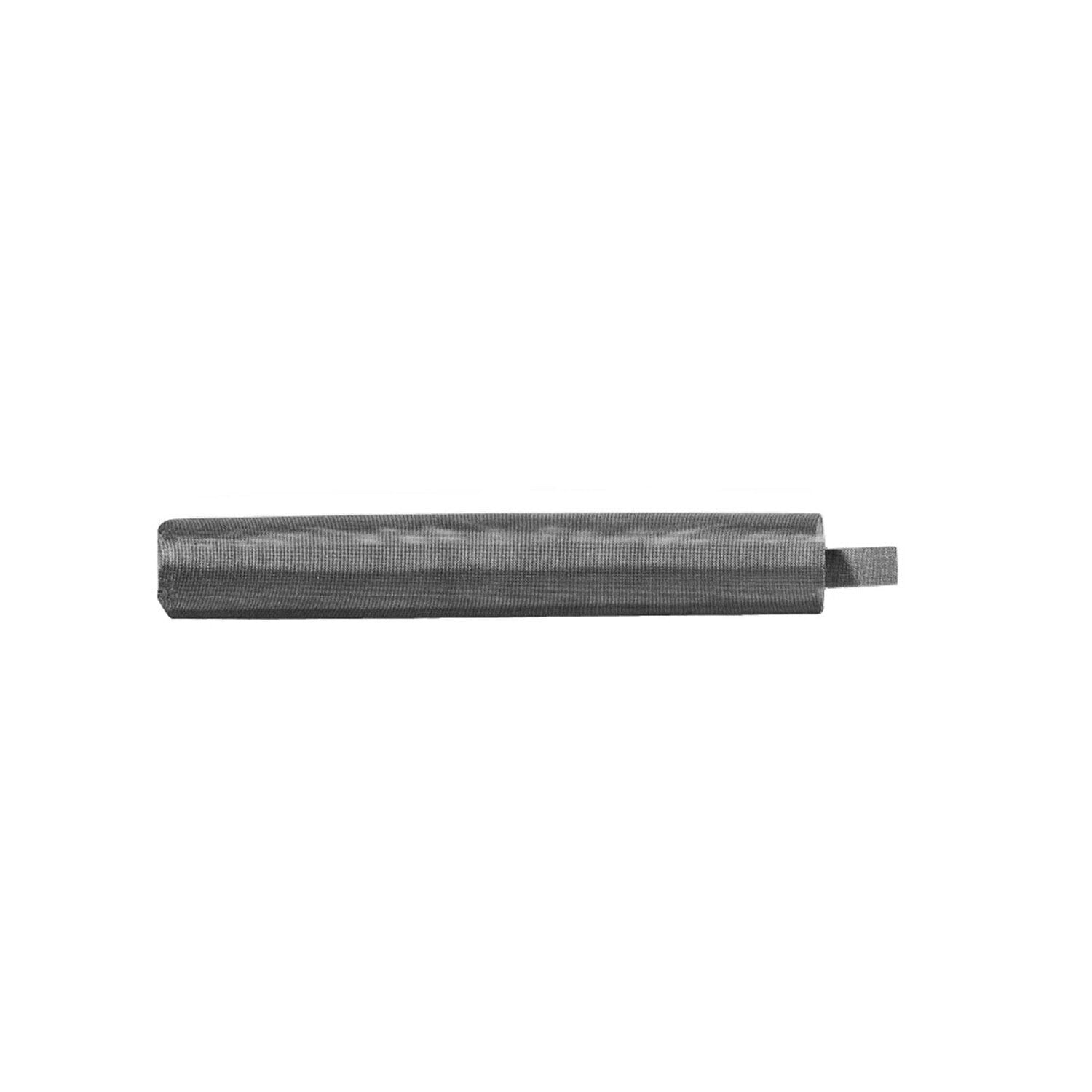

The Simpson Strong-Tie 8" Stainless Steel Acrylic Adhesive Screen Tube is designed for securely fastening rods or mechanical anchors to hollow base materials using Simpson adhesives.
Simpson Strong-Tie ATS758 Includes
- (1) 8" Stainless Steel Acrylic Adhesive Screen Tube
Simpson Strong-Tie ATS758 Features
- Made from stainless steel mesh for durability
- Compatible with AT adhesives
- Prevents excess adhesive material from running into void spaces
- Designed for use with hollow base materials like CMU and hollow brick
Simpson Strong-Tie ATS758 Applications
- Hollow base material anchoring
- Masonry applications requiring secure rod fastening
- Use with Simpson adhesives for optimal performance

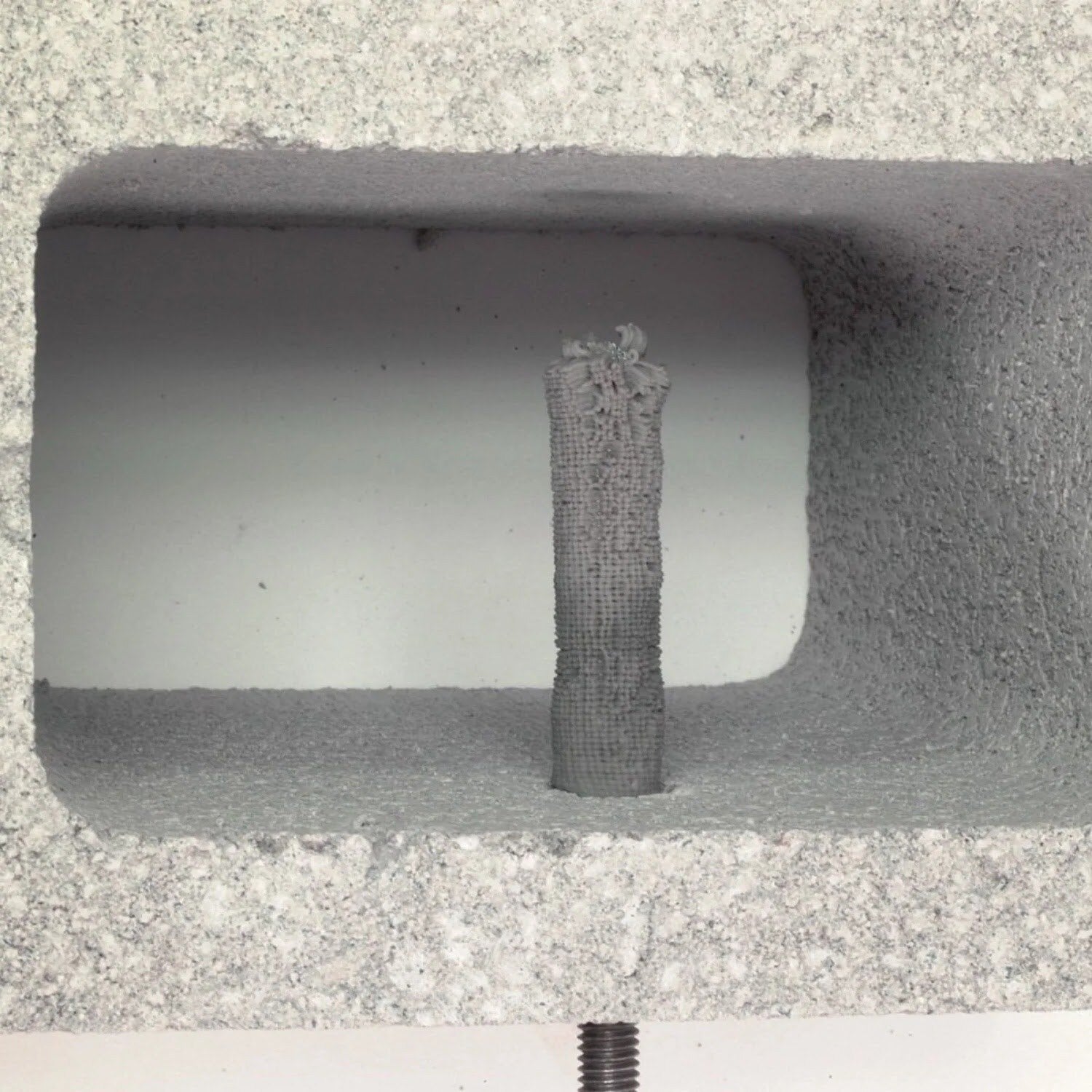

Simpson Strong-Tie ATS758 Installation Overview
- Fill the screen tube with the appropriate adhesive.
- Insert the filled tube into the pre-drilled hole.
- Slowly turn and insert the rod into the filled tube.
- Allow to cure according to the specific adhesive instructions.
Simpson Strong-Tie ATS758 Specifications
| Length | 8" |
| Material | Stainless Steel |
| Accepts rod size | 3/4" |
| Hole diameter | 1" |
| Manufacturer name | Simpson Strong-Tie |
| Outside Diameter | 31/32" |
| Quantity | 1 |
| Type | Acrylic Screen Tube |
NOTE: Screen Tubes are designed specifically for certain types of adhesives. Acrylic Screen Tubes are made from stainless steel mesh, and are compatible with AT adhesives. Epoxy Screen Tubes are made from carbon steel mesh and are compatible with SET and ET-HP adhesives.
