Simpson Anchors | SKU:
AWS3710P
Simpson Strong-Tie AWS3710P (10 in.) Opti-Mesh Acrylic Adhesive Plastic Screen Tube for 3/8" Rod
$5.62
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie AWS3710P Description

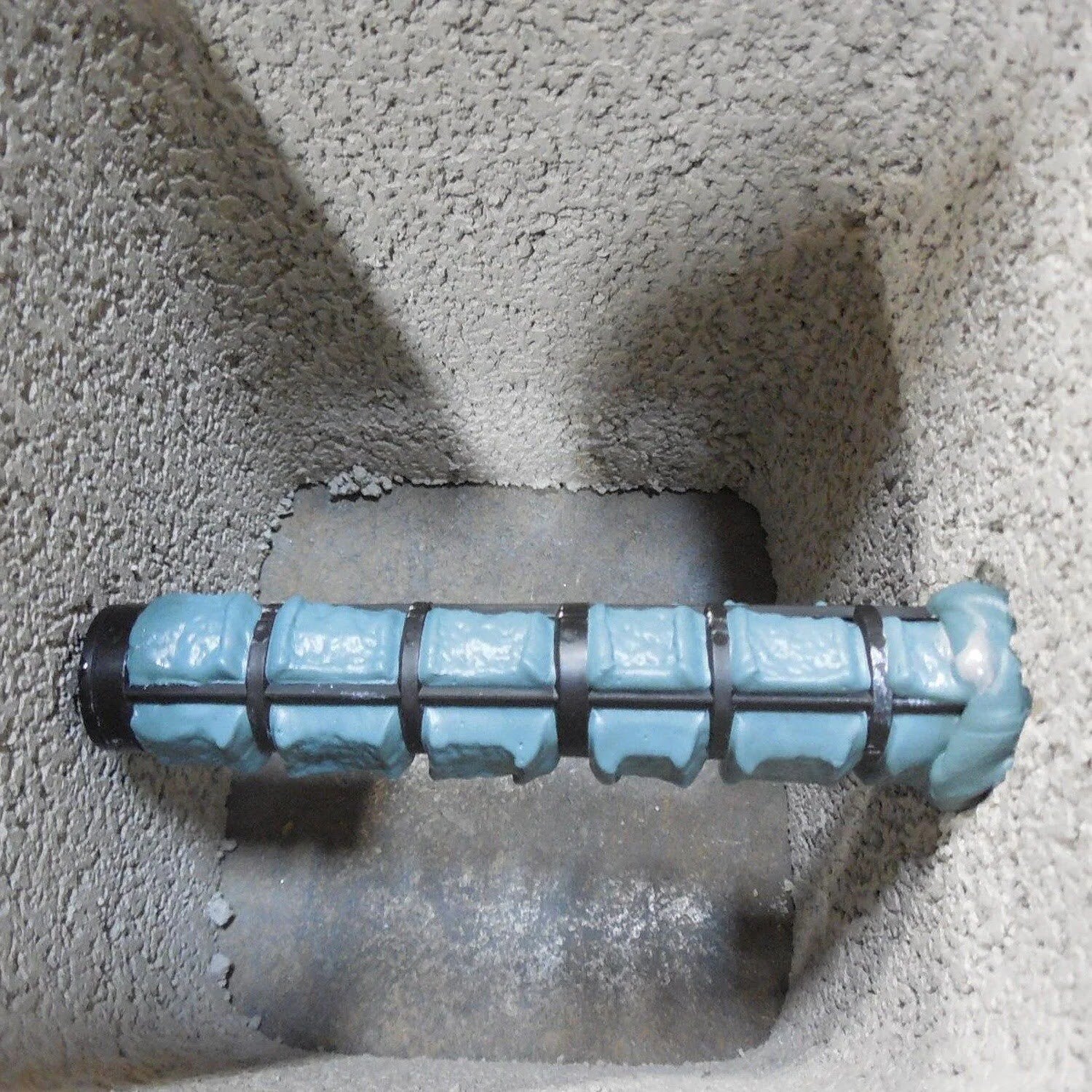

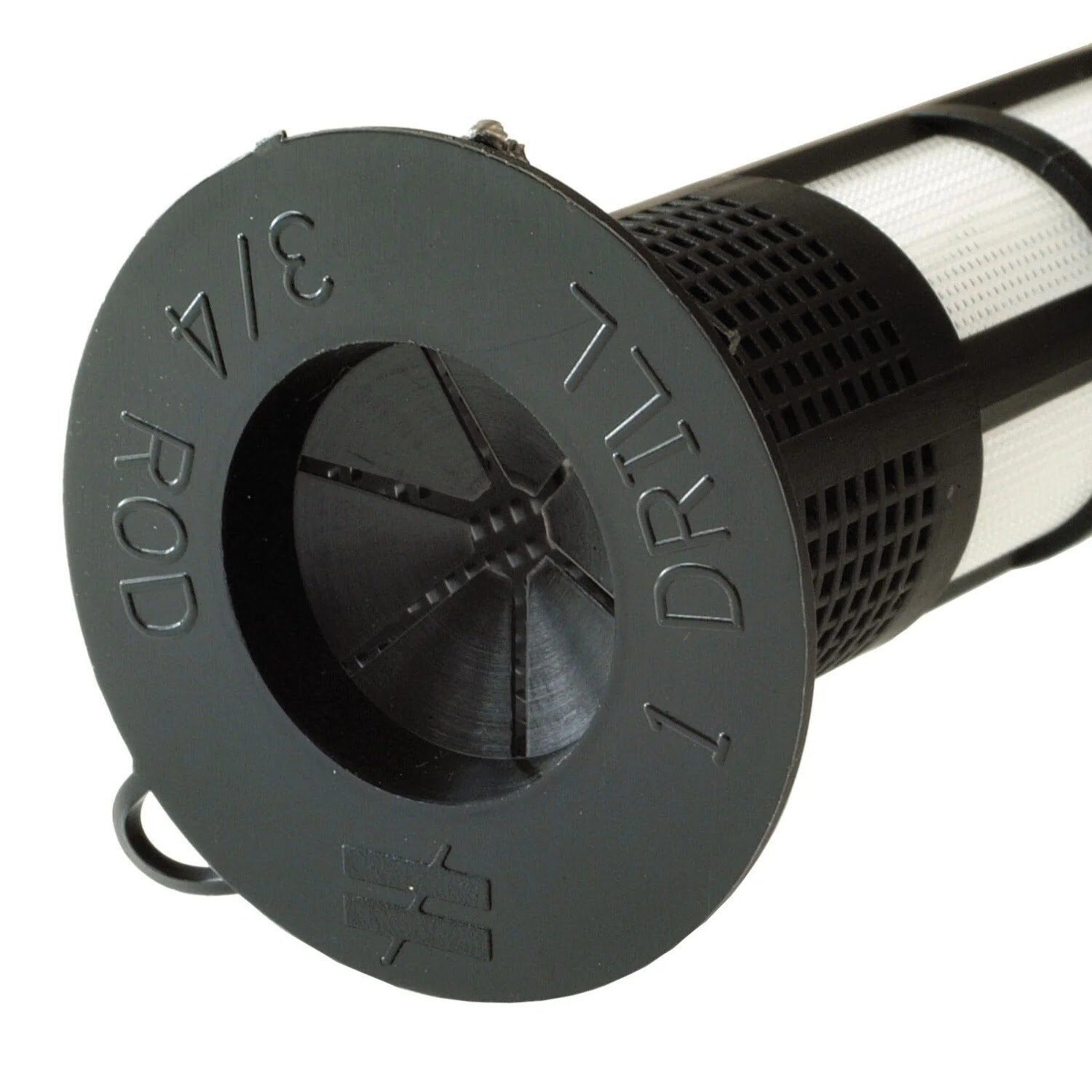

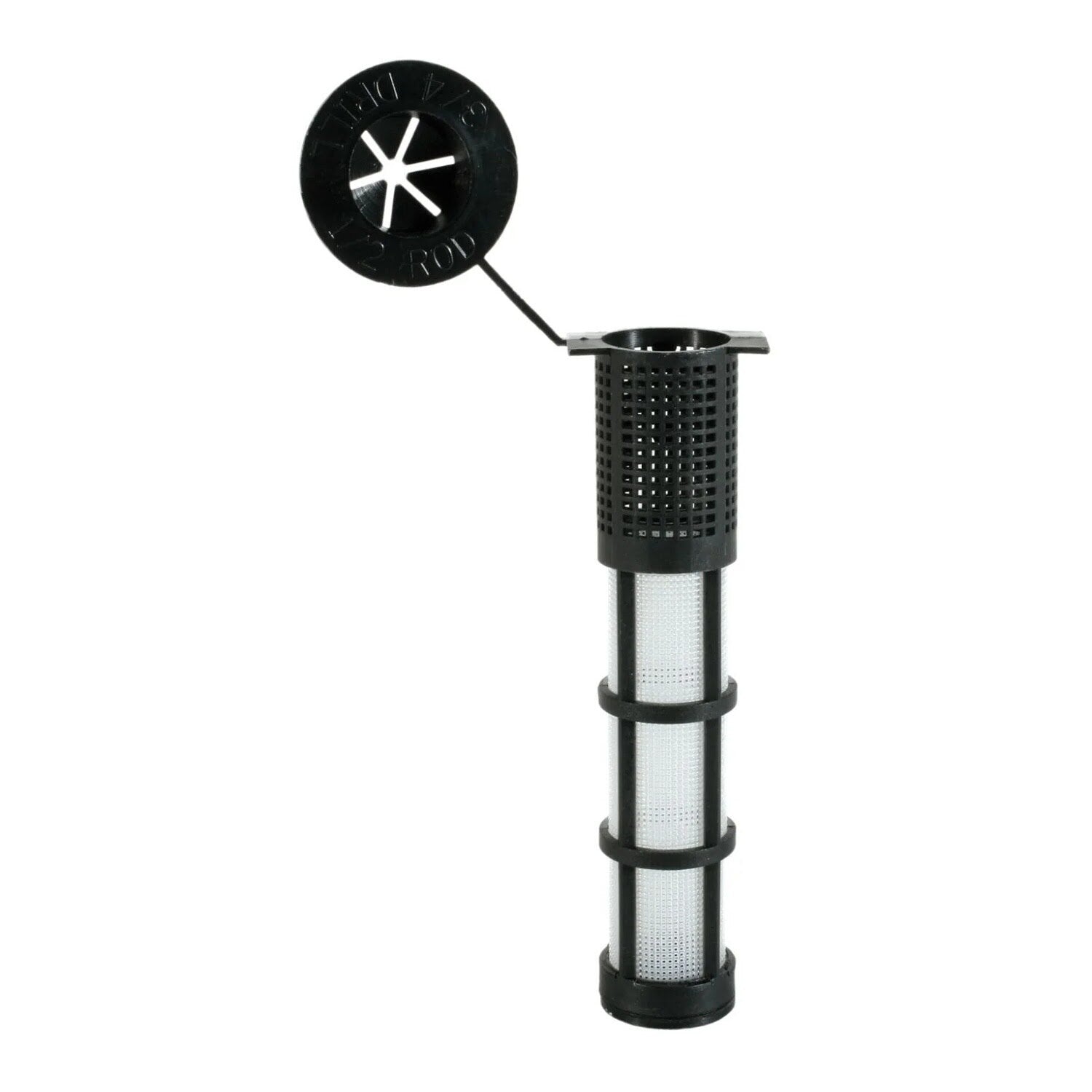

The Simpson Strong-Tie Opti-Mesh Acrylic Anchor Screen Tube is designed for securely fastening rods or mechanical anchors to hollow base materials using Simpson adhesives.
Simpson Strong-Tie AWS3710P Includes
- (1) 10" Opti-Mesh Acrylic Anchor Screen Tube
Simpson Strong-Tie AWS3710P Features
- Designed for use with Simpson adhesives
- Prevents excess adhesive material from running into void spaces
- Compatible with hollow base materials like CMU and hollow brick
- Made of durable plastic material
- Accepts 3/8" rod size
Simpson Strong-Tie AWS3710P Applications
- Hollow base material anchoring
- Masonry applications requiring secure rod fastening
- Use with Simpson AT adhesives
Simpson Strong-Tie AWS3710P Installation Overview

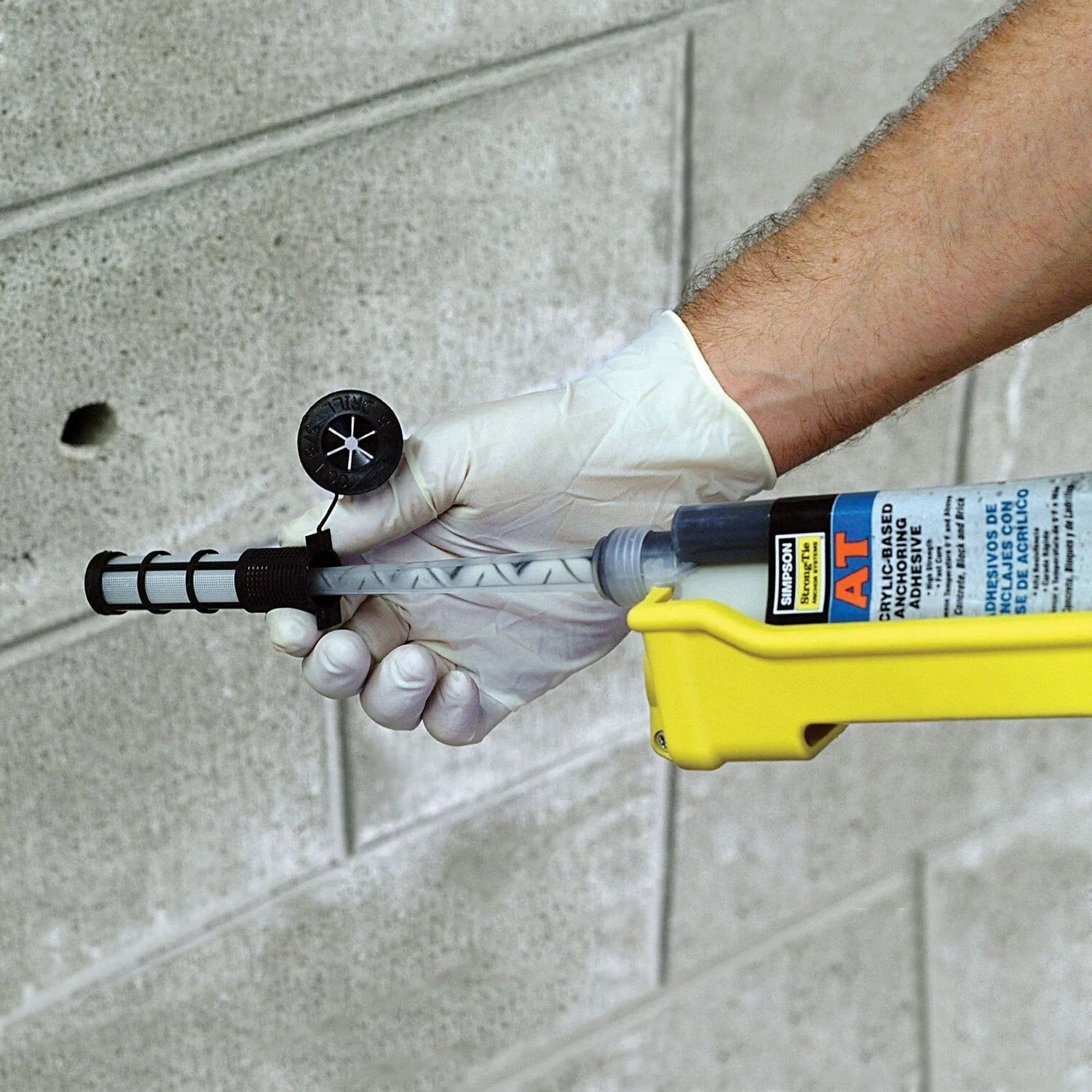

- Fill the screen tube with the appropriate adhesive
- Insert the filled tube into the pre-drilled hole
- Slowly turn and insert the rod into the filled tube
- Allow to cure according to the specific adhesive instructions
Simpson Strong-Tie AWS3710P Specifications
| Length | 10" |
| Material | Plastic |
| Accepts rod size | 3/8" |
| Anchor diameter | 3/8" |
| Hole diameter | 9/16" |
| Type | Acrylic Screen Tube |
NOTE: Screen Tubes are designed specifically for certain types of adhesives. These are acrylic screen tubes designed to be compatible with Strong-Tie AT adhesives.
