Simpson Anchors | SKU:
AWS503P
Simpson Strong-Tie AWS503P (3-1/2") Opti-Mesh Acrylic Adhesive Plastic Screen Tube for 1/2" Rod
$3.82
Unit price
/
Unavailable
Description
Description

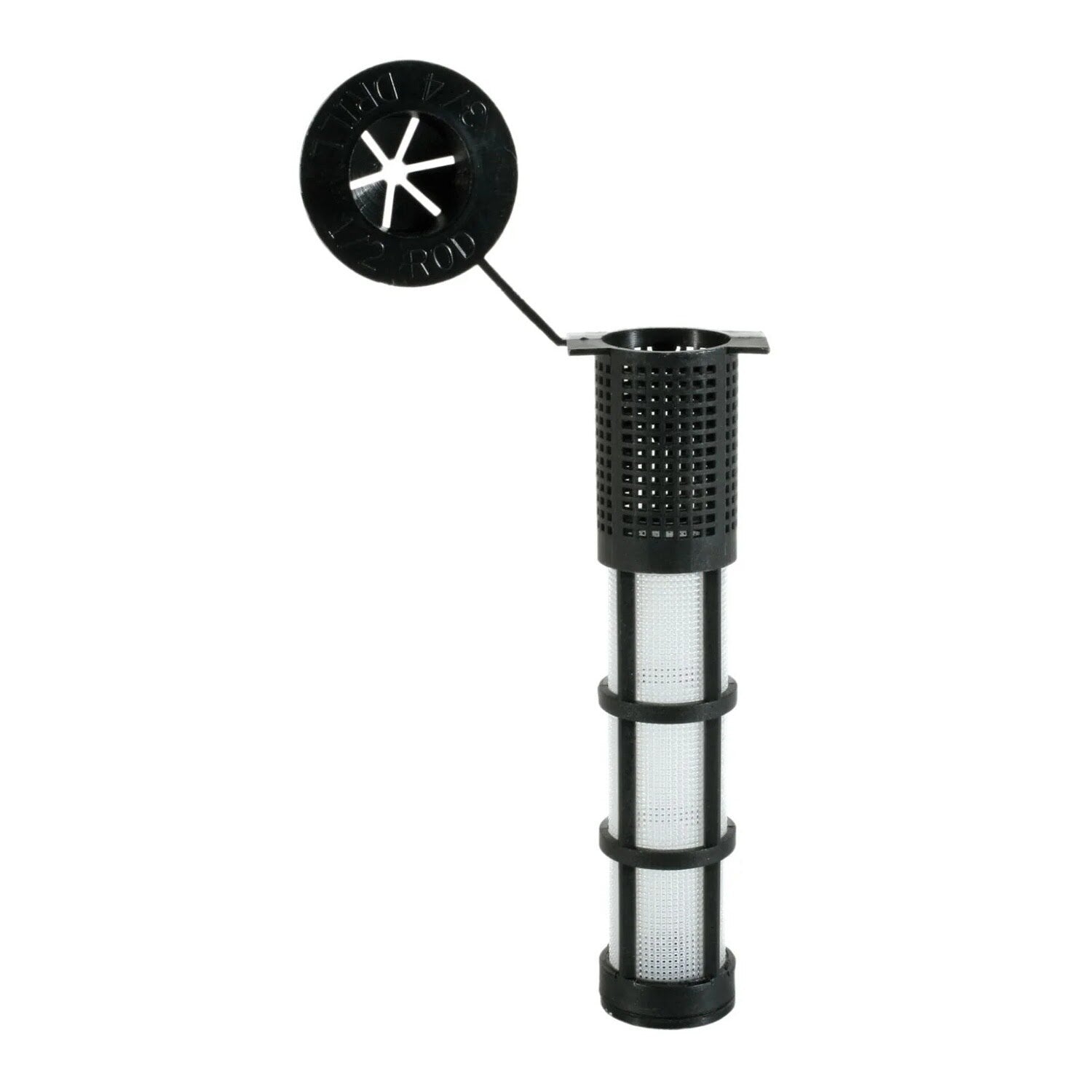

Simpson Strong-Tie AWS503P Description
The Opti-Mesh Acrylic Adhesive Plastic Screen Tube is designed for securely fastening rods or mechanical anchors to hollow base materials using Simpson adhesives.
Simpson Strong-Tie AWS503P Includes
- (1) Opti-Mesh Acrylic Adhesive Plastic Screen Tube
Simpson Strong-Tie AWS503P Features
- Designed for use with Simpson adhesives
- Prevents excess adhesive material from running into void spaces
- Compatible with hollow base materials like CMU and hollow brick
- Made of durable plastic material
- Specifically designed for 1/2" rods
Simpson Strong-Tie AWS503P Applications
- Hollow base material anchoring
- Masonry applications requiring secure rod fastening
- Use with Simpson AT adhesives

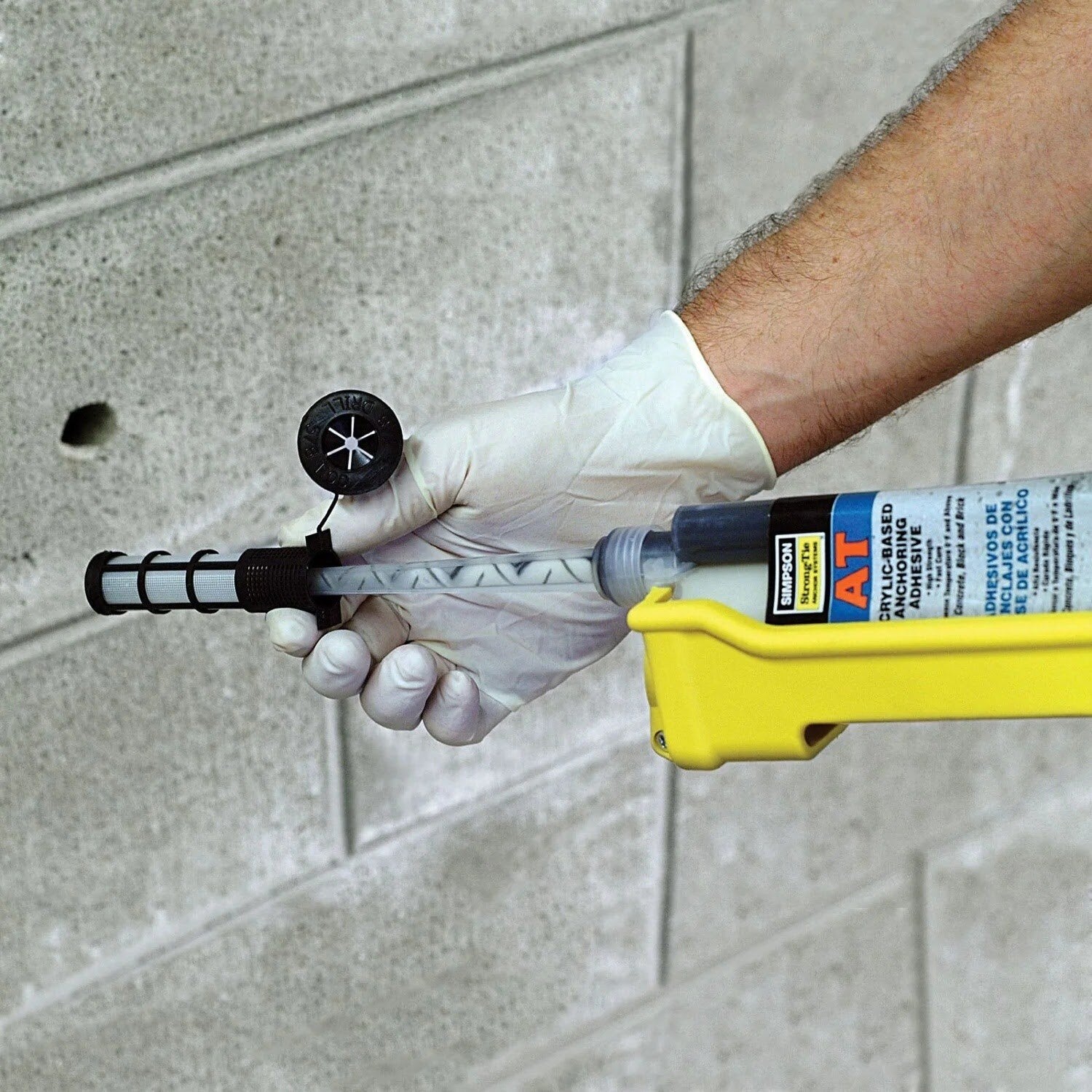

Simpson Strong-Tie AWS503P Installation Overview
- Fill the screen tube with the appropriate adhesive
- Insert the filled tube into the pre-drilled hole
- Slowly turn and insert the rod into the filled tube
- Allow to cure according to the specific adhesive instructions
Simpson Strong-Tie AWS503P Specifications
| Length | 3-1/2" |
| Material | Plastic |
| Accepts rod size | 1/2" |
| Hole diameter | 3/4" |
| Type | Acrylic Screen Tube |
NOTE: Screen Tubes are designed specifically for certain types of adhesives. These are acrylic screen tubes designed to be compatible with Strong-Tie AT adhesives.
