Simpson Anchors | SKU:
AWS506P
Simpson Strong-Tie AWS506P (6") Opti-Mesh Acrylic Adhesive Plastic Screen Tube for 1/2" Rod
$4.01
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie AWS506P Description

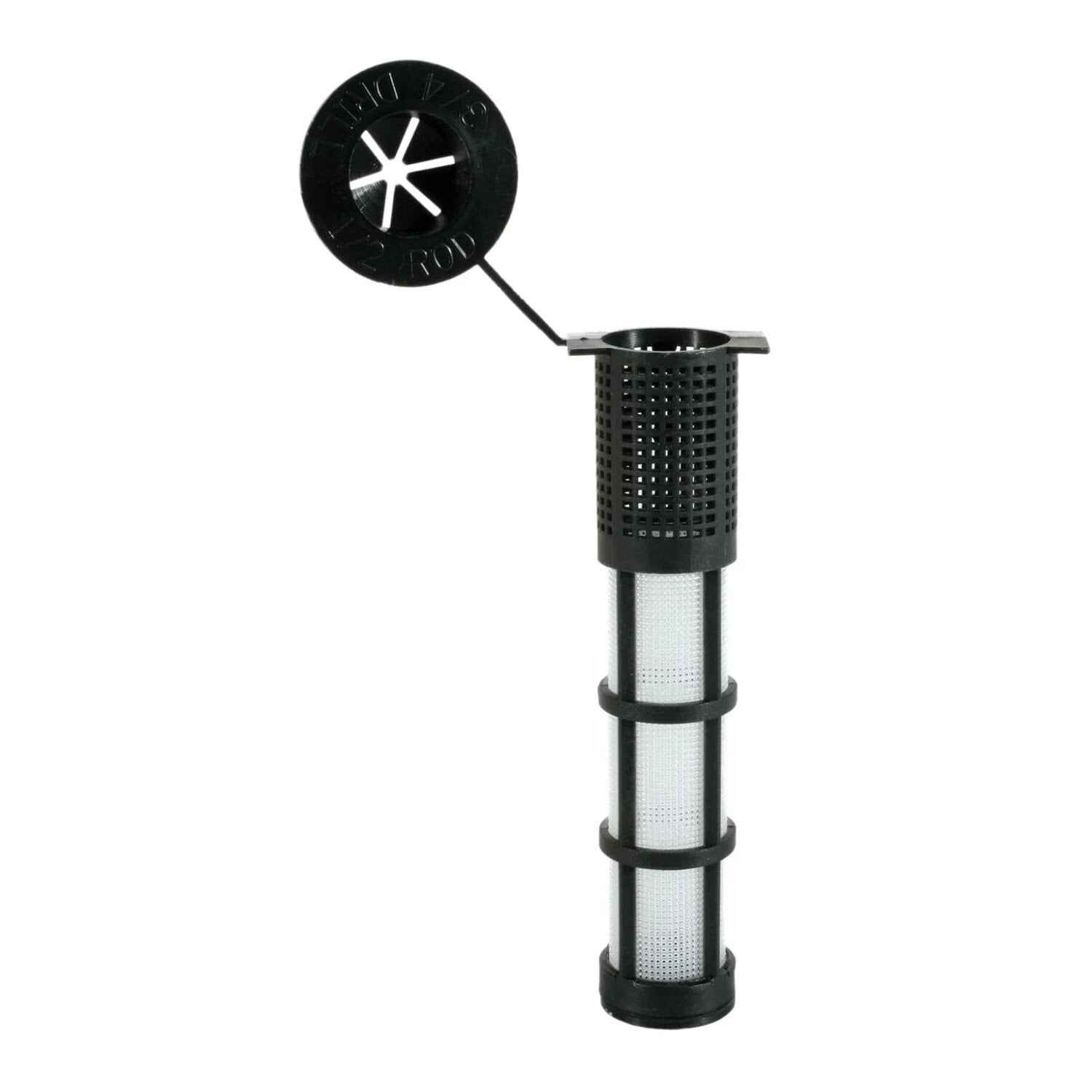

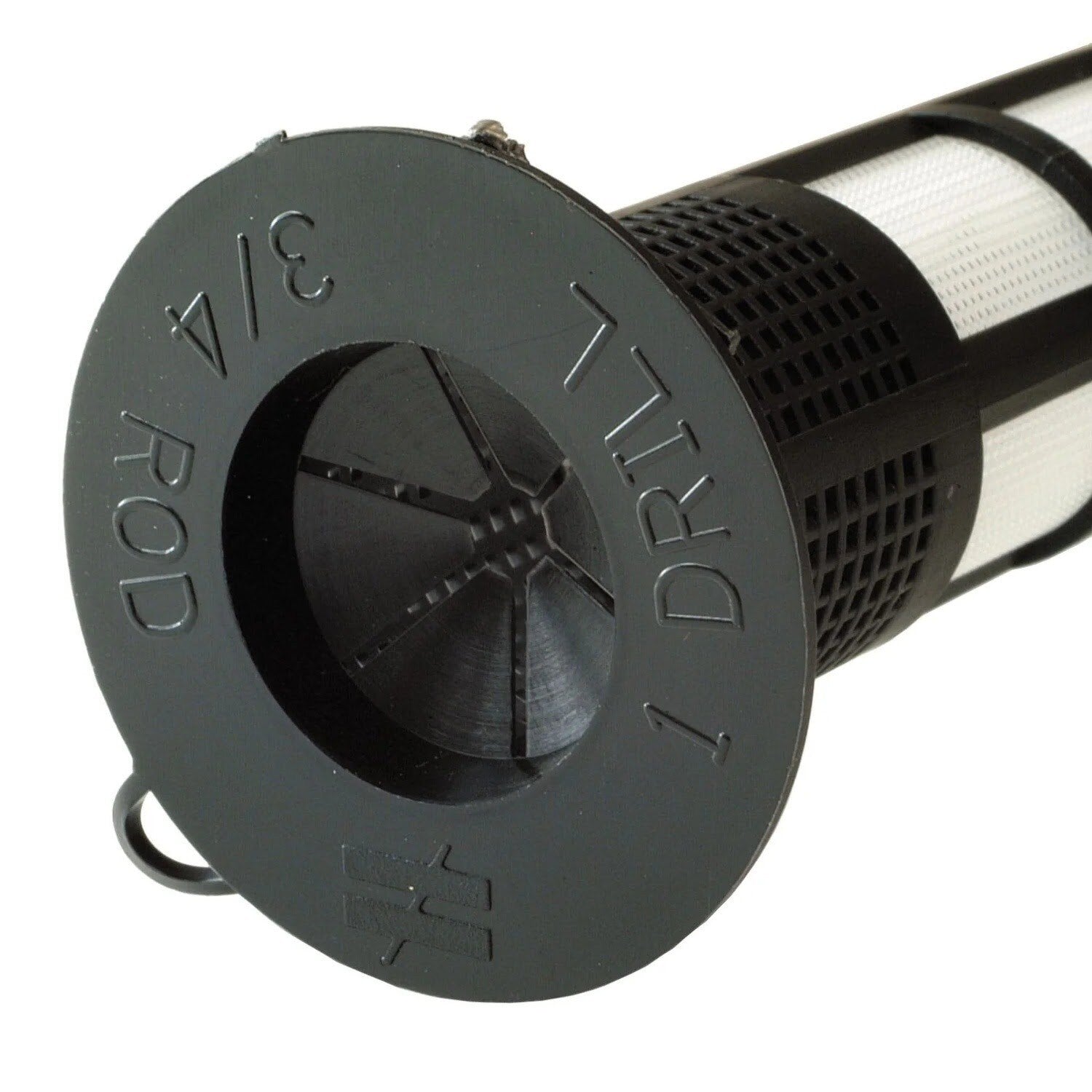

The Opti-Mesh Acrylic Anchor Screen Tube is designed for securely fastening rods or mechanical anchors to hollow base materials using Simpson adhesives.
Simpson Strong-Tie AWS506P Includes
- (1) Opti-Mesh Acrylic Anchor Screen Tube
Simpson Strong-Tie AWS506P Features
- Designed for use with Simpson adhesives
- Prevents excess adhesive from running into void spaces
- Compatible with Strong-Tie AT adhesives
- Made from durable plastic material
- Accepts 1/2" rod size
Simpson Strong-Tie AWS506P Applications

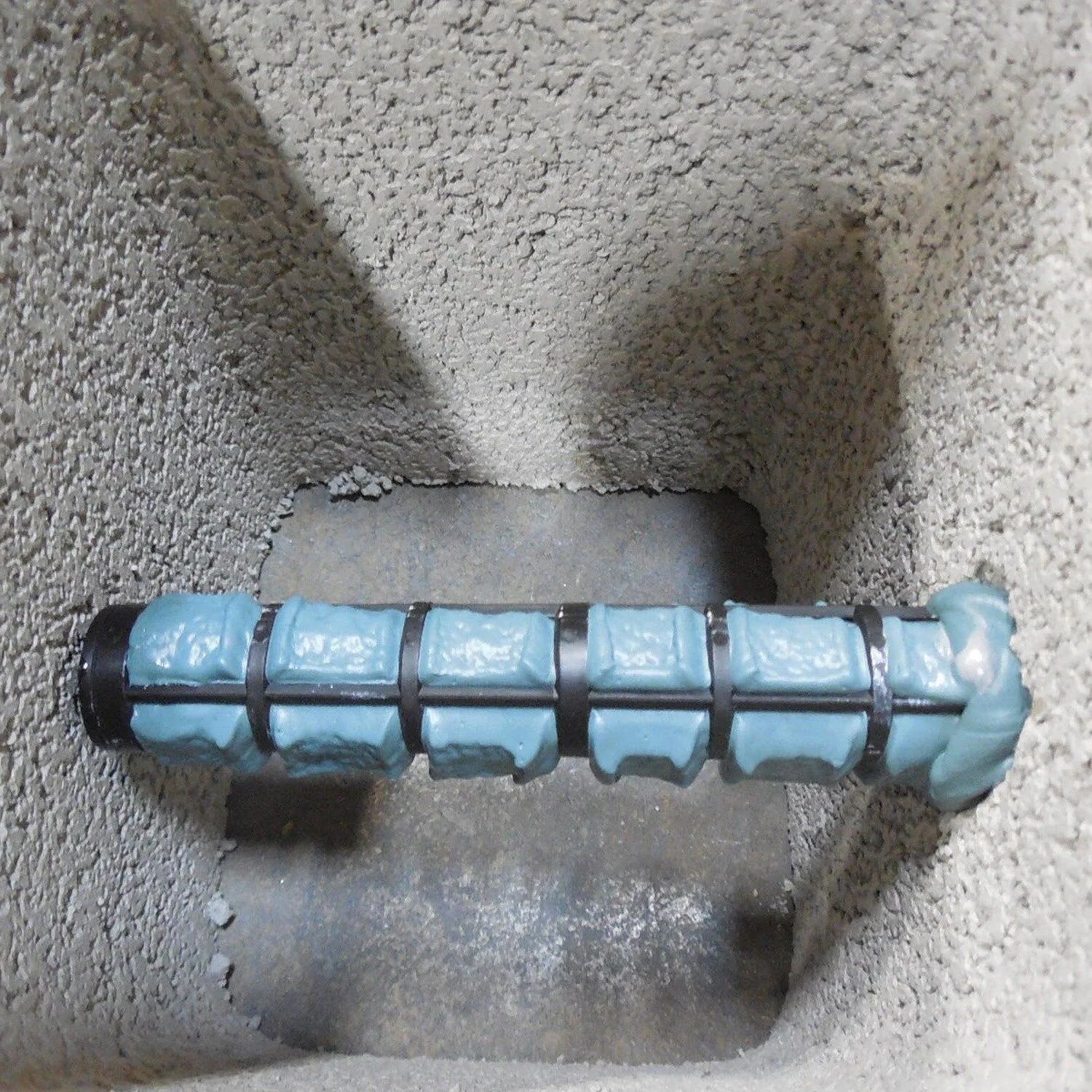

- Hollow base material anchoring
- Masonry applications such as CMU and hollow brick
- Securing rods or mechanical anchors
Simpson Strong-Tie AWS506P Installation Overview
- Fill the screen tube with the appropriate adhesive
- Insert the filled tube into the pre-drilled hole
- Slowly turn and insert the rod into the filled tube
- Allow to cure according to adhesive instructions
Simpson Strong-Tie AWS506P Specifications
| Length | 6" |
| Material | Plastic |
| Accepts rod size | 1/2" |
| Hole diameter | 3/4" |
| Type | Acrylic Screen Tube |
NOTE: Screen Tubes are designed specifically for certain types of adhesives. These are acrylic screen tubes designed to be compatible with Strong-Tie AT adhesives.
