Simpson Strong-Tie AWS623P (3-1/2") Opti-Mesh Acrylic Adhesive Plastic Screen Tube for 5/8" Rod
Description
Description
Simpson Strong-Tie AWS623P Description
The Opti-Mesh Acrylic Anchor Screen Tube is designed for securely fastening rods to hollow base materials using Simpson adhesives.
Simpson Strong-Tie AWS623P Includes

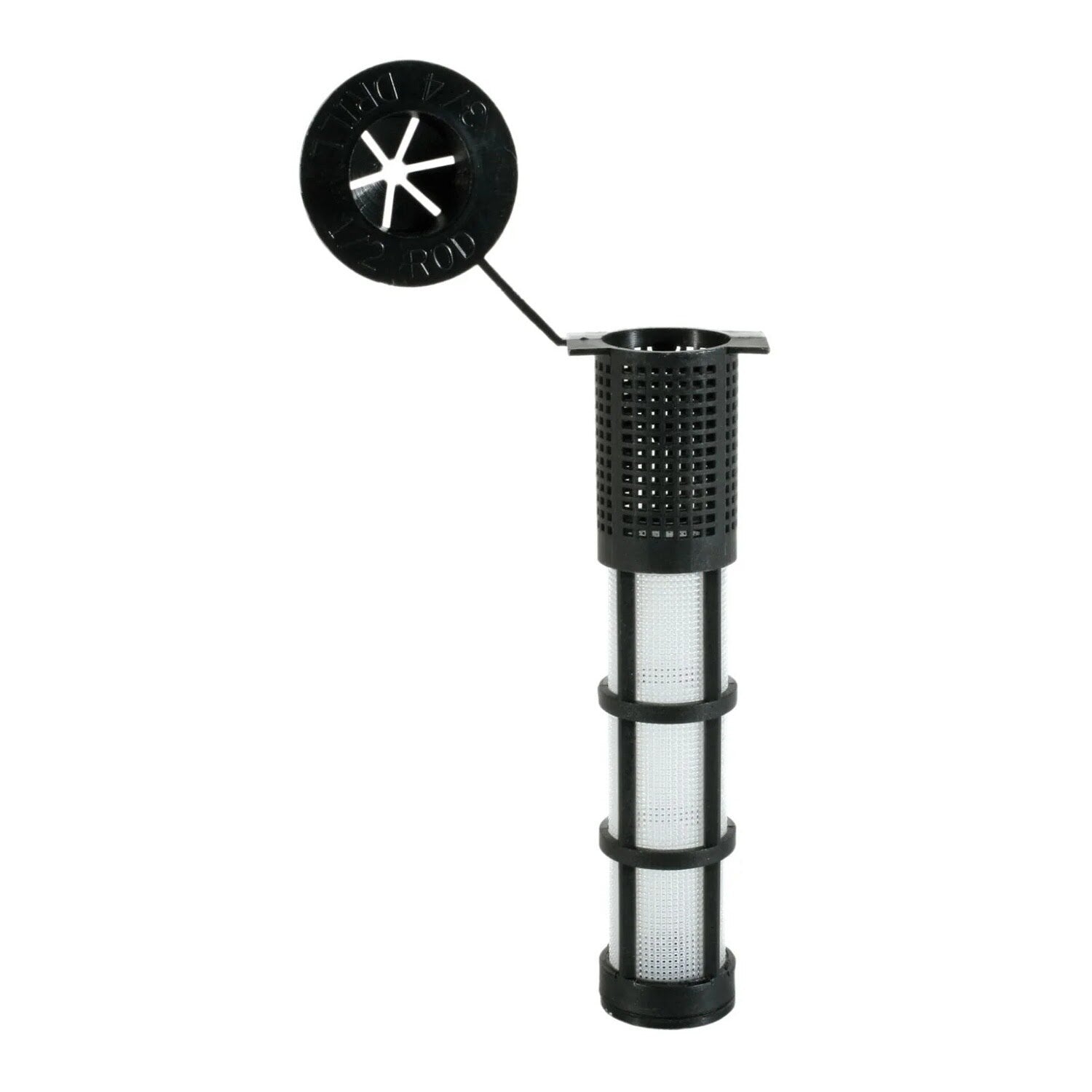

- (1) Opti-Mesh Acrylic Anchor Screen Tube
Simpson Strong-Tie AWS623P Features
- Designed for hollow base materials
- Compatible with Strong-Tie AT adhesives
- Prevents excess adhesive material from running into void spaces
- Easy installation process
Simpson Strong-Tie AWS623P Applications

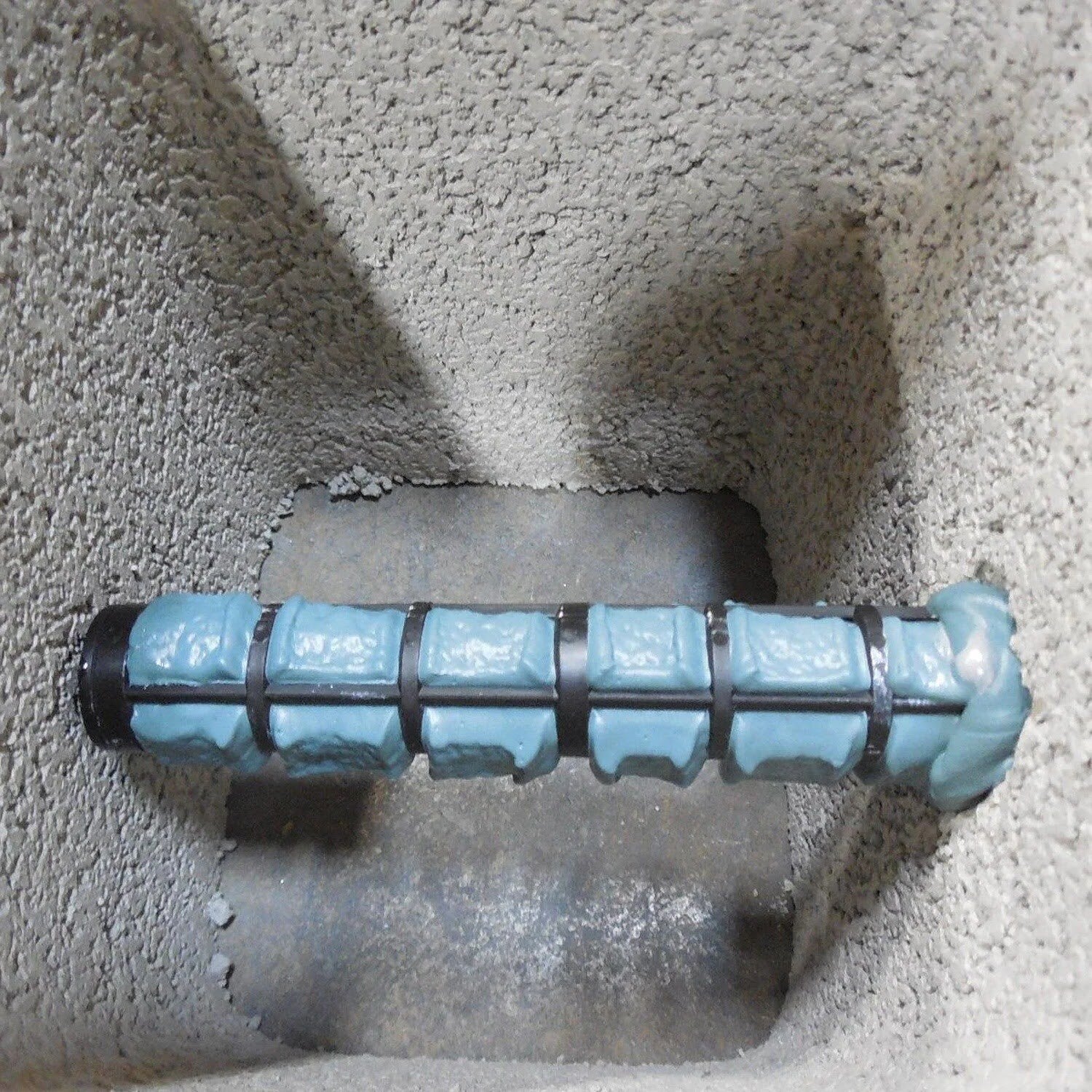

- Hollow base material anchoring
- Masonry applications
- CMU and hollow brick anchoring
Simpson Strong-Tie AWS623P Installation Overview

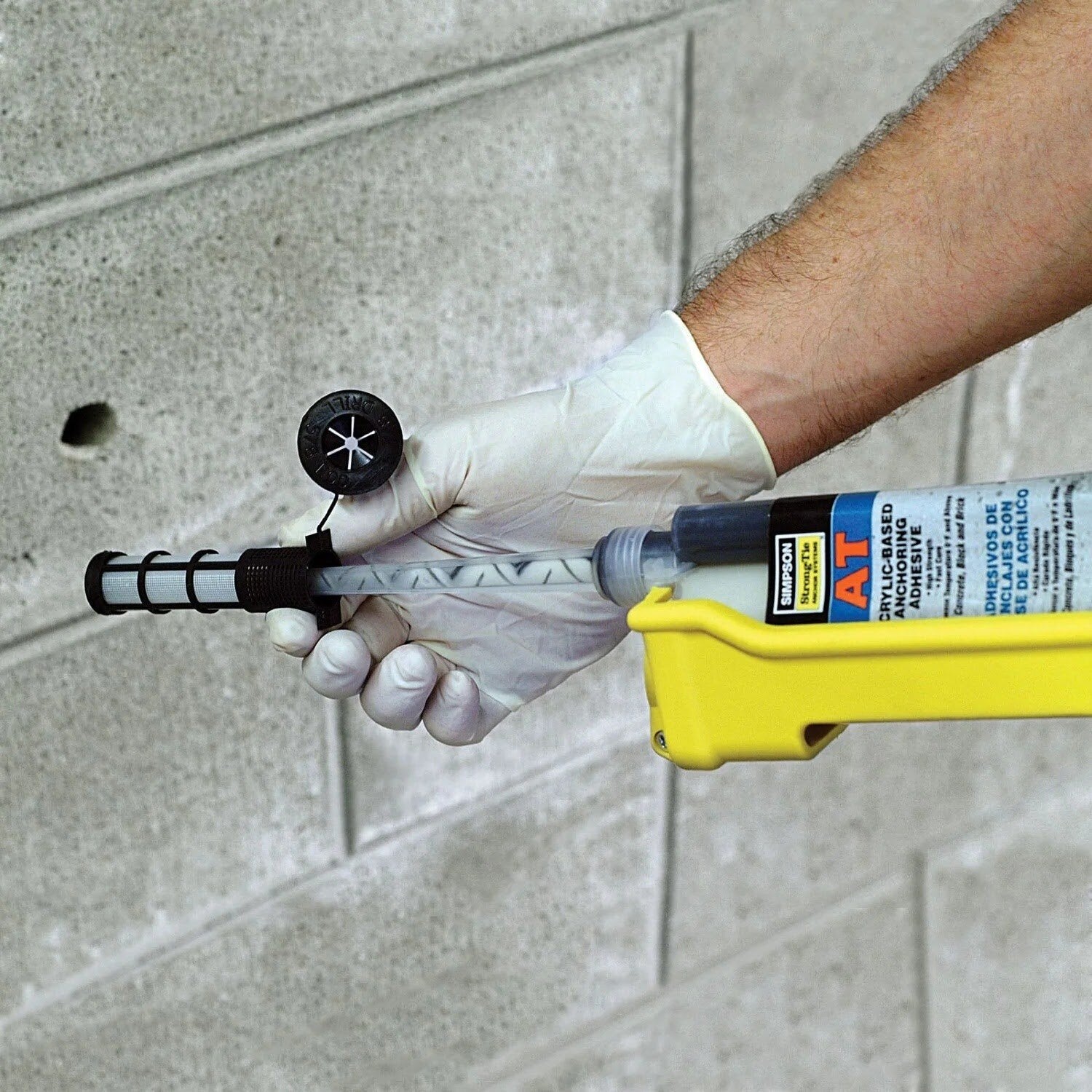

- Fill the screen tube with the appropriate adhesive.
- Insert the filled tube into the pre-drilled hole.
- Slowly turn and insert the rod into the filled tube.
- Allow to cure according to the specific adhesive instructions.
Simpson Strong-Tie AWS623P Specifications
Length | 3-1/2" |
Material | Plastic |
Accepts rod size | 5/8" |
Hole diameter | 7/8" |
Type | Acrylic Screen Tube |
NOTE: Screen Tubes are designed specifically for certain types of adhesives. These are acrylic screen tubes designed to be compatible with Strong-Tie AT adhesives.
