Simpson Hangers | SKU:
BA1.81/9.25

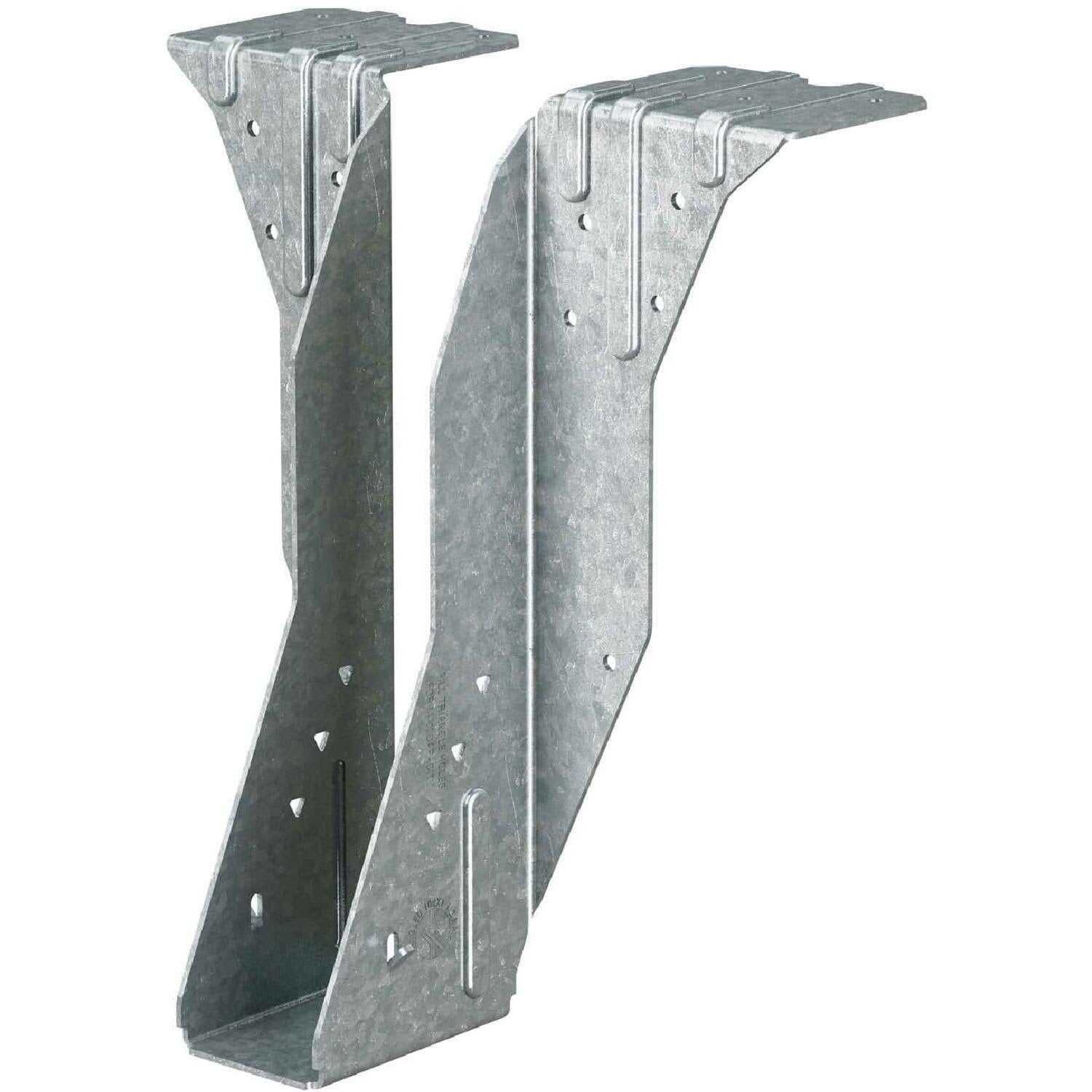

Simpson Strong-Tie BA1.81/9.25 (1-3/4" x 9-1/4") Top-Flange Joist Hanger for Engineered Wood - G90 Galvanized, 12 Gauge
$16.54
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie BA1.81/9.25 Description
The Simpson Strong-Tie BA1.81/9.25 is a top-flange joist hanger designed for engineered wood, providing secure and reliable connections with a G90 galvanized finish for durability.
Simpson Strong-Tie BA1.81/9.25 Includes
- (1) Top-Flange Joist Hanger
Simpson Strong-Tie BA1.81/9.25 Features
- Cost-effective one-piece design
- Full-height joist flange prevents rotation
- Available for special order for sloped/skewed members
- High load capacity for demanding structural requirements
- Precision-engineered for efficient load distribution
Simpson Strong-Tie BA1.81/9.25 Applications
- Floor Framing: Provides secure support for I-joists and SCL in multi-story buildings.
- Roof Framing: Ensures stability in engineered wood roof truss and rafter connections.
- Deck Construction: Ideal for attaching joists in covered outdoor structures.
- Beams & Headers: Strong, load-bearing connection for supporting beams in residential and commercial builds.
- Commercial & Industrial Projects: Suited for large-scale engineered wood framing applications requiring long-term strength and reliability.
Simpson Strong-Tie BA1.81/9.25 Installation Overview
- Use specified fasteners for maximum load capacity.
- Secure the hanger over the supporting beam or ledger.
- Ensure the joist seats fully inside the hanger.
- Attach fasteners through both the top flange and side flanges.
Simpson Strong-Tie BA1.81/9.25 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (16) 0.162 x 3-1/2" Nails, Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 9-1/4" |
| Joist size | 1-3/4" X 9-1/4" |
| Thickness | 12 Gauge |
| Width | 1-13/16" |
