Simpson Hangers | SKU:
BA2.37/14

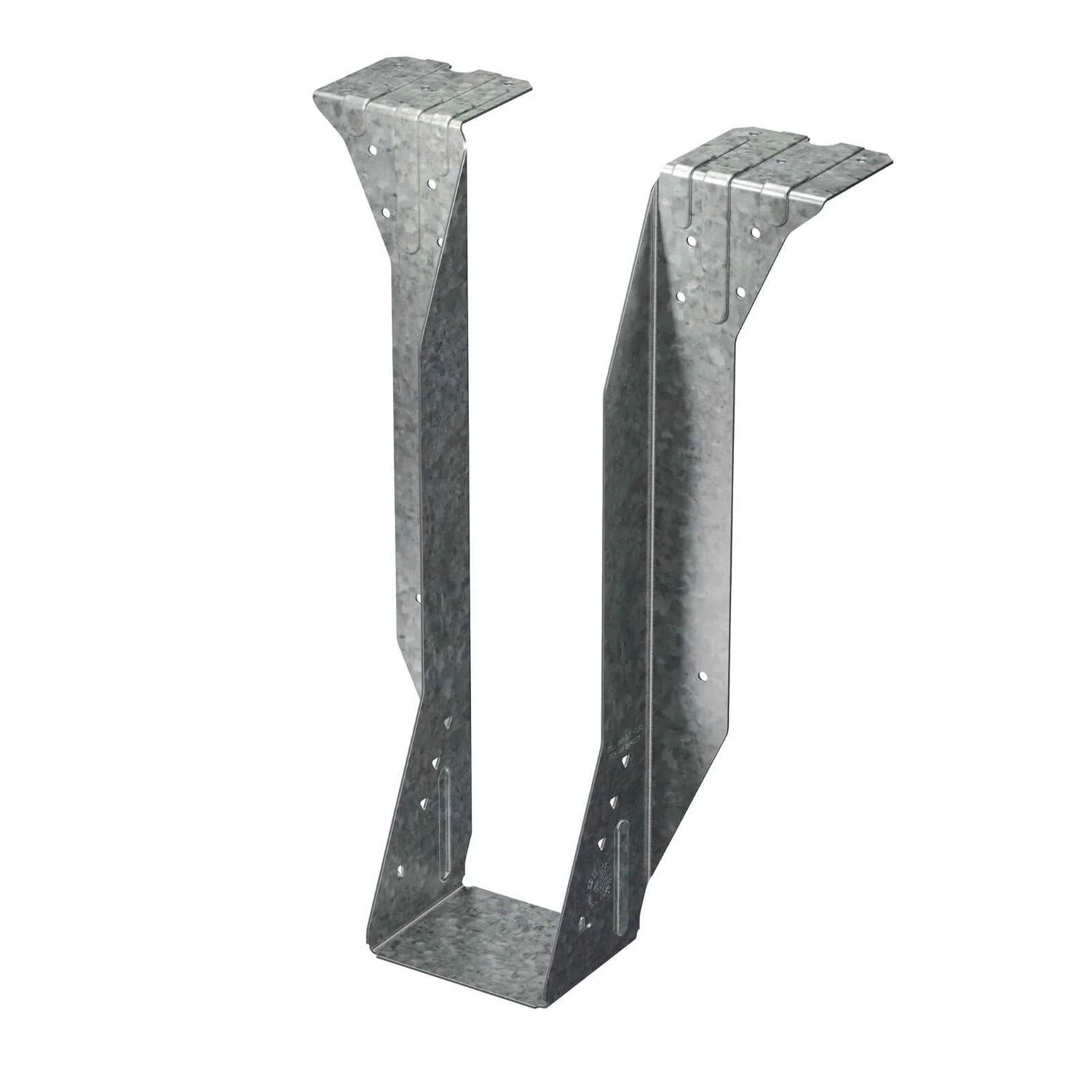

Simpson Strong-Tie BA2.37/14 (2-5/16" x 14") BA Top-Flange Joist Hanger for Engineered Wood
$21.39
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie BA2.37/14 Description
The Simpson Strong-Tie BA Beam Hanger is designed to provide secure and reliable connections for I-joists and structural composite lumber (SCL). This top-flange hanger simplifies installation while maintaining superior load-bearing capacity, making it an essential component for wood framing projects in residential, commercial, and industrial applications.
Simpson Strong-Tie BA2.37/14 Includes
- (1) Top Flange I-Joist Hanger
Simpson Strong-Tie BA2.37/14 Features
- Designed for I-Joists and SCL: Engineered to fit engineered wood members, ensuring a strong and secure connection.
- Top-Flange Installation: Allows for straightforward placement over supporting members, improving ease of use and efficiency.
- High Load Capacity: Designed to meet demanding structural requirements in wood framing applications.
- Versatile Application: Suitable for a range of uses, including beams, headers, and floor framing systems.
Simpson Strong-Tie BA2.37/14 Applications
- Floor Framing: Provides secure support for I-joists and SCL in multi-story buildings.
- Roof Framing: Ensures stability in engineered wood roof truss and rafter connections.
- Deck Construction: Ideal for attaching joists in covered outdoor structures.
- Beams & Headers: Strong, load-bearing connection for supporting beams in residential and commercial builds.
- Commercial & Industrial Projects: Suited for large-scale engineered wood framing applications requiring long-term strength and reliability.
Simpson Strong-Tie BA2.37/14 Installation Overview
- Use Specified Fasteners: Install with approved nails or screws to ensure maximum load capacity and structural integrity.
- Top-Flange Placement: Secure the hanger over the supporting beam or ledger before setting the I-joist into place.
- Full Contact with Member: Ensure the joist seats fully inside the hanger for proper load transfer.
- Secure Both Flanges: Attach fasteners through both the top flange and side flanges as per manufacturer recommendations.
Simpson Strong-Tie BA2.37/14 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (16) 0.162 x 3-1/2" Nails Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 14" |
| Joist size | 2-5/16" X 14" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 2-3/8" |
