Simpson Strong-Tie BA2.37/9.5 (2-5/16" x 9-1/2") Top-Flange Joist Hanger for Engineered Wood

Name: Simpson Strong-Tie BA2.37/9.5 (2-5/16" x 9-1/2") Top-Flange Joist Hanger for Engineered Wood
Brand: Simpson Hangers
SKU: 819469
Price: 16.83 USD
Availability: BackOrder

$16.83

Description

Simpson Strong-Tie BA2.37/9.5 Description

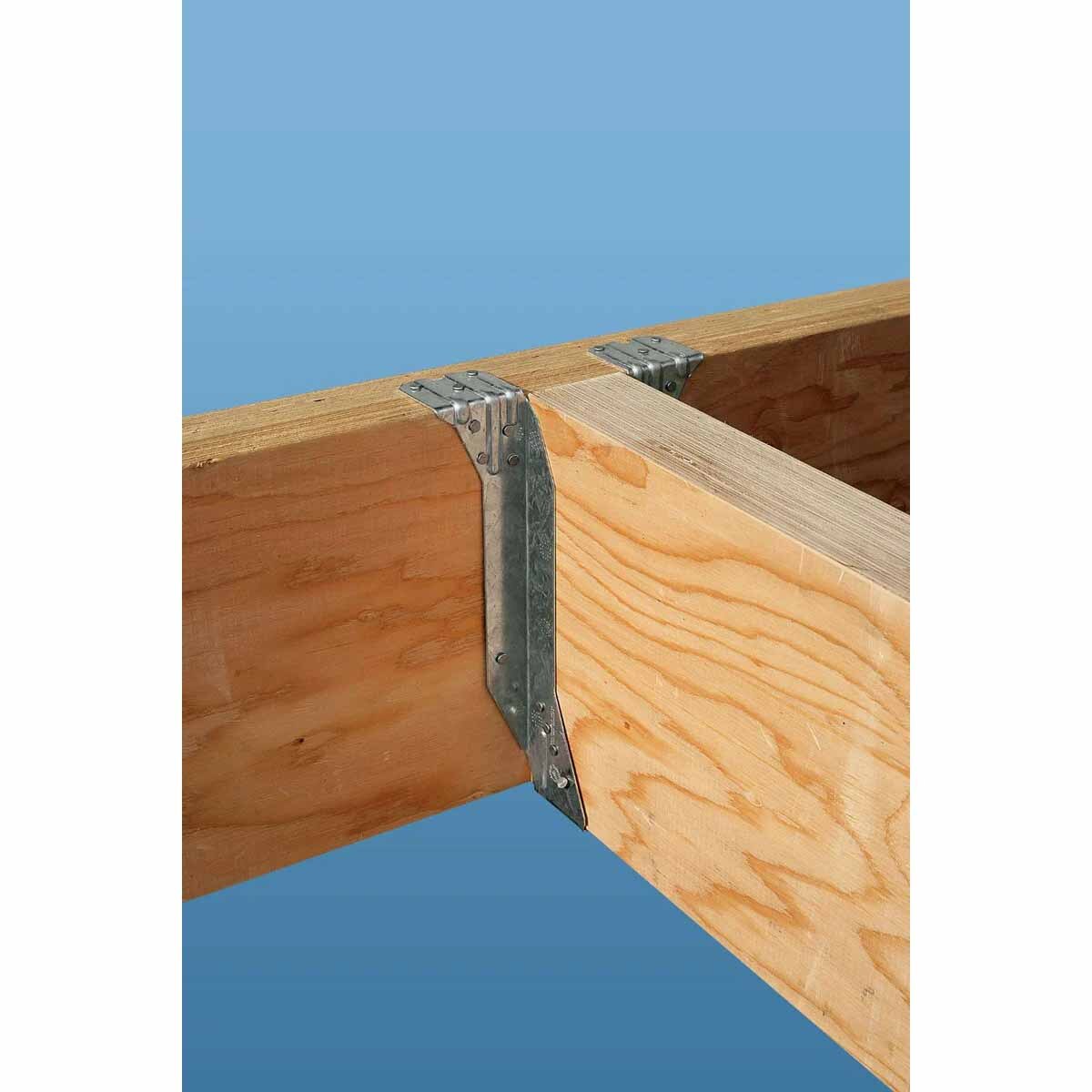

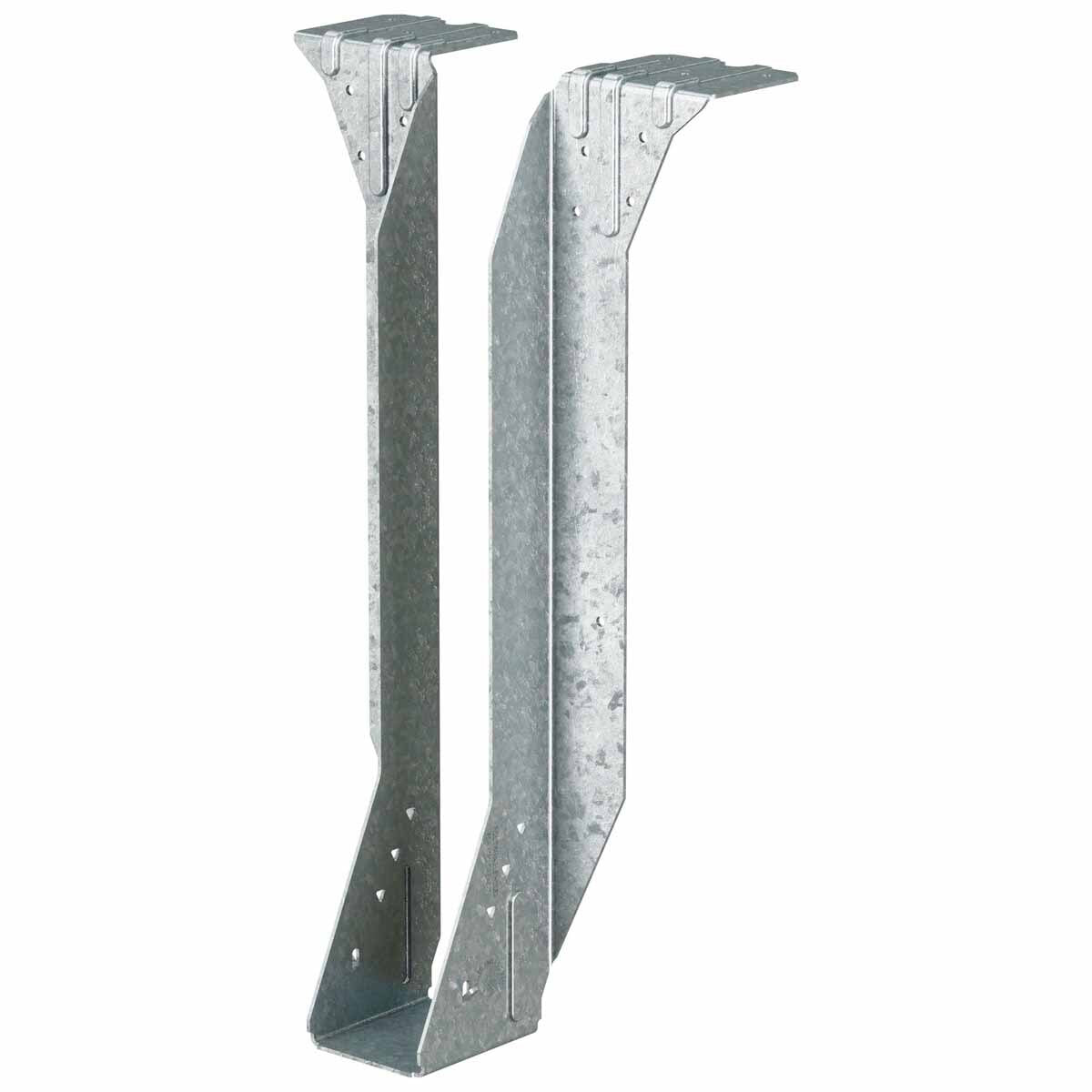

The Simpson Strong-Tie BA Beam Hanger is designed to provide secure and reliable connections for I-joists and structural composite lumber (SCL).

Simpson Strong-Tie BA2.37/9.5 Includes

(1) BA2.37/9.5 Beam Hanger

Simpson Strong-Tie BA2.37/9.5 Features

Cost-effective one-piece design compared to welded hangers
A full-height joist flange that captures the top chord of the joist to prevent rotation and eliminate the need for web stiffeners
Available for special order to accommodate sloped and/or skewed members

Simpson Strong-Tie BA2.37/9.5 Applications

Floor Framing: Provides secure support for I-joists and SCL in multi-story buildings.
Roof Framing: Ensures stability in engineered wood roof truss and rafter connections.
Deck Construction: Ideal for attaching joists in covered outdoor structures.
Beams & Headers: Strong, load-bearing connection for supporting beams in residential and commercial builds.
Commercial & Industrial Projects: Suited for large-scale engineered wood framing applications requiring long-term strength and reliability.

Simpson Strong-Tie BA2.37/9.5 Installation Overview

Use all specified fasteners; see General Notes and nailer table.

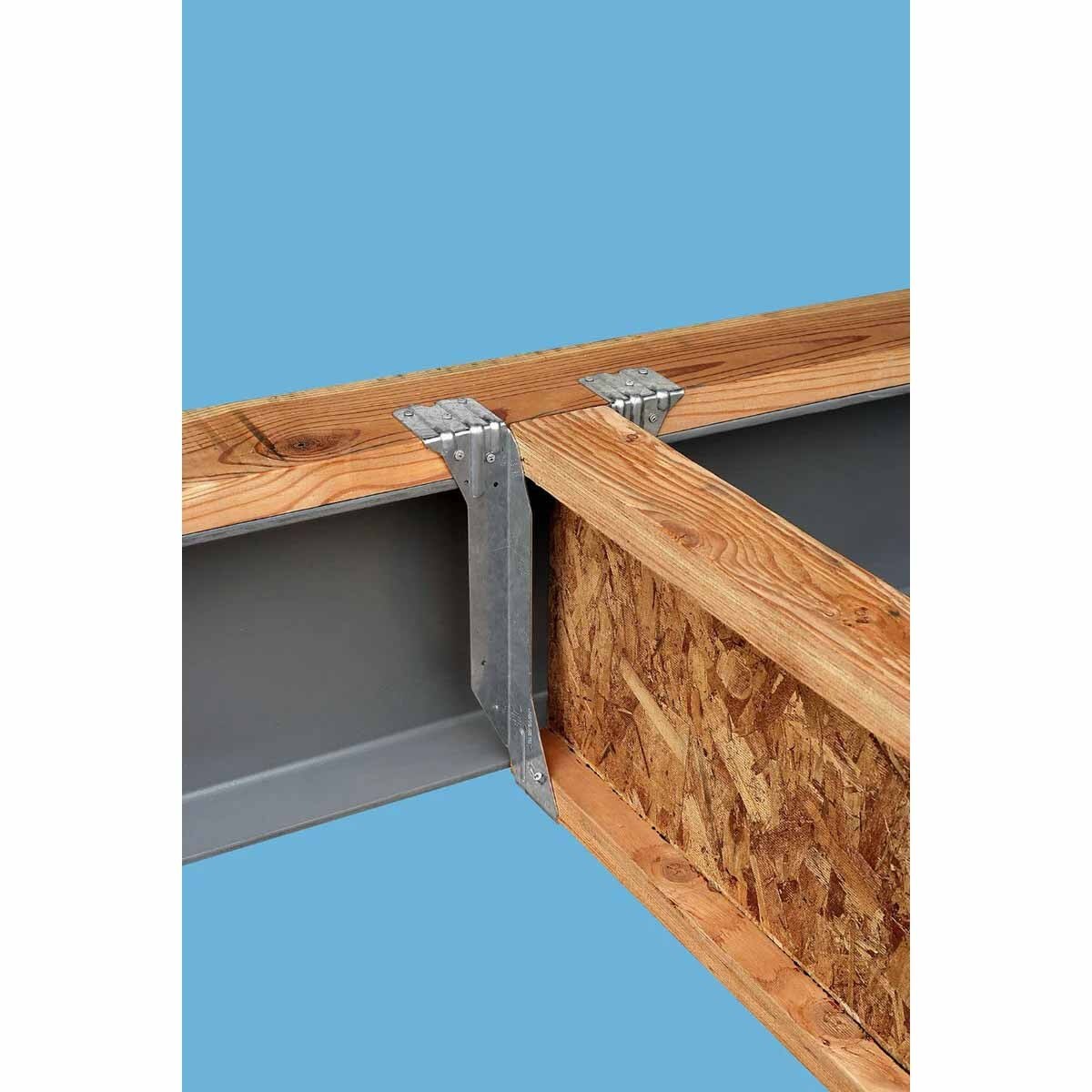

May be used for weld-on applications. The minimum size weld is a 2"-long fillet weld to each side of each top flange.
BA min. nailing does not require web stiffeners. BA max. nailing requires the use of web stiffeners.

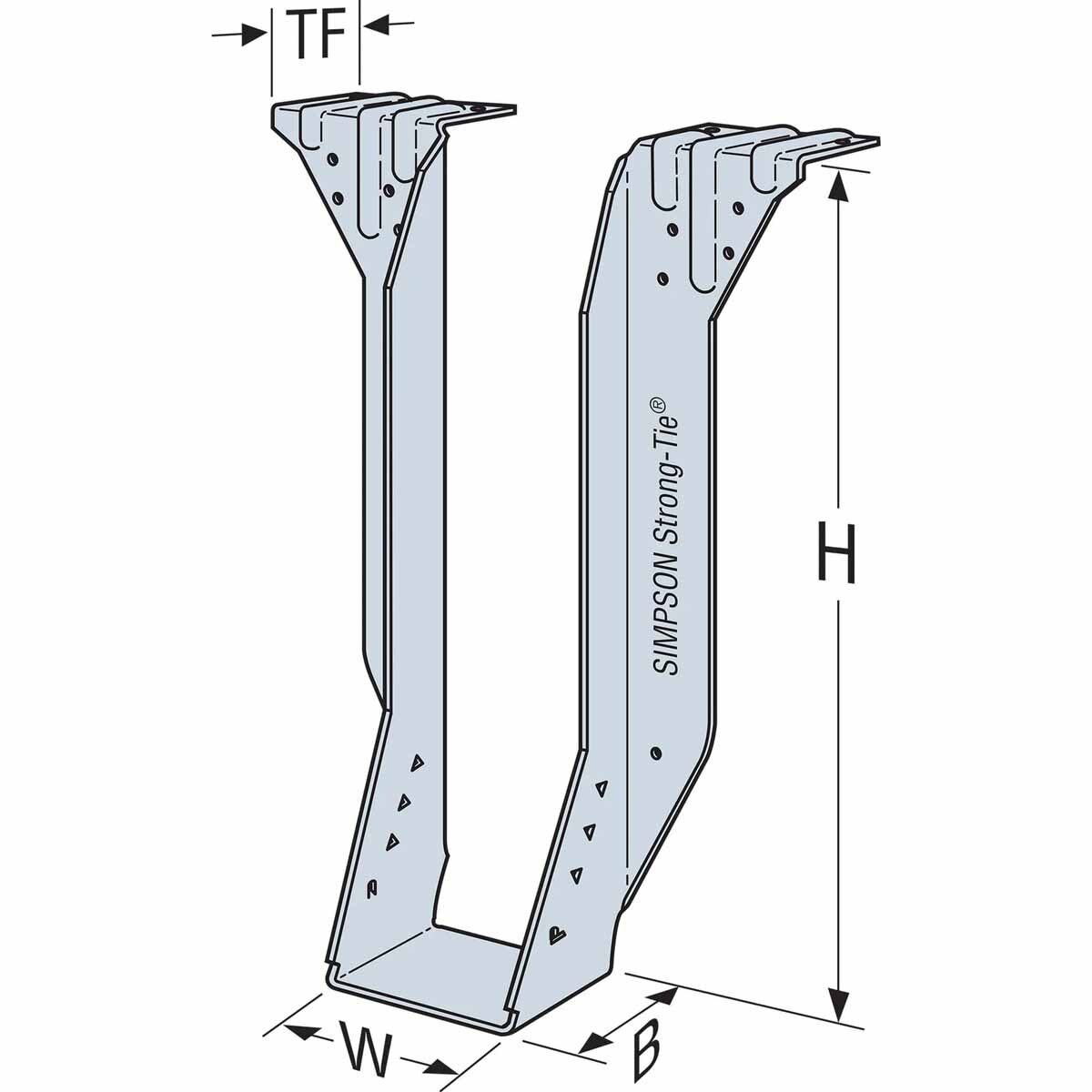

Ledgers must be evaluated for each application separately. Check TF dimension, nail length and nail location on ledger.
Bevel-cut the carried member for skewed applications.

Simpson Strong-Tie BA2.37/9.5 Specifications

Material	Carbon Steel
Finish	G90 Galvanized
Thickness	12 Gauge
Width	2-3/8"
Height	9-1/2"
Joist size	2-5/16" X 9-1/2"
Fasteners required	Header - (16) 0.162 x 3-1/2" Nails Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
