Simpson Hangers | SKU:
BA2.56/16

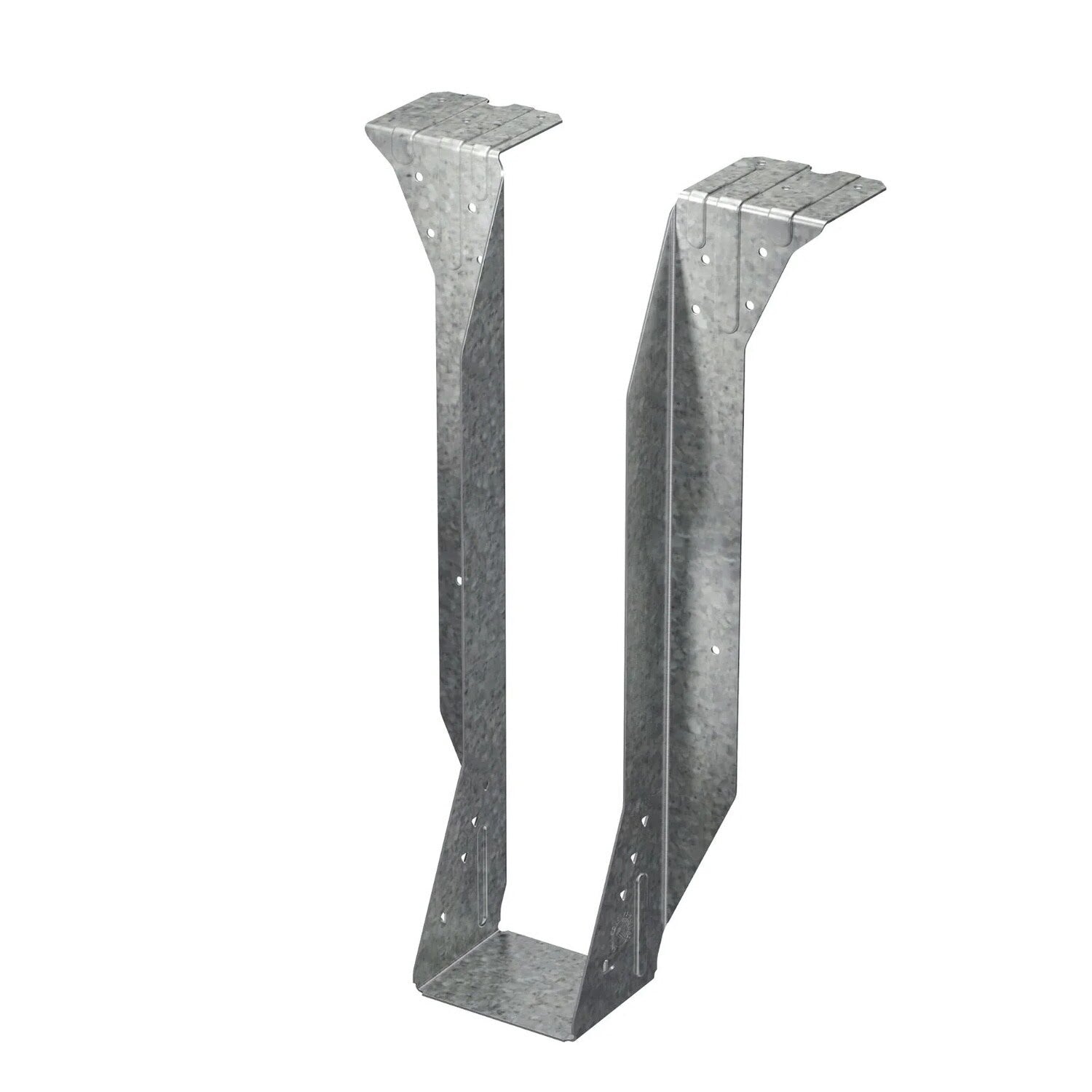

Simpson Strong-Tie BA2.56/16 (2-1/2" x 16") BA Top-Flange Joist Hanger for Engineered Wood
$23.67
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie BA2.56/16 Description
The Simpson Strong-Tie BA Beam Hanger is designed to provide secure and reliable connections for I-joists and structural composite lumber (SCL).
Simpson Strong-Tie BA2.56/16 Includes
- (1) Top-Flange Joist Hanger
Simpson Strong-Tie BA2.56/16 Features
- Designed for I-Joists and SCL
- Top-Flange Installation
- High Load Capacity
- Versatile Application
Simpson Strong-Tie BA2.56/16 Applications
- Floor Framing: Provides secure support for I-joists and SCL in multi-story buildings.
- Roof Framing: Ensures stability in engineered wood roof truss and rafter connections.
- Deck Construction: Ideal for attaching joists in covered outdoor structures.
- Beams & Headers: Strong, load-bearing connection for supporting beams in residential and commercial builds.
- Commercial & Industrial Projects: Suited for large-scale engineered wood framing applications requiring long-term strength and reliability.
Simpson Strong-Tie BA2.56/16 Installation Overview
- Use Specified Fasteners: Install with approved nails or screws to ensure maximum load capacity and structural integrity.
- Top-Flange Placement: Secure the hanger over the supporting beam or ledger before setting the I-joist into place.
- Full Contact with Member: Ensure the joist seats fully inside the hanger for proper load transfer.
- Secure Both Flanges: Attach fasteners through both the top flange and side flanges as per manufacturer recommendations.
Simpson Strong-Tie BA2.56/16 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (16) 0.162 x 3-1/2" Nails Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 16" |
| Joist size | 2-1/2" X 16" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 2-9/16" |
