Simpson Hangers | SKU: BA2.56/24 | Barcode: 707392002123

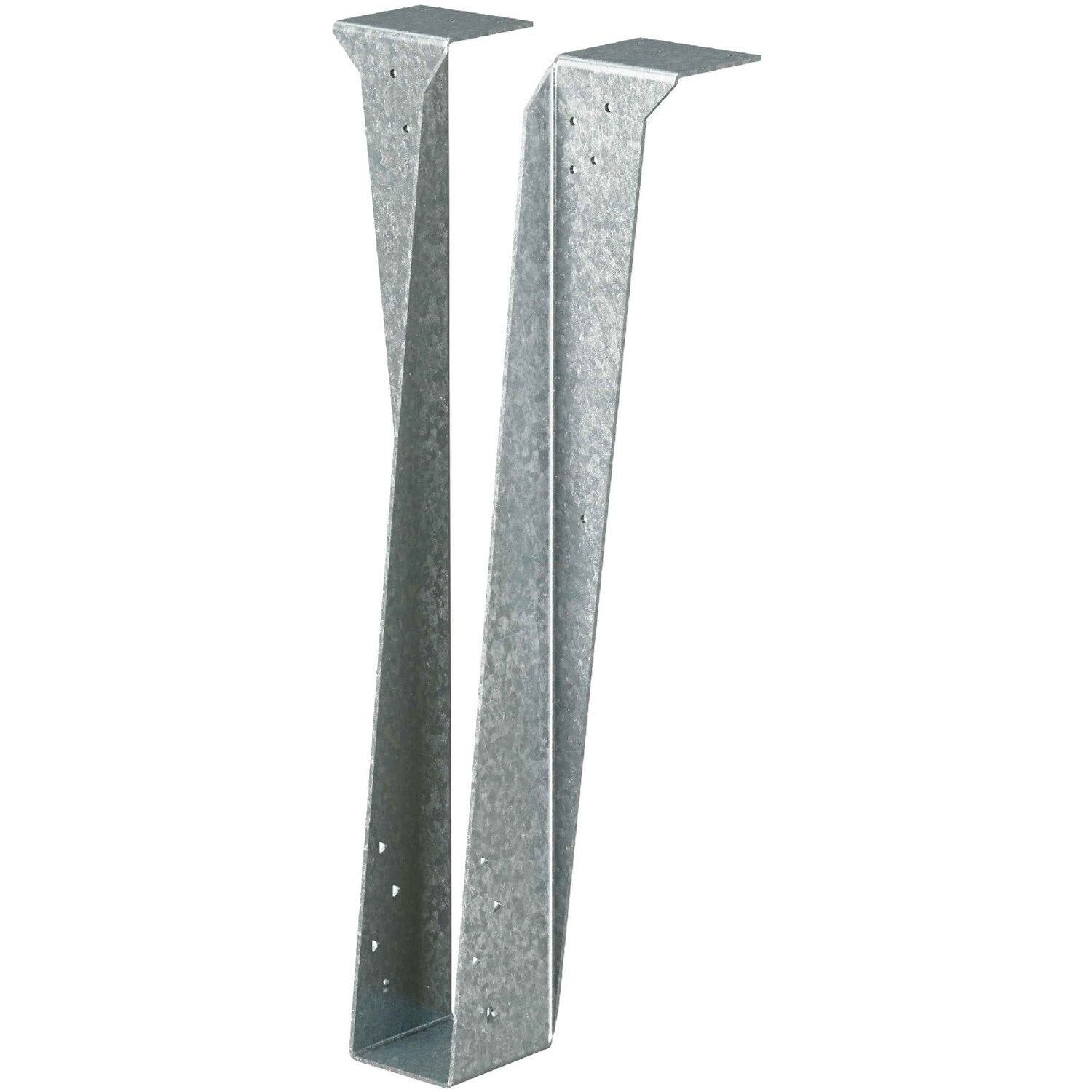

Simpson Strong-Tie BA2.56/24 (2-1/2" x 24") Top-Flange Joist Hanger for Engineered Wood

Name: Simpson Strong-Tie BA2.56/24 (2-1/2" x 24") Top-Flange Joist Hanger for Engineered Wood
Brand: Simpson Hangers
SKU: 819464
Price: 41.58 USD
Availability: BackOrder

$41.58

Description

Simpson Strong-Tie BA2.56/24 Description

The Simpson Strong-Tie BA2.56/24 Beam Hanger is designed for secure and reliable connections for I-joists and structural composite lumber (SCL).

Simpson Strong-Tie BA2.56/24 Includes

(1) BA2.56/24 Beam Hanger

Simpson Strong-Tie BA2.56/24 Features

Cost-effective one-piece design compared to welded hangers
Full-height joist flange prevents rotation and eliminates the need for web stiffeners
Available for special order to accommodate sloped and/or skewed members
Designed for I-Joists and SCL
Top-Flange Installation for straightforward placement
High Load Capacity for demanding structural requirements
Versatile Application for beams, headers, and floor framing systems

Simpson Strong-Tie BA2.56/24 Applications

Floor Framing: Provides secure support for I-joists and SCL in multi-story buildings.
Roof Framing: Ensures stability in engineered wood roof truss and rafter connections.
Deck Construction: Ideal for attaching joists in covered outdoor structures.
Beams & Headers: Strong, load-bearing connection for supporting beams in residential and commercial builds.
Commercial & Industrial Projects: Suited for large-scale engineered wood framing applications requiring long-term strength and reliability.

Simpson Strong-Tie BA2.56/24 Installation Overview

Use specified fasteners to ensure maximum load capacity and structural integrity.
Secure the hanger over the supporting beam or ledger before setting the I-joist into place.
Ensure the joist seats fully inside the hanger for proper load transfer.

Simpson Strong-Tie BA2.56/24 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Header - (16) 0.162 x 3-1/2" Nails Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails
Height	24"
Joist size	2-1/2" X 24"
Thickness	12 Gauge
Width	2-9/16"

NOTE: Ensure the correct fasteners are used in the specified positions to achieve the published load values.
