Simpson Hangers | SKU:
BA3.56/11.25

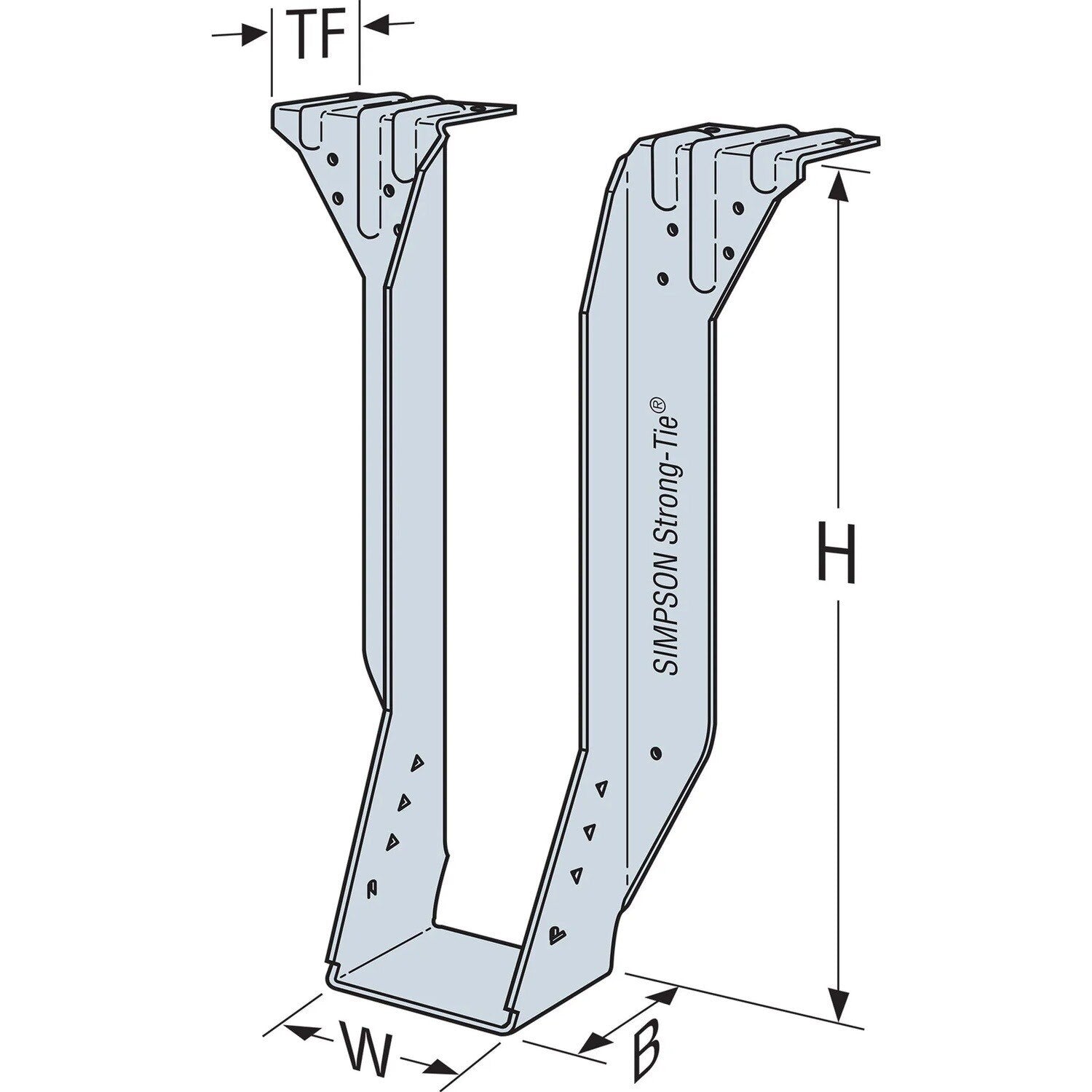

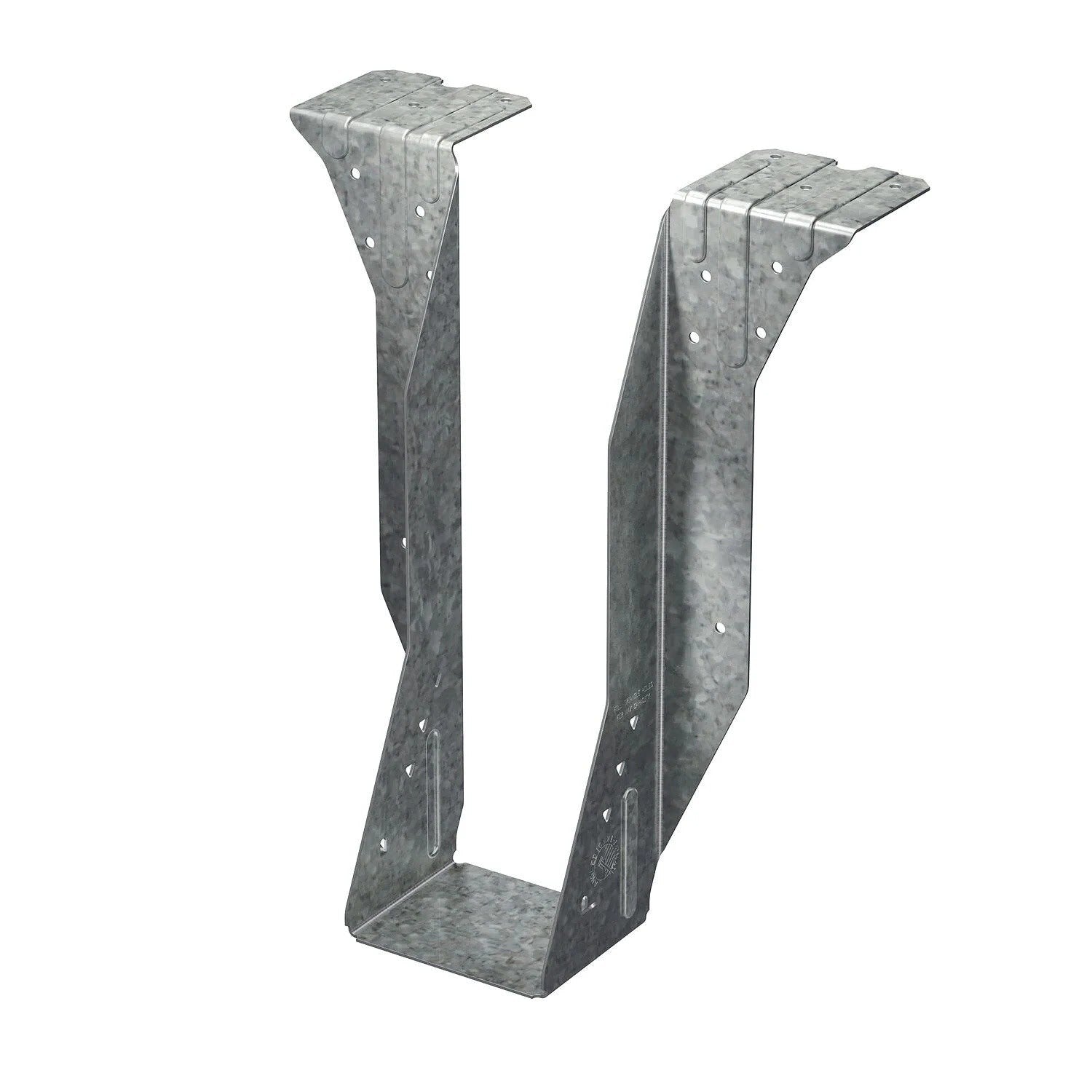

Simpson Strong-Tie BA3.56/11.25 (3-1/2" x 11-1/4") Engineered Wood Top-Flange Joist Hanger - G90 Galvanized
$19.27
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie BA3.56/11.25 Description
The Simpson Strong-Tie BA Beam Hanger is designed for secure and reliable connections for I-joists and structural composite lumber (SCL).
Simpson Strong-Tie BA3.56/11.25 Includes
- (1) BA3.56/11.25 Beam Hanger
Simpson Strong-Tie BA3.56/11.25 Features
- Cost-effective one-piece design compared to welded hangers
- Full-height joist flange prevents rotation and eliminates the need for web stiffeners
- Available for special order to accommodate sloped and/or skewed members
- Designed for I-Joists and SCL
- Top-Flange Installation for straightforward placement
- High Load Capacity for demanding structural requirements
Simpson Strong-Tie BA3.56/11.25 Applications
- Floor Framing: Provides secure support for I-joists and SCL in multi-story buildings.
- Roof Framing: Ensures stability in engineered wood roof truss and rafter connections.
- Deck Construction: Ideal for attaching joists in covered outdoor structures.
- Beams & Headers: Strong, load-bearing connection for supporting beams in residential and commercial builds.
- Commercial & Industrial Projects: Suited for large-scale engineered wood framing applications requiring long-term strength and reliability.
Simpson Strong-Tie BA3.56/11.25 Installation Overview
- Use specified fasteners to ensure maximum load capacity.
- Secure the hanger over the supporting beam or ledger before setting the I-joist into place.
- Ensure the joist seats fully inside the hanger for proper load transfer.
Simpson Strong-Tie BA3.56/11.25 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (16) 0.162 x 3-1/2" Nails Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails |
| Height | 11-1/4" |
| Joist size | 3-1/2" X 11-1/4" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 12 Gauge |
| Width | 3-9/16" |
NOTE: This item is made to order with varied lead times. Please contact us for exact lead times.
