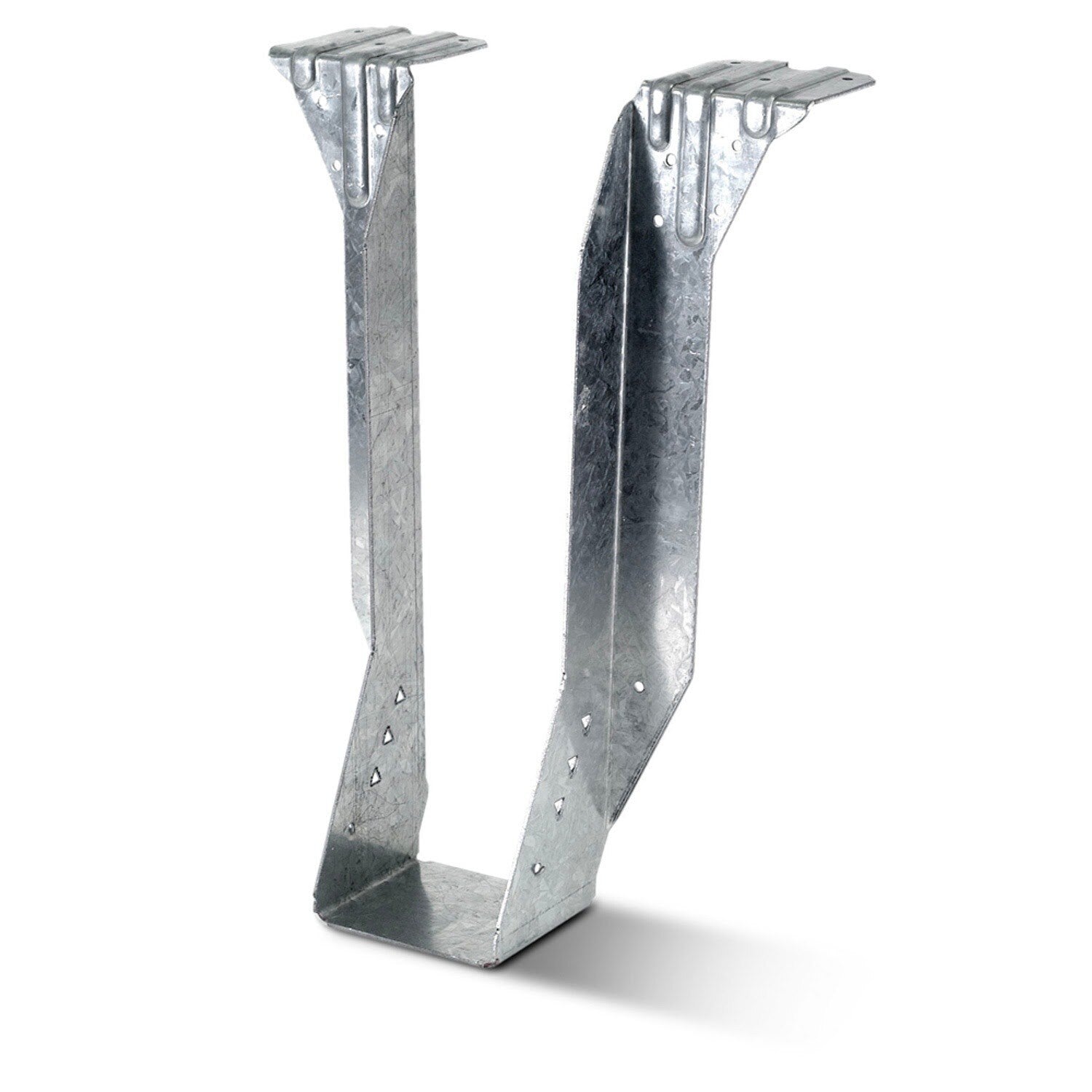

Simpson Strong-Tie BA3.56/9.25 (3-1/2" x 9-1/4") Top-Flange Joist Hanger for Engineered Wood

Name: Simpson Strong-Tie BA3.56/9.25 (3-1/2" x 9-1/4") Top-Flange Joist Hanger for Engineered Wood
Brand: Simpson Hangers
SKU: 819452
Price: 16.83 USD
Availability: BackOrder

$16.83

Description

Simpson Strong-Tie BA3.56/9.25 Description

The Simpson Strong-Tie BA Beam Hanger is designed for secure connections in wood framing projects, offering high load capacity and ease of installation.

Simpson Strong-Tie BA3.56/9.25 Includes

(1) Top-Flange Joist Hanger

Simpson Strong-Tie BA3.56/9.25 Features

Cost-effective one-piece design compared to welded hangers
Full-height joist flange prevents rotation and eliminates the need for web stiffeners
Available for special order to accommodate sloped and/or skewed members
Designed for I-Joists and SCL
Top-Flange Installation for straightforward placement
High Load Capacity for demanding structural requirements
Versatile Application for beams, headers, and floor framing systems

Simpson Strong-Tie BA3.56/9.25 Applications

Floor Framing: Provides secure support for I-joists and SCL in multi-story buildings.
Roof Framing: Ensures stability in engineered wood roof truss and rafter connections.
Deck Construction: Ideal for attaching joists in covered outdoor structures.
Beams & Headers: Strong, load-bearing connection for supporting beams in residential and commercial builds.
Commercial & Industrial Projects: Suited for large-scale engineered wood framing applications requiring long-term strength and reliability.

Simpson Strong-Tie BA3.56/9.25 Installation Overview

Use specified fasteners to ensure maximum load capacity and structural integrity.
Secure the hanger over the supporting beam or ledger before setting the I-joist into place.
Ensure the joist seats fully inside the hanger for proper load transfer.
Attach fasteners through both the top flange and side flanges as per manufacturer recommendations.

Simpson Strong-Tie BA3.56/9.25 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Header - (16) 0.162 x 3-1/2" Nails, Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails
For Treated Lumber	No
Height	9-1/4"
Joist size	3-1/2" X 9-1/4"
Thickness	12 Gauge
Width	3-9/16"

NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values.
