Simpson Hangers | SKU:
BA4.28/11.88
Simpson Strong-Tie BA4.28/11.88 (2-1/4" x 11-7/8") Top-Flange Joist Hanger for Double Engineered Wood
$25.00
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie BA4.28/11.88 Description

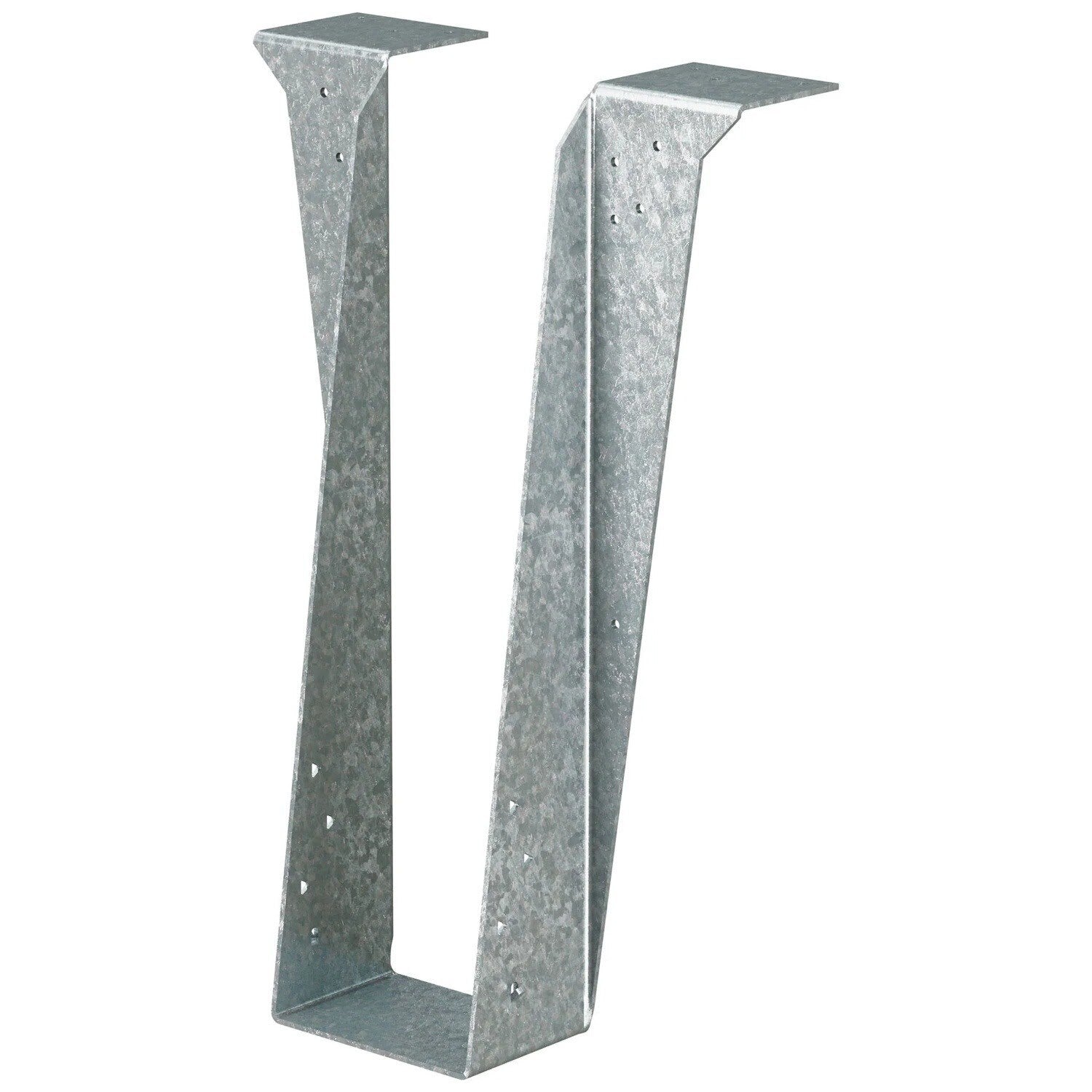

The Simpson Strong-Tie BA4.28/11.88 Beam Hanger is a top-flange hanger designed for secure and reliable connections in wood framing projects, suitable for I-joists and structural composite lumber.
Simpson Strong-Tie BA4.28/11.88 Includes
- (1) BA4.28/11.88 Beam Hanger
Simpson Strong-Tie BA4.28/11.88 Features
- Cost-effective one-piece design compared to welded hangers
- Full-height joist flange prevents rotation and eliminates the need for web stiffeners
- Available for special order to accommodate sloped and/or skewed members
- Designed for I-Joists and SCL
- Top-Flange Installation for straightforward placement
- High Load Capacity for demanding structural requirements
Simpson Strong-Tie BA4.28/11.88 Applications
- Floor Framing: Provides secure support for I-joists and SCL in multi-story buildings.
- Roof Framing: Ensures stability in engineered wood roof truss and rafter connections.
- Deck Construction: Ideal for attaching joists in covered outdoor structures.
- Beams & Headers: Strong, load-bearing connection for supporting beams in residential and commercial builds.
- Commercial & Industrial Projects: Suited for large-scale engineered wood framing applications requiring long-term strength and reliability.
Simpson Strong-Tie BA4.28/11.88 Installation Overview
- Use specified fasteners to ensure maximum load capacity.
- Secure the hanger over the supporting beam or ledger before setting the I-joist into place.
- Ensure the joist seats fully inside the hanger for proper load transfer.
- Follow manufacturer guidelines for welding applications if applicable.

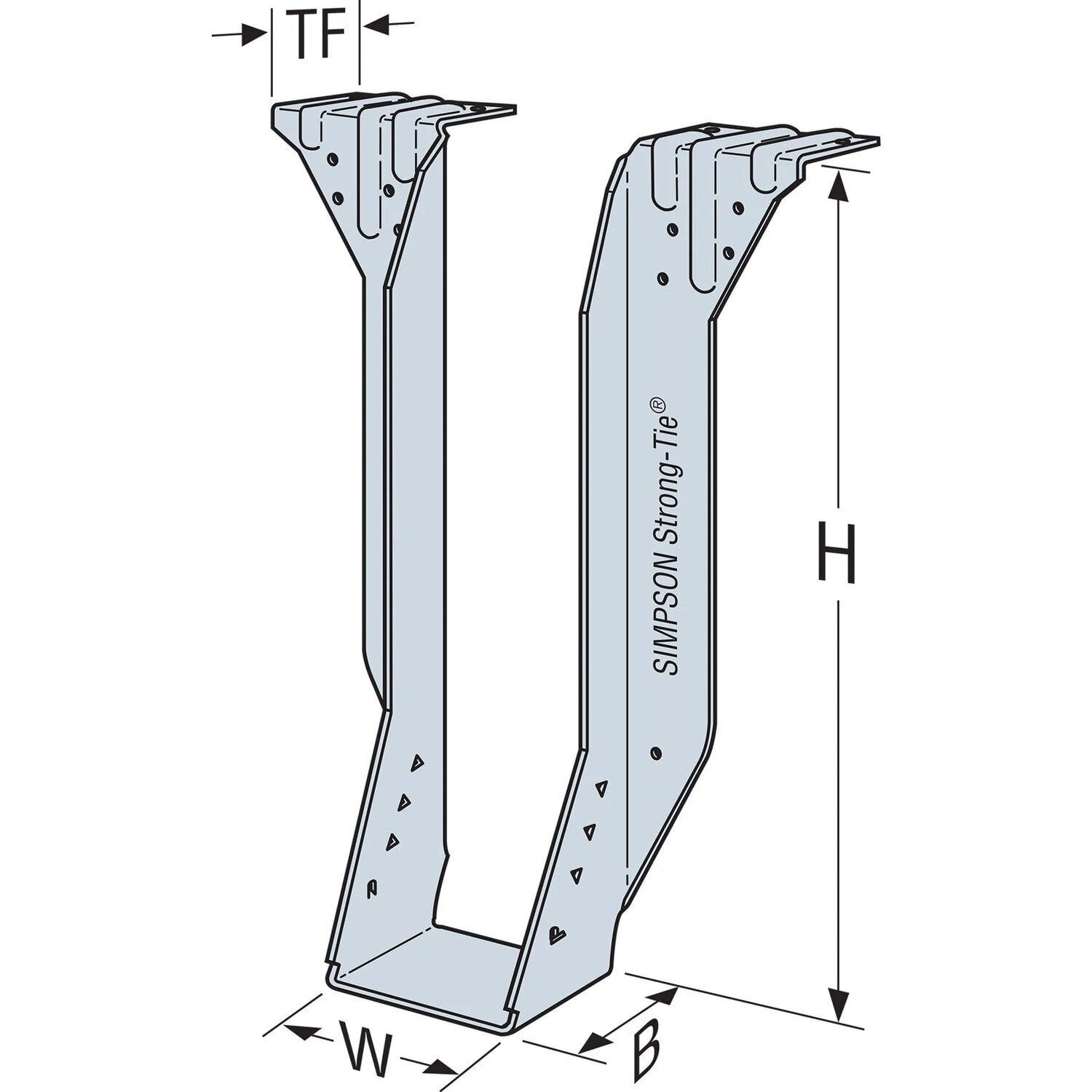

Simpson Strong-Tie BA4.28/11.88 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (16) 0.162 x 3-1/2" Nails Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails |
| Height | 11-7/8" |
| Joist size | Double 2-1/4" X 11-7/8" |
| Thickness | 12 Gauge |
| Width | 4-9/32" |
