Simpson Strong-Tie BA4.75/18 (2-5/16" x 18") Top-Flange Joist Hanger for Double Engineered Wood

Name: Simpson Strong-Tie BA4.75/18 (2-5/16" x 18") Top-Flange Joist Hanger for Double Engineered Wood
Brand: Simpson Hangers
SKU: 819436
Price: 34.17 USD
Availability: BackOrder

$34.17

Description

Simpson Strong-Tie BA4.75/18 Description

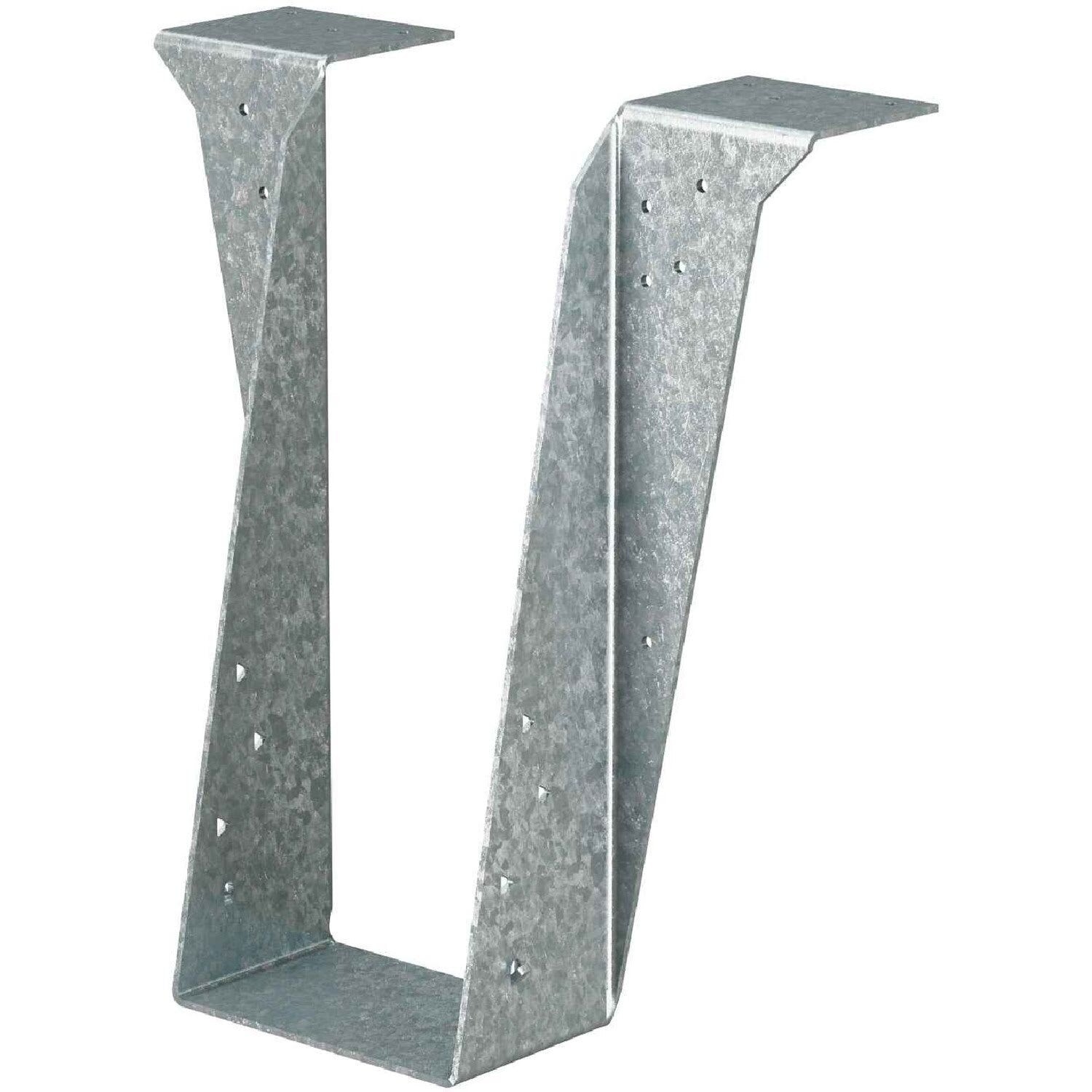

The Simpson Strong-Tie BA Beam Hanger is designed to provide secure and reliable connections for I-joists and structural composite lumber (SCL).

Simpson Strong-Tie BA4.75/18 Includes

(1) BA4.75/18 Beam Hanger

Simpson Strong-Tie BA4.75/18 Features

Cost-effective one-piece design compared to welded hangers
A full-height joist flange that captures the top chord of the joist to prevent rotation and eliminate the need for web stiffeners
Available for special order to accommodate sloped and/or skewed members
Designed for I-Joists and SCL
Top-Flange Installation
High Load Capacity
Versatile Application

Simpson Strong-Tie BA4.75/18 Applications

Floor Framing: Provides secure support for I-joists and SCL in multi-story buildings.
Roof Framing: Ensures stability in engineered wood roof truss and rafter connections.
Deck Construction: Ideal for attaching joists in covered outdoor structures.
Beams & Headers: Strong, load-bearing connection for supporting beams in residential and commercial builds.
Commercial & Industrial Projects: Suited for large-scale engineered wood framing applications requiring long-term strength and reliability.

Simpson Strong-Tie BA4.75/18 Installation Overview

Use all specified fasteners; see General Notes and nailer table.
May be used for weld-on applications.
BA min. nailing does not require web stiffeners.
Ledgers must be evaluated for each application separately.
Refer to technical bulletin for information regarding load reductions on selected hangers.
Bevel-cut the carried member for skewed applications.

Simpson Strong-Tie BA4.75/18 Specifications

Material	Carbon Steel
Finish	G90 Galvanized
Thickness	12 Gauge
Width	4-3/4"
Height	18"
Joist size	Double 2-5/16" X 18"
Fasteners required	Header - (16) 0.162 x 3-1/2" Nails Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
