Simpson Hangers | SKU:
BA410
Simpson Strong-Tie BA410 (4x10) 14Ga Galvanized Top Flange Joist Beam Hanger
$18.76
Unit price
/
Unavailable
Description
Description

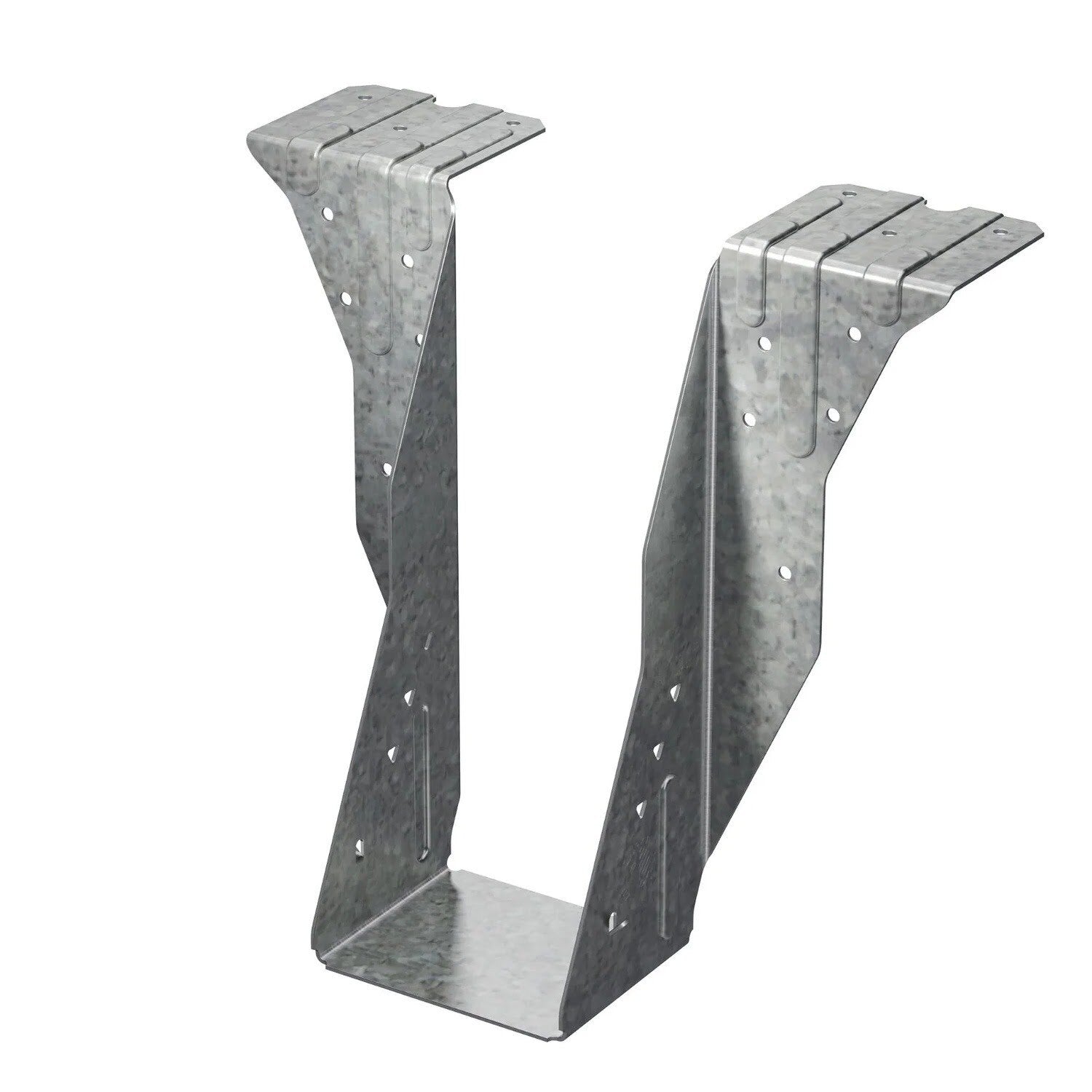

Simpson Strong-Tie BA410 Description
The Simpson BA410 Beam Hanger is designed for 4x10 joist connections, offering exceptional load-bearing capacity and stability for wood framing applications.
Simpson Strong-Tie BA410 Includes
- (1) BA410 Beam Hanger
Simpson Strong-Tie BA410 Features
- Heavy-duty load capacity for beam-to-beam and girder connections
- Top-flange installation for strong and stable connections
- Wide-seat design for even load distribution
- Compatible with solid sawn and engineered wood
- Durable G90 galvanized steel construction for corrosion resistance
Simpson Strong-Tie BA410 Applications

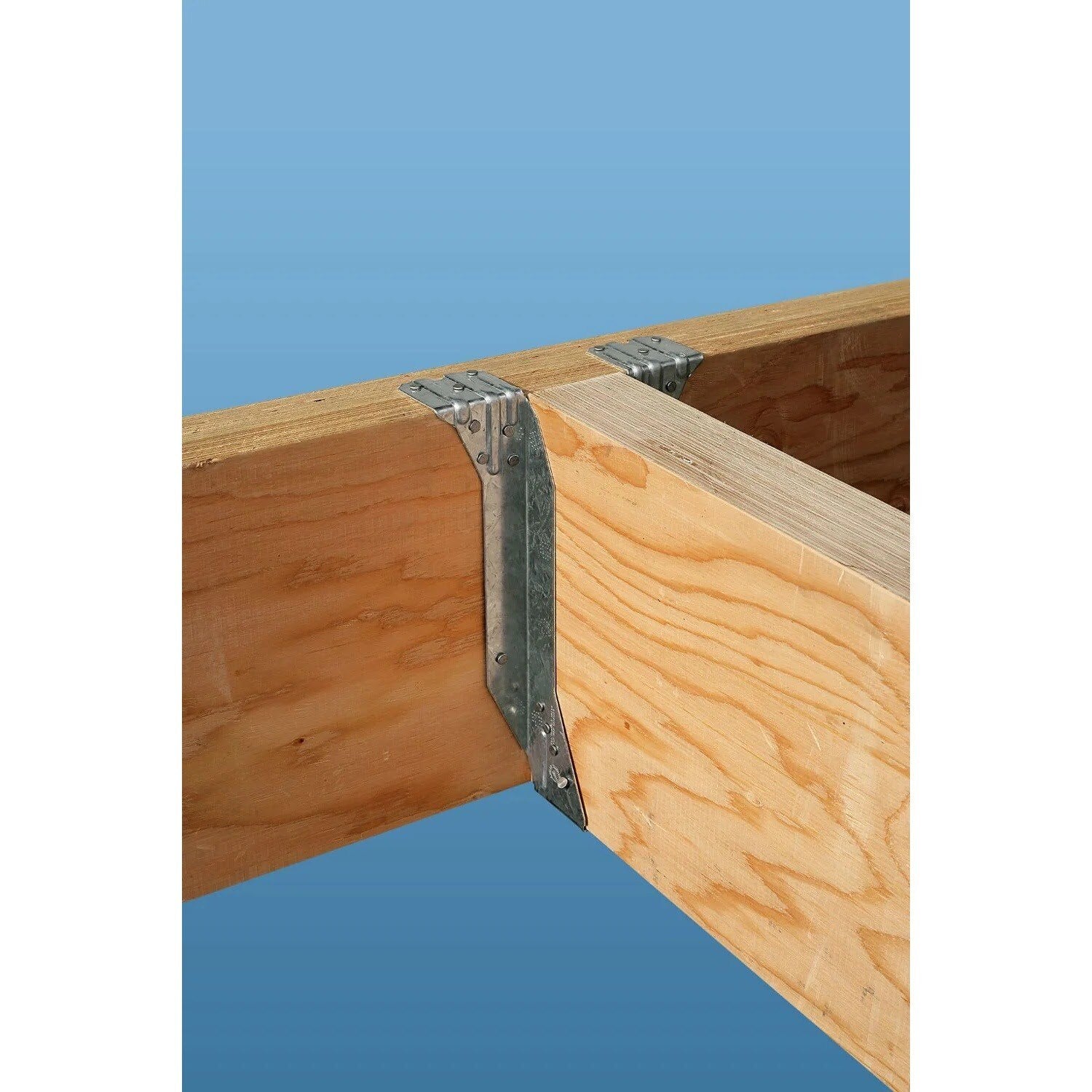

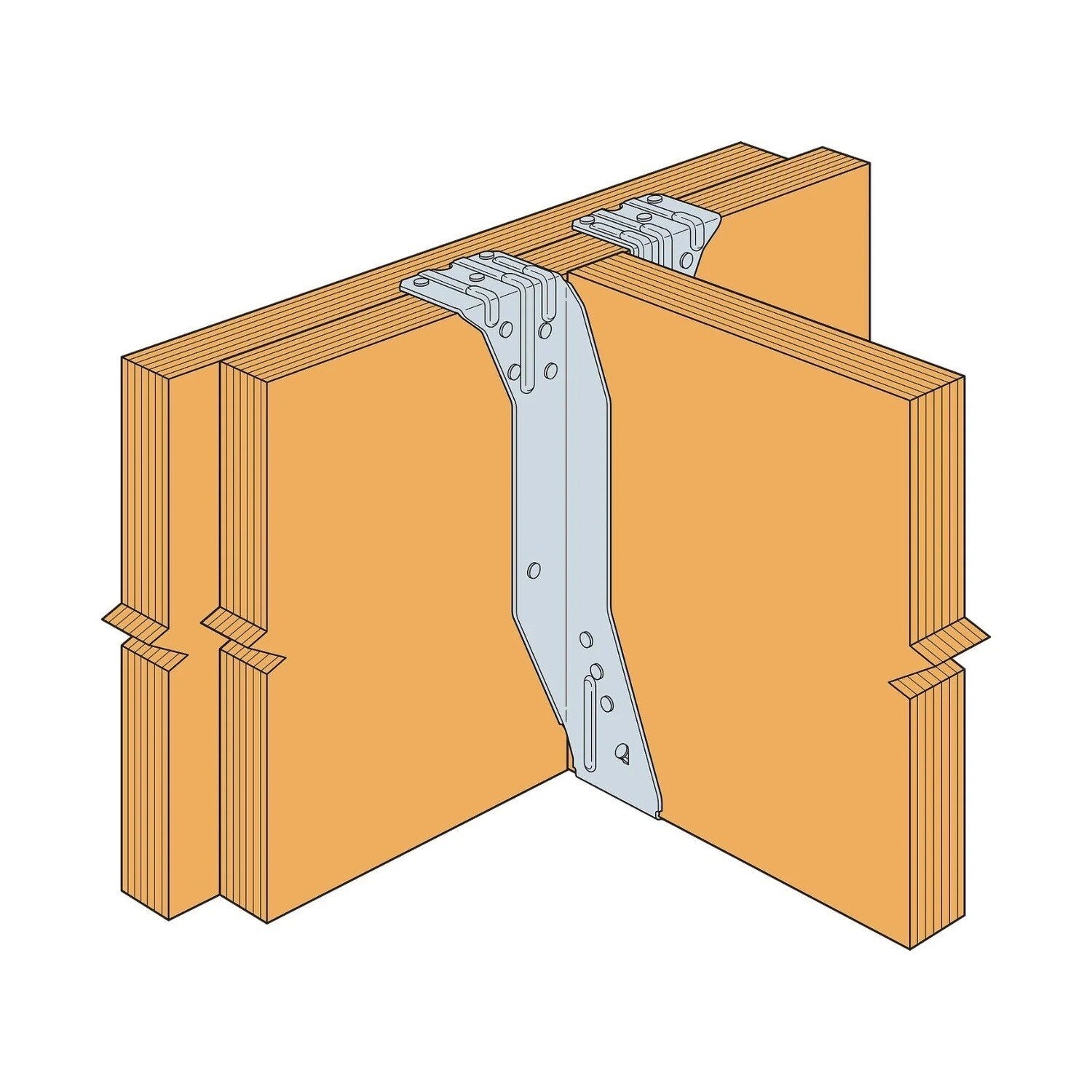

- Beam-to-beam connections for secure attachment
- Girder-to-girder connections for load transfer
- Floor and roof framing in various building types
- Deck construction for stability in outdoor structures
- Engineered wood framing for modern construction needs

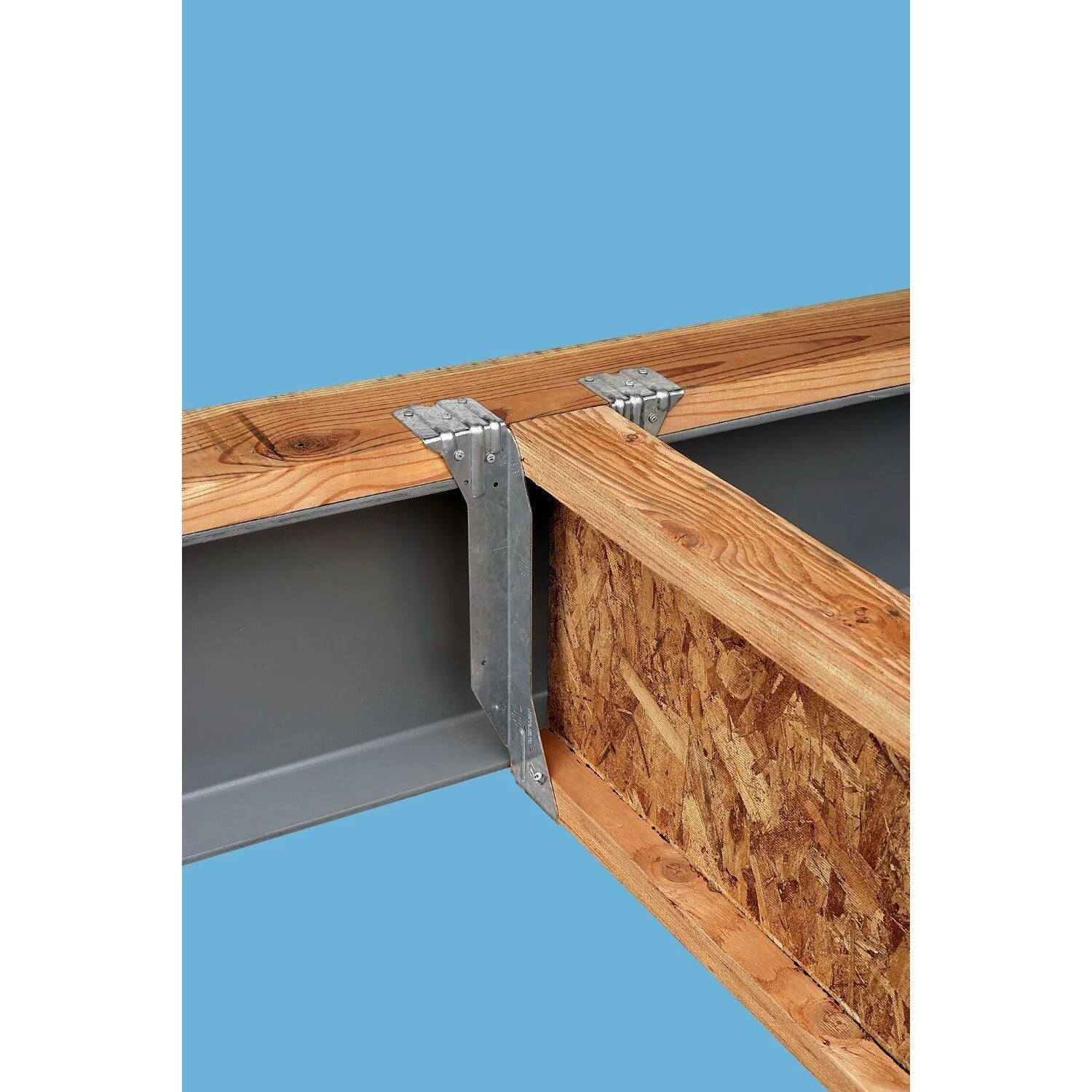

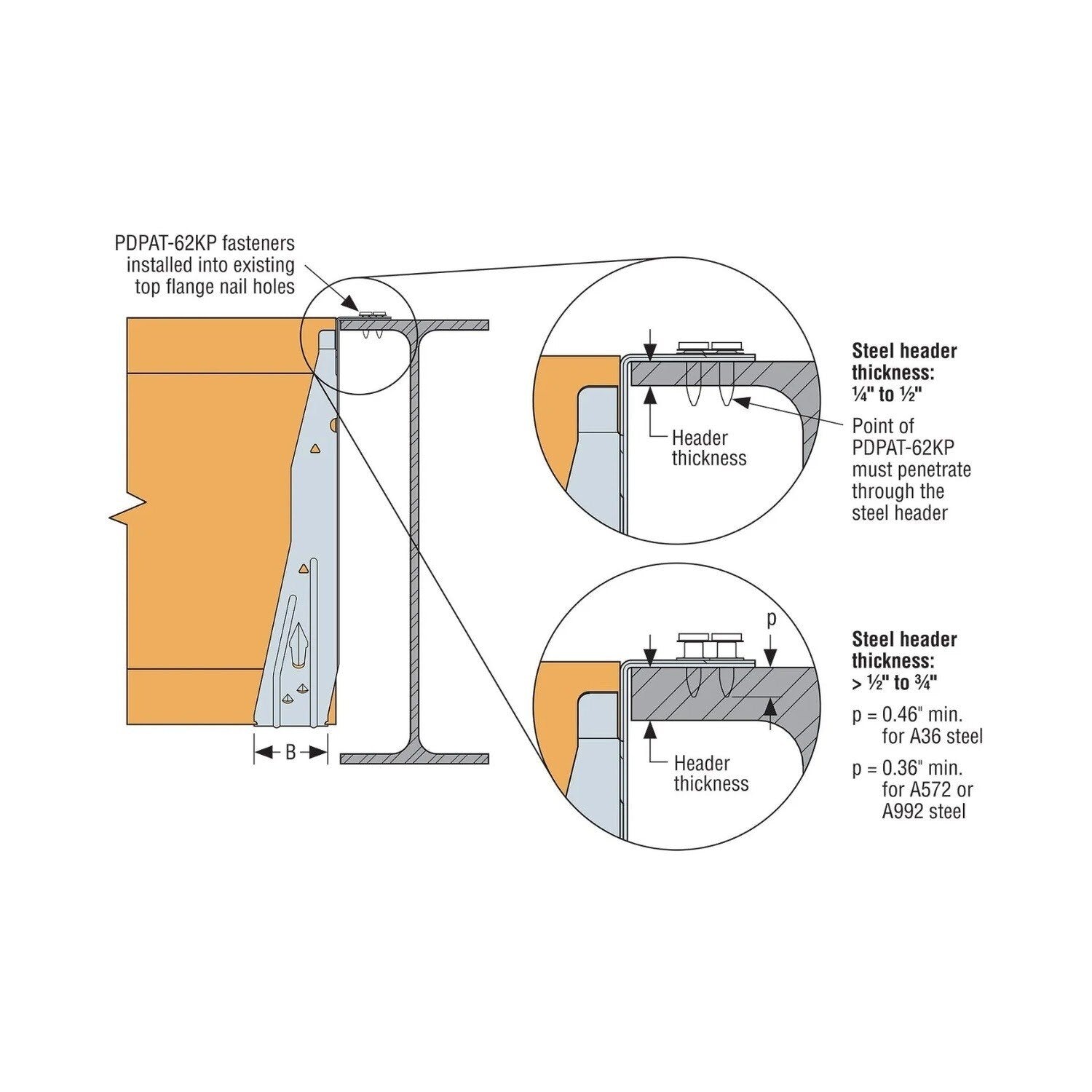

Simpson Strong-Tie BA410 Installation Overview
- Secure the hanger to the support beam using appropriate nails or screws
- Ensure the supported beam is properly seated within the hanger
- Install using top-flange mounting for direct connection
- Follow local building codes and manufacturer guidelines

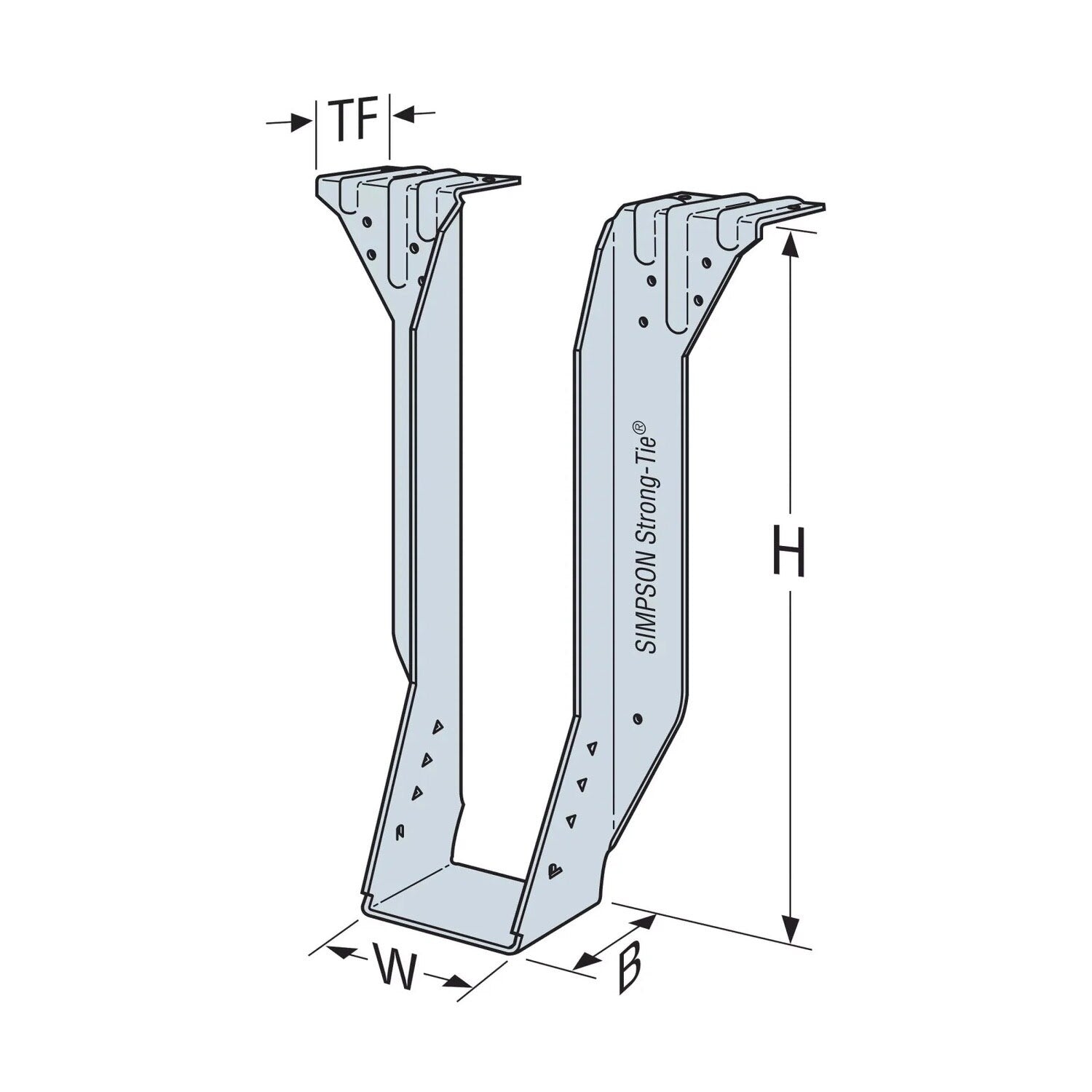

Simpson Strong-Tie BA410 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (16) 0.162 x 3-1/2" Nails, Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 11" |
| Joist size | 4" X 10" |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
