Simpson Hangers | SKU:
BA414
Simpson Strong-Tie BA414 (4x14) 12Ga Galvanized Top Flange Joist Beam Hanger
$25.27
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie BA414 Description

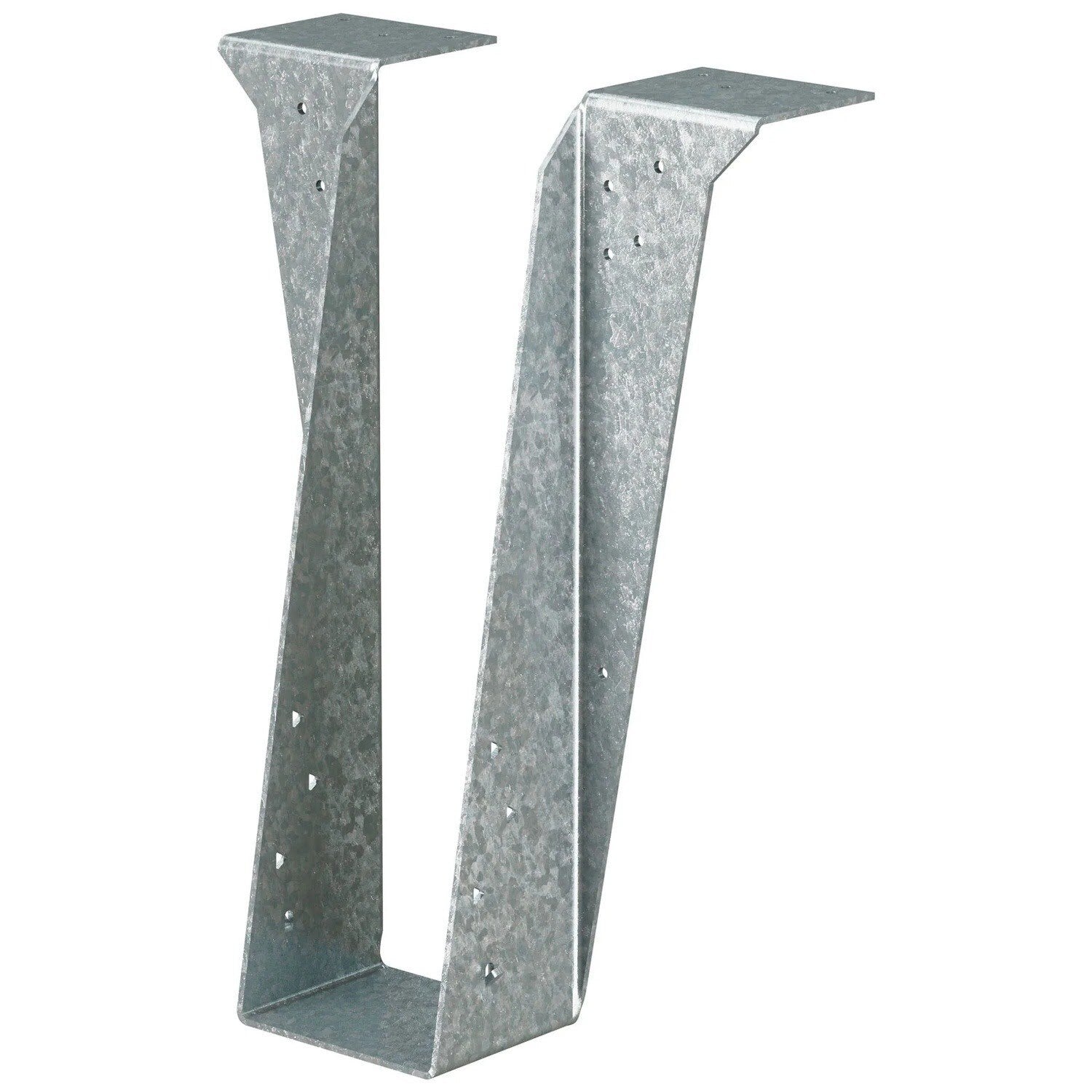

The Simpson BA414 Beam Hanger is a heavy-duty galvanized connector designed for 4x14 joists, providing exceptional load-bearing capacity and stability for beam-to-beam and girder-to-girder connections.
Simpson Strong-Tie BA414 Includes
- (1) BA414 Beam Hanger
Simpson Strong-Tie BA414 Features
- Heavy-duty load capacity for beam-to-beam and girder connections
- Top-flange installation for strong, stable connections
- Wide-seat design for even load distribution
- Compatible with solid sawn and engineered wood
- Durable G90 galvanized steel construction for corrosion resistance
Simpson Strong-Tie BA414 Applications
- Beam-to-beam connections for secure attachment
- Girder-to-girder connections for superior load transfer
- Floor and roof framing in residential and commercial buildings
- Deck construction for large outdoor structures
- Engineered wood framing compatible with LVL, PSL, and glulam beams
Simpson Strong-Tie BA414 Installation Overview
- Secure the hanger to the support beam using appropriate nails or screws
- Ensure the supported beam is properly seated within the hanger
- Install using top-flange mounting for stable connections
- Follow local building codes and manufacturer guidelines for fastener selection

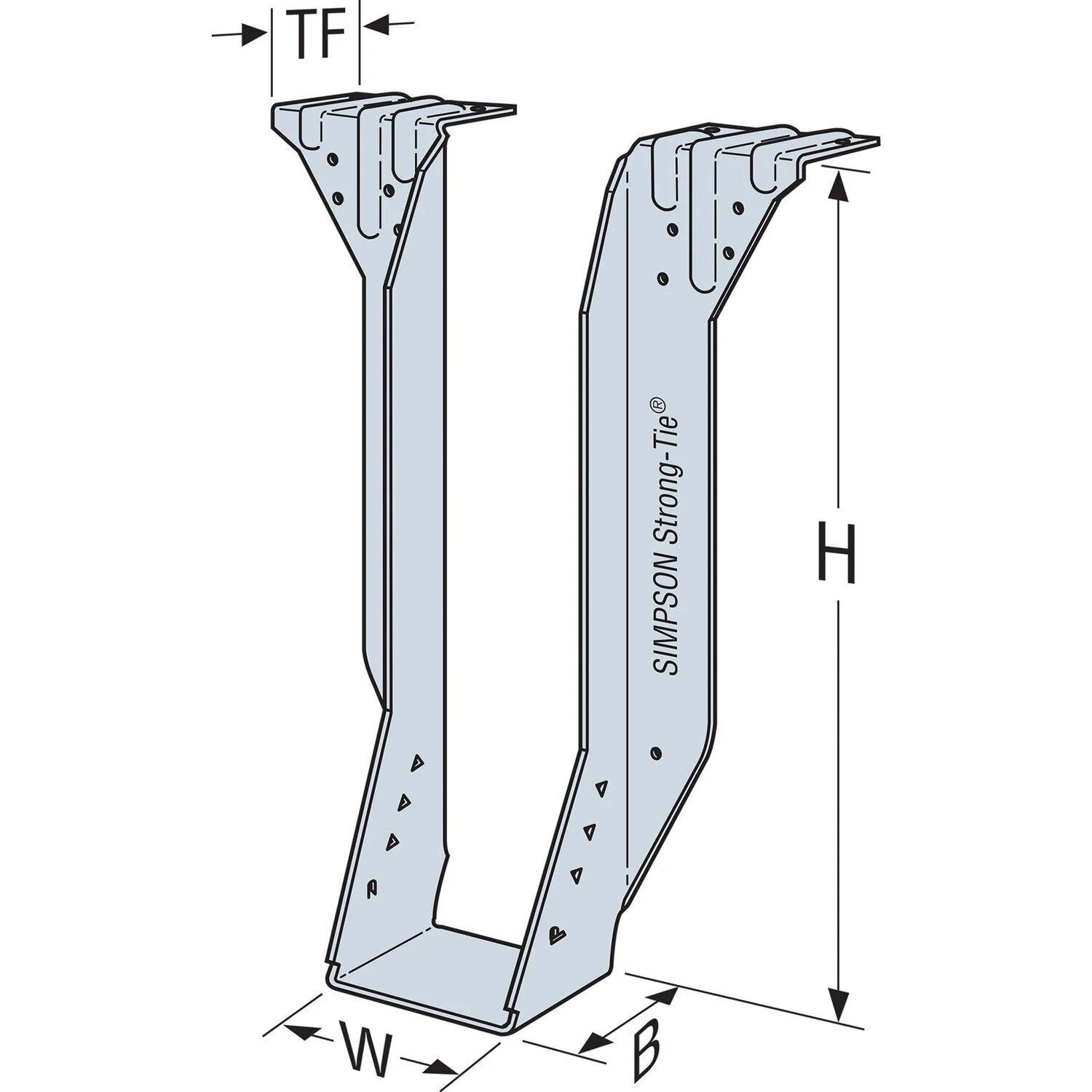

Simpson Strong-Tie BA414 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 12 Gauge |
| Width | 3-9/16" |
| Height | 11" |
| Joist Size | 4" X 12" |
| Fasteners Required | Header - (16) 0.162 x 3-1/2" Nails; Joist - Min: (2) 0.148 x 1-1/2" Nails; Max: (8) 0.148 x 1-1/2" Nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
