Simpson Hangers | SKU:
BA416

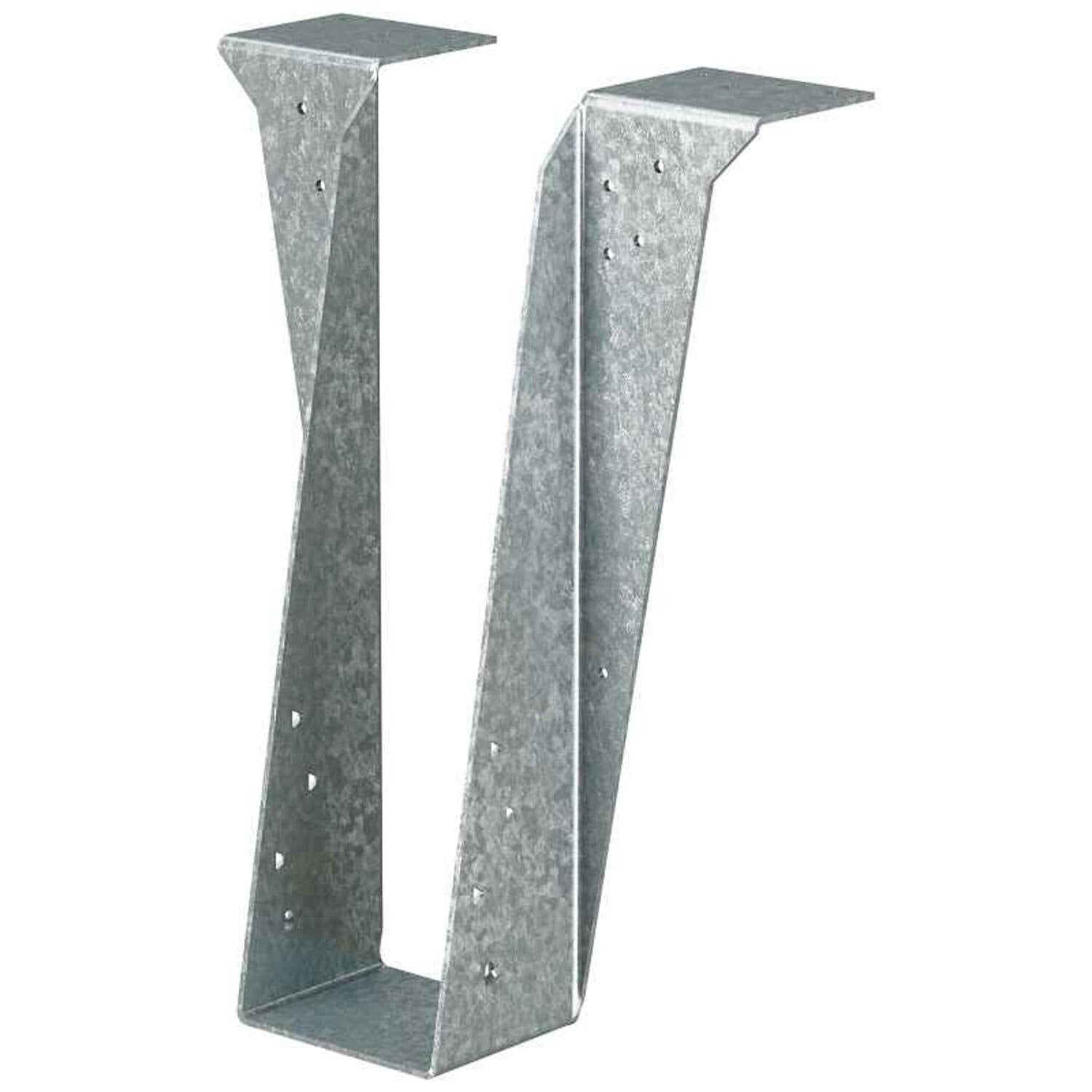

Simpson Strong-Tie BA416 (4x16) 12Ga Galvanized Top Flange Joist Beam Hanger
$28.47
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie BA416 Description
The Simpson BA416 Beam Hanger provides exceptional load-bearing capacity for beam-to-beam and girder-to-girder connections, ensuring superior stability and structural integrity in demanding applications.
Simpson Strong-Tie BA416 Includes
- (1) BA416 Beam Hanger
Simpson Strong-Tie BA416 Features
- Heavy-Duty Load Capacity: Designed for beam-to-beam and girder connections in high-load applications.
- Top-Flange Installation: Provides a strong, stable connection to supporting members.
- Wide-Seat Design: Helps distribute loads evenly, reducing stress on connections.
- Compatible with Solid Sawn & Engineered Wood: Suitable for LVL, PSL, and other engineered lumber.
- Durable G90 Galvanized Steel Construction: Ensures superior corrosion resistance and long-lasting performance.
Simpson Strong-Tie BA416 Applications
- Beam-to-Beam Connections: Ensures a secure and stable attachment between intersecting beams.
- Girder-to-Girder Connections: Provides superior load transfer in multi-girder structures.
- Floor & Roof Framing: Ideal for heavy-duty framing in residential, commercial, and industrial buildings.
- Deck Construction: Supports large deck beams and outdoor structures where stability is key.
- Engineered Wood Framing: Compatible with LVL, PSL, and glulam beams for modern construction needs.
Simpson Strong-Tie BA416 Installation Overview
- Secure the hanger to the support beam using appropriate nails or structural screws as per manufacturer recommendations.
- Ensure the supported beam is properly seated within the hanger to maximize load capacity.
- Install using top-flange mounting, allowing for a direct and stable connection to primary structural members.
- Follow local building codes and manufacturer guidelines for proper fastener selection and spacing.
Simpson Strong-Tie BA416 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (16) 0.162 x 3-1/2" Nails Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails |
| Height | 13-1/8" |
| Joist size | 4" X 14" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 12 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
