Simpson Hangers | SKU:
BA610

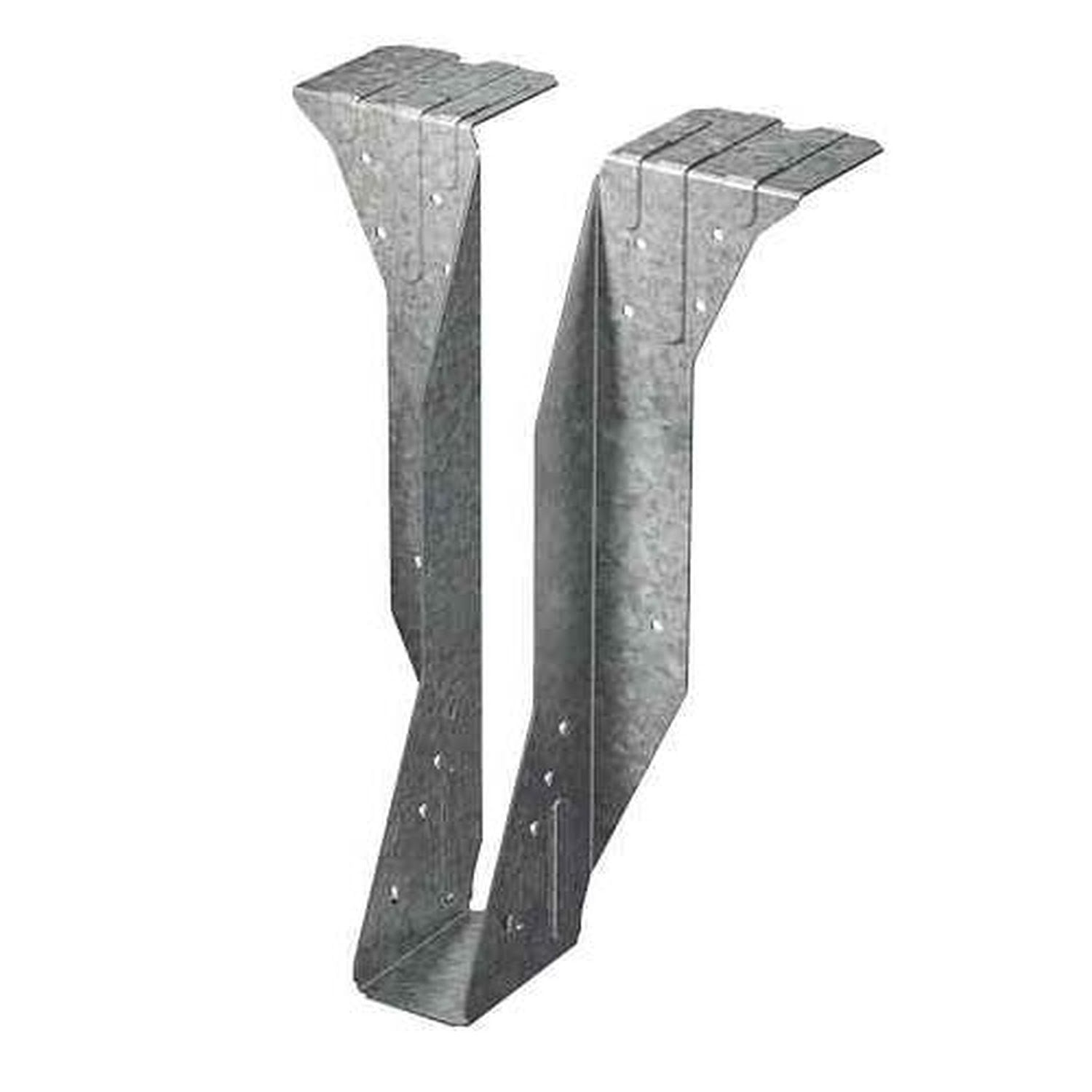

Simpson Strong-Tie BA610 (6x10) 12Ga Galvanized Top Flange Joist Beam Hanger
$24.75
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie BA610 Description
The Simpson BA610 Beam Hanger provides exceptional load-bearing capacity for beam-to-beam and girder-to-girder connections, ensuring superior stability and structural integrity in demanding applications.
Simpson Strong-Tie BA610 Includes
- (1) BA610 Beam Hanger
Simpson Strong-Tie BA610 Features
- Heavy-Duty Load Capacity
- Top-Flange Installation
- Wide-Seat Design
- Compatible with Solid Sawn & Engineered Wood
- Durable G90 Galvanized Steel Construction
Simpson Strong-Tie BA610 Applications

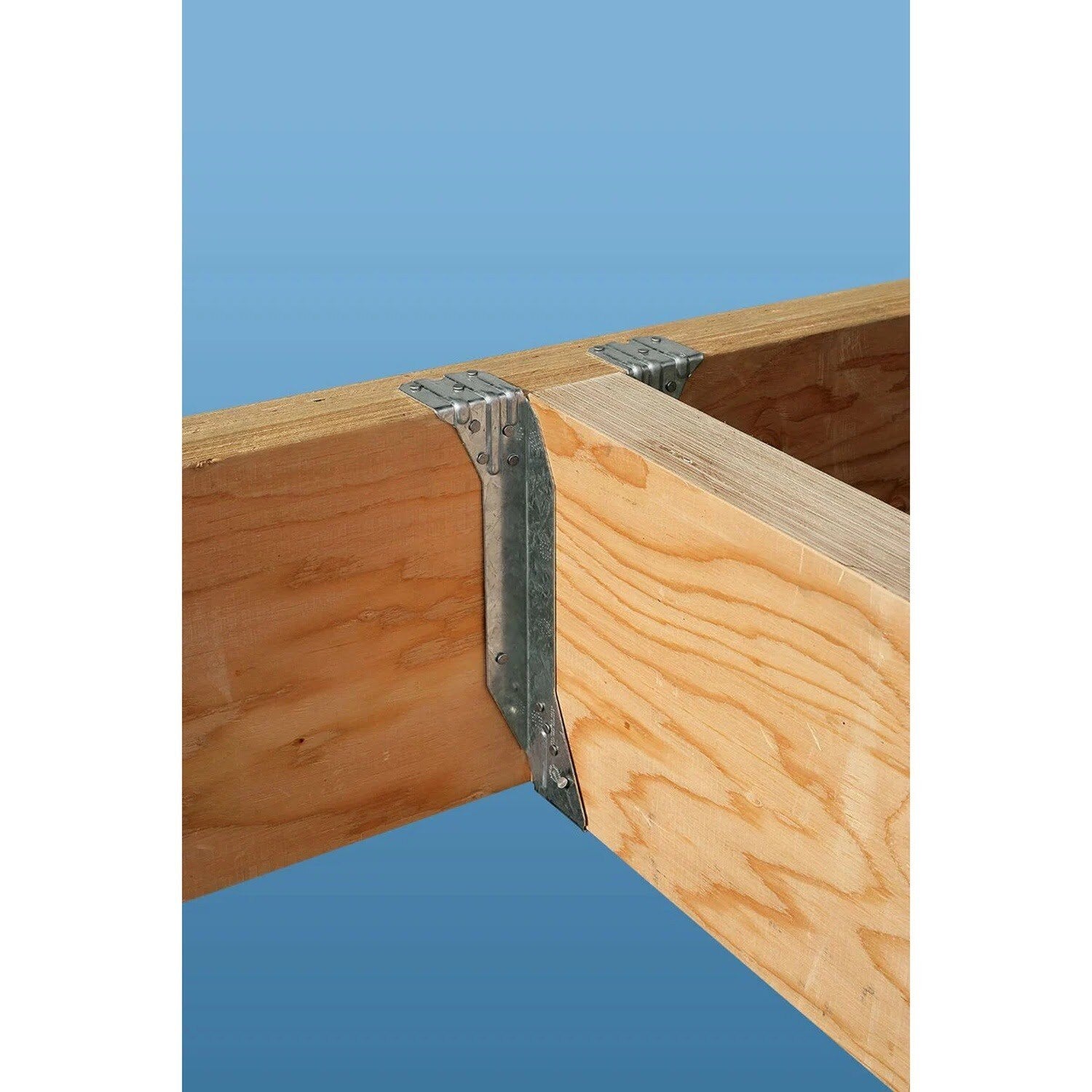

- Beam-to-Beam Connections: Ensures a secure and stable attachment between intersecting beams.
- Girder-to-Girder Connections: Provides superior load transfer in multi-girder structures.

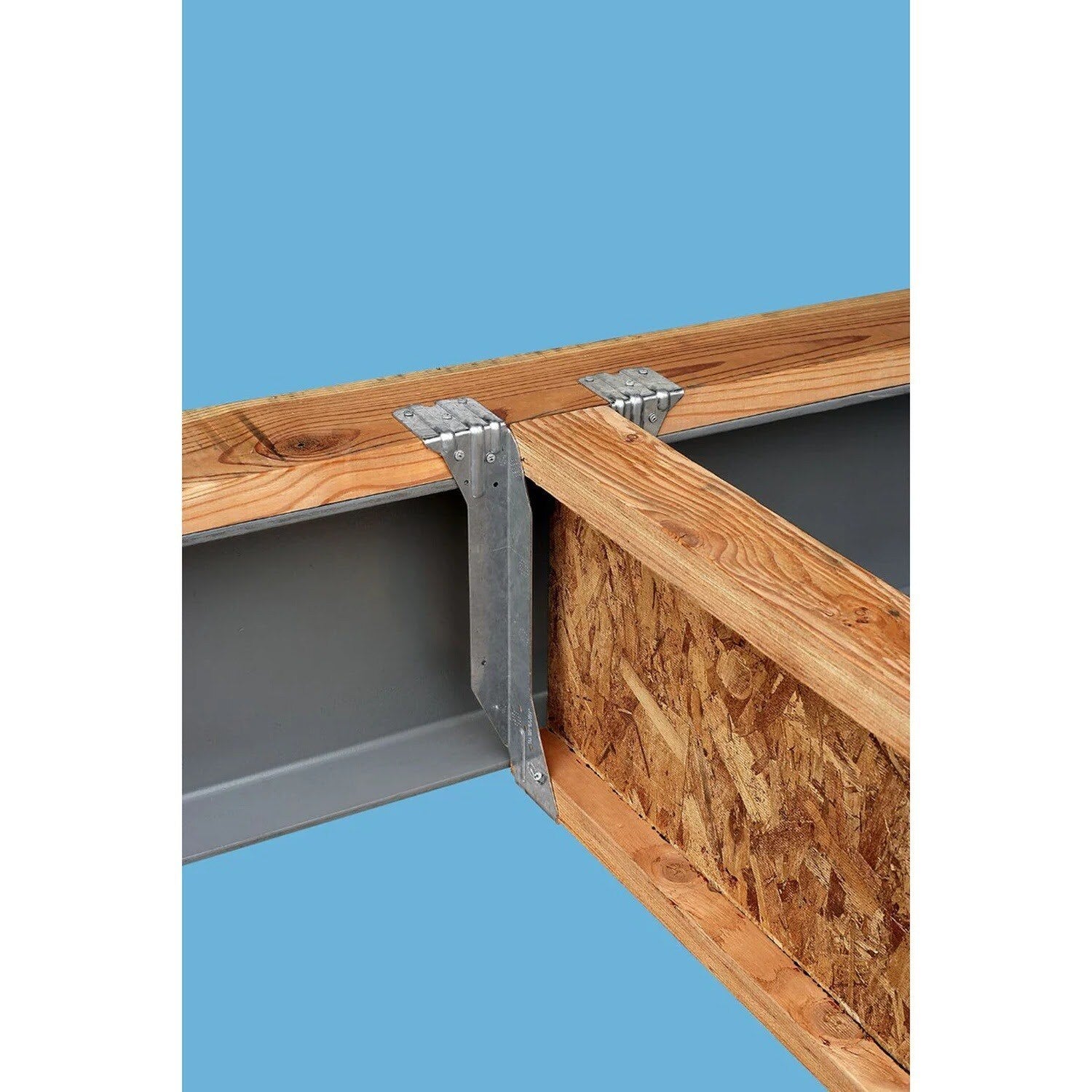

- Floor & Roof Framing: Ideal for heavy-duty framing in residential, commercial, and industrial buildings.
- Deck Construction: Supports large deck beams and outdoor structures where stability is key.
- Engineered Wood Framing: Compatible with LVL, PSL, and glulam beams for modern construction needs.
Simpson Strong-Tie BA610 Installation Overview
- Secure the hanger to the support beam using appropriate nails or structural screws as per manufacturer recommendations.
- Ensure the supported beam is properly seated within the hanger to maximize load capacity.

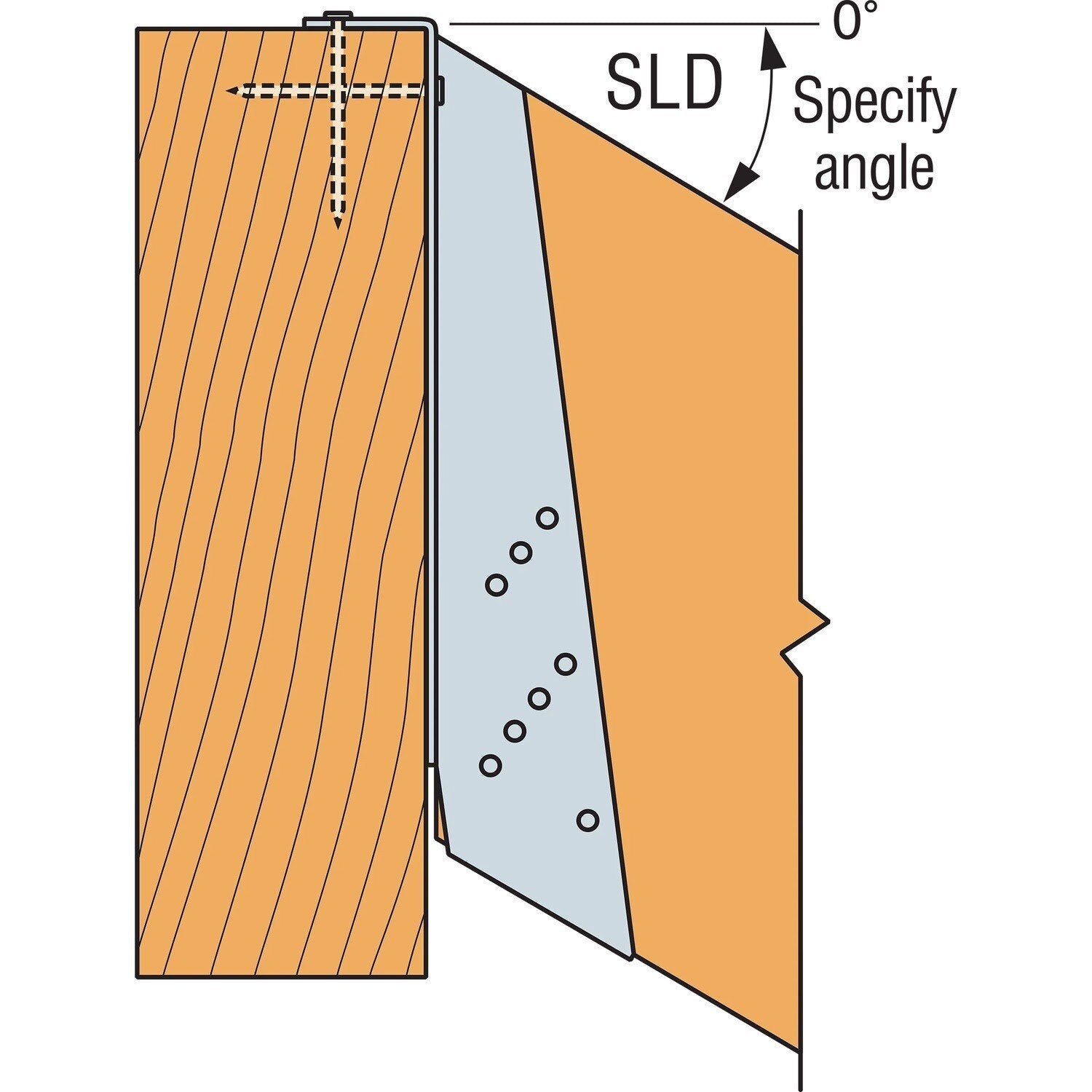

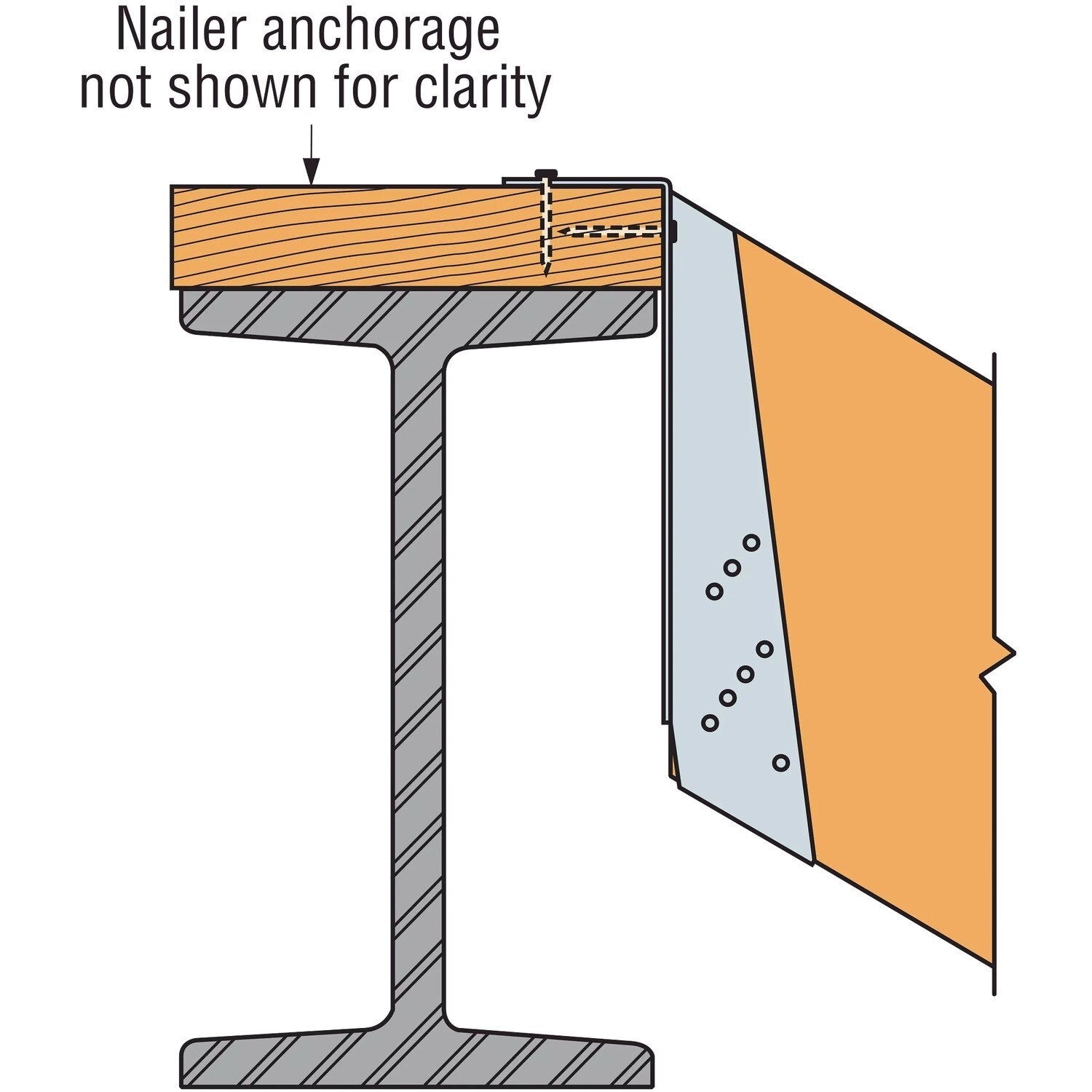

- Install using top-flange mounting, allowing for a direct and stable connection to primary structural members.
- Follow local building codes and manufacturer guidelines for proper fastener selection and spacing.

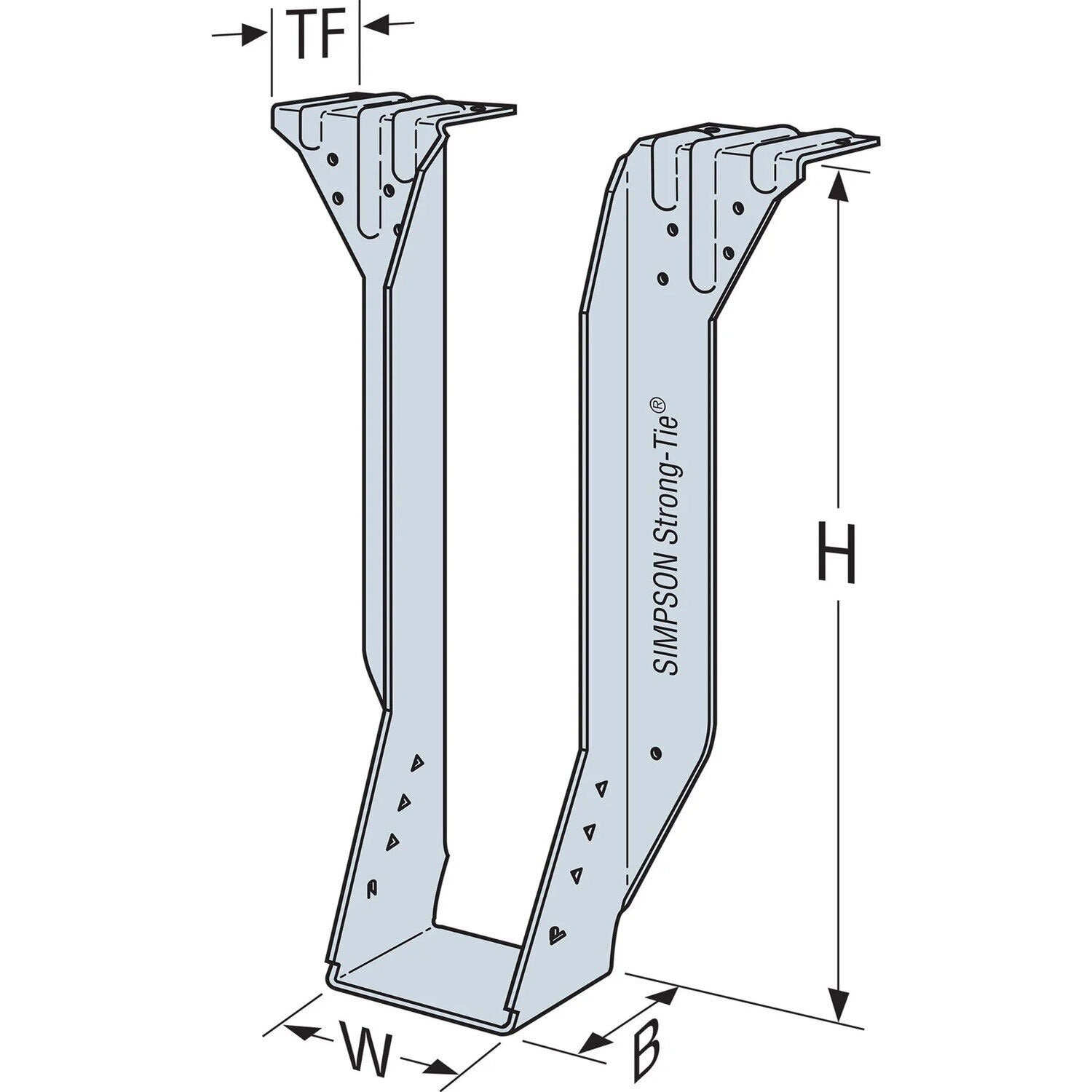

Simpson Strong-Tie BA610 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (16) 0.162 x 3-1/2" Nails Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails |
| Height | 9-1/8" |
| Joist size | 6" X 10" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 12 Gauge |
| Width | 5-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
