Simpson Hangers | SKU:
BA612
Simpson Strong-Tie BA612 (6x12) 12Ga Galvanized Top Flange Joist Beam Hanger
$28.47
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie BA612 Description

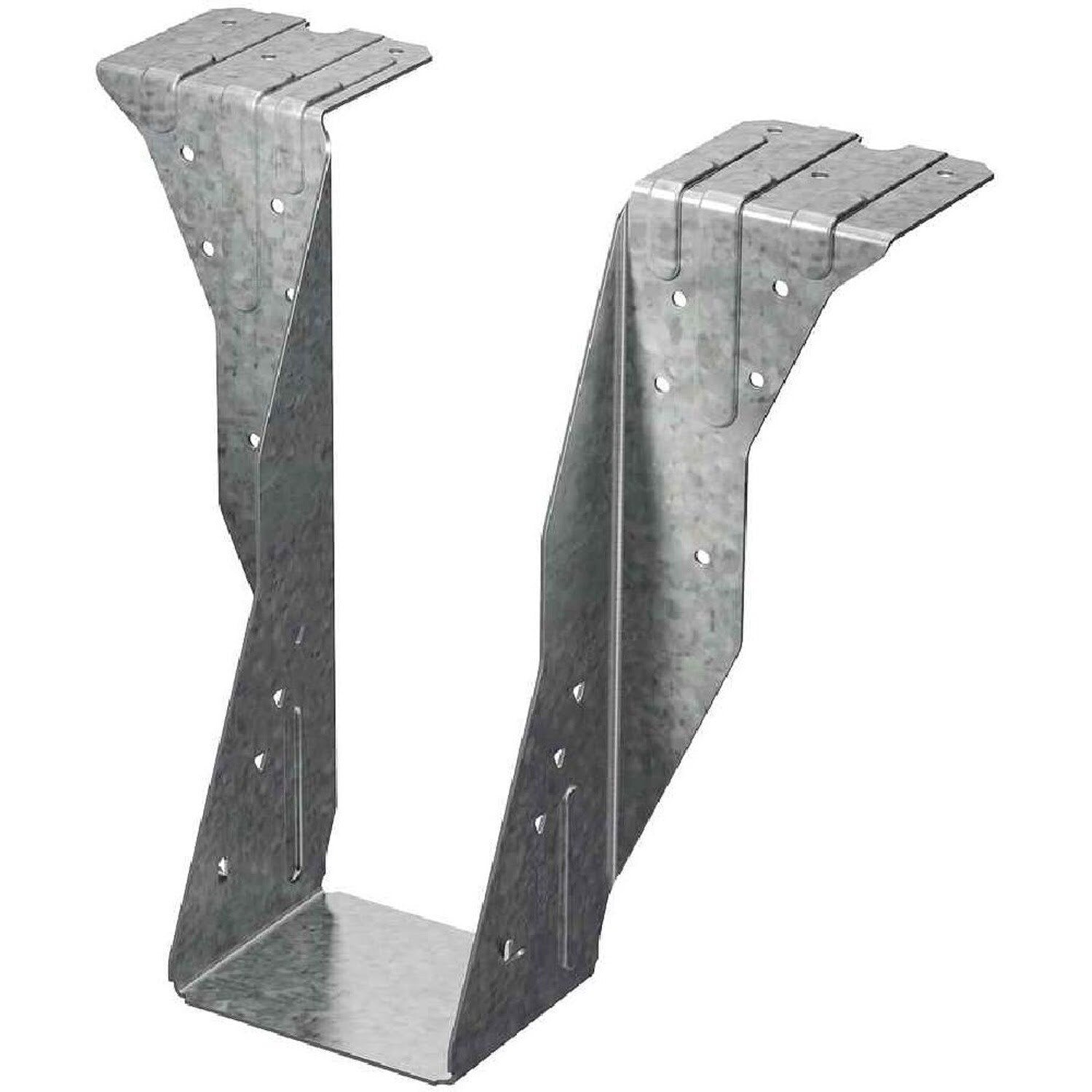

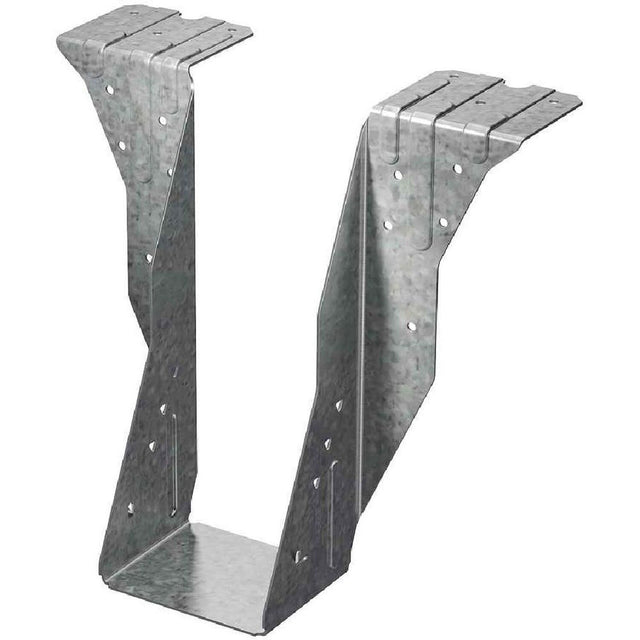

The Simpson BA612 Beam Hanger is a heavy-duty, G90 galvanized steel top-flange hanger designed for 6x12 joists. It provides exceptional load-bearing capacity and is suitable for both engineered wood and solid sawn lumber.
Simpson Strong-Tie BA612 Includes
- (1) BA612 Beam Hanger
Simpson Strong-Tie BA612 Features
- Heavy-duty load capacity for beam-to-beam and girder connections
- Top-flange installation for strong, stable connections
- Wide-seat design for even load distribution
- Compatible with solid sawn and engineered wood
- Durable G90 galvanized steel construction for corrosion resistance
Simpson Strong-Tie BA612 Applications
- Beam-to-beam connections for secure attachment
- Girder-to-girder connections for superior load transfer
- Floor and roof framing in residential, commercial, and industrial buildings
- Deck construction for supporting large beams
- Engineered wood framing for modern construction needs
Simpson Strong-Tie BA612 Installation Overview
- Secure the hanger to the support beam using appropriate nails or structural screws as per manufacturer recommendations.
- Ensure the supported beam is properly seated within the hanger to maximize load capacity.
- Install using top-flange mounting for a direct and stable connection.
- Follow local building codes and manufacturer guidelines for proper fastener selection and spacing.
Simpson Strong-Tie BA612 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (16) 0.162 x 3-1/2" Nails Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails |
| Height | 11-1/8" |
| Joist size | 6" X 12" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 12 Gauge |
| Width | 5-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
