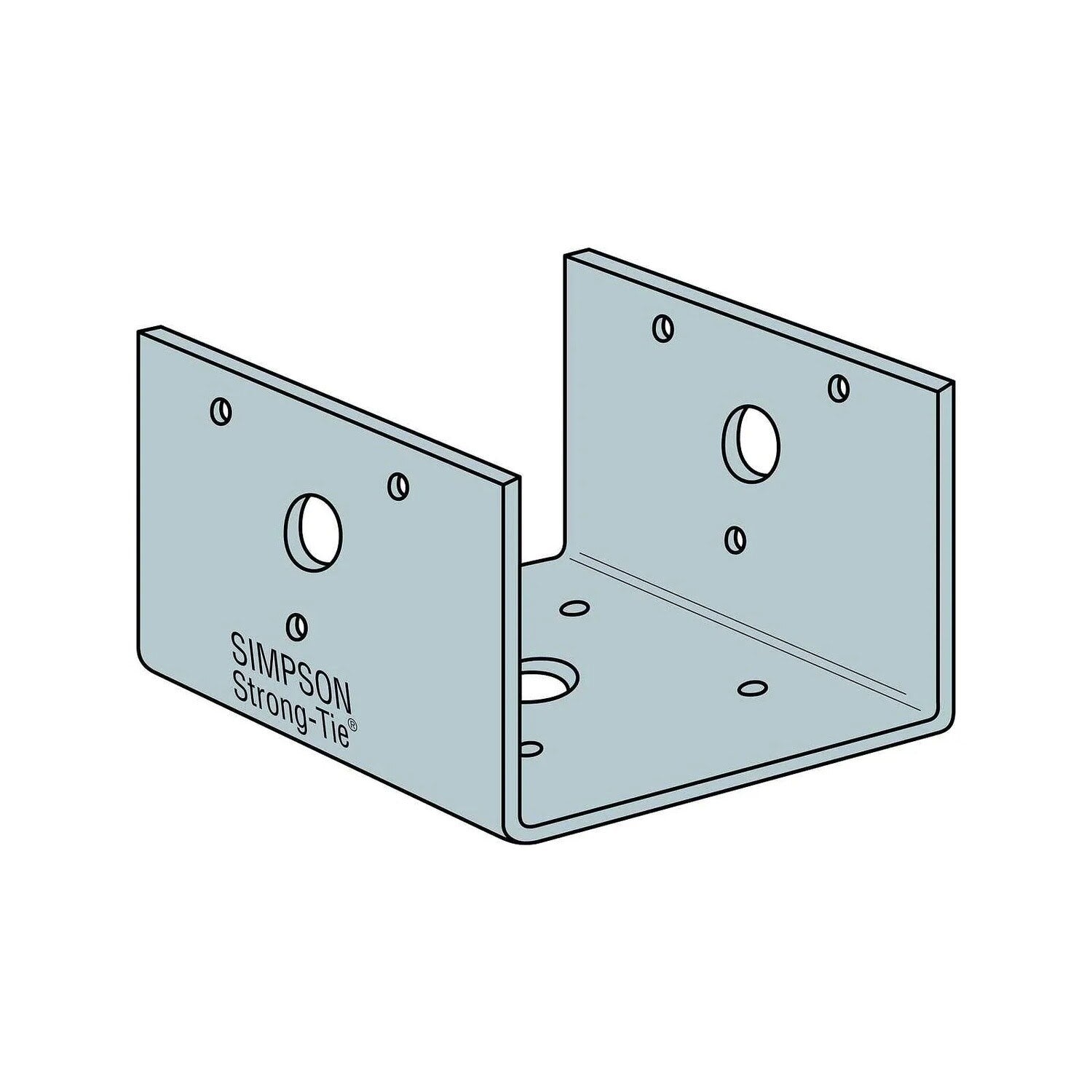

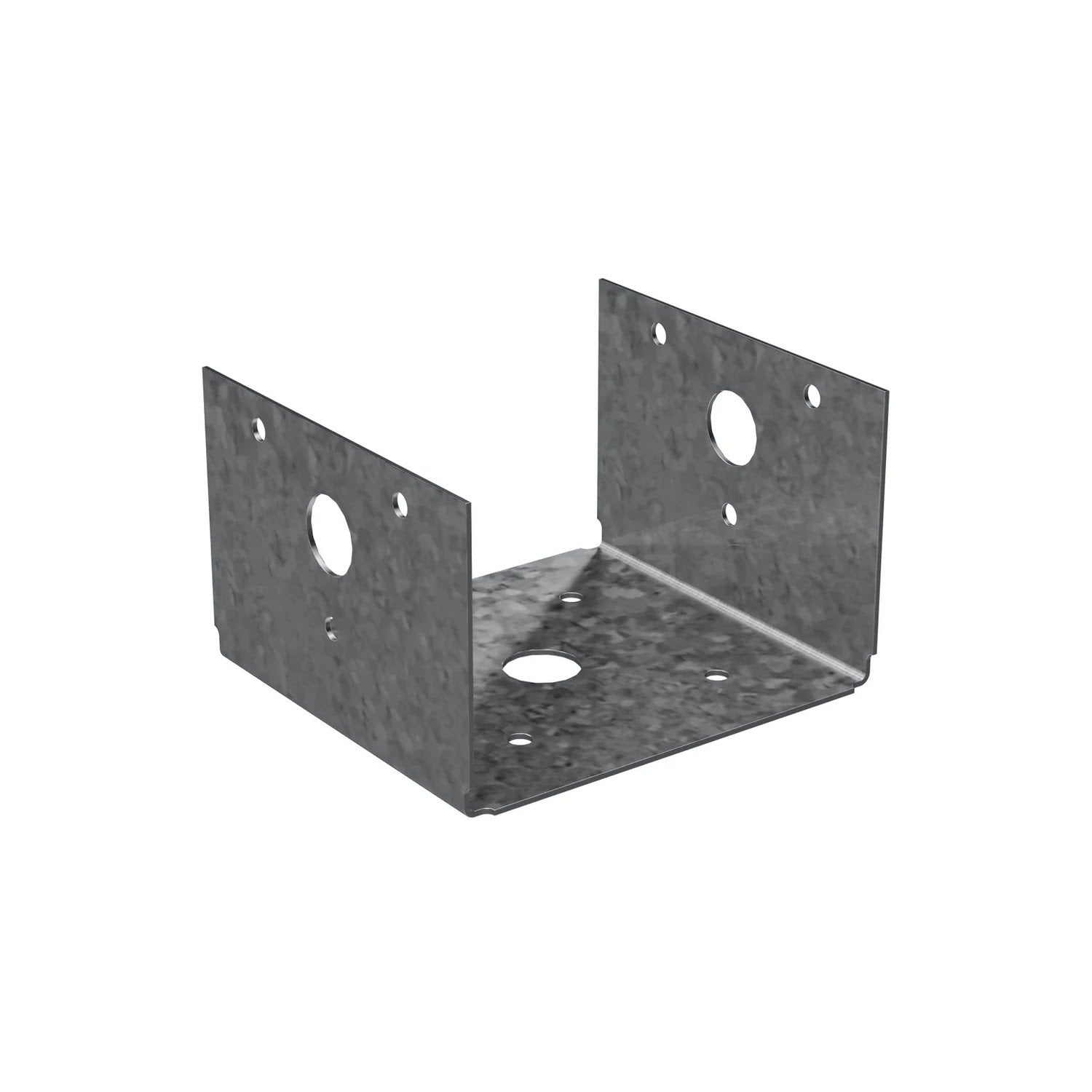

Simpson BC40Z Description
The Simpson BC40Z 4x Post Half Base ZMAX Finish enhances the strength and stability of your construction projects, providing secure beam-to-post connections.
Simpson BC40Z Includes
- (1) 4x Post Half Base ZMAX Finish
Simpson BC40Z Features
- Designed to connect a beam to a post with flanges providing both uplift and lateral resistance
- Made from durable 18-Gauge Steel
- Finished with ZMAX coating for enhanced durability
- Attains full allowable load using either common nail or pneumatic nail sizes
Simpson BC40Z Applications
- Beam-to-post connections in construction projects
- Light-duty connections for 4x posts
- Suitable for nominal and rough-cut lumber

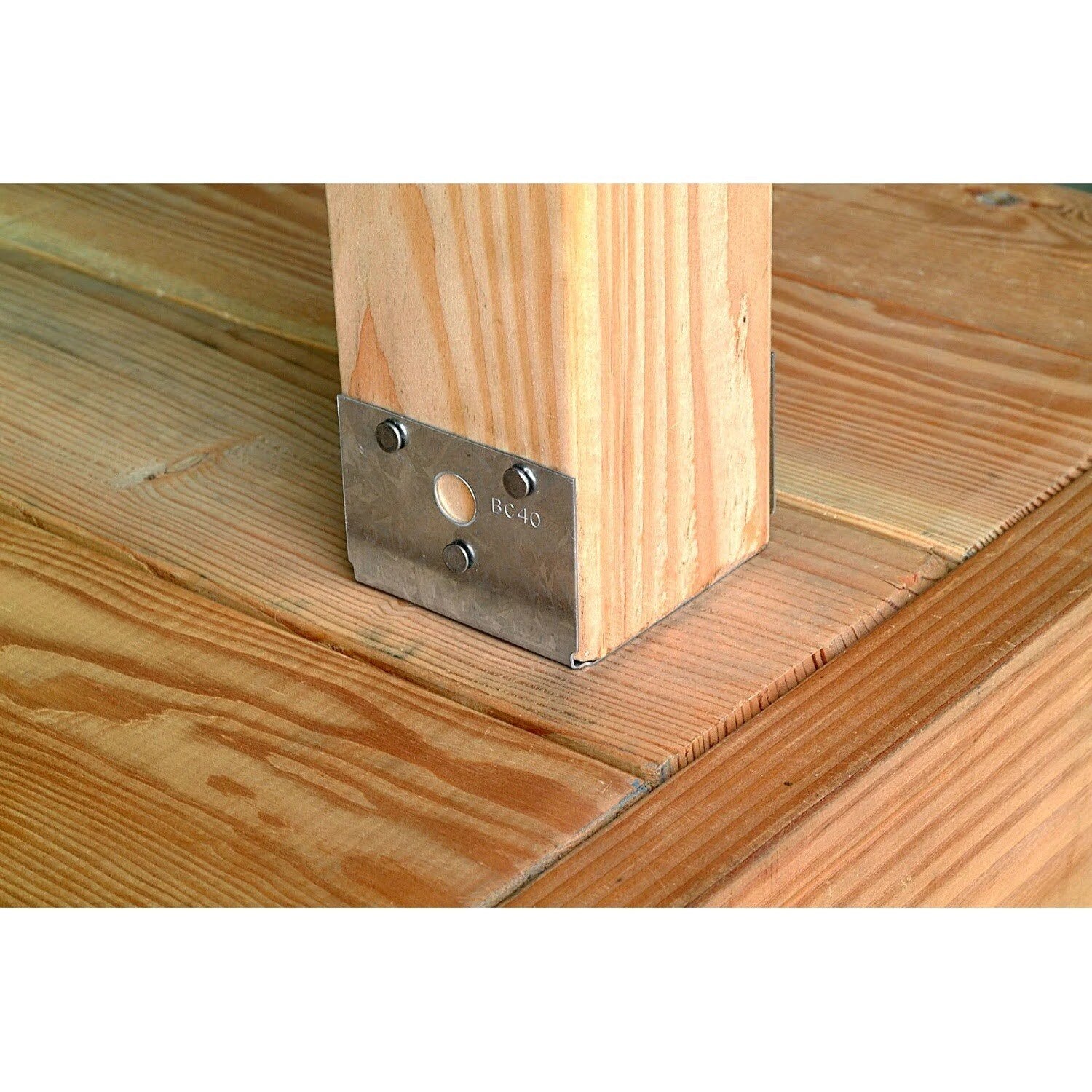

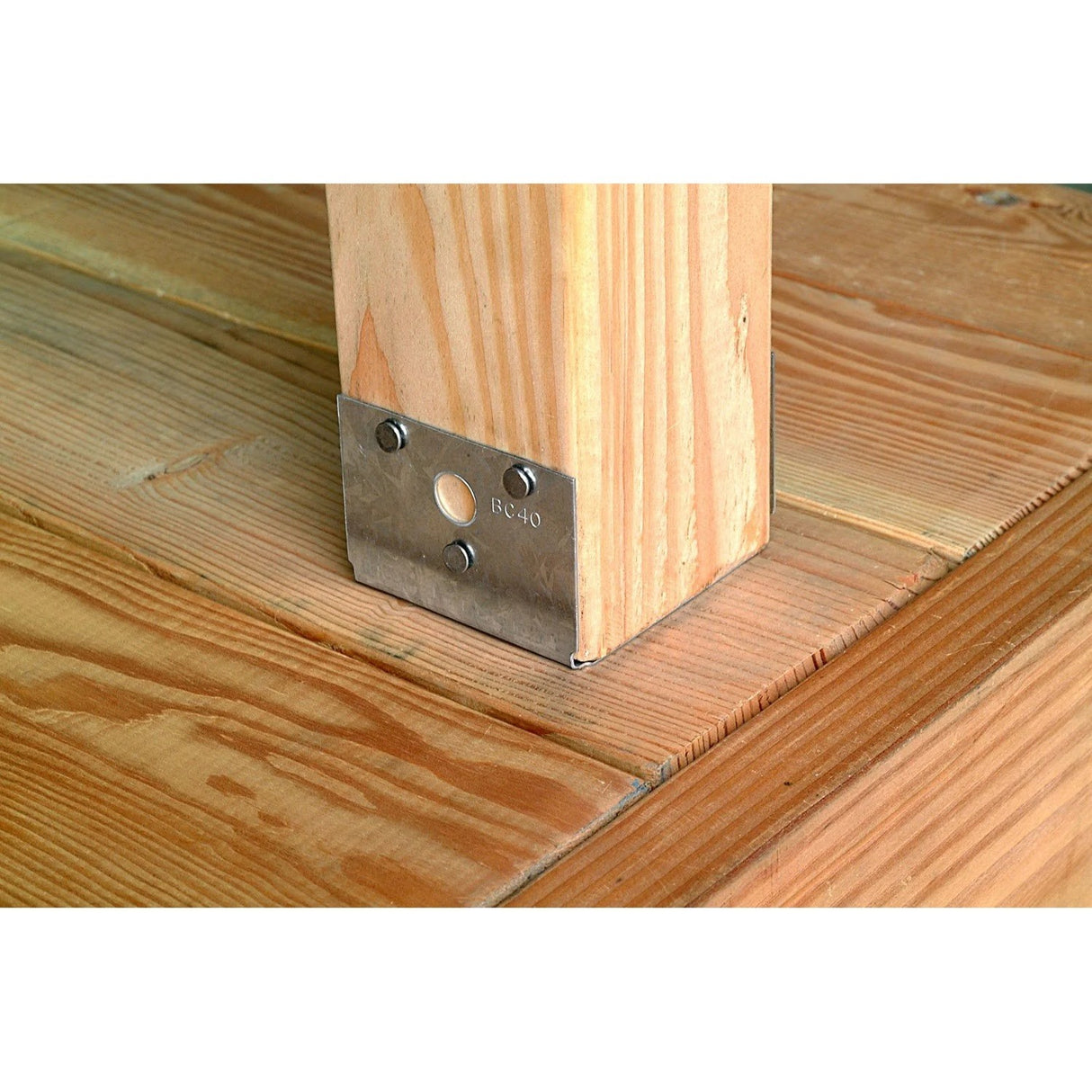

Simpson BC40Z Installation Overview
- Position the base on the post and align it properly
- Secure the post flange using (6) 0.162 x 3-1/2" nails
- Attach the base bottom using (4) 0.162 x 3-1/2" nails
- Ensure all fasteners are properly installed
Simpson BC40Z Specifications
| Finish | ZMAX |
| Length | 3-1/4" |
| Material | 18-Gauge Steel |
| Fasteners required | Post Flange - (6) 0.162 x 3-1/2" Nails, Base Bottom - (4) 0.162 x 3-1/2" Nails |
| For Treated Lumber | Yes |
| Height | 2-1/4" |
| Post size | 4x |
| Thickness | 18 Gauge |
| Width | 3-9/16" |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
