Simpson Anchors | SKU:
BC46

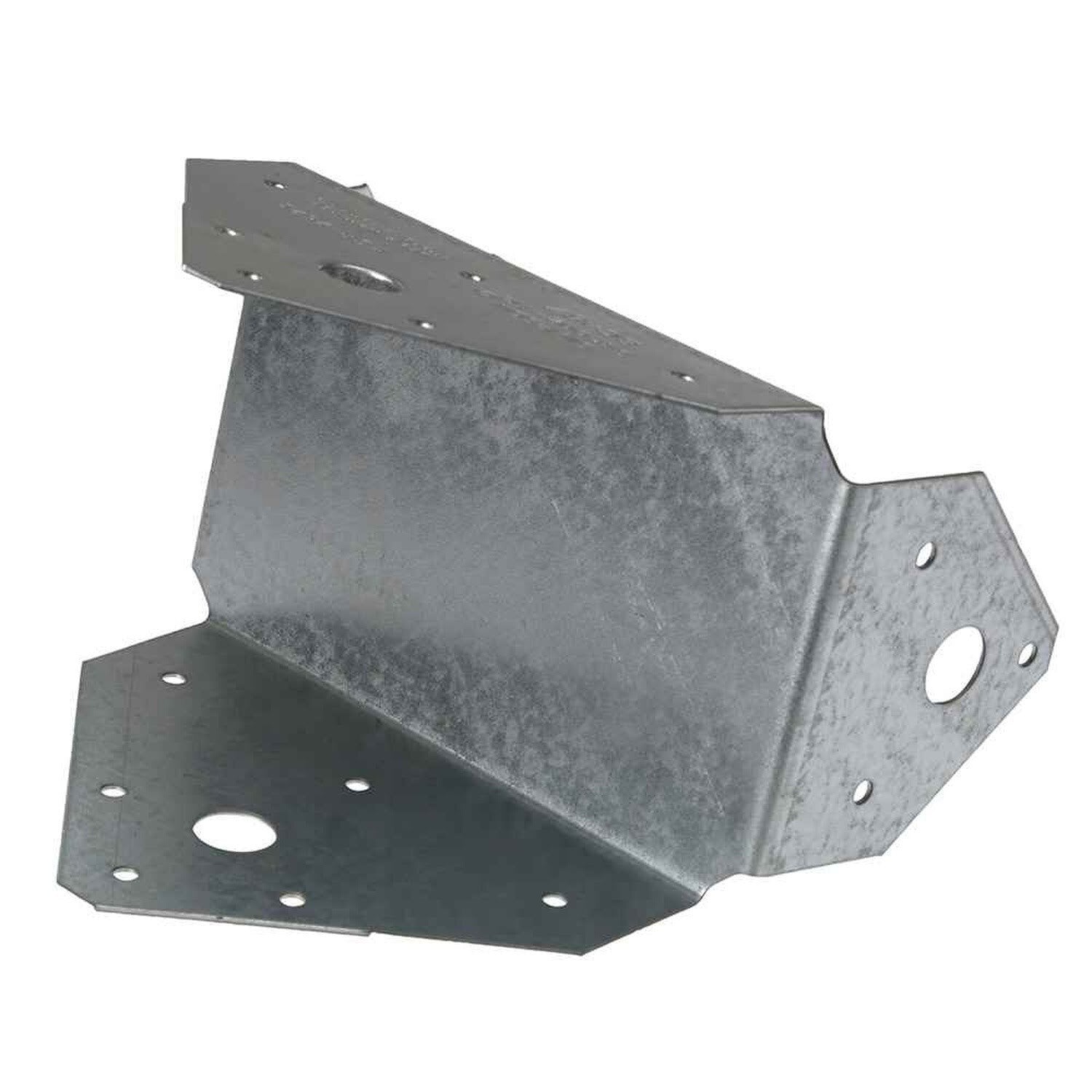

Simpson Strong-Tie BC46 (4x6) 18 Gauge Galvanized Post Cap
$9.65
$14.11
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie BC46 Description

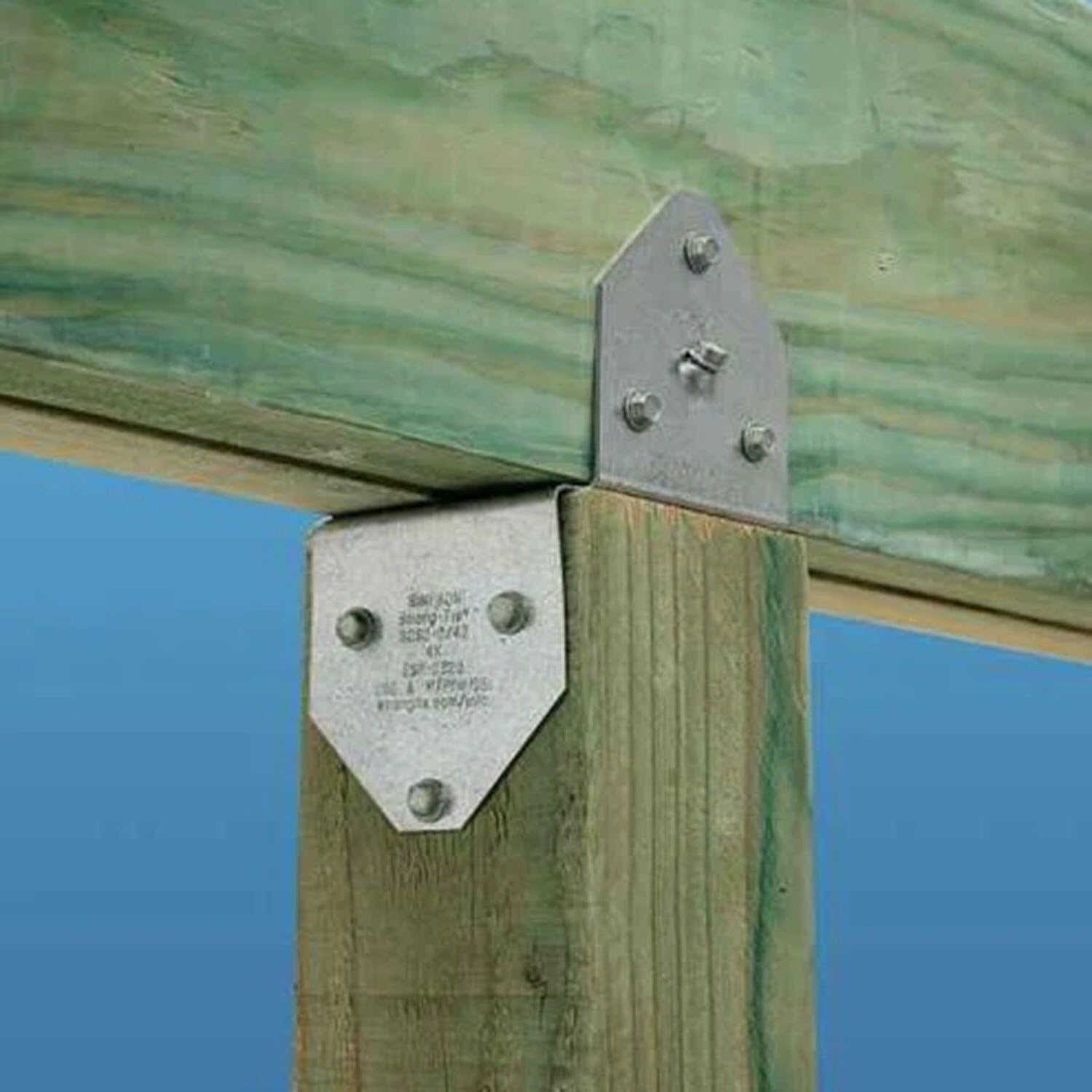

The Simpson BC46 4x6 Post Cap enhances the strength and stability of construction projects by securely connecting beams to posts. Made from durable 18-gauge steel with a G90 galvanized finish, it provides both uplift and lateral resistance.
Simpson Strong-Tie BC46 Includes
- (1) 4x6 Post Cap - G90 Galvanized
Simpson Strong-Tie BC46 Features
- Designed to connect a beam to a post with opposing flanges for uplift and lateral resistance
- Made from 18-Gauge Steel for durability
- Finished with G90 Galvanized coating for corrosion resistance
- Attains full allowable load using either common nail or pneumatic nail sizes
Simpson Strong-Tie BC46 Applications
- Beam to post connections in construction projects
- Light-duty connections for 4x6 posts

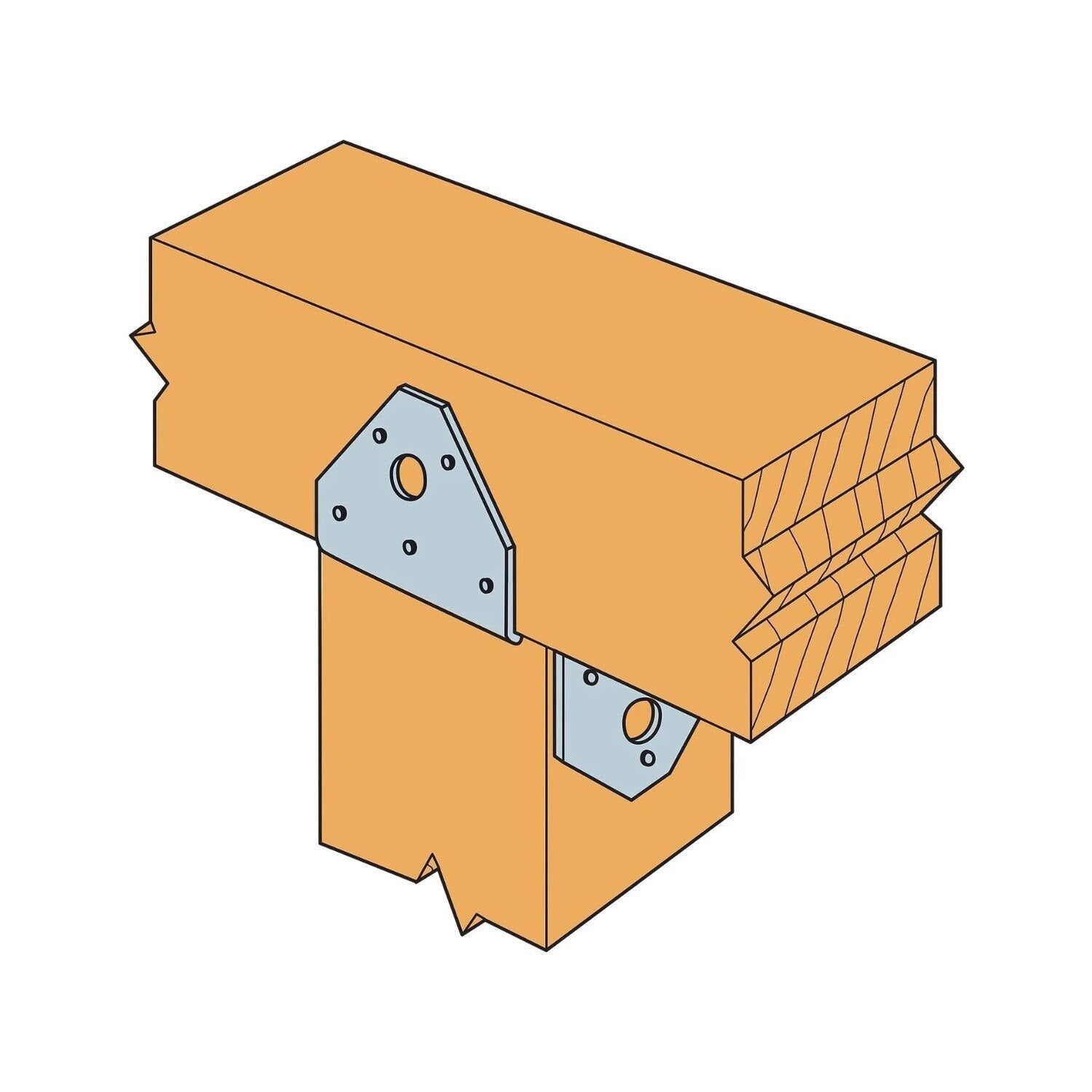

Simpson Strong-Tie BC46 Installation Overview
- Align the post cap with the beam and post
- Secure the beam flange using (12) 0.162 x 3-1/2" nails
- Secure the post flange using (6) 0.162 x 3-1/2" nails
Simpson Strong-Tie BC46 Specifications
| Finish | G90 Galvanized |
| Material | 18-Gauge Steel |
| Post size | 4x6 |
| Thickness | 18 Gauge |
| Fasteners required | Beam Flange - (12) 0.162 x 3-1/2" Nails, Post Flange - (6) 0.162 x 3-1/2" Nails |
