Simpson Anchors | SKU:
BC460
Simpson Strong-Tie BC460 (4x6) Post Base - G90 Galvanized
$13.08
Unit price
/
Unavailable
Description
Description

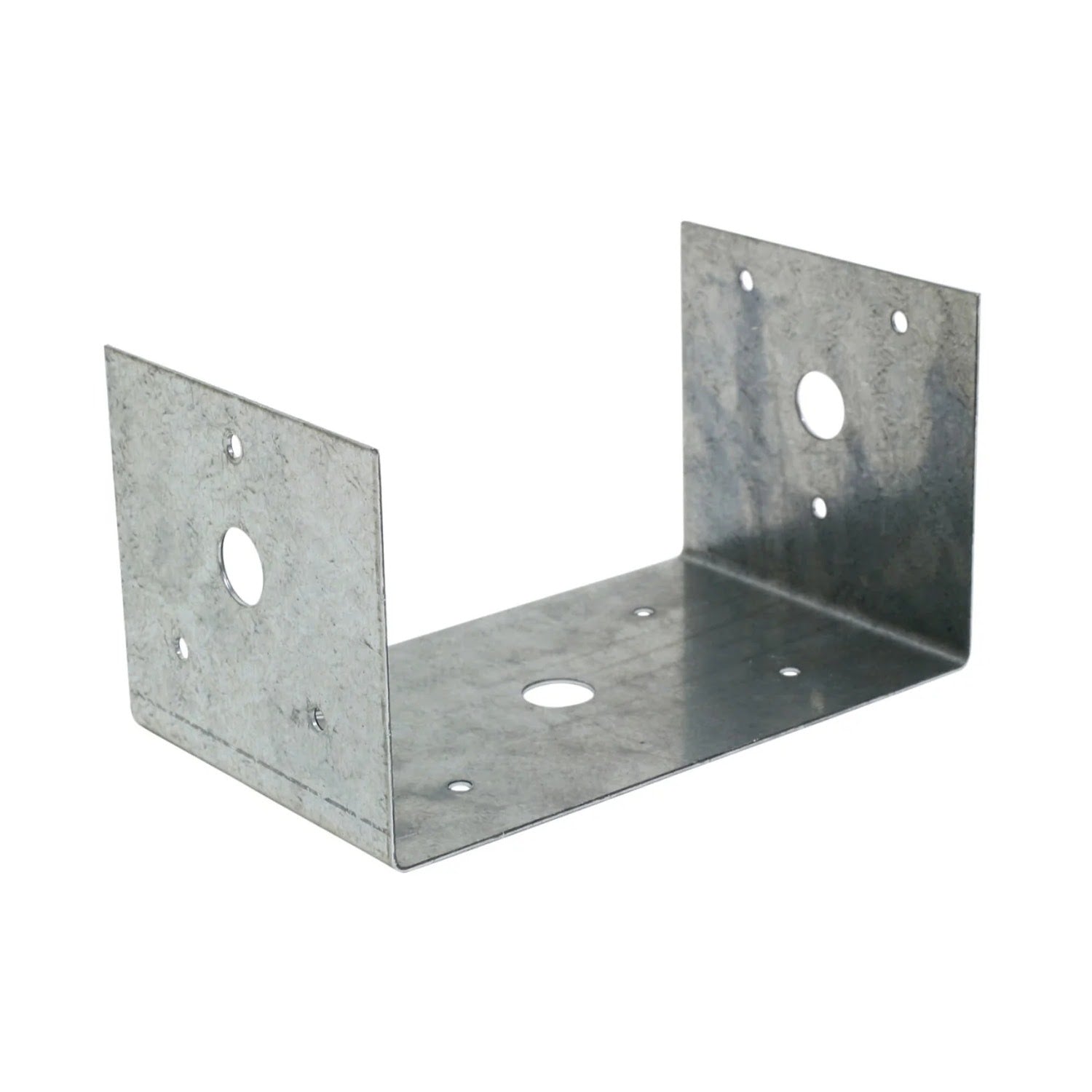

Simpson Strong-Tie BC460 Description
The Simpson BC460 4x6 Post Base is designed to enhance the strength and stability of construction projects by securely connecting beams to posts. Made from durable 18-gauge steel with a G90 galvanized finish, it provides both uplift and lateral resistance.
Simpson Strong-Tie BC460 Includes
- (1) 4x6 Post Base
Simpson Strong-Tie BC460 Features
- Designed to connect a beam to a post
- Provides both uplift and lateral resistance
- Made from 18-Gauge Steel
- Finished with G90 Galvanized coating
- Attains full allowable load using common or pneumatic nails
Simpson Strong-Tie BC460 Applications
- Beam to post connections in construction projects
- Light-duty connections for 4x6 posts
- Use in nominal and rough-cut lumber applications

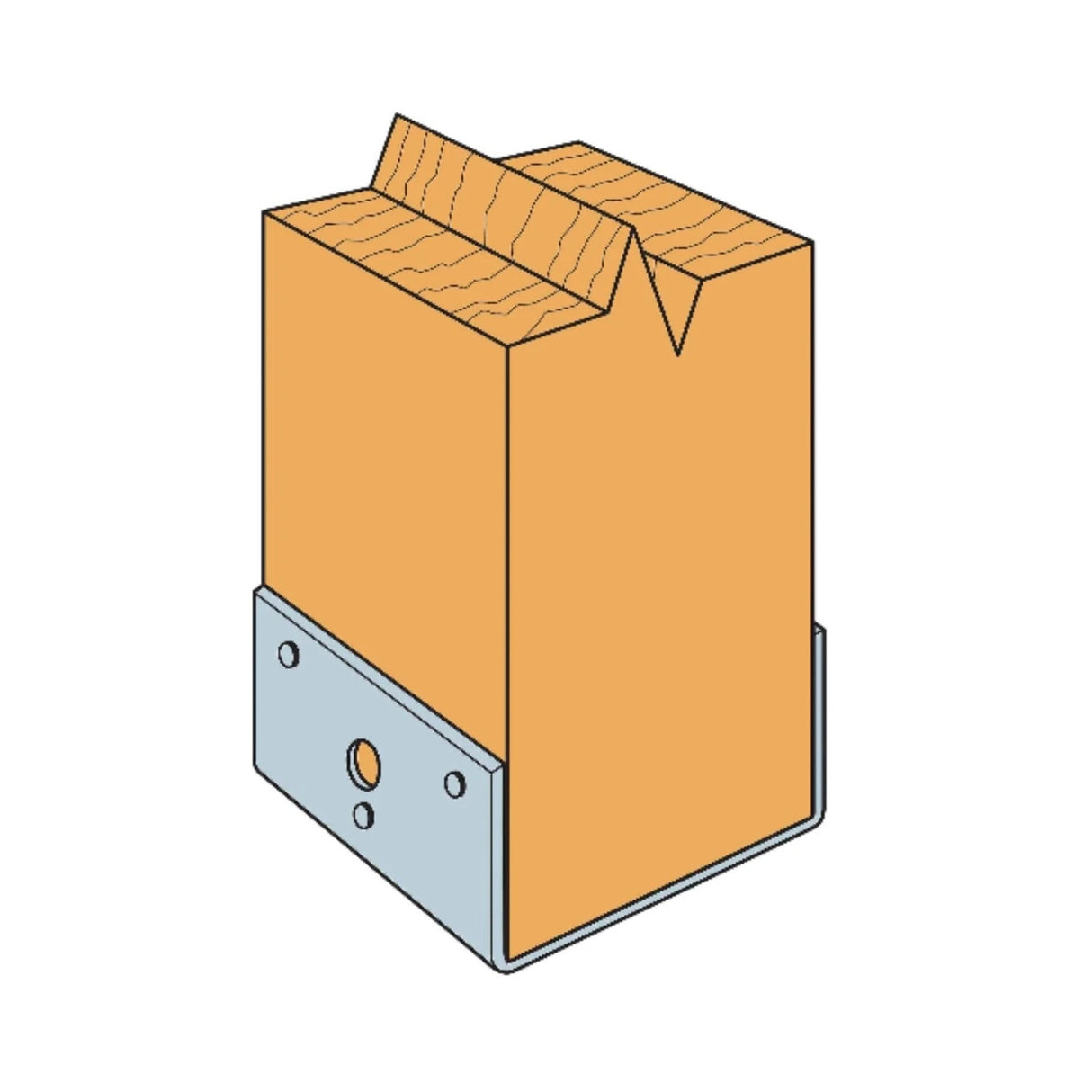

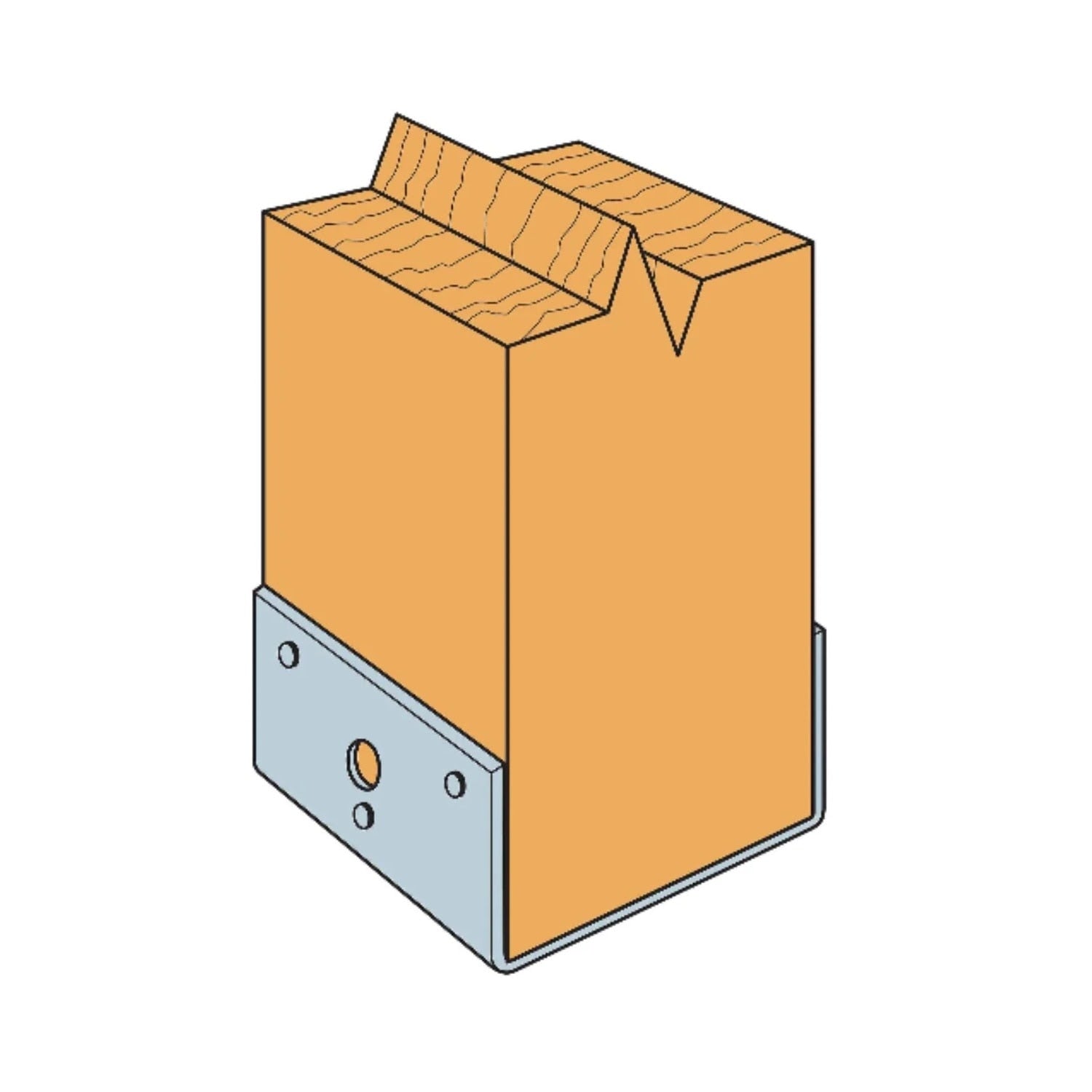

Simpson Strong-Tie BC460 Installation Overview
- Align the post base with the 4x6 post and secure using specified nails
- Ensure all fasteners are properly installed to achieve full load capacity
Simpson Strong-Tie BC460 Specifications
| Finish | G90 Galvanized |
| Length | 3-3/8" |
| Material | 18-Gauge Steel |

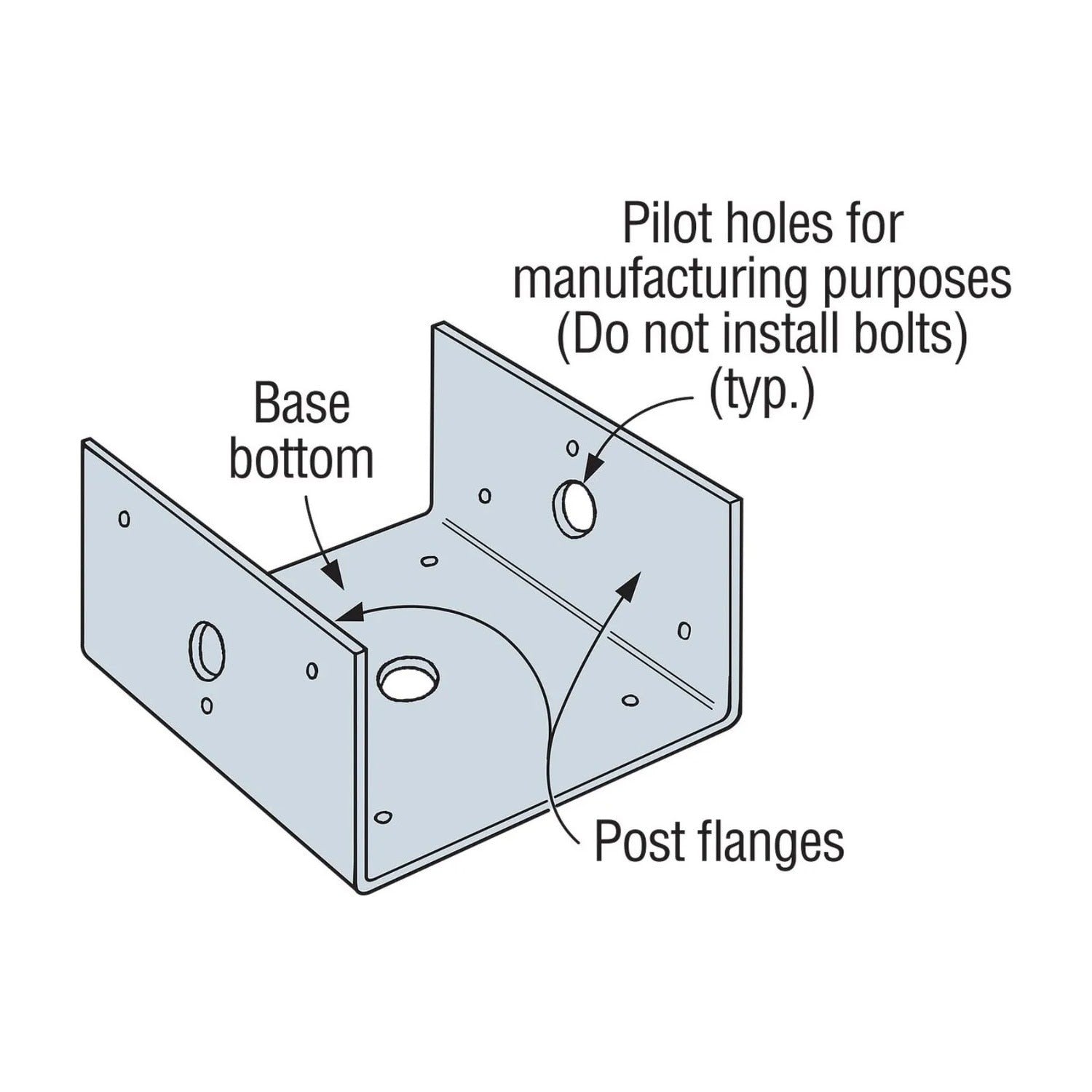

| Fasteners required | Post Flange - (6) 0.162 x 3-1/2" Nails, Base Bottom - (4) 0.162 x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 3" |
| Post size | 4x6 |
| Thickness | 18 Gauge |
| Width | 5-1/2" |
