Simpson Anchors | SKU:
BC46Z
Simpson Strong-Tie BC46Z (4x6) Post Cap - Zmax Finish
$12.26
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie BC46Z Description

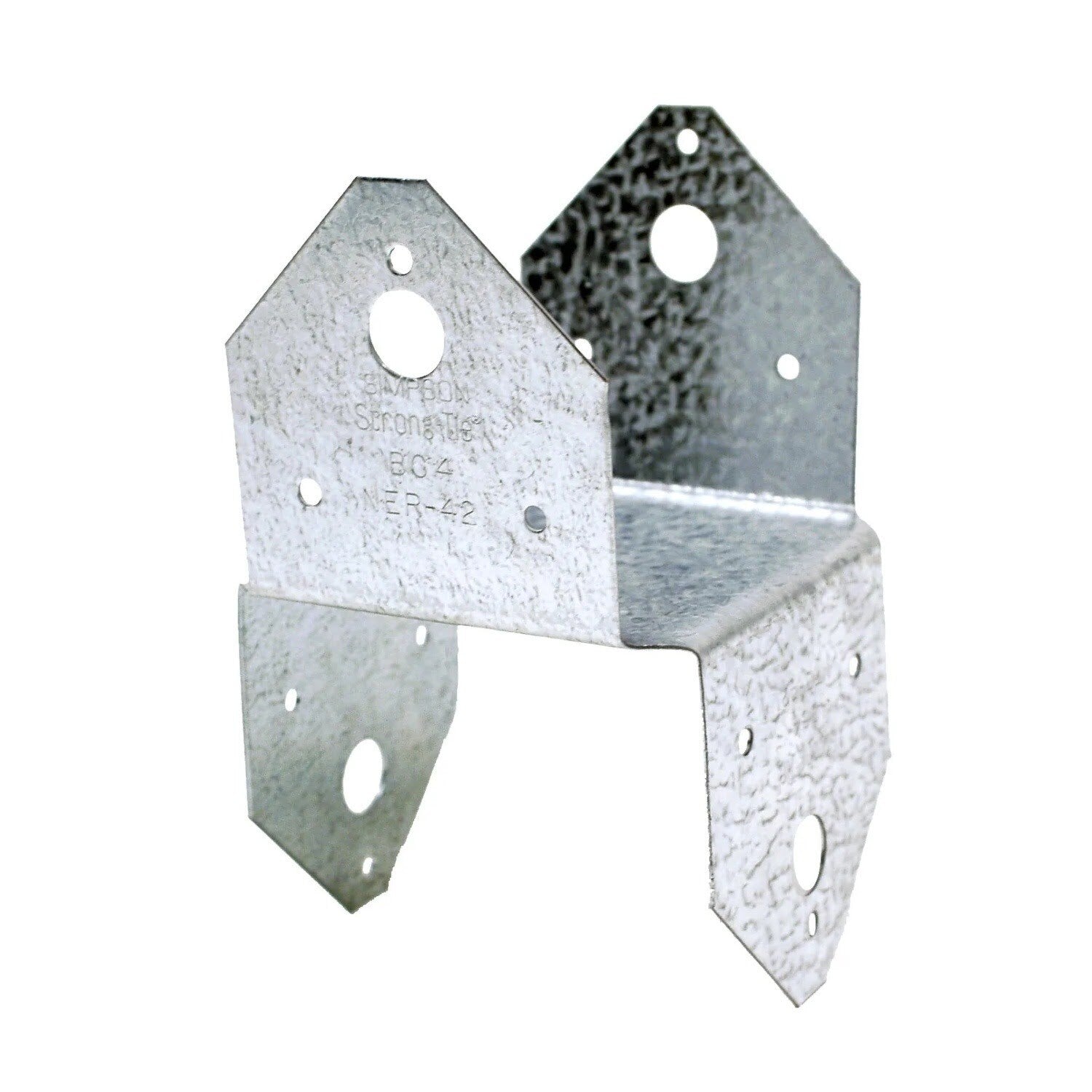

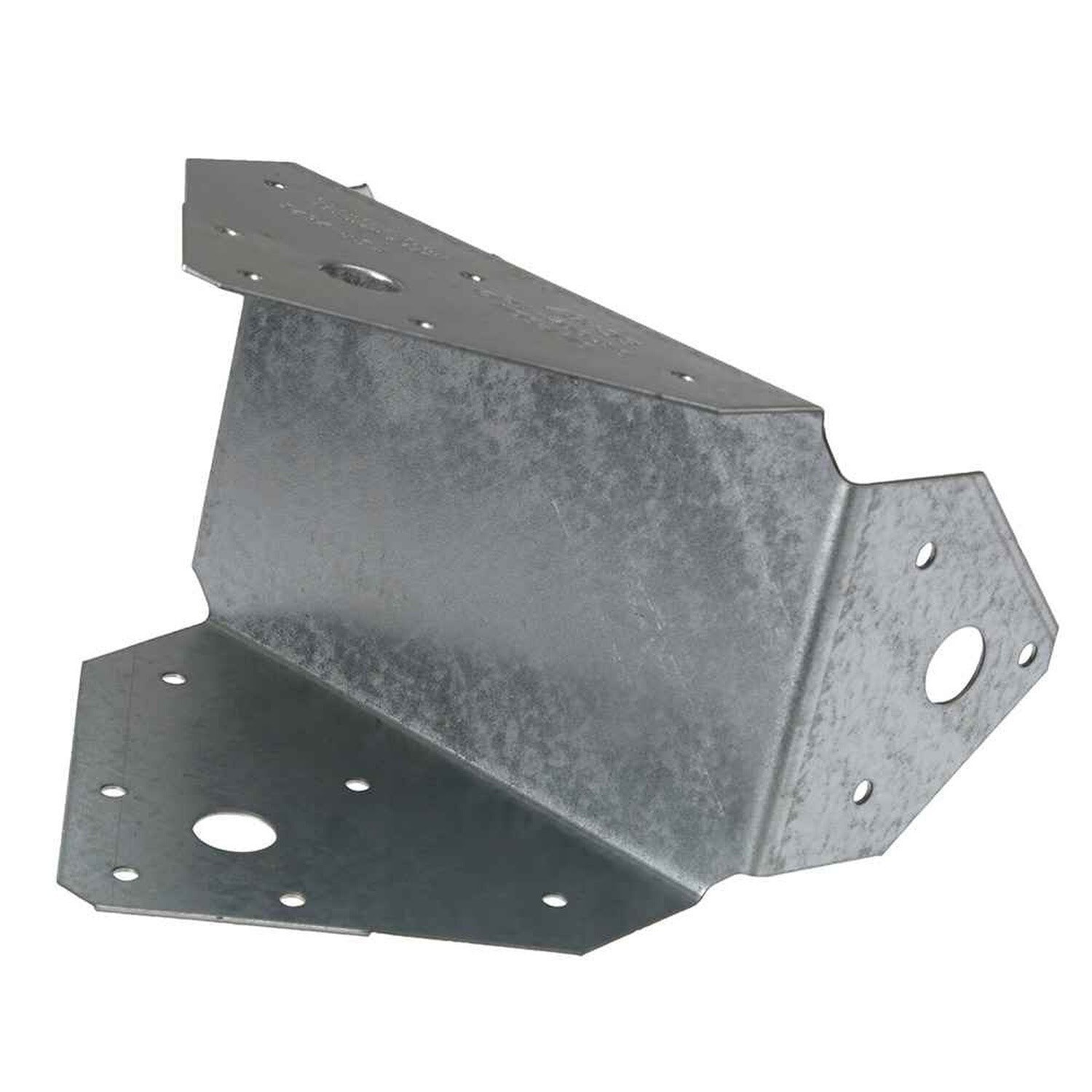

The Simpson BC46Z 4x6 Post Cap with ZMAX finish enhances the strength and stability of construction projects by securely connecting beams to posts.
Simpson Strong-Tie BC46Z Includes
- (1) 4x6 Post Cap
Simpson Strong-Tie BC46Z Features

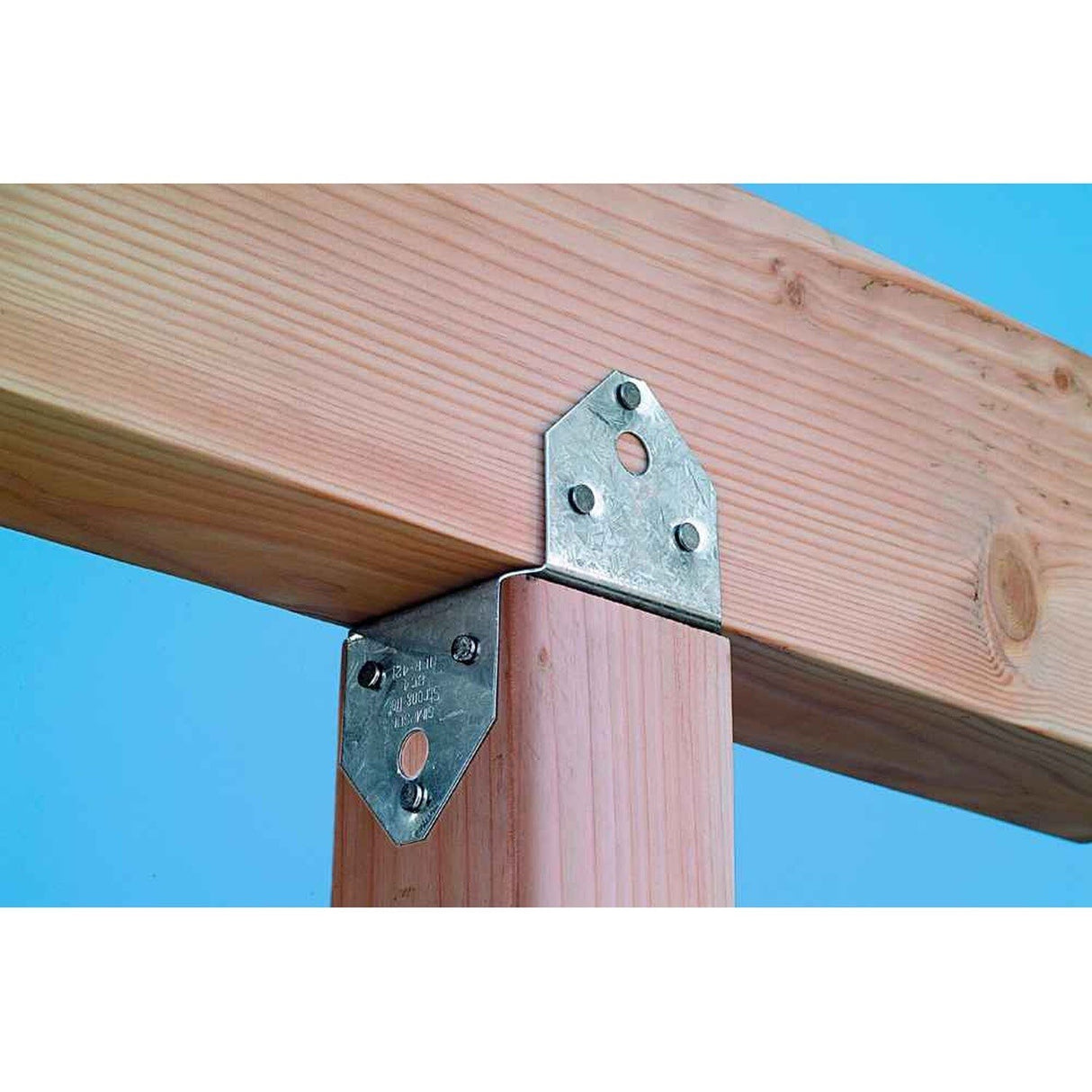

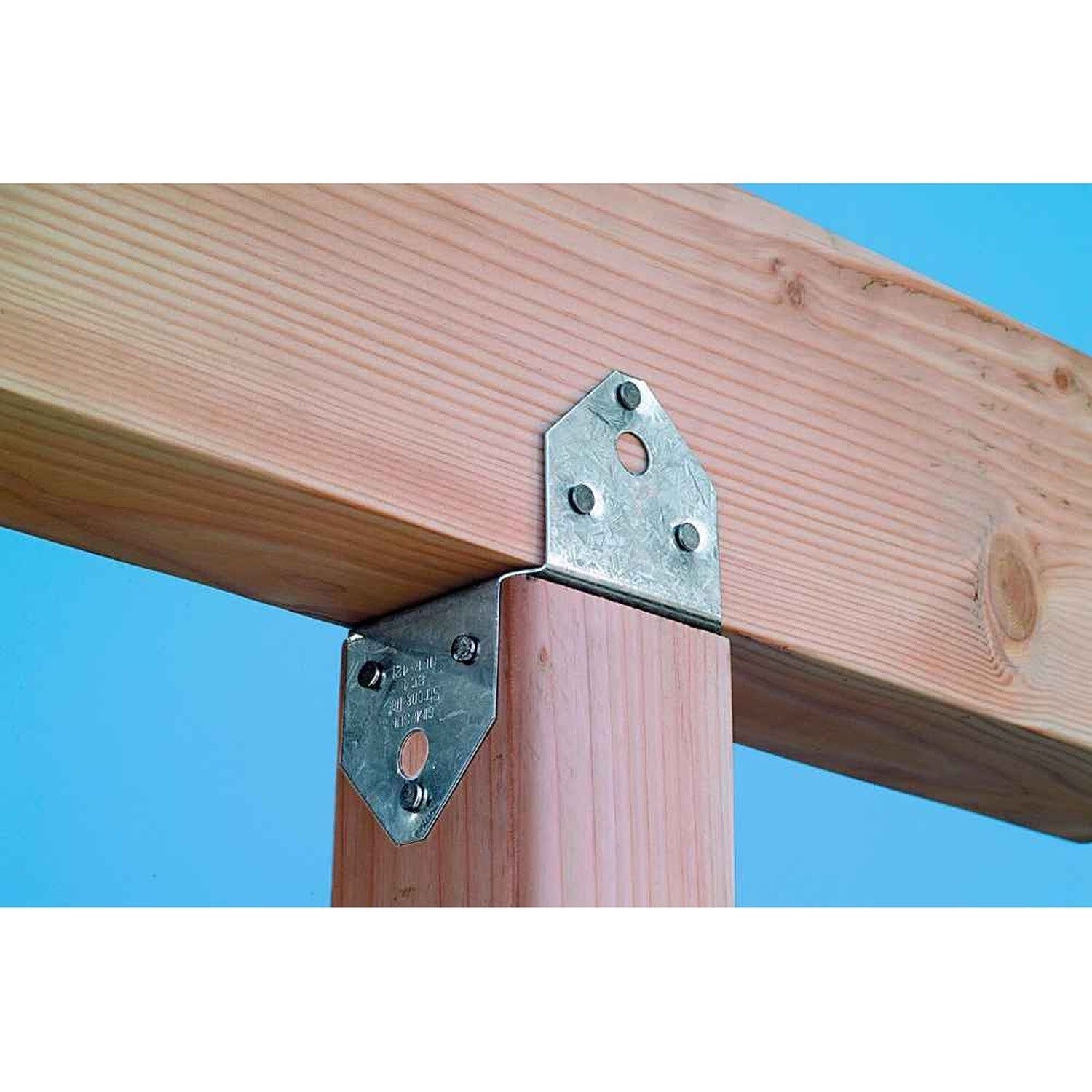

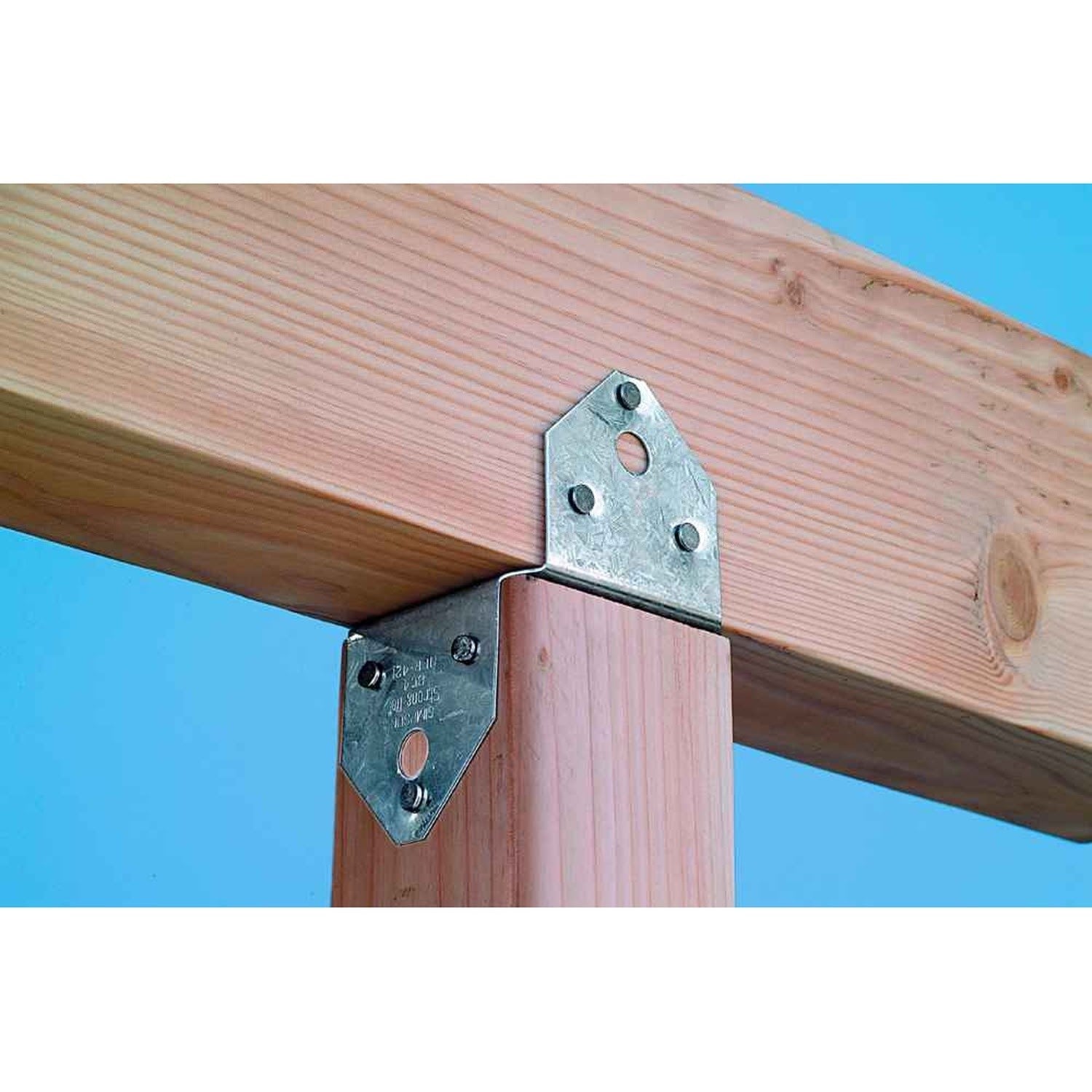

- Designed to connect a beam to a post
- Provides both uplift and lateral resistance
- Made from 18-Gauge Steel
- Finished with ZMAX coating for durability
- Attains full allowable load using common or pneumatic nails
Simpson Strong-Tie BC46Z Applications
- Beam to post connections in construction projects
- Light-duty connections for 4x6 posts
- Use with nominal and rough-cut lumber
Simpson Strong-Tie BC46Z Installation Overview
- Align the post cap with the beam and post
- Secure using the specified nails for beam and post flanges
- Ensure all fasteners are properly installed
Simpson Strong-Tie BC46Z Specifications
| Finish | ZMAX |
| Material | 18-Gauge Steel |
| Post size | 4x6 |
| Thickness | 18 Gauge |
| Fasteners required | Beam Flange - (12) 0.162 x 3-1/2" Nails, Post Flange - (6) 0.162 x 3-1/2" Nails |
