Simpson Anchors | SKU:
BC4R
Simpson Strong-Tie BC4R (4x) Rough Cut Post Cap G90 Galvanized
$41.42
Unit price
/
Unavailable
Description
Description

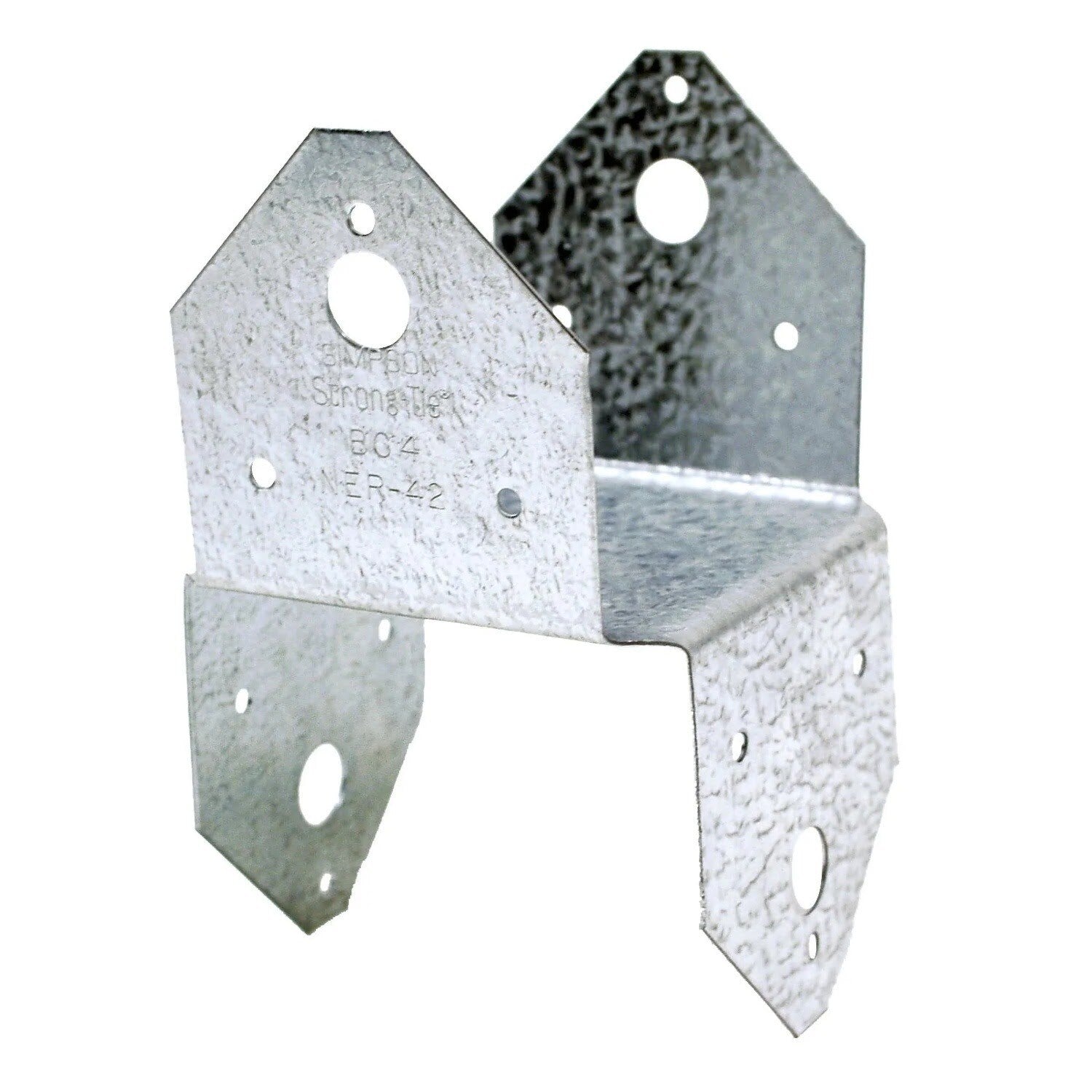

Simpson Strong-Tie BC4R Description
The Simpson BC4R Rough Cut 4x Post Cap enhances the strength and stability of your construction projects, designed to securely connect beams to posts with durable 18-gauge steel and a G90 galvanized finish.
Simpson Strong-Tie BC4R Includes
- (1) Rough Cut 4x Post Cap G90 Galvanized
Simpson Strong-Tie BC4R Features

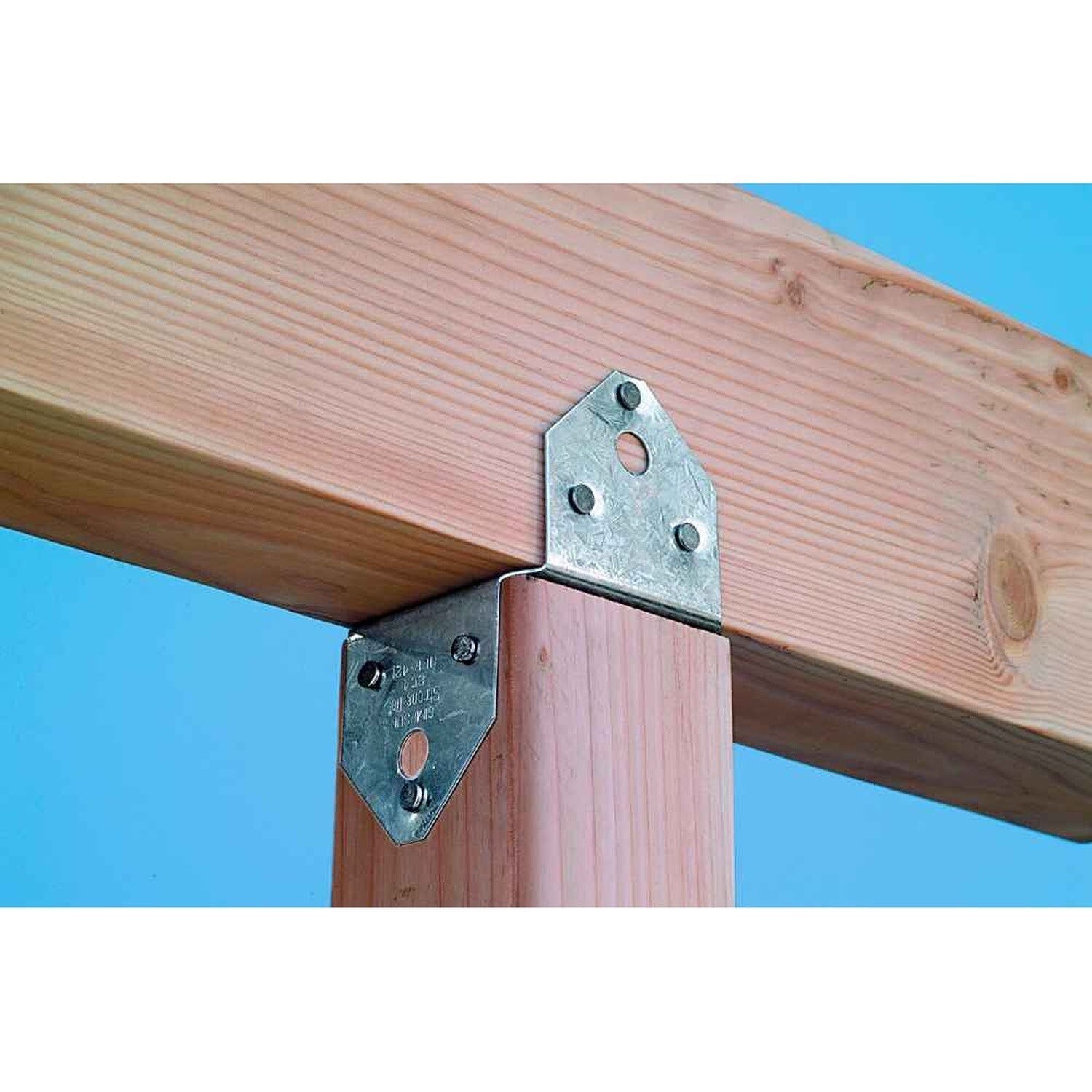

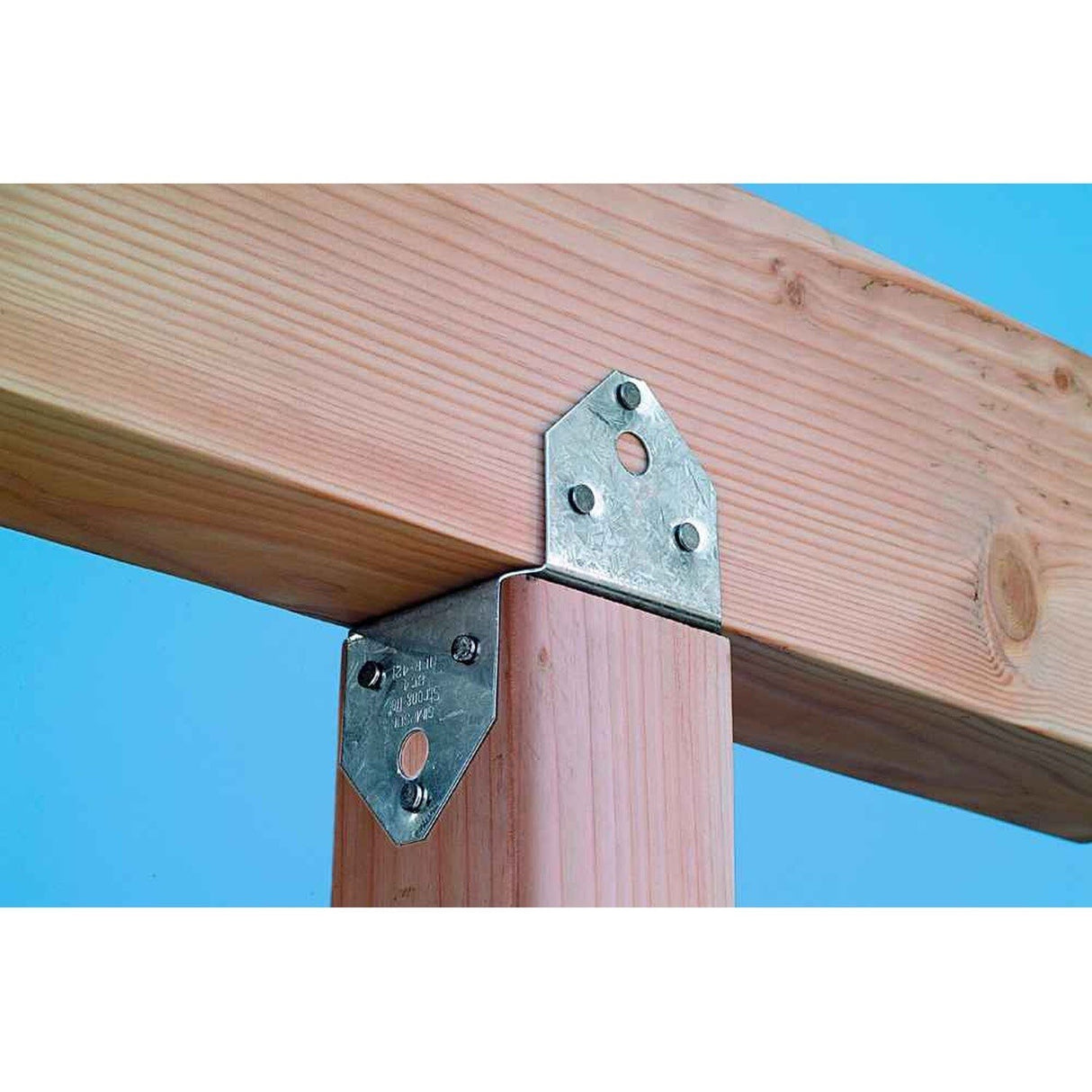

- Designed to connect a beam to a post with opposing flanges for uplift and lateral resistance
- Made from 18-Gauge Steel for durability
- Finished with G90 Galvanized coating for corrosion resistance
- Attains full allowable load using either common nail or pneumatic nail sizes
Simpson Strong-Tie BC4R Applications
- Facilitates secure connection of beams to posts in construction projects
- Provides robust and reliable support for light-duty connections
Simpson Strong-Tie BC4R Specifications
| Finish | G90 Galvanized |
| Length | 4" |
| Material | 18-Gauge Steel |
| Fasteners required | Beam Flange - (12) 0.162 x 3-1/2" Nails, Post Flange - (12) 0.162 x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 3" |
| Post size | 4x |
| Thickness | 18 Gauge |
| Width | 4" |
