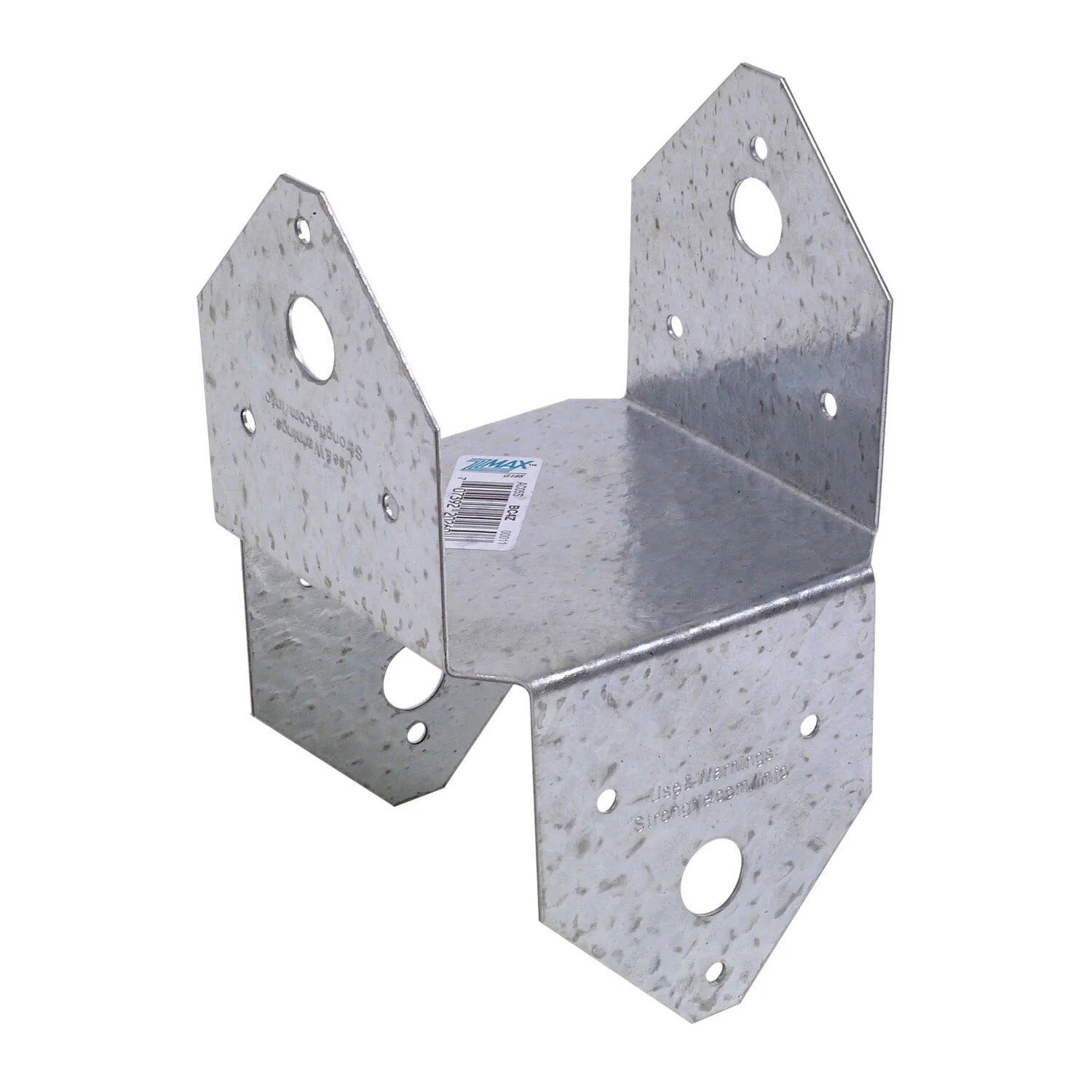

Simpson BC4Z Description
The Simpson BC4Z Post Cap ZMAX enhances the strength and stability of construction projects, securely connecting beams to posts with durable 18-gauge steel and ZMAX coating.
Simpson BC4Z Includes
- (1) Post Cap ZMAX for 4x Nominal Lumber
Simpson BC4Z Features
- Designed to connect beams to posts
- Provides uplift and lateral resistance
- Made from durable 18-gauge steel
- Finished with ZMAX coating for corrosion resistance
- Attains full allowable load using common or pneumatic nails
Simpson BC4Z Applications
- Beam-to-post connections in construction
- Light-duty connections for 4x posts
- Structural support for nominal and rough-cut lumber

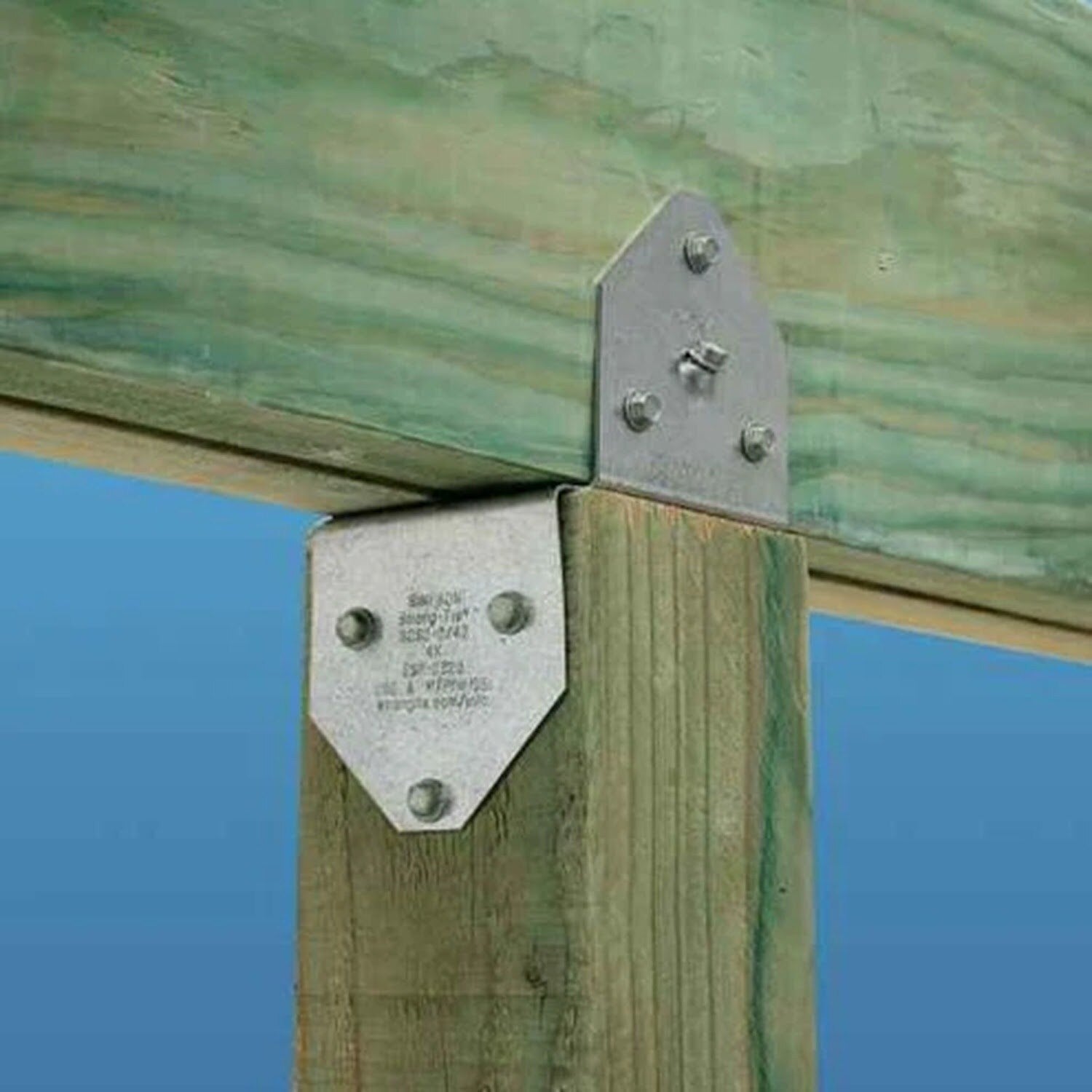

Simpson BC4Z Installation Overview
- Position the post cap on the beam and post as per the design.
- Secure the beam flange using (6) 0.162 x 3-1/2" nails.
- Secure the post flange using (6) 0.162 x 3-1/2" nails.
- Verify the installation for proper alignment and fastening.
Simpson BC4Z Specifications
| Finish | ZMAX |
| Length | 2-7/8" |
| Material | 18-Gauge Steel |
| Fasteners required | Beam Flange - (6) 0.162 x 3-1/2" nails; Post Flange - (6) 0.162 x 3-1/2" nails |
| Height | 3" |
| Post size | 4x |
| Quantity | 1 |
| Thickness | 18 Gauge |
| Width | 3-9/16" |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
