Simpson Anchors | SKU:
BC60
Simpson Strong-Tie BC60 (6x) 18 Gauge Galvanized Post Base
$12.82
$19.04
Unit price
/
Unavailable
Description
Description

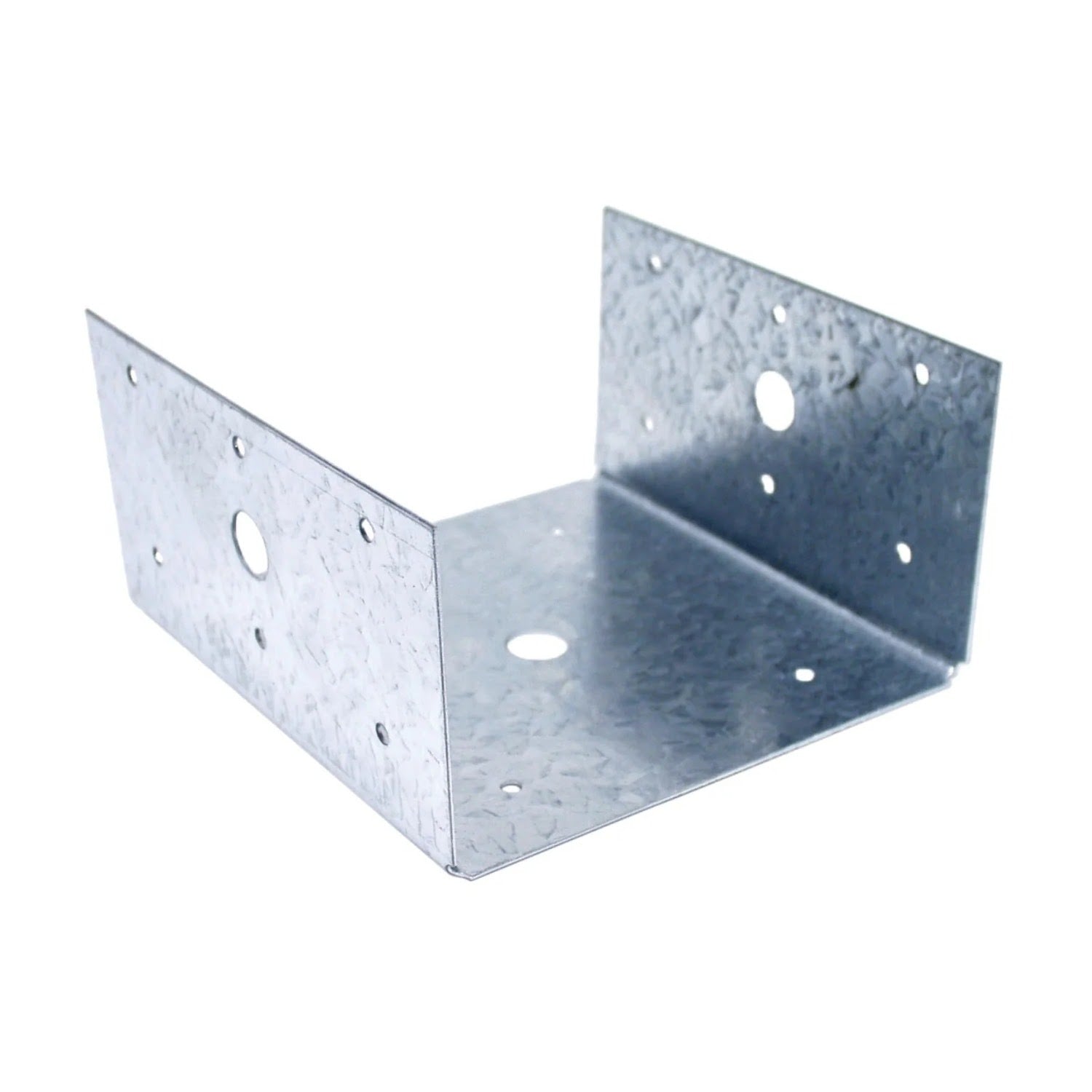

Simpson Strong-Tie BC60 Description
The Simpson BC60 6x Post Half Base - G90 Galvanized enhances the strength and stability of your construction projects. These connectors are designed to facilitate the secure connection of beams to posts, ensuring robust and reliable support.
Simpson Strong-Tie BC60 Includes
- (1) BC60 6x Post Half Base
Simpson Strong-Tie BC60 Features
- Designed to connect a beam to a post and flanges provide both uplift and lateral resistance
- Intended for use with a 6x post for light-duty connections
- Made from 18-Gauge Steel for durability and finished with G90 Galvanized coating
- Attains full allowable load using either common nail or pneumatic nail sizes
Simpson Strong-Tie BC60 Applications
- Construction projects requiring secure beam-to-post connections
- Light-duty structural support for 6x posts
Simpson Strong-Tie BC60 Installation Overview
- Align the post base with the 6x post
- Secure the base using the specified nails or screws
- Ensure the connection is tight and stable
Simpson Strong-Tie BC60 Specifications
| Finish | G90 Galvanized |
| Length | 5-1/2" |
| Material | 18-Gauge Steel |

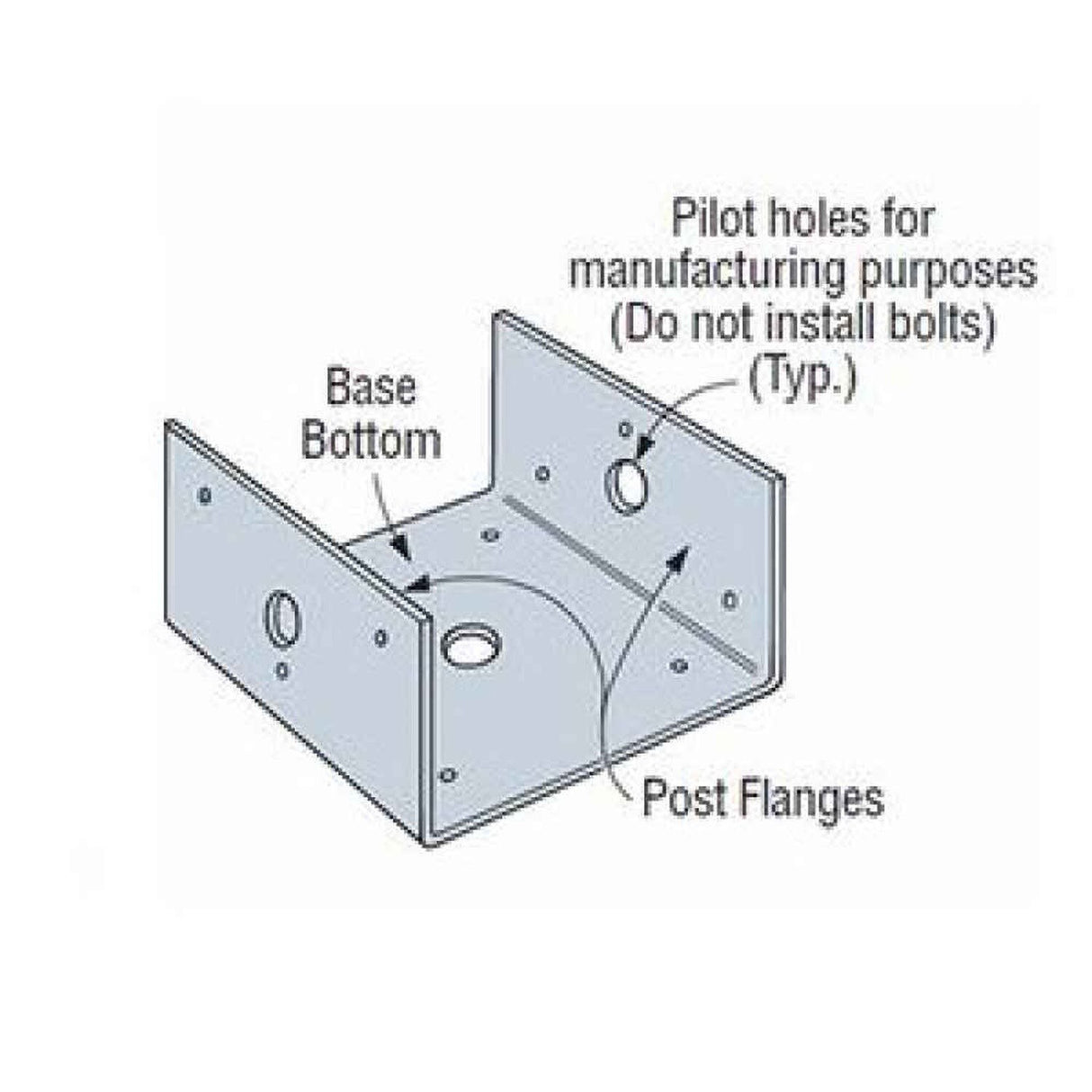

| Fasteners required | Post Flange - (6) 0.162 x 3-1/2" Nails, Base Bottom - (4) 0.162 x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 3" |
| Post size | 6x |
| Thickness | 18 Gauge |
| Width | 5-1/2" |
