Simpson Anchors | SKU:
BC60R
Simpson Strong-Tie BC60R (6x) 18 Gauge Rough Cut Post Half Base - G90 Galvanized
$37.28
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie BC60R Description

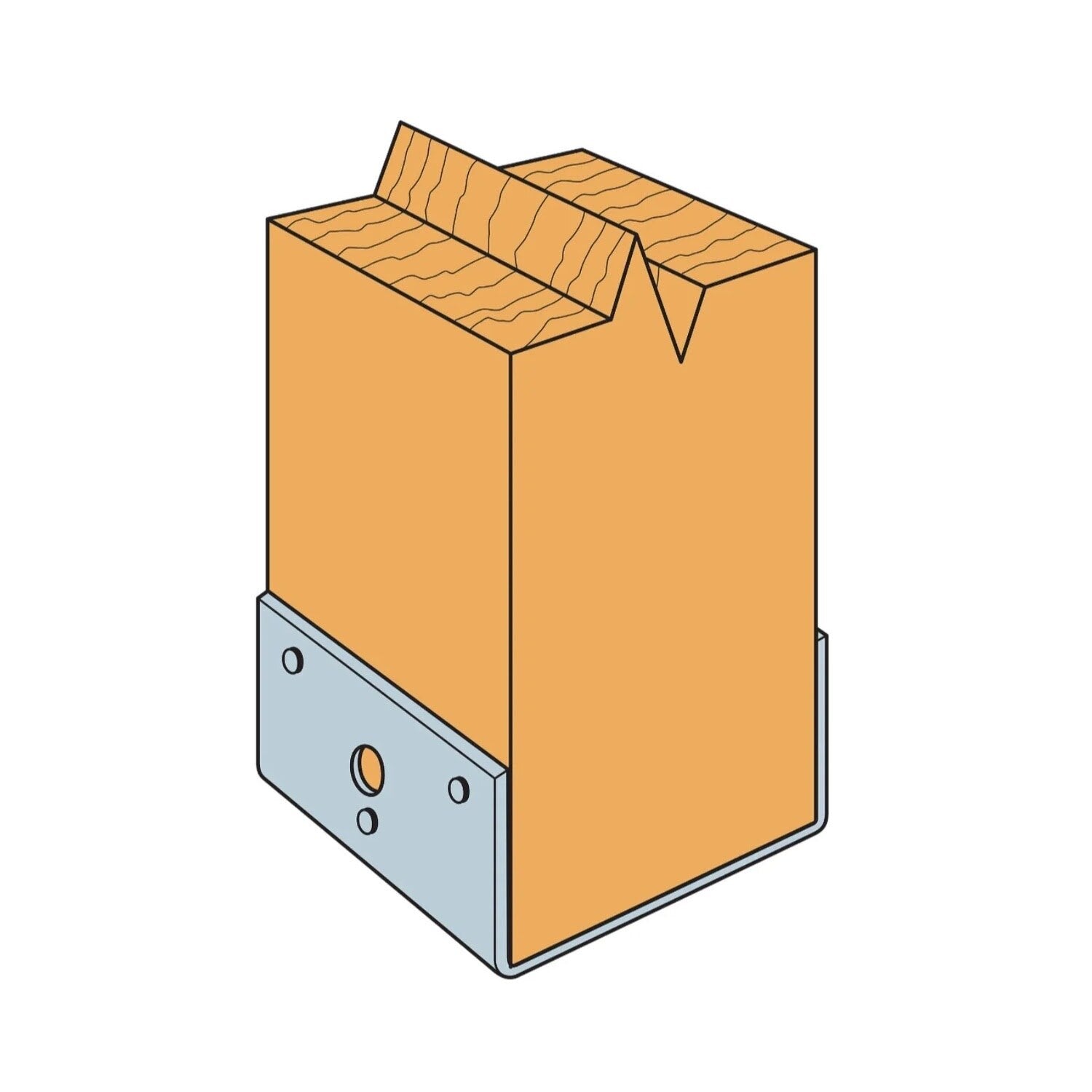

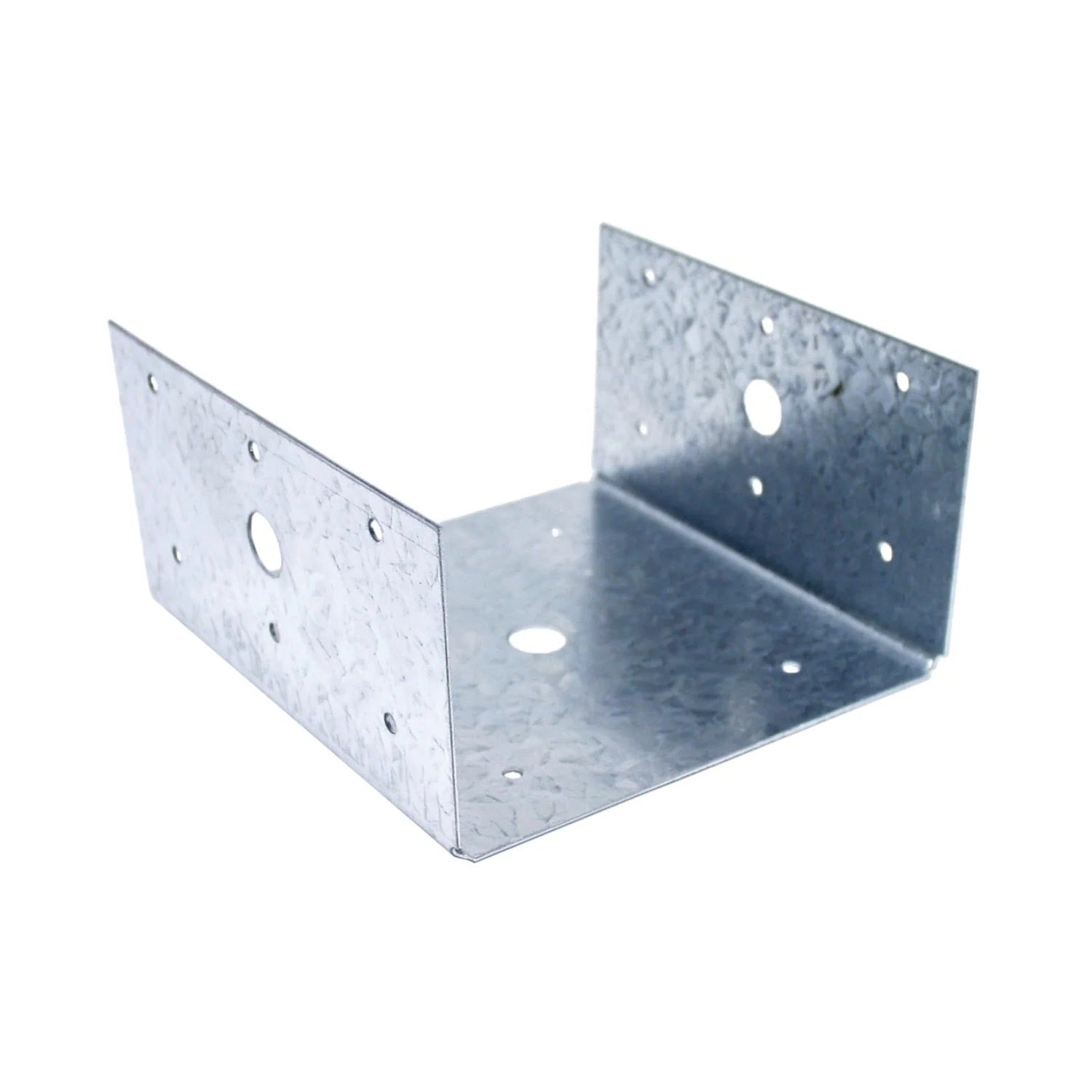

The Simpson BC60R Rough Cut 6x Post Half Base enhances the strength and stability of your construction projects, designed to facilitate secure connections of beams to posts.
Simpson Strong-Tie BC60R Includes
- (1) Rough Cut 6x Post Half Base G90 Galvanized
Simpson Strong-Tie BC60R Features
- Designed to connect a beam to a post with flanges providing both uplift and lateral resistance.
- Intended for use with a 6x post for light-duty connections.
- Made from 18-Gauge Steel for durability.
- Finished with G90 Galvanized coating.
- Attains full allowable load using either common nail or pneumatic nail sizes.
Simpson Strong-Tie BC60R Applications
- Construction projects requiring secure beam-to-post connections.
- Light-duty connections for 6x posts.
- Projects utilizing rough-cut lumber.
Simpson Strong-Tie BC60R Installation Overview
- Position the connector on the post.
- Secure using specified nails as per guidelines.
- Ensure proper alignment and stability.
Simpson Strong-Tie BC60R Specifications
| Finish | G90 Galvanized |
| Length | 6" |
| Material | 18-Gauge Steel |
| Fasteners required | Post Flange - (6) 0.162 x 3-1/2" Nails, Base Bottom - (4) 0.162 x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 3" |
| Manufacturer name | Simpson Strong-Tie |
| Post size | 6x |
| Thickness | 18 Gauge |
| Width | 6" |
NOTE: This connector is designed for Rough Cut lumber NOT nominal lumber (most common).
