Simpson BC60Z Description

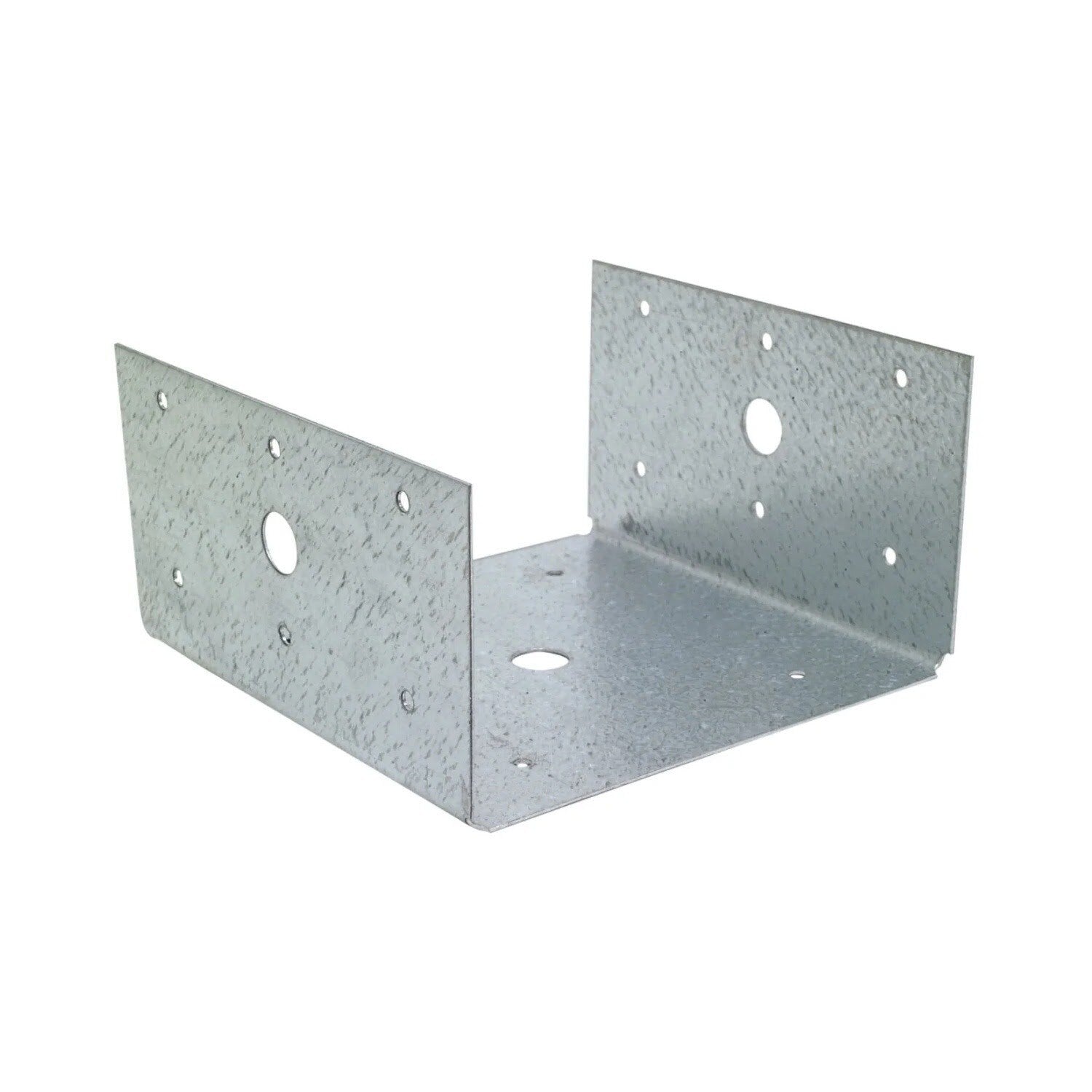

The Simpson BC60Z 6x Post Half Base ZMAX Finish enhances the strength and stability of construction projects, providing secure beam-to-post connections.
Simpson BC60Z Includes
- (1) 6x Post Half Base ZMAX Finish
Simpson BC60Z Features
- Designed to connect a beam to a post with flanges providing uplift and lateral resistance
- Made from durable 18-Gauge Steel
- Finished with ZMAX coating for corrosion resistance
- Attains full allowable load using common or pneumatic nail sizes
Simpson BC60Z Applications
- Beam-to-post connections in construction projects
- Light-duty connections for 6x posts
- Suitable for nominal and rough-cut lumber

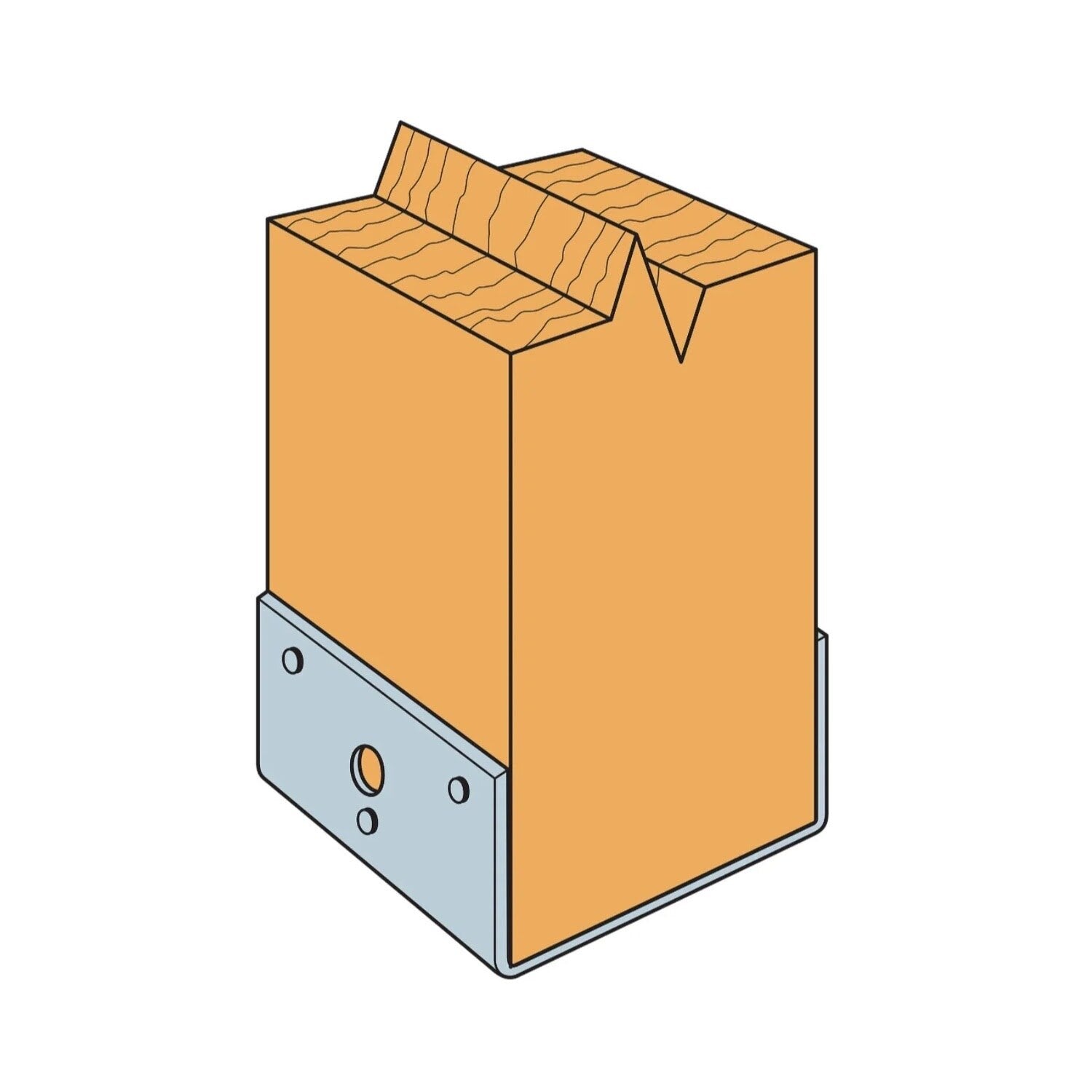

Simpson BC60Z Installation Overview
- Position the base on the post and align it properly

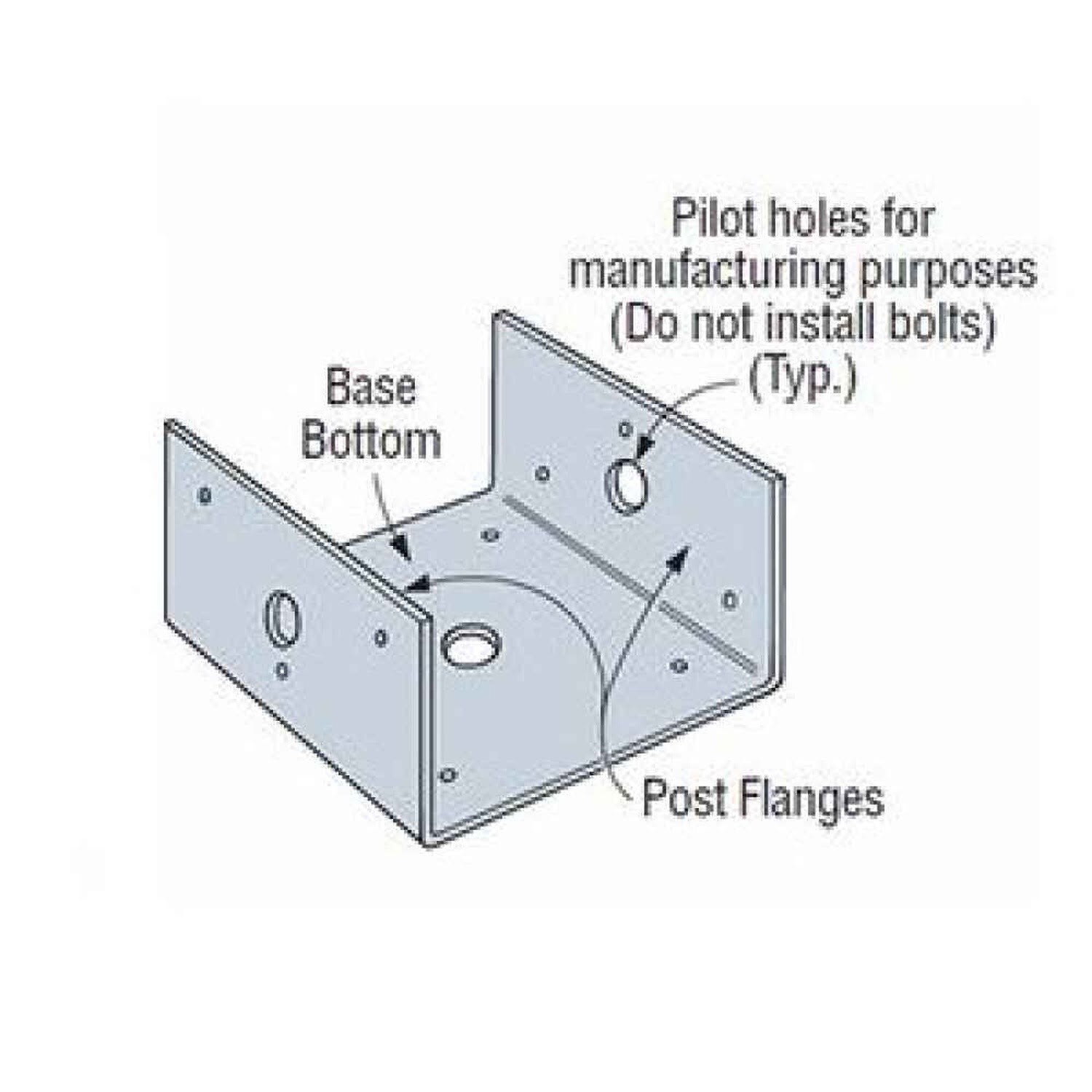

- Secure the post flange using (6) 0.162 x 3-1/2" nails
- Attach the base bottom using (4) 0.162 x 3-1/2" nails
- Ensure all fasteners are properly installed
Simpson BC60Z Specifications
| Finish | ZMAX |
| Length | 5-1/2" |
| Material | 18-Gauge Steel |
| Fasteners required | Post Flange - (6) 0.162 x 3-1/2" Nails, Base Bottom - (4) 0.162 x 3-1/2" Nails |
| For Treated Lumber | Yes |
| Height | 3" |
| Post size | 6x |
| Thickness | 18 Gauge |
| Width | 5-1/2" |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
