Description
Description
Simpson BC6Z Description

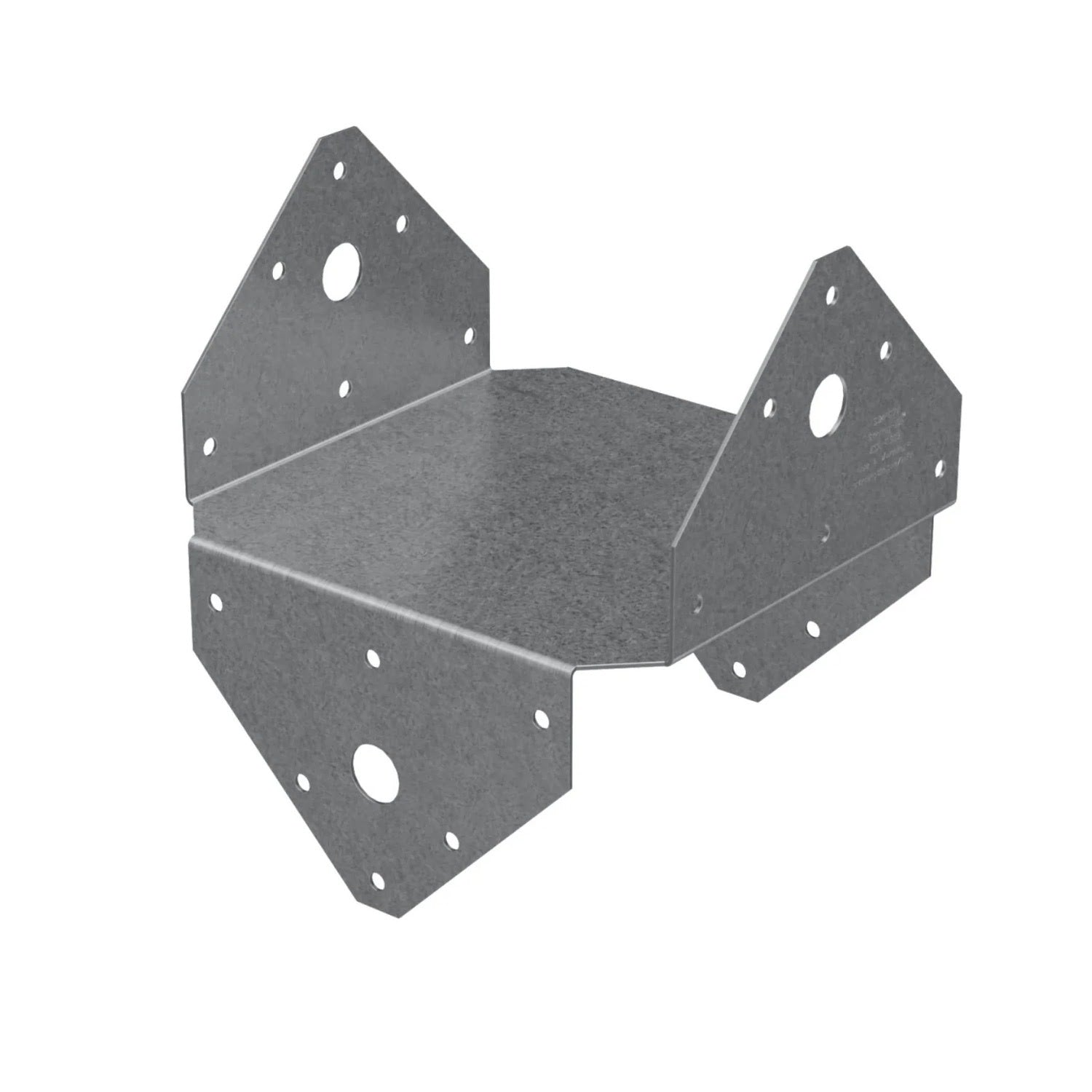

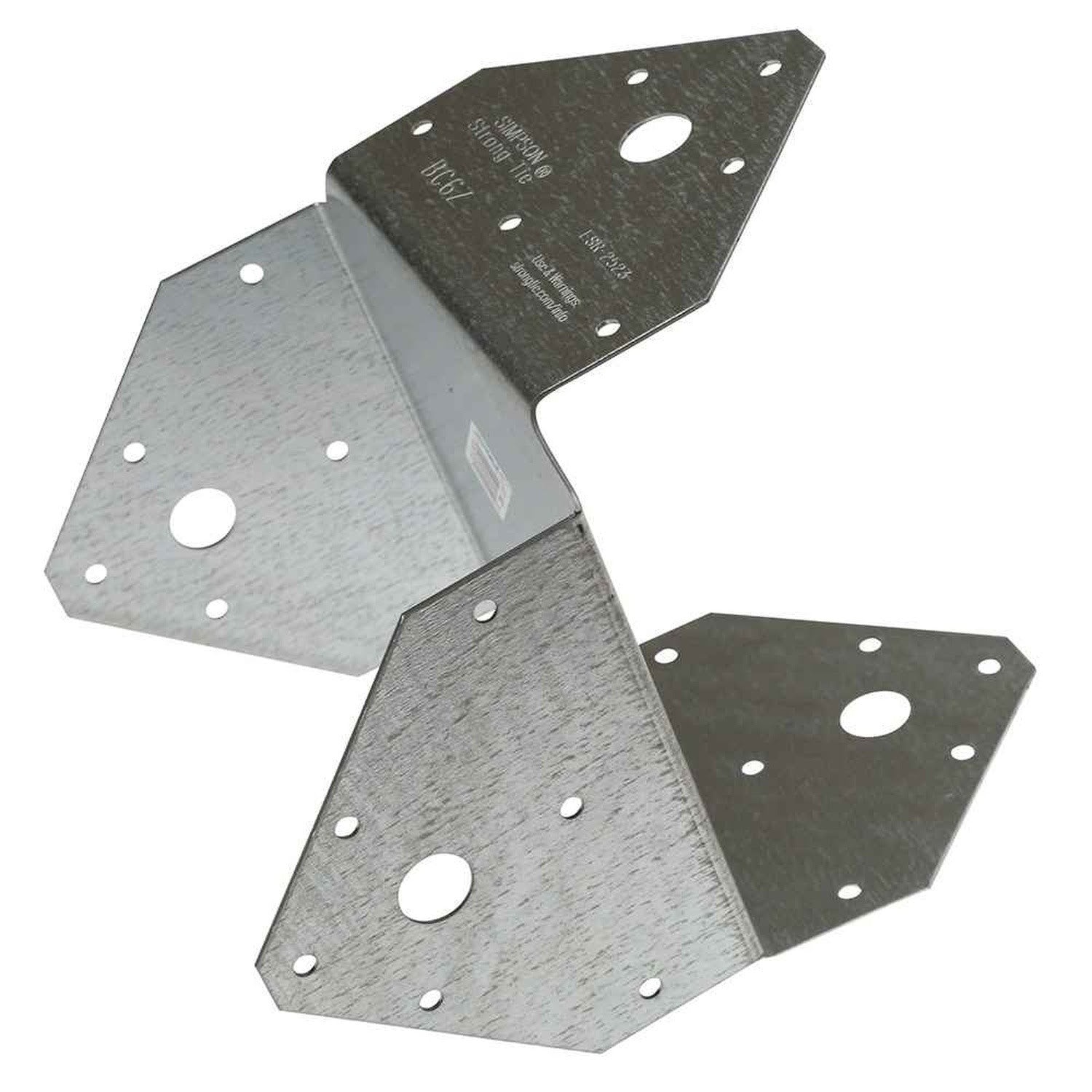

The Simpson BC6Z 6x Post Cap enhances the strength and stability of construction projects, providing secure connections for beams to posts.
Simpson BC6Z Includes
- (1) 6x Post Cap ZMAX Finish
Simpson BC6Z Features

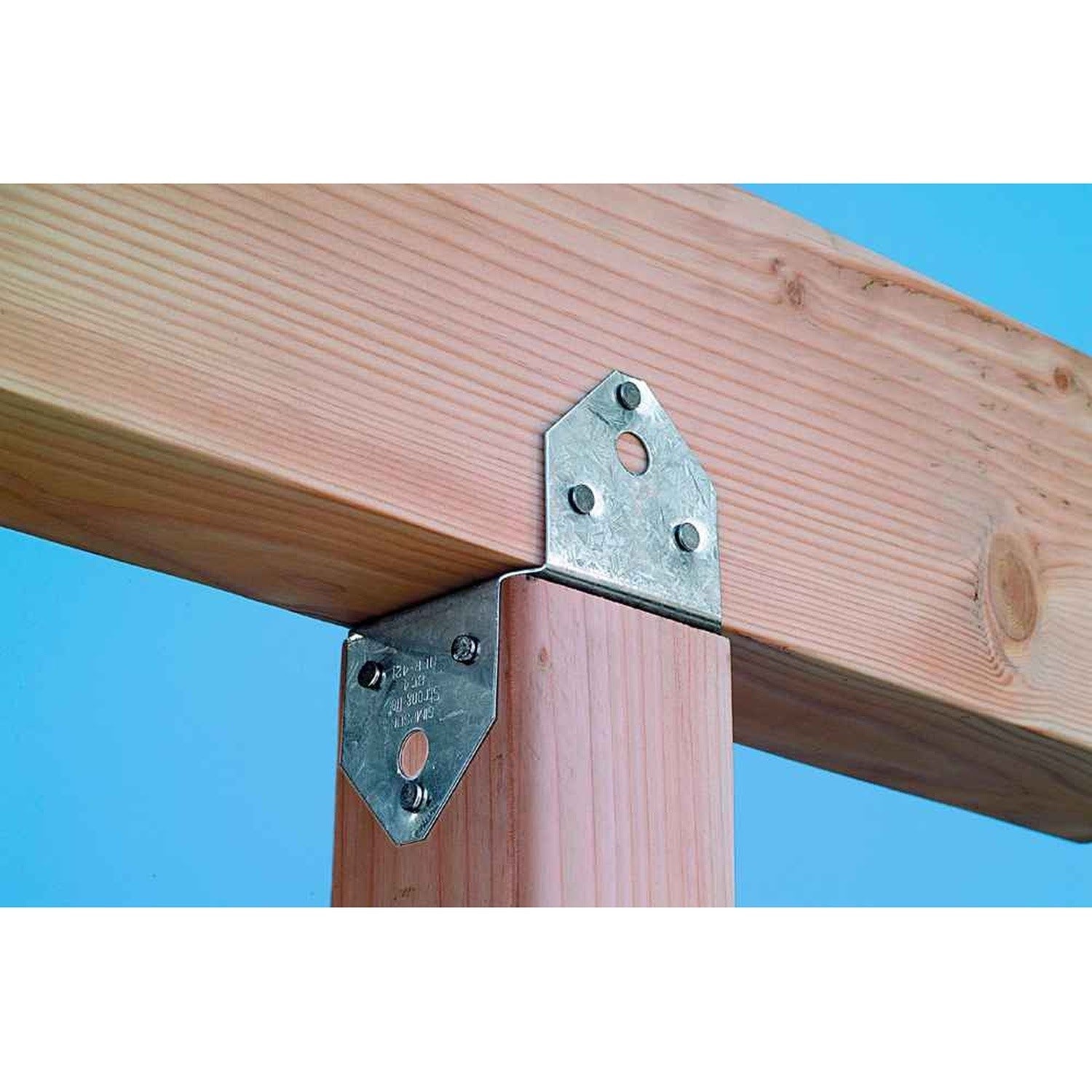

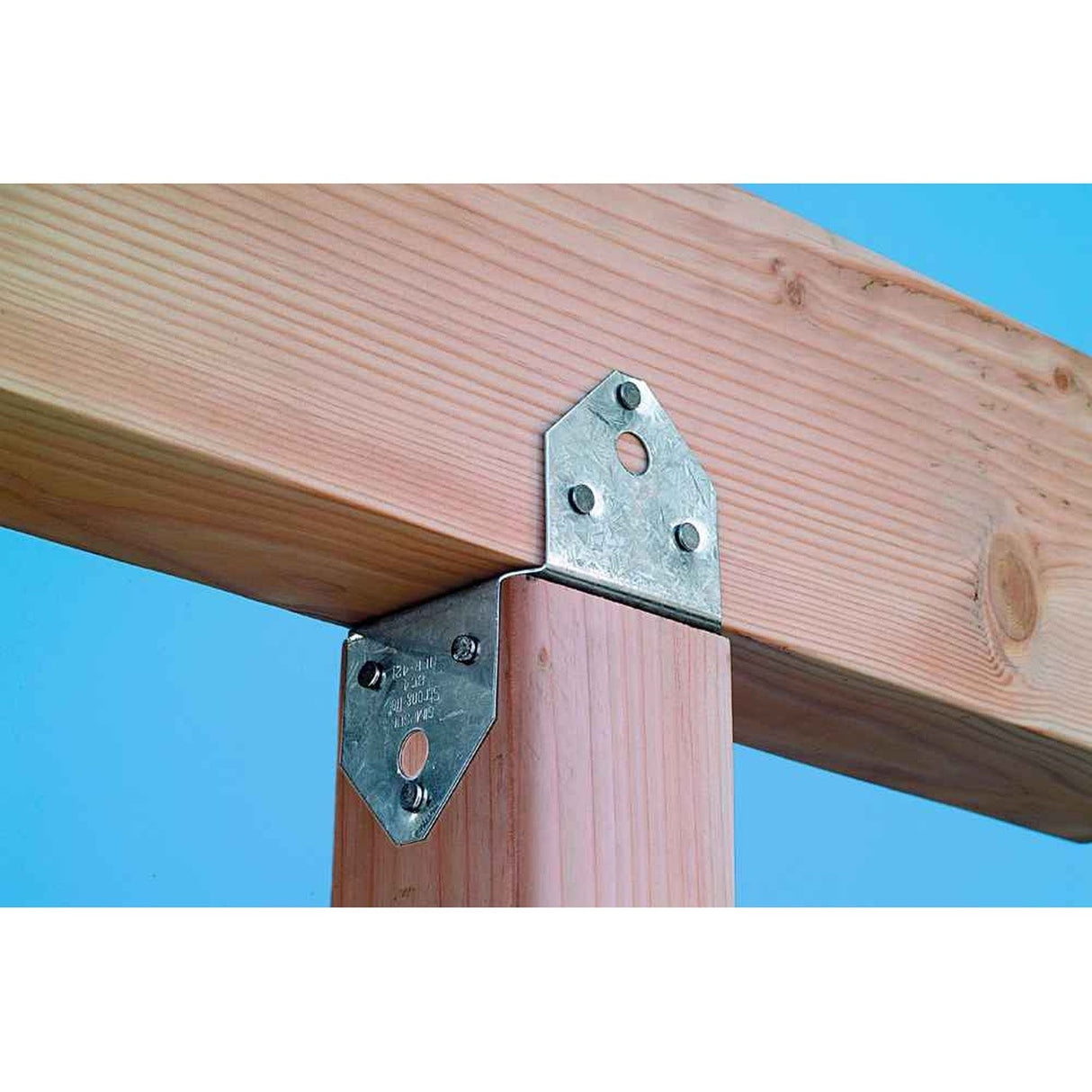

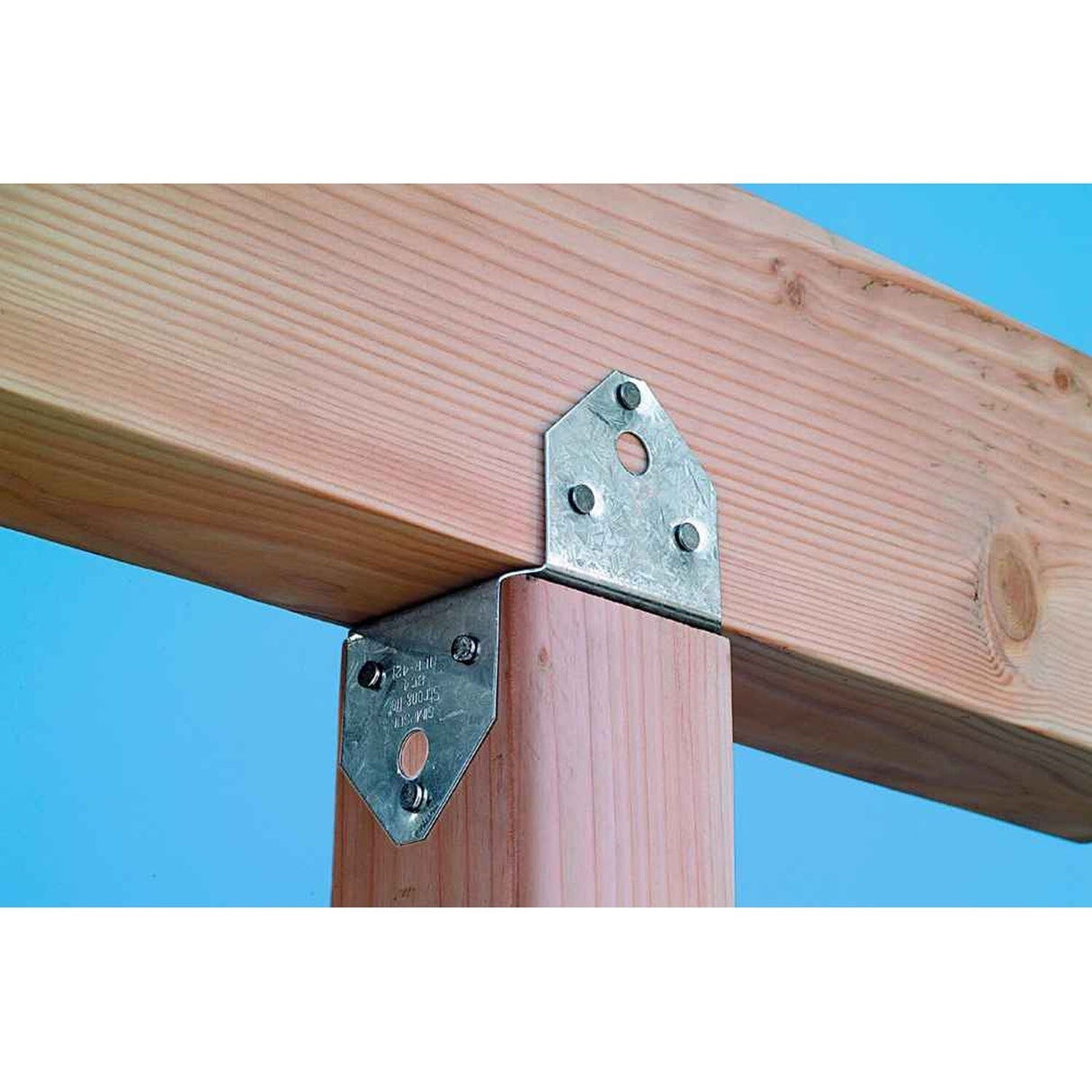

- Designed to connect beams to posts securely
- Provides both uplift and lateral resistance
- Made from durable 18-Gauge Steel
- Finished with ZMAX coating for enhanced durability
- Attains full allowable load using common or pneumatic nails
Simpson BC6Z Applications
- Beam-to-post connections in construction projects
- Suitable for use with 6x posts
- Ideal for light-duty connections
Simpson BC6Z Installation Overview

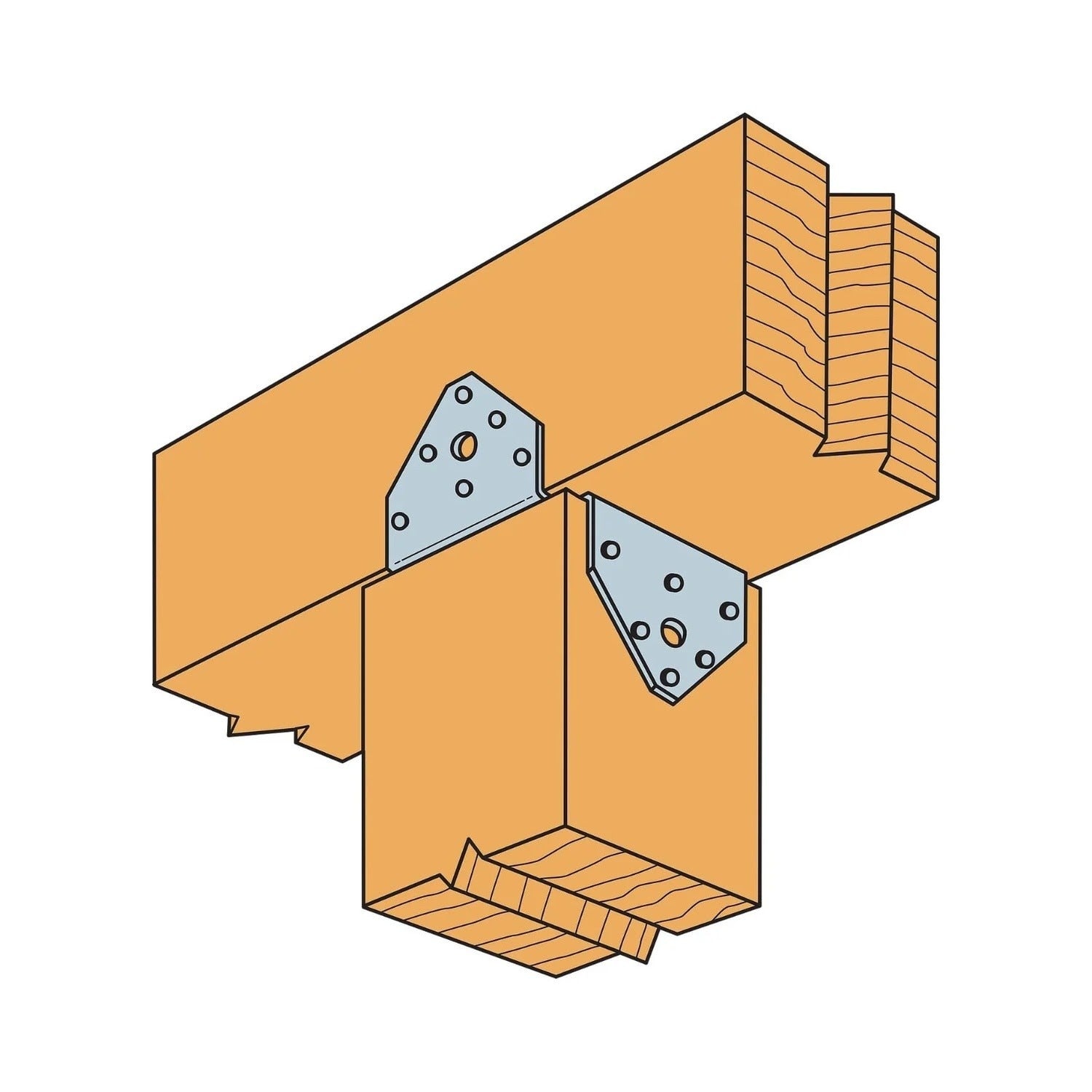

- Position the post cap on the beam and post
- Secure using specified nails
- Ensure all fasteners are properly installed
Simpson BC6Z Specifications
| Finish | ZMAX |
| Length | 4-3/8" |
| Material | 18-Gauge Steel |
| Fasteners required | Beam Flange - (12) 0.162 x 3-1/2" Nails, Post Flange - (12) 0.162 x 3-1/2" Nails |
| For Treated Lumber | Yes |
| Height | 3-3/8" |
| Post size | 6x |
| Thickness | 18 Gauge |
| Width | 5-1/2" |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
Toolup Part # :
822862
