Simpson Anchors | SKU:
BC80

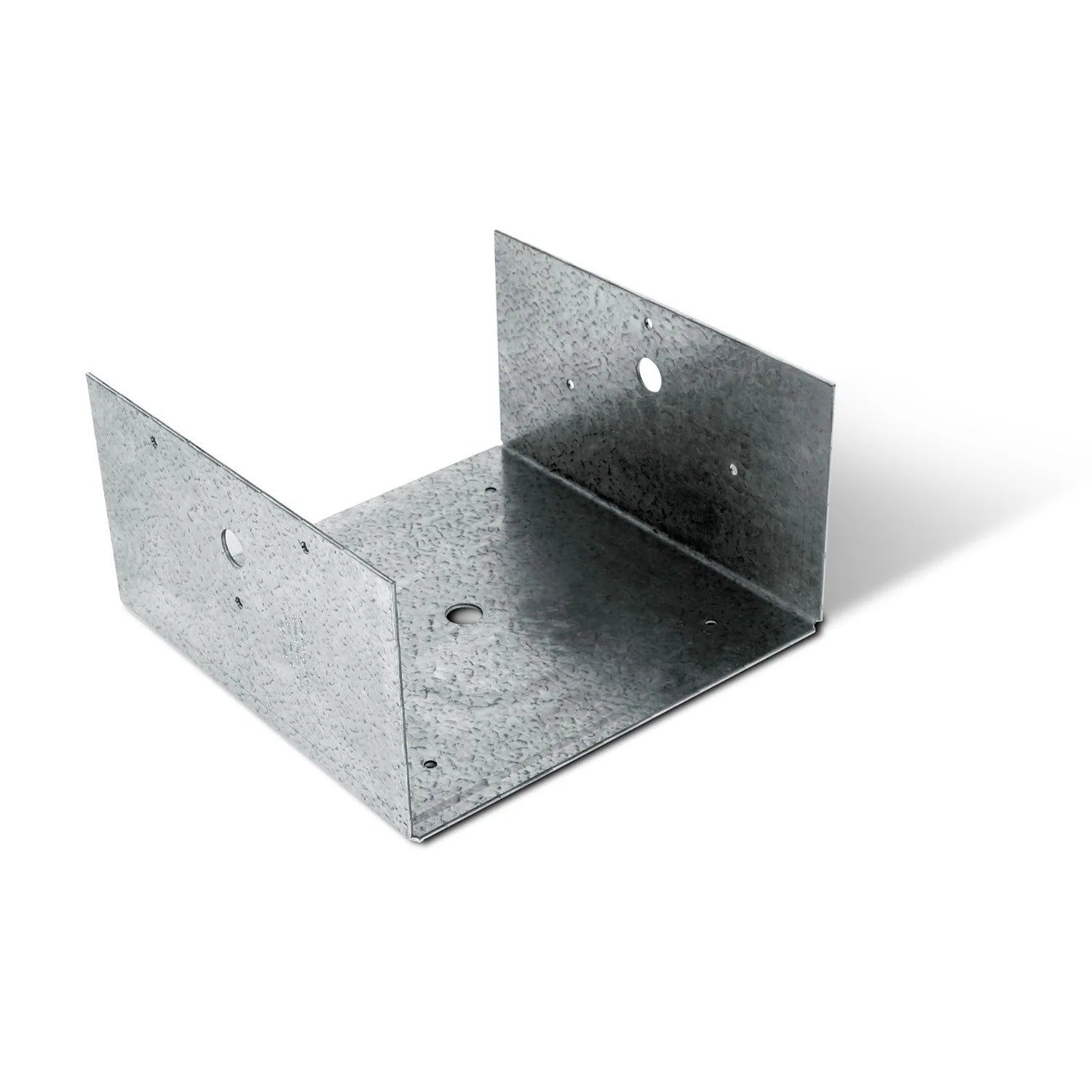

Simpson Strong-Tie BC80 (8x) 18Gauge Galvanized Post Base
$41.91
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie BC80 Description
The Simpson BC80 8x Post Half Base enhances the strength and stability of your construction projects, designed for secure beam-to-post connections.
Simpson Strong-Tie BC80 Includes
- (1) Galvanized Post Base for 8x
Simpson Strong-Tie BC80 Features
- Designed to connect a beam to a post with uplift and lateral resistance
- Made from durable 18-Gauge Steel
- Finished with G90 Galvanized coating for corrosion resistance
- Attains full allowable load using common or pneumatic nails
Simpson Strong-Tie BC80 Applications
- Beam-to-post connections in construction projects
- Providing uplift and lateral resistance in structural applications
Simpson Strong-Tie BC80 Installation Overview
- Align the post base with the post and beam
- Secure using the specified nails for the post flange and base bottom
Simpson Strong-Tie BC80 Specifications
| Finish | G90 Galvanized |
| Length | 7-1/2" |
| Material | 18-Gauge Steel |
| Fasteners required | Post Flange - (6) 0.162 x 3-1/2" Nails, Base Bottom - (4) 0.162 x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 4" |
| Post size | 8x |
| Thickness | 18 Gauge |
| Width | 7-1/2" |
