Simpson Anchors | SKU:
BCS2-3/6SS
Simpson Strong-Tie BCS2-3/6SS (2-3x6) None Post Cap - Stainless Steel
$70.67
Unit price
/
Unavailable
Description
Description

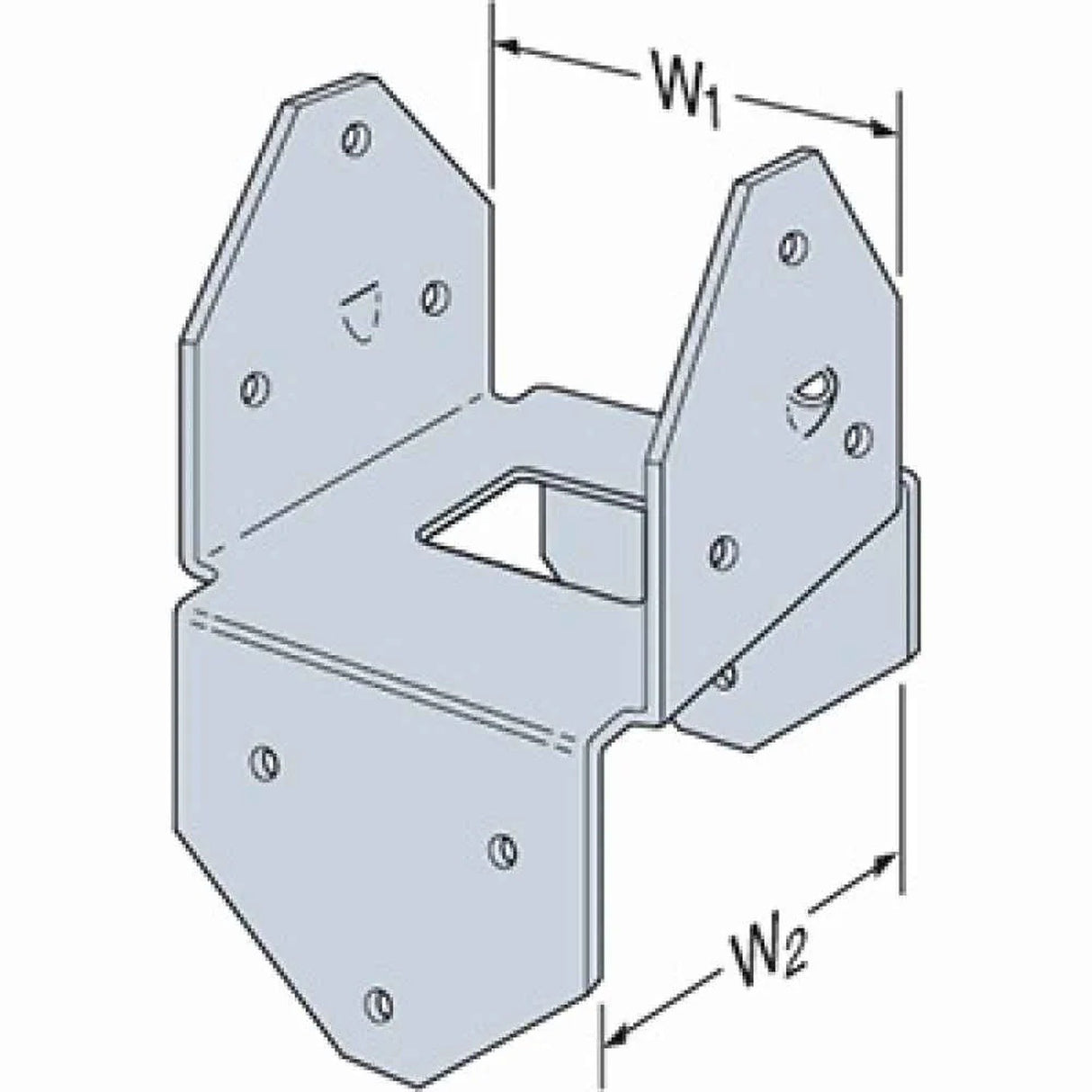

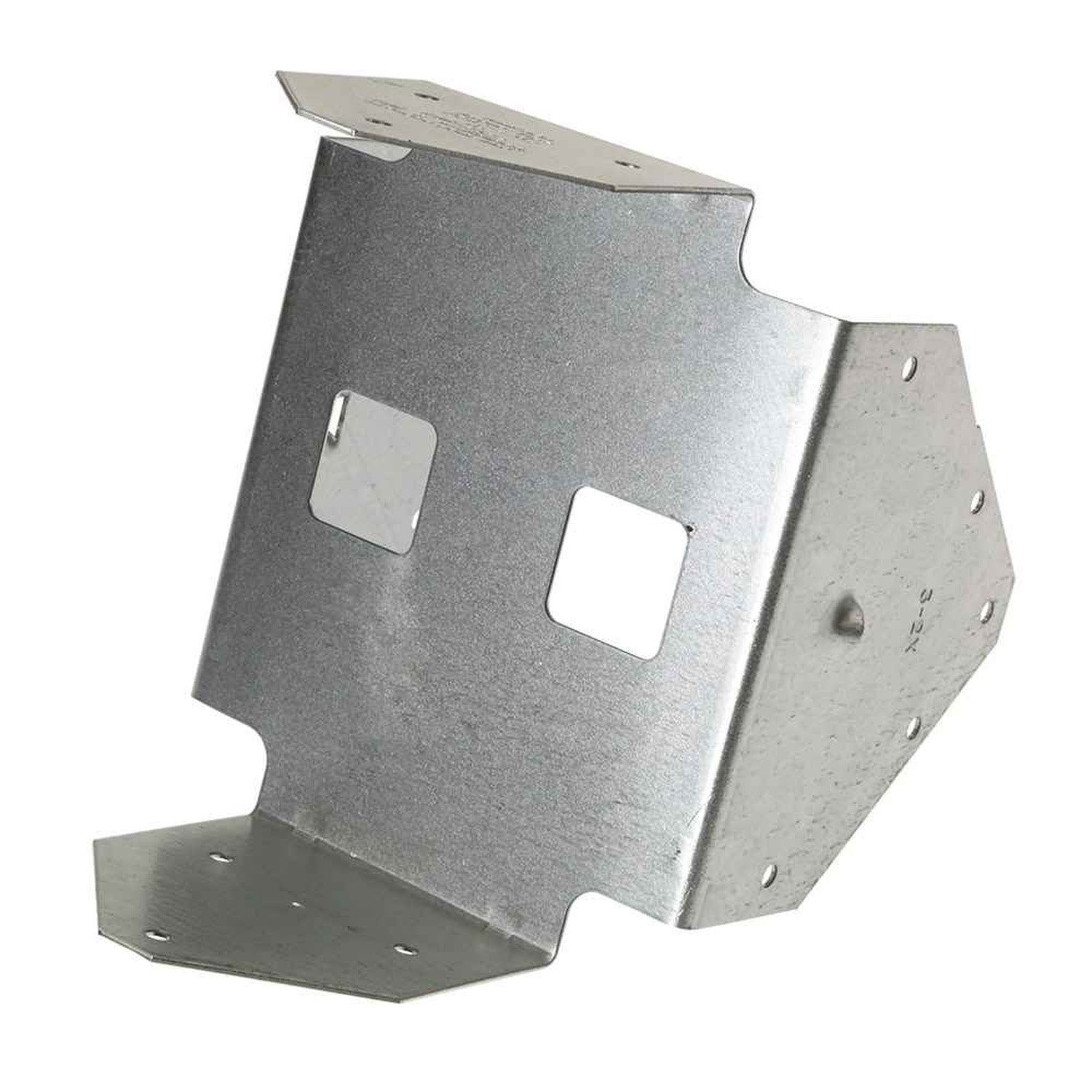

Simpson Strong-Tie BCS2-3/6SS Description
The Simpson BCS2-3/6SS 2-3X6 Post Cap enhances the strength and stability of construction projects by securely connecting multi-ply member beams to posts.
Simpson Strong-Tie BCS2-3/6SS Includes
- (1) 2-3X6 Post Cap Stainless Steel
Simpson Strong-Tie BCS2-3/6SS Features
- Designed to connect multi-ply member beams to posts
- Provides both uplift and lateral resistance
- Made from 316 Stainless Steel for durability
- Attains full allowable load using common or pneumatic nail sizes
Simpson Strong-Tie BCS2-3/6SS Applications
- Construction projects requiring secure beam-to-post connections
- Deck framing and other structural applications

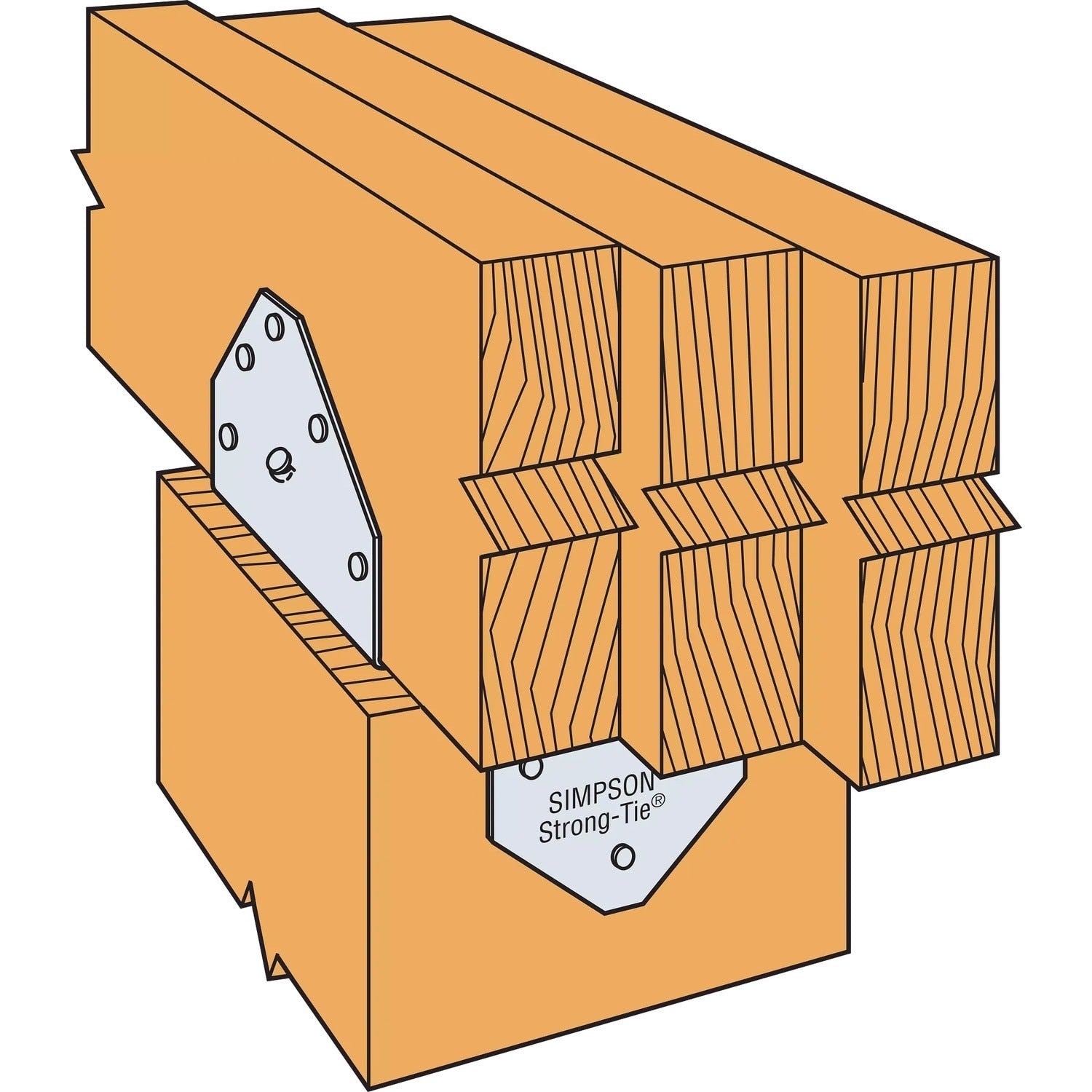

Simpson Strong-Tie BCS2-3/6SS Installation Overview
- Align the post cap with the beam and post
- Secure using the specified nails for beam and post flanges
Simpson Strong-Tie BCS2-3/6SS Specifications
| Material | 316 Stainless Steel |
| Thickness | 18 Gauge |
| Beam size | (3) 2x's |
| Post size | 6x |
| Fasteners required | Beam Flange - (12) 0.162 x 3-1/2" Nails, Post Flange - (6) 0.162 x 3-1/2" Nails |
| For Treated Lumber | Yes |
