Simpson Anchors | SKU:
BP 1/2-3HDG

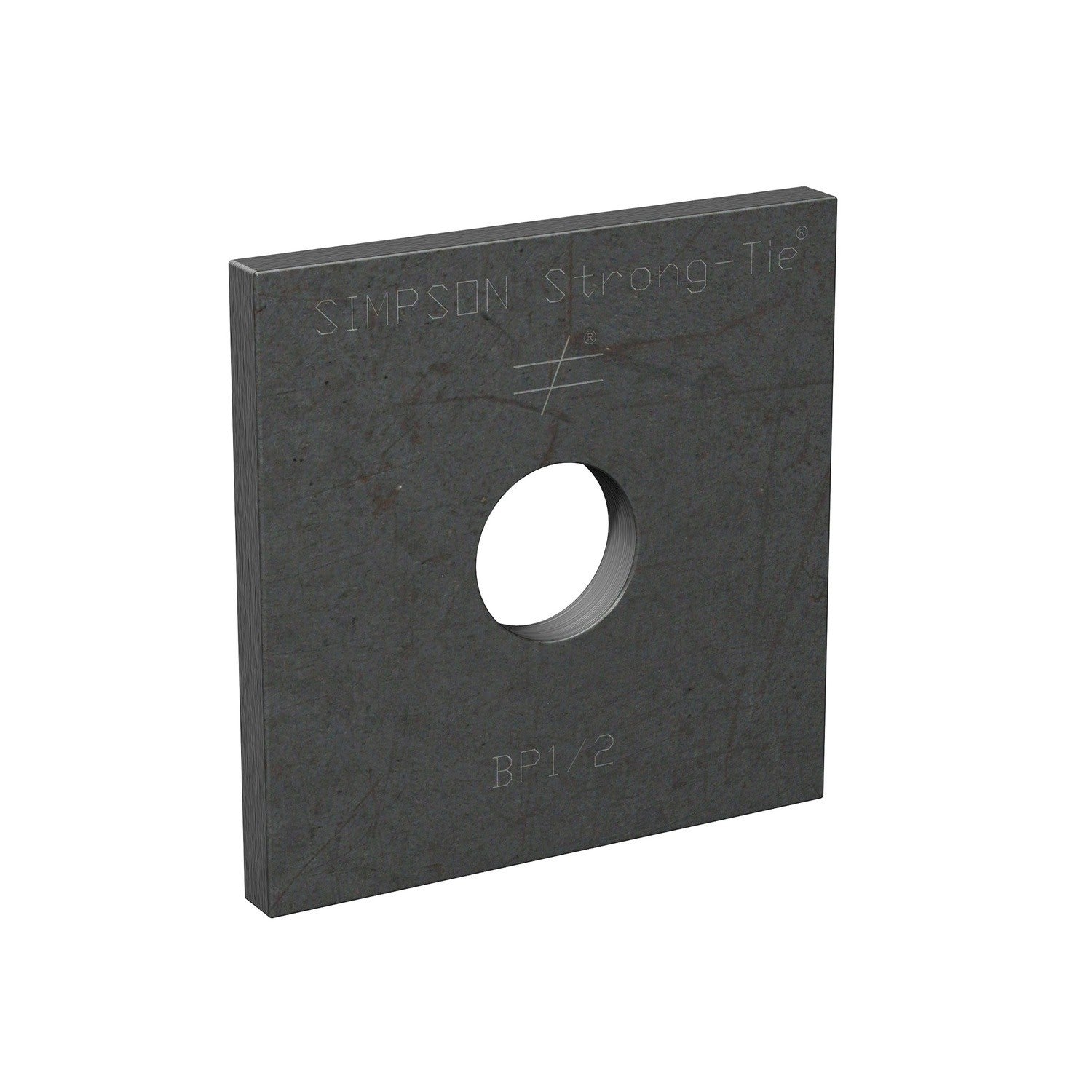

Simpson Strong-Tie BP 1/2-3HDG (3" x 3") Hot-Dip Galvanized Bearing Plate with 1/2" Bolt Dia.
$4.06
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie BP 1/2-3HDG Description
The Simpson Strong-Tie BP 1/2-3HDG Bearing Plate is designed for reinforcing and stabilizing structural connections in wood and steel construction projects.
Simpson Strong-Tie BP 1/2-3HDG Includes
- (1) Hot-Dip Galvanized Bearing Plate with 1/2" Bolt Dia.
Simpson Strong-Tie BP 1/2-3HDG Features
- Heavy-Duty Construction: Built from 3 Gauge steel for superior strength and load support.
- Hot-Dip Galvanized Coating: Offers excellent corrosion resistance, perfect for outdoor and exposed conditions.
- 1/2" Precision-Cut Hole: Ensures secure fastening with standard-sized bolts.
- Compact 3" x 3" Size: Provides flexibility for a wide range of projects and reinforcement needs.
- Versatile Applications: Ideal for wood and steel construction, heavy framing, and critical structural connections.
Simpson Strong-Tie BP 1/2-3HDG Applications

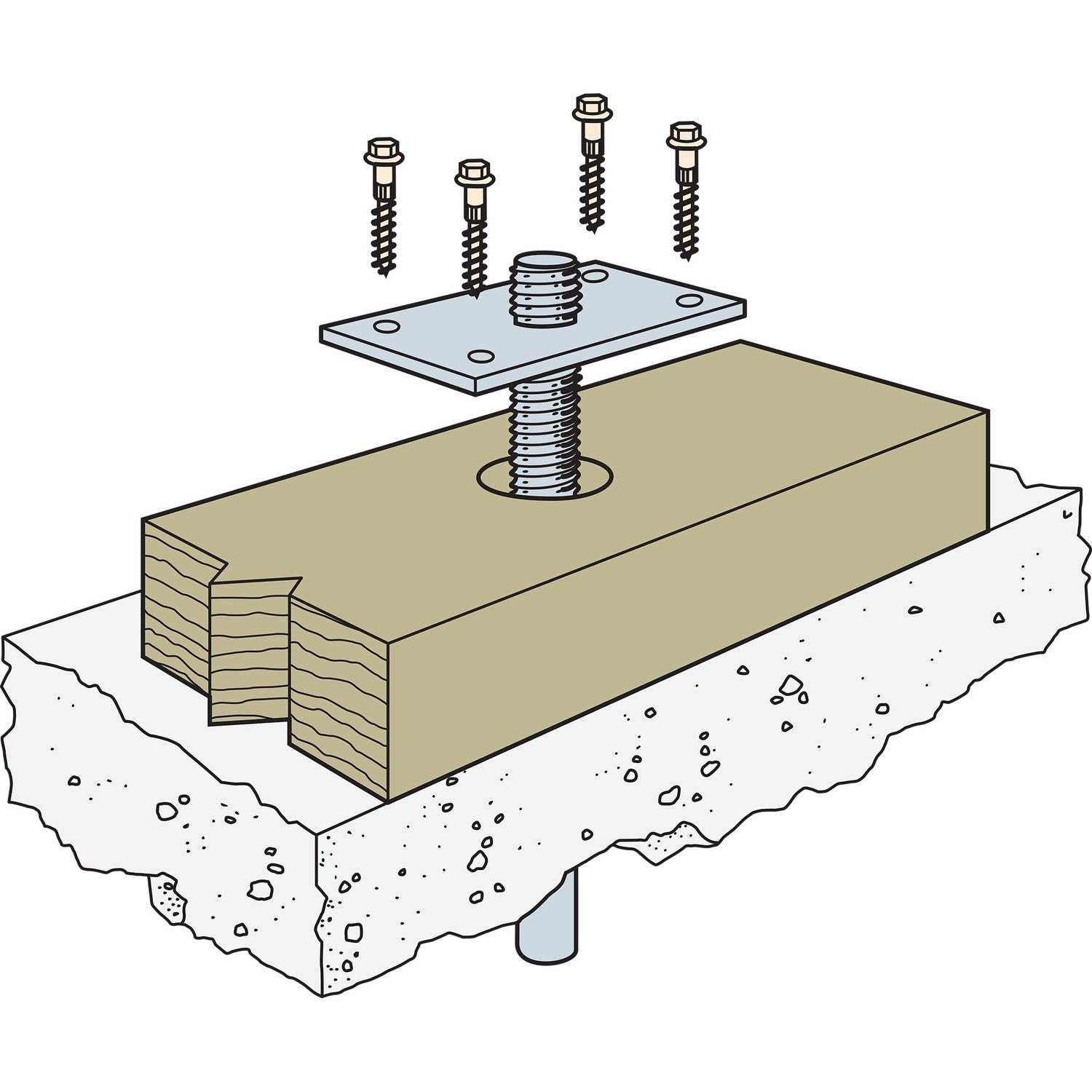

- Wood-to-Concrete/Masonry fastening for structural reinforcement.
- Heavy-duty framing projects requiring reliable load transfer.
- Critical structural connections in commercial and residential construction.

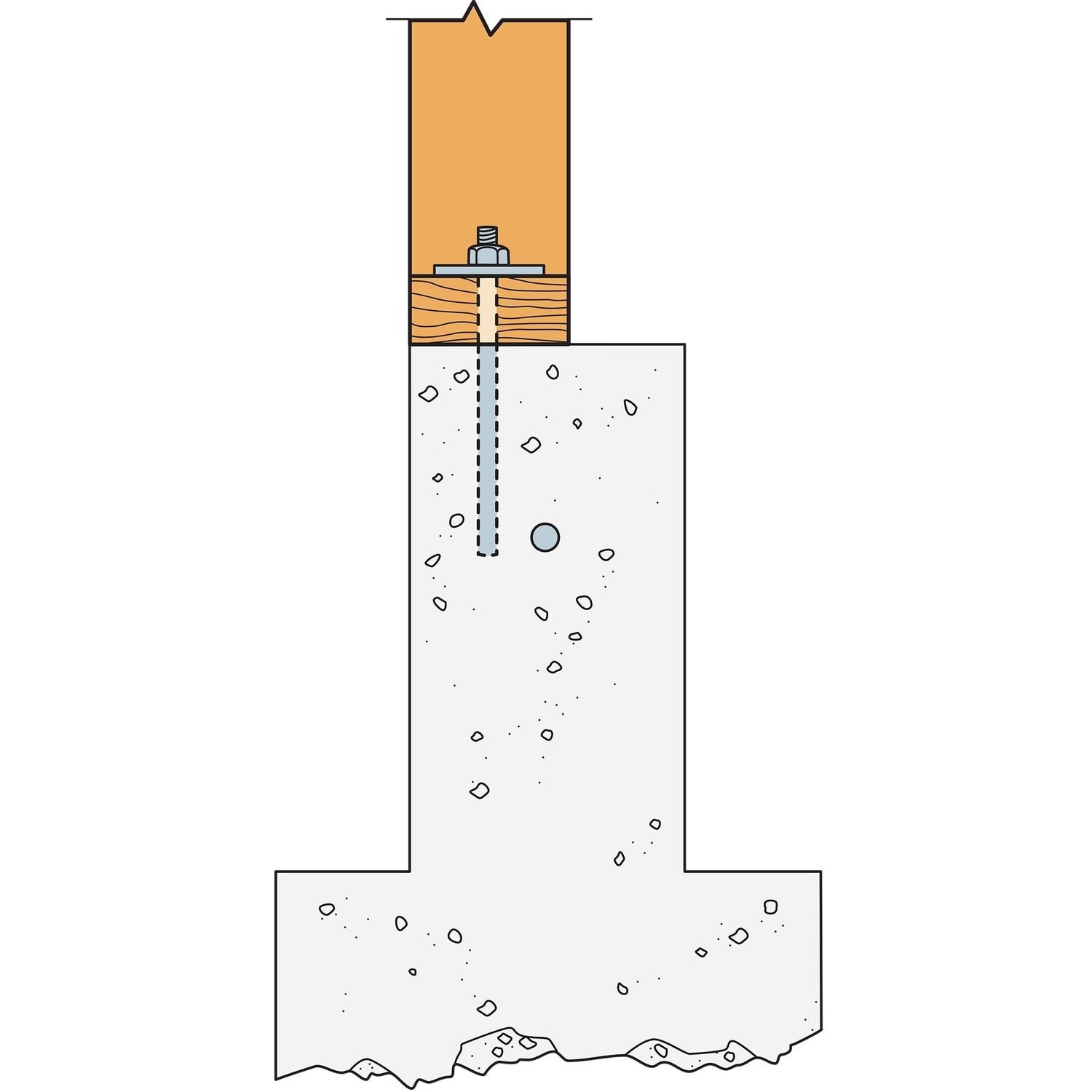

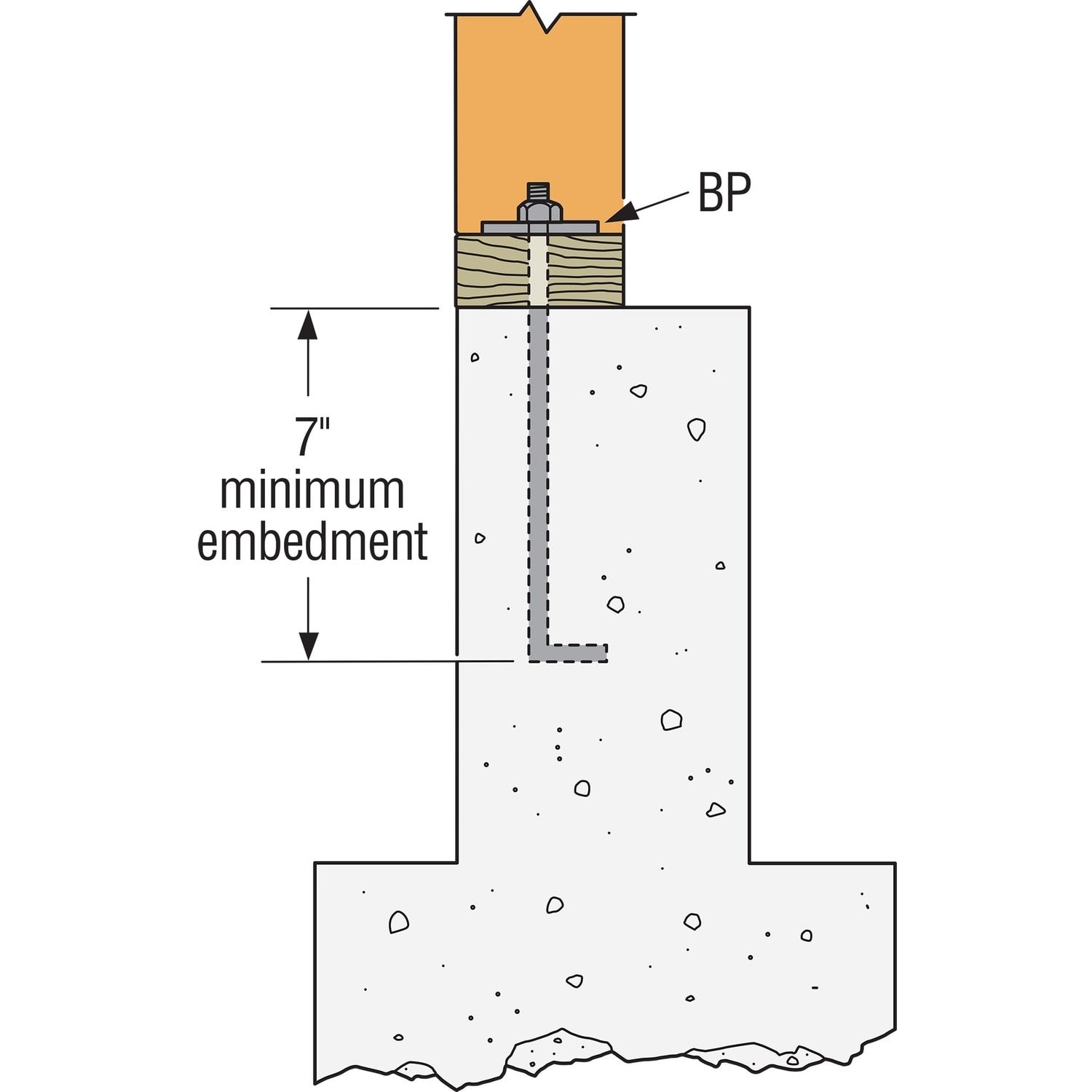

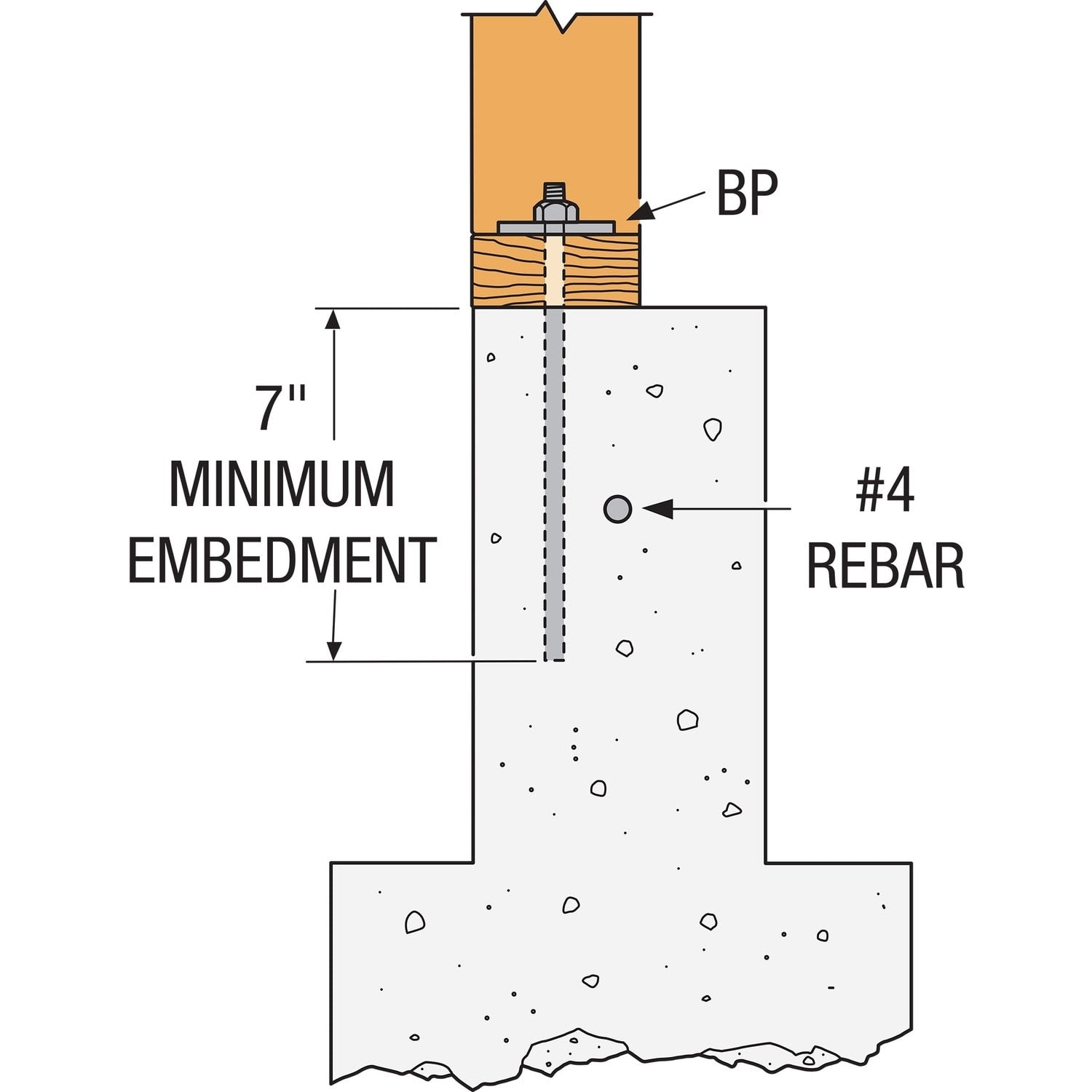

Simpson Strong-Tie BP 1/2-3HDG Installation Overview
- Position the edge of the plate washer within 1/2" of the sheathed edge of the sill plate for shearwall applications.
- Tighten each anchor bolt with a nut and BP.
- Ensure no additional standard cut-washer is required.

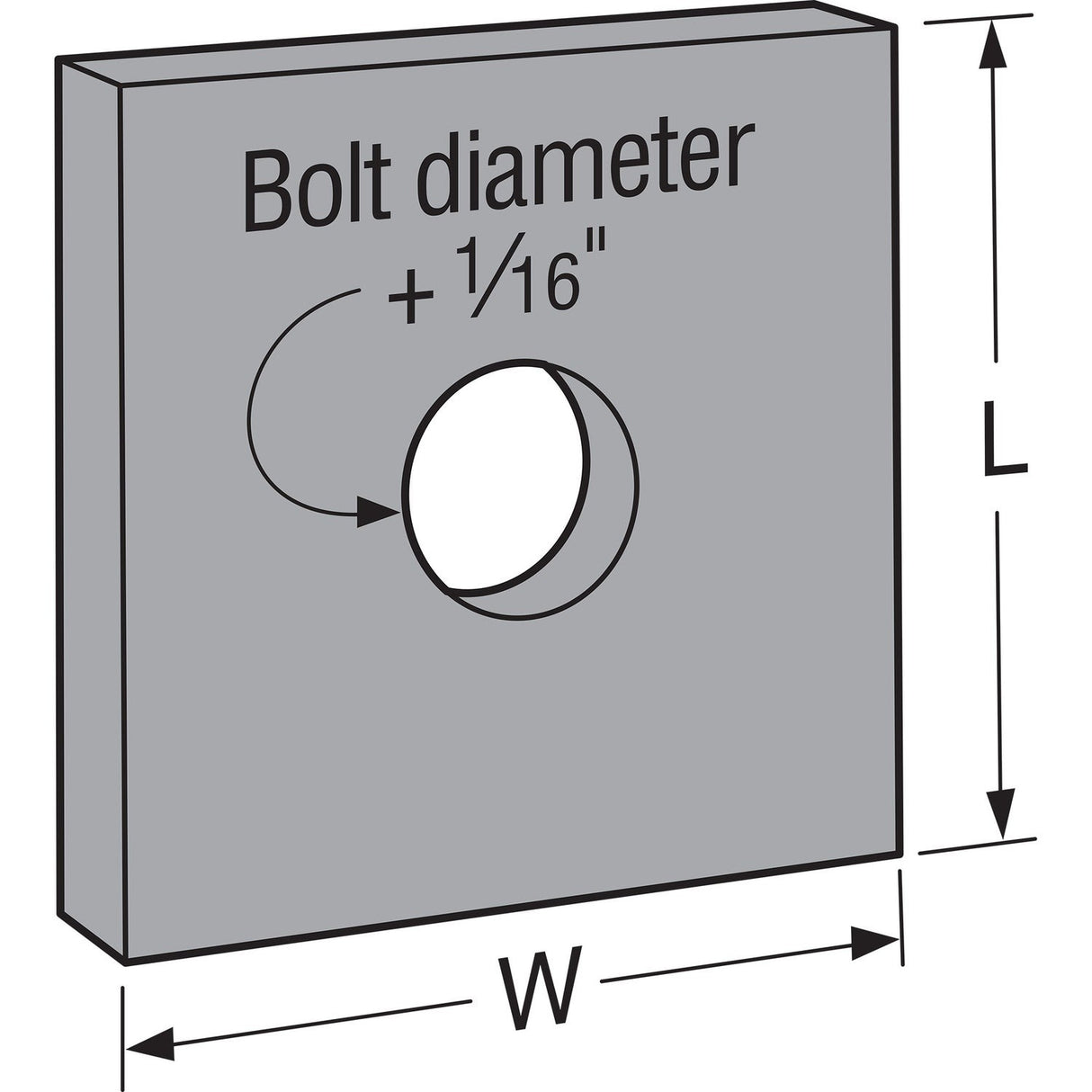

Simpson Strong-Tie BP 1/2-3HDG Specifications
| Finish | Hot-Dip Galvanized |
| Length | 3" |
| Width | 3" |
| Gauge | 3 ga. |
| Bolt Diameter | 1/2" |
NOTE: Ensure the edge of the plate washer is positioned within 1/2" of the sheathed edge of the sill plate for shearwall applications.
