Simpson Anchors | SKU:
BP 1/2

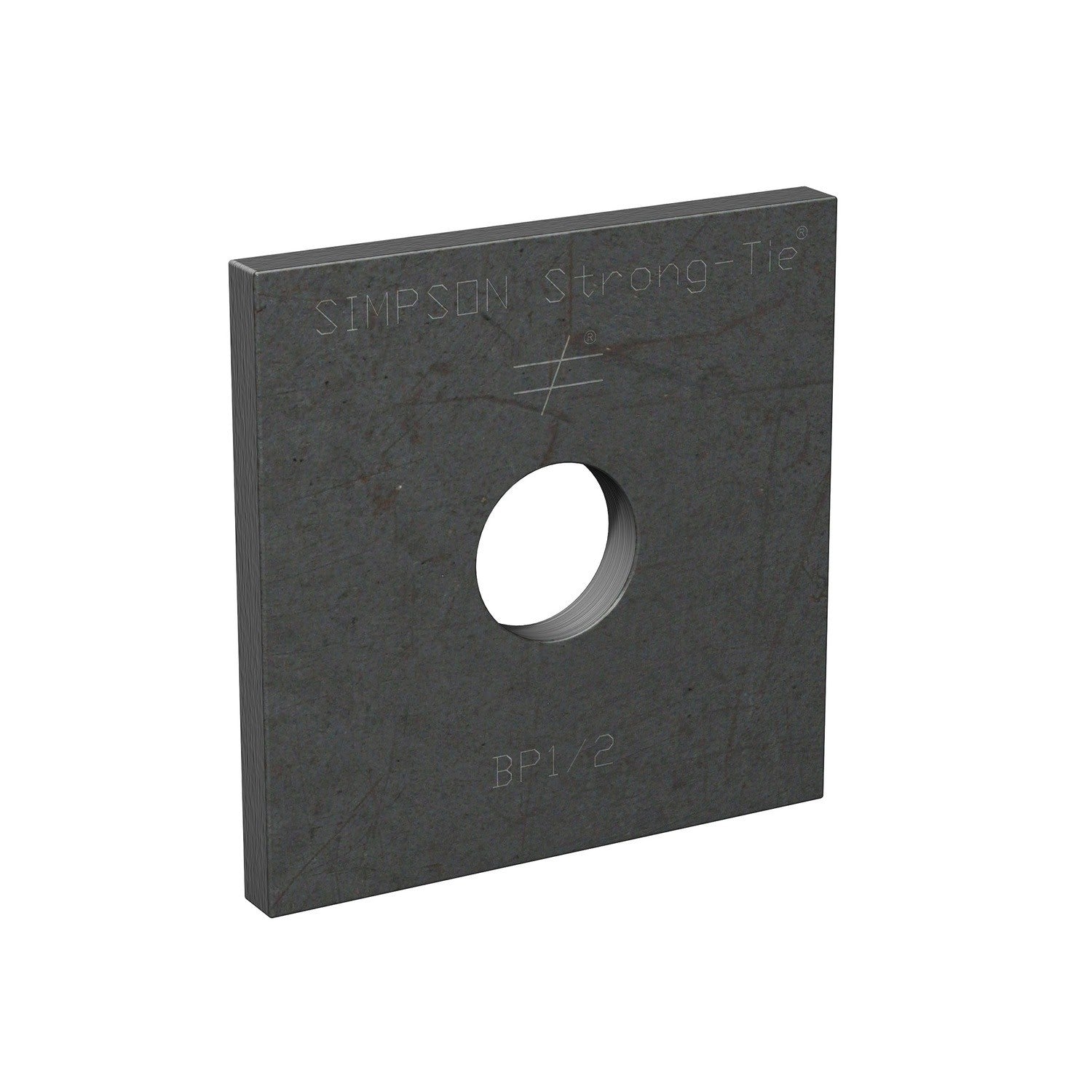

Simpson Strong-Tie BP 1/2 (2" x 2") Bearing Plate with 1/2" Bolt Diameter
$0.96
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie BP 1/2 Description
The Simpson Strong-Tie BP 1/2 Bearing Plate is designed for reinforcing and stabilizing structural connections in wood and steel construction projects.
Simpson Strong-Tie BP 1/2 Includes
- (1) BP 1/2 Bearing Plate
Simpson Strong-Tie BP 1/2 Features
- Replaces standard cut-washers while providing a greater bearing surface
- Sized for most common anchor bolt sizes: 3/8", 1/2", 5/8", 3/4", 7/8" and 1"
- May be ordered HDG for higher corrosion resistance
- Built from 3/16" thick steel for superior strength and load support
- Hot-Dip Galvanized Coating offers excellent corrosion resistance
Simpson Strong-Tie BP 1/2 Applications
- Reinforcing structural connections in wood and steel construction
- Ideal for wood and steel construction, heavy framing, and critical structural connections

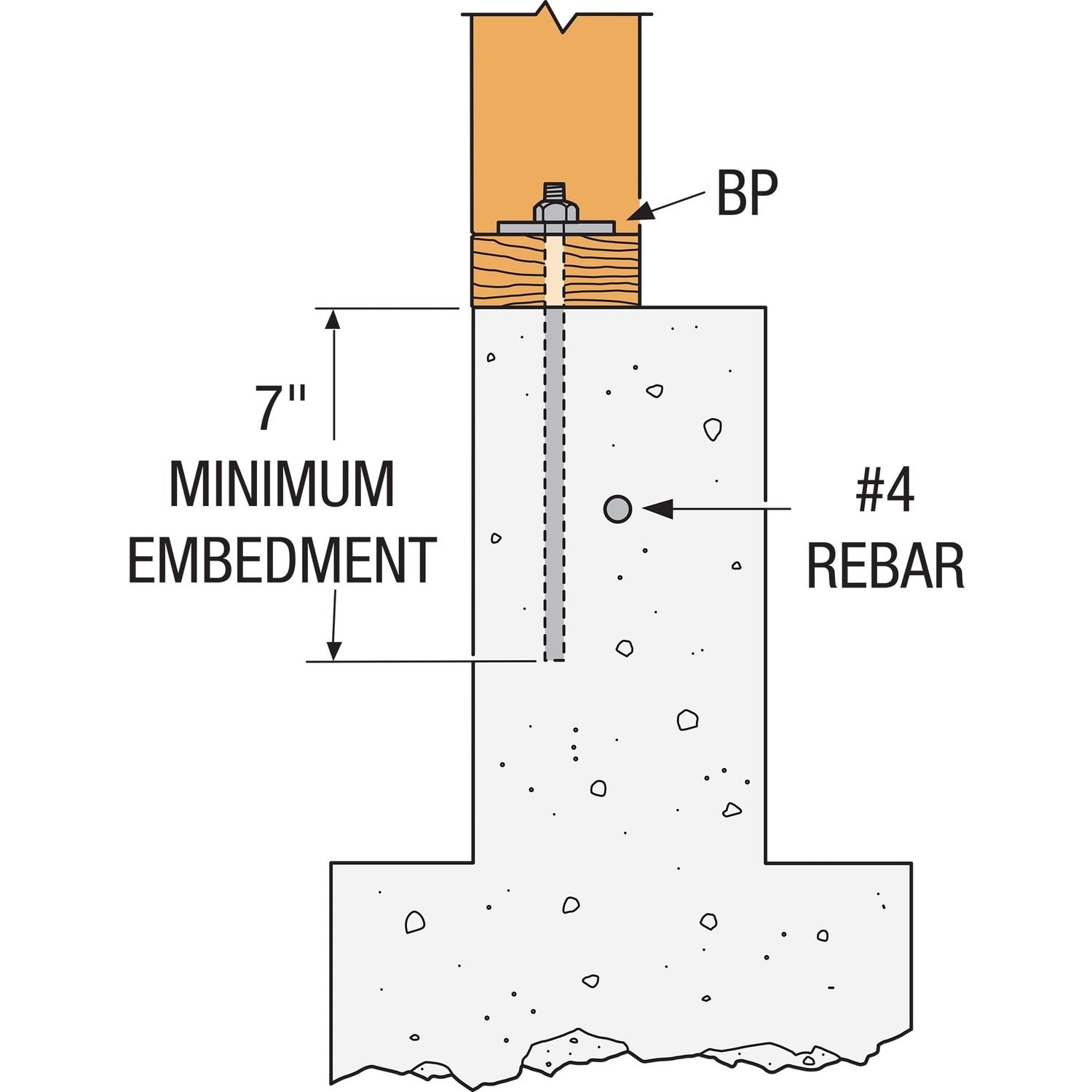

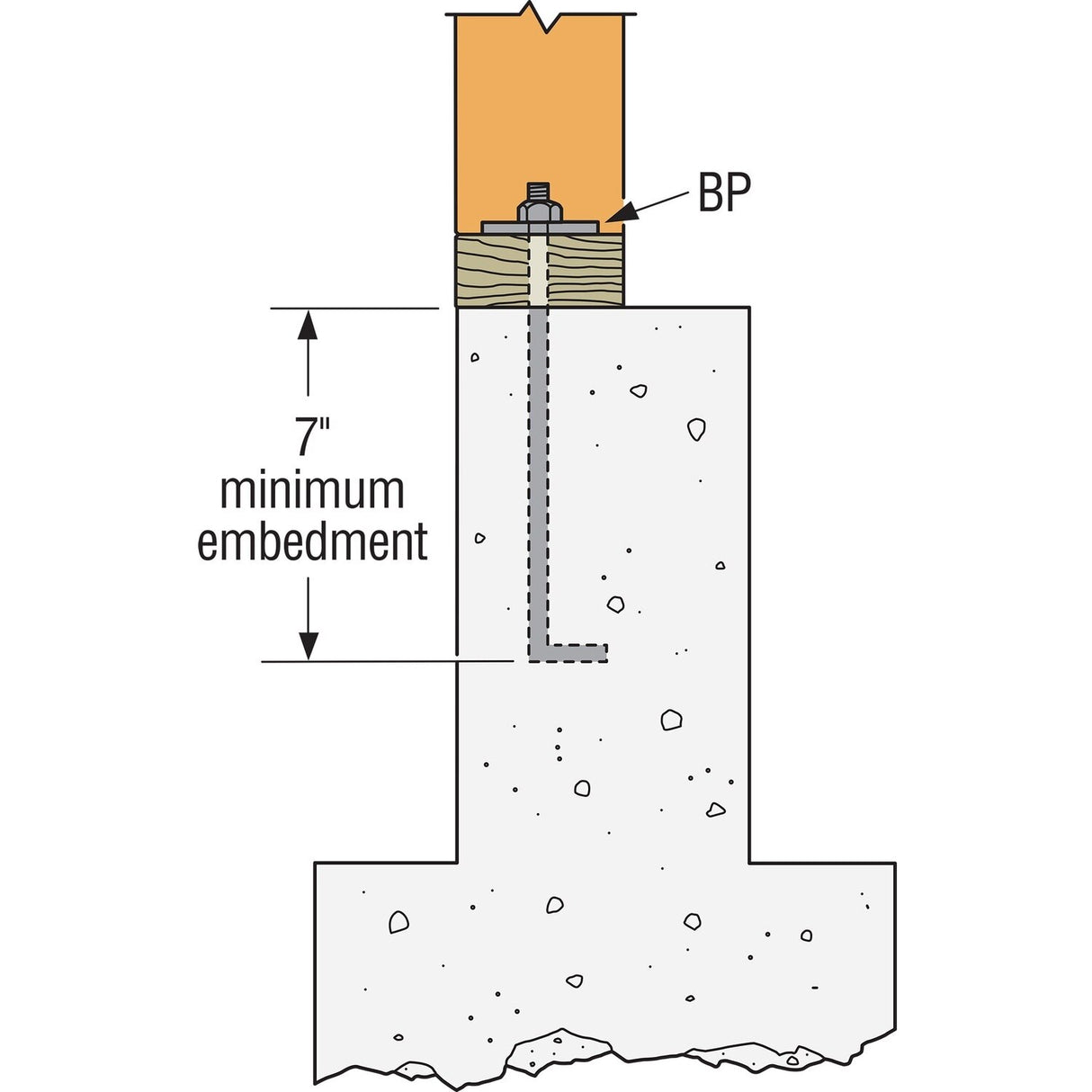

Simpson Strong-Tie BP 1/2 Installation Overview
- Position edge of plate washer within 1/2" of sheathed edge of sill plate for shearwall applications
- Tighten each anchor bolt with a nut and BP

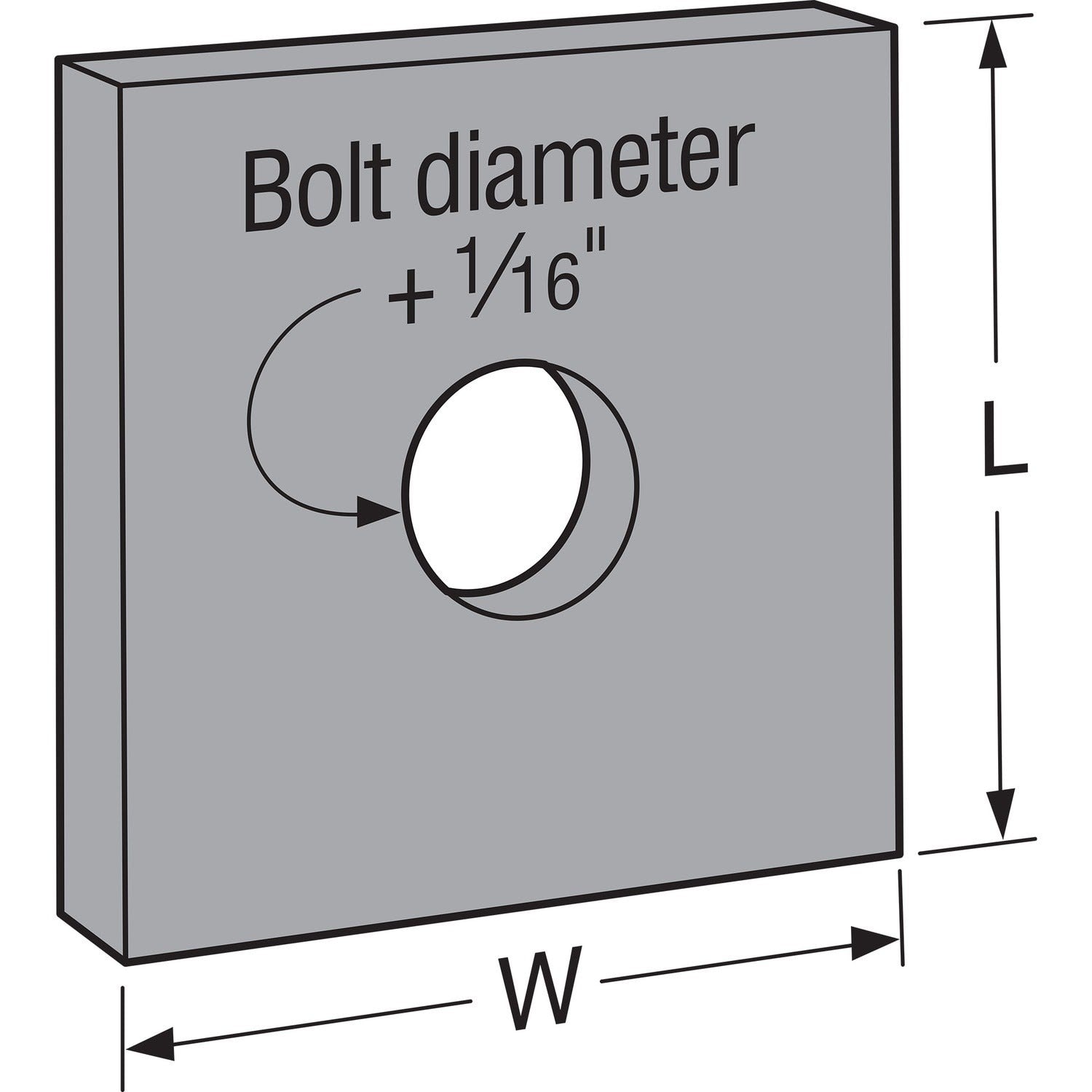

Simpson Strong-Tie BP 1/2 Specifications
| Bolt Diameter | 1/2" |
| Thickness | 3/16" |
| Width | 2" |
| Length | 2" |
| Finish | Hot Dip Galvanized |
