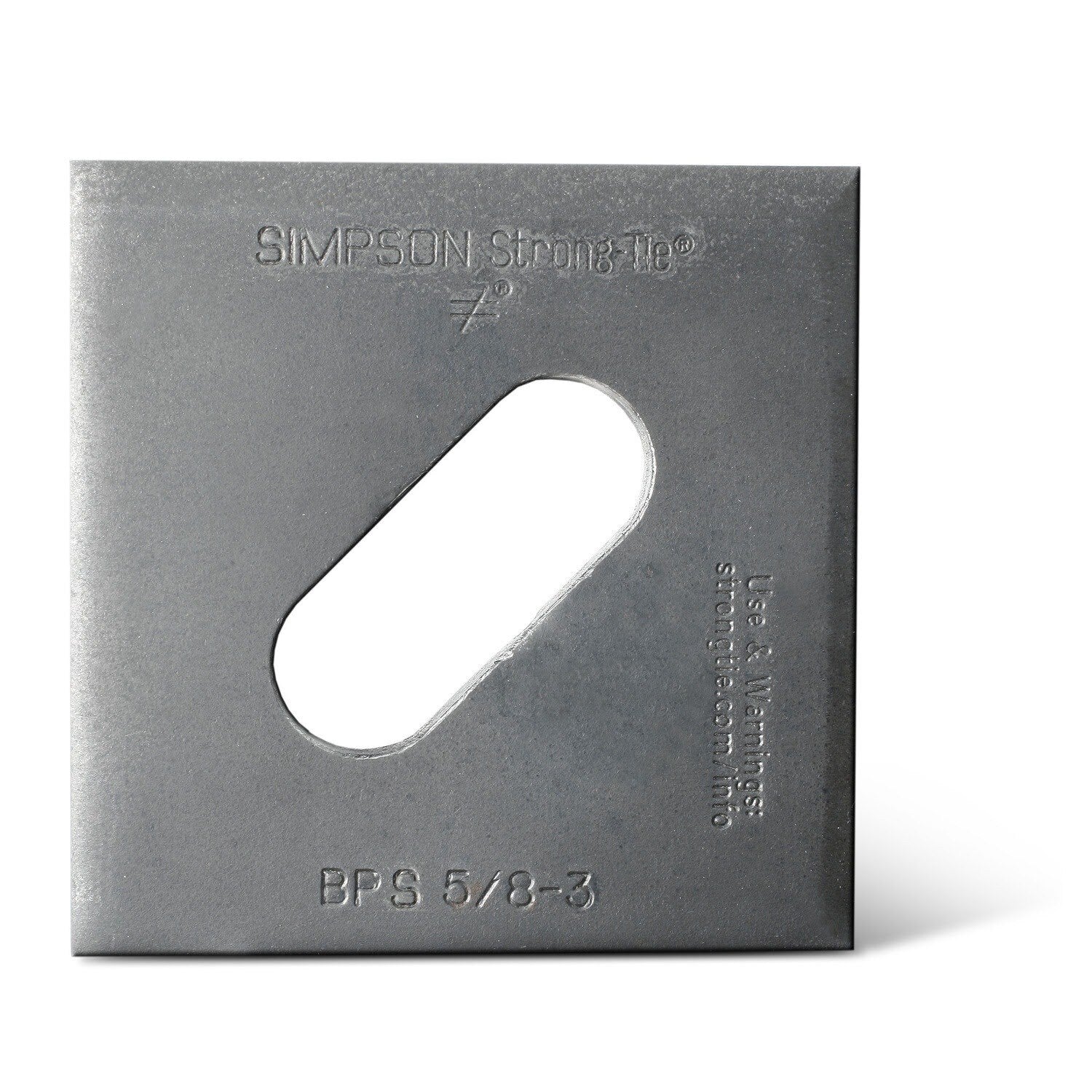

Simpson Strong-Tie BP 5/8-3HDG (3 in. x 3 in.) Bearing Plate with 5/8" Bolt - Hot-Dip Galvanized Finish

Simpson BP 5/8-3HDG Features

• Heavy-Duty Construction: Built from 3 Gauge steel for superior strength and load support.
• Hot-Dip Galvanized Coating: Offers excellent corrosion resistance, perfect for outdoor and exposed conditions.
• 5/8" Precision-Cut Hole: Ensures secure fastening with standard-sized bolts.
• Compact 3" x 3" Size: Provides flexibility for a wide range of projects and reinforcement needs.
• Versatile Applications: Ideal for wood and steel construction, heavy framing, and critical structural connections.

Simpson BP 5/8-3HDG Applications

• Wood and steel construction projects requiring reinforcement and stability.
• Heavy framing applications.
• Critical structural connections in commercial buildings, bridges, and other projects.

Simpson BP 5/8-3HDG Installation Overview

1. Position edge of plate washer within 1/2" of sheathed edge of sill plate for shearwall applications.
2. Use standard cut-washer with BPS slotted bearing plates unless used with Titen HD heavy-duty screw anchors.
3. Tighten BPS to each anchor bolt with nut and standard cut-washer.
