Simpson Strong-Tie BP 5/8 Description
The Simpson Strong-Tie BP 5/8 Bearing Plate is designed for wood-to-concrete applications, providing a secure and durable connection.
Simpson Strong-Tie BP 5/8 Includes
- (1) BP 5/8 Bearing Plate
Simpson Strong-Tie BP 5/8 Features
- Replaces standard cut-washers while providing a greater bearing surface
- Sized for most common anchor bolt sizes: 3/8", 1/2", 5/8", 3/4", 7/8" and 1"
- May be ordered HDG for higher corrosion resistance
Simpson Strong-Tie BP 5/8 Applications

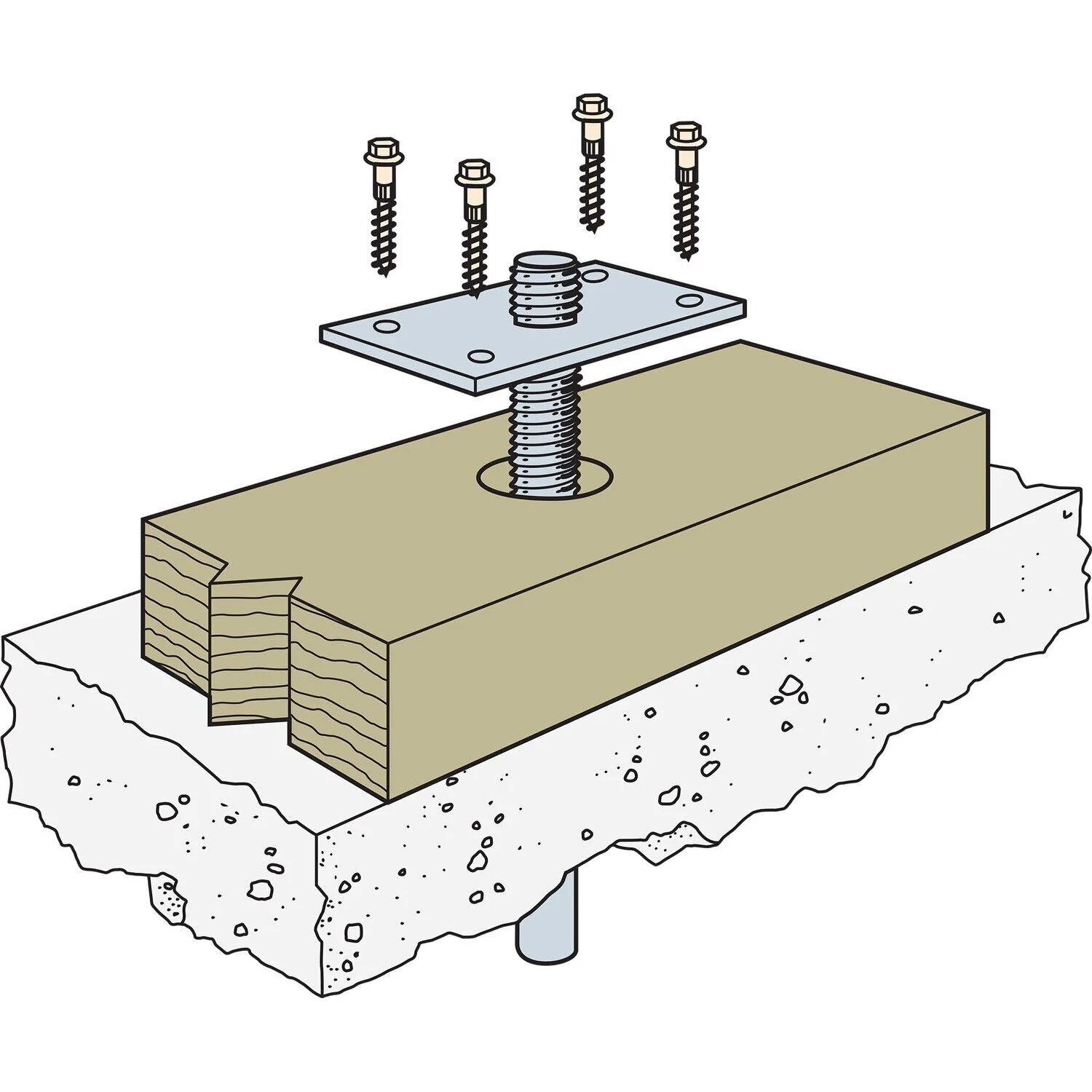

- Fastening wood to concrete or masonry
- Reinforcing structural connections in construction projects

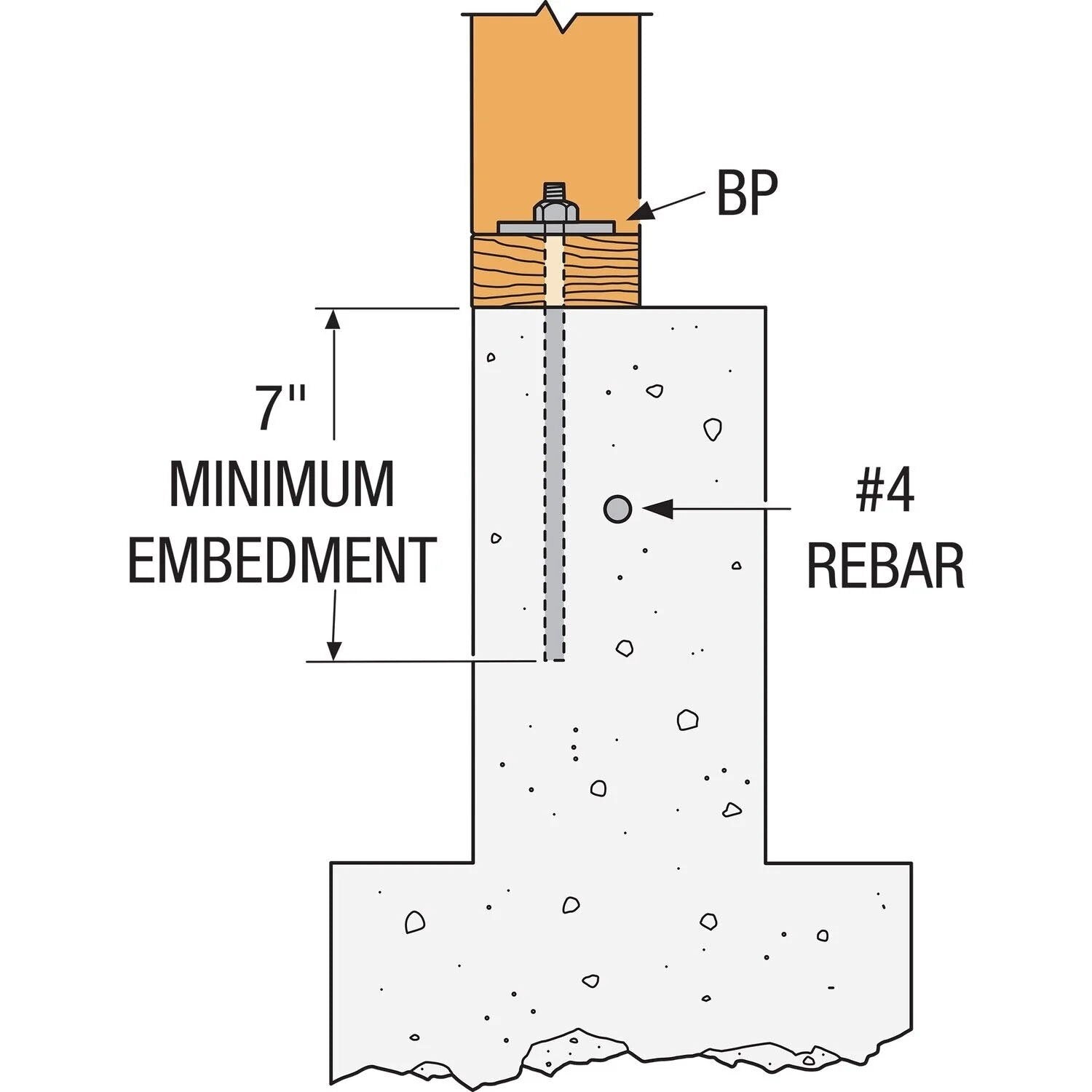

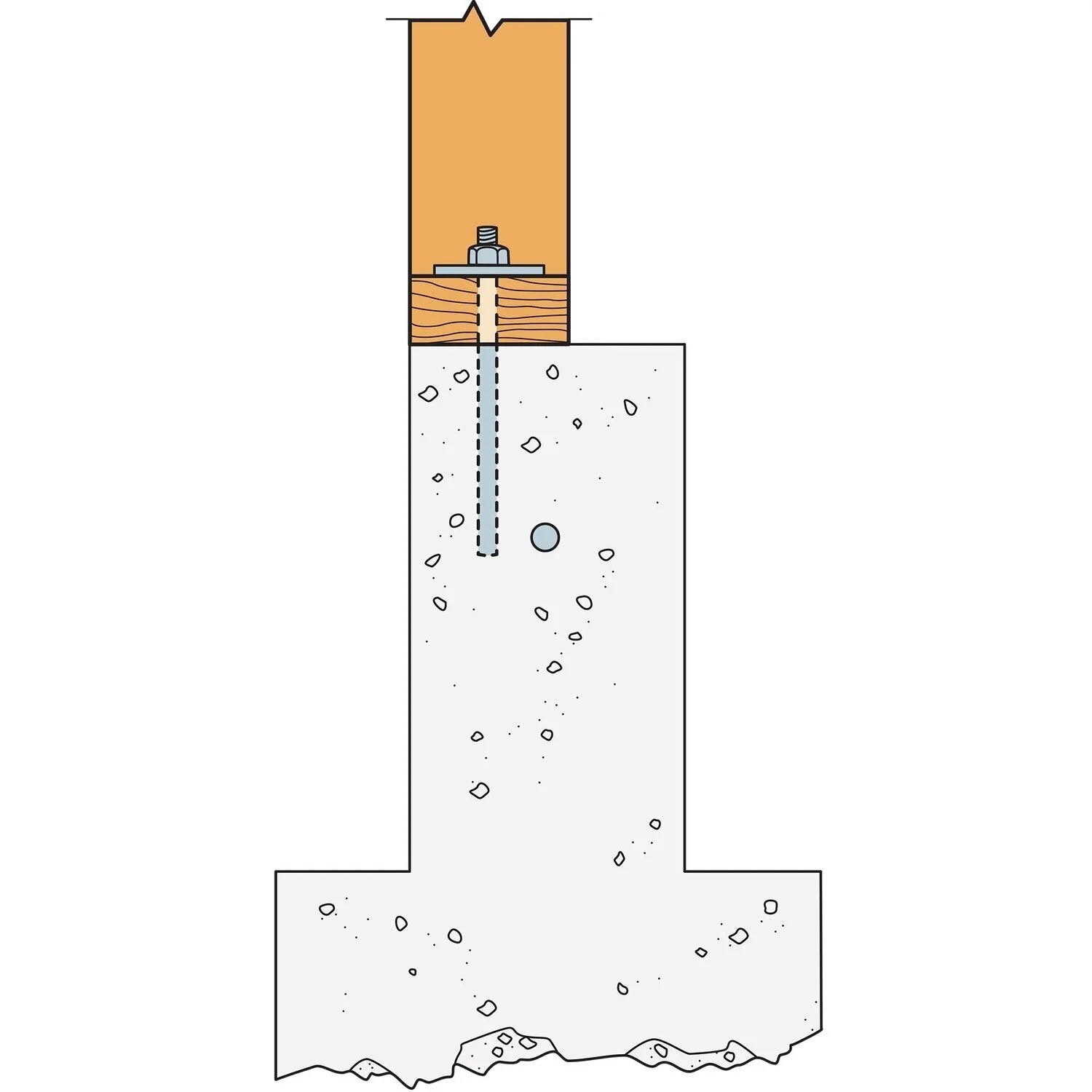

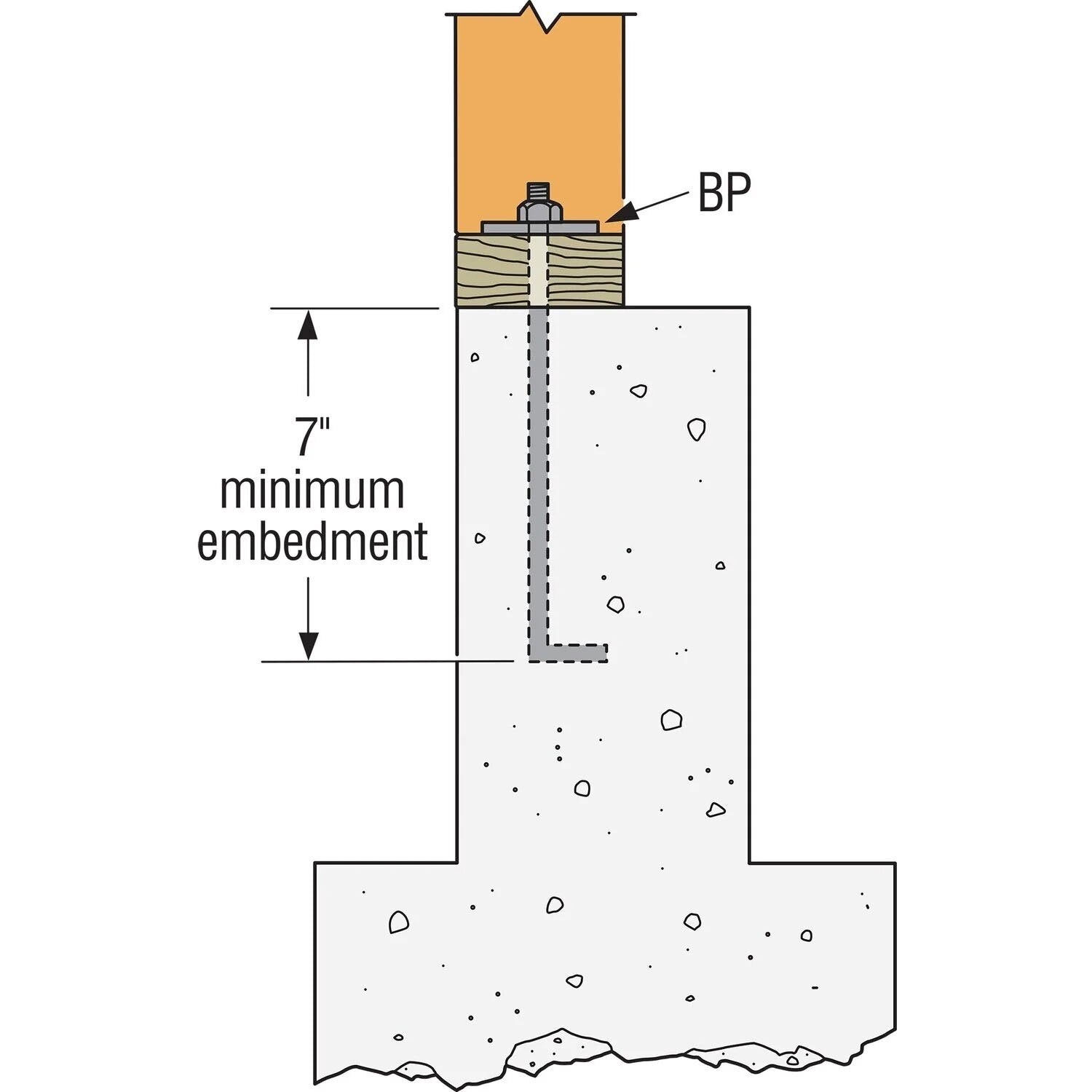

Simpson Strong-Tie BP 5/8 Installation Overview
- Position edge of plate washer within 1/2" of sheathed edge of sill plate for shearwall applications
- Tighten each anchor bolt with a nut and BP
Simpson Strong-Tie BP 5/8 Specifications
| Bolt Diameter | 5/8" |
| Material | Steel |
| Finish | Hot Dip Galvanized |
| Dimensions | 3" x 3" |
| Gauge | 3 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
248627
