Simpson Anchors | SKU:
BP5/8SKT
Simpson Strong-Tie BP5/8SKT Bearing Plate for Anchor Bolts (50 Pack)
$191.89
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie BP5/8SKT Description
The BP5/8SKT Bearing Plate is designed for anchor bolts, providing a greater bearing surface and eliminating the need for standard cut-washers.
Simpson Strong-Tie BP5/8SKT Includes
- (50) BP5/8SKT Bearing Plates
- (50) 1/4 in. x 1 1/2 in. Strong-Drive SDS Connector Screws
Simpson Strong-Tie BP5/8SKT Features
- Replaces standard cut-washers while providing a greater bearing surface
- Sized for most common anchor bolt sizes: 3/8", 1/2", 5/8", 3/4", 7/8" and 1"
- May be ordered HDG for higher corrosion resistance
Simpson Strong-Tie BP5/8SKT Applications
- Fastening wood to concrete or masonry surfaces
- Providing lateral resistance in shearwall applications

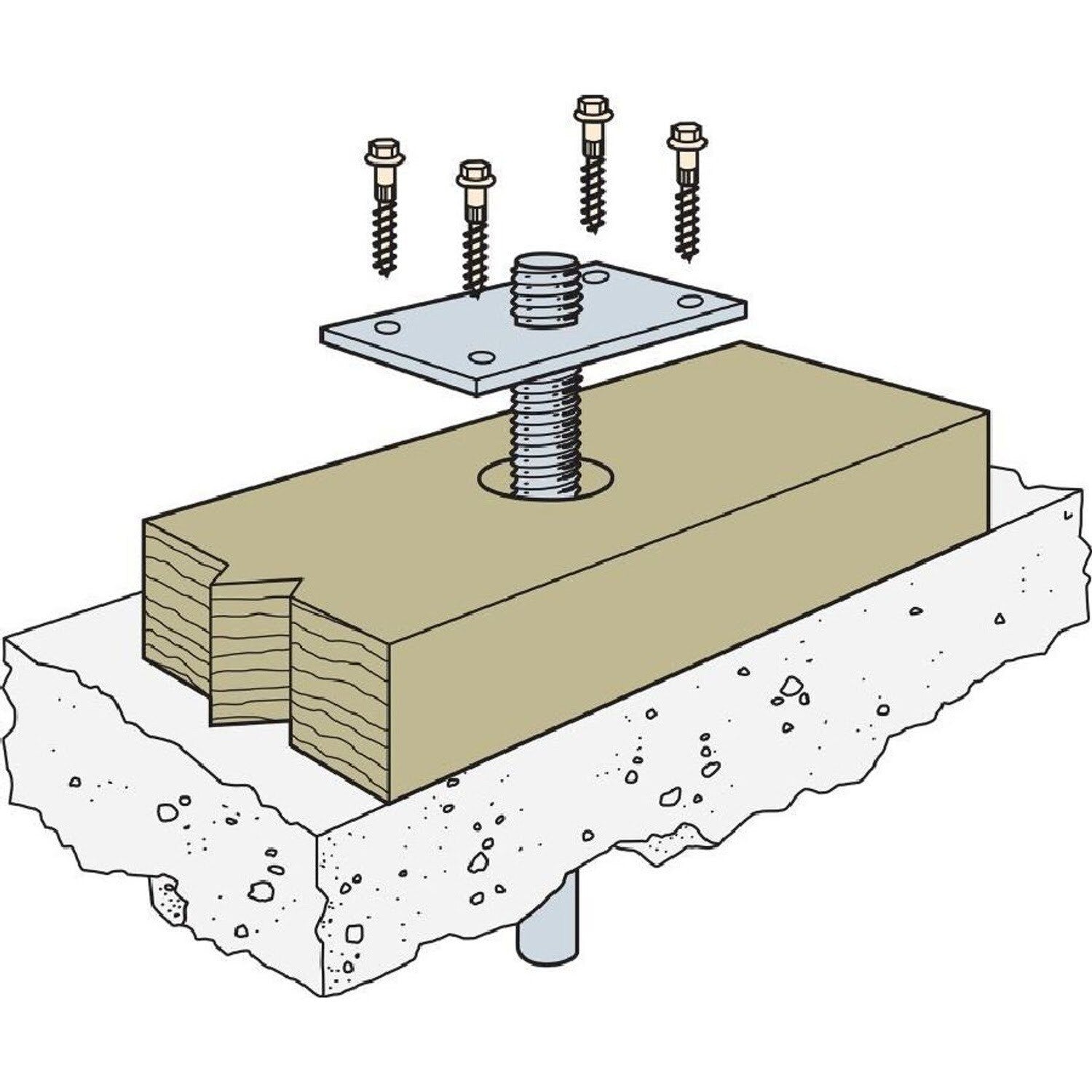

Simpson Strong-Tie BP5/8SKT Installation Overview
- Position edge of plate washer within 1/2" of sheathed edge of sill plate for shearwall applications.
- Use 1/4" x 1 1/2" Strong-Drive SDS screws for overdrilled 5/8"-diameter sill holes.
- Tighten each anchor bolt with a nut and BP.
Simpson Strong-Tie BP5/8SKT Specifications
| Bolt Diameter | 5/8 in. |
| Gauge | 3 ga. |
| Thickness | 0.229 in. |
| Width | 4 in. |
| Length | 2 in. |
| Coating/Material | Zinc Plated |
| Packaging Quantity | 50 |
NOTE: The BP5/8SKT uses 1/4" x 1 1/2" Strong-Drive SDS Heavy-Duty Connector screws to provide lateral resistance when 5/8"-diameter sill holes are overdrilled (screws are provided). The shear capacity of the connection and the sill/anchor bolt shall be determined by the designer for each installation.
