Simpson Anchors | SKU:
BPS 5/8-3

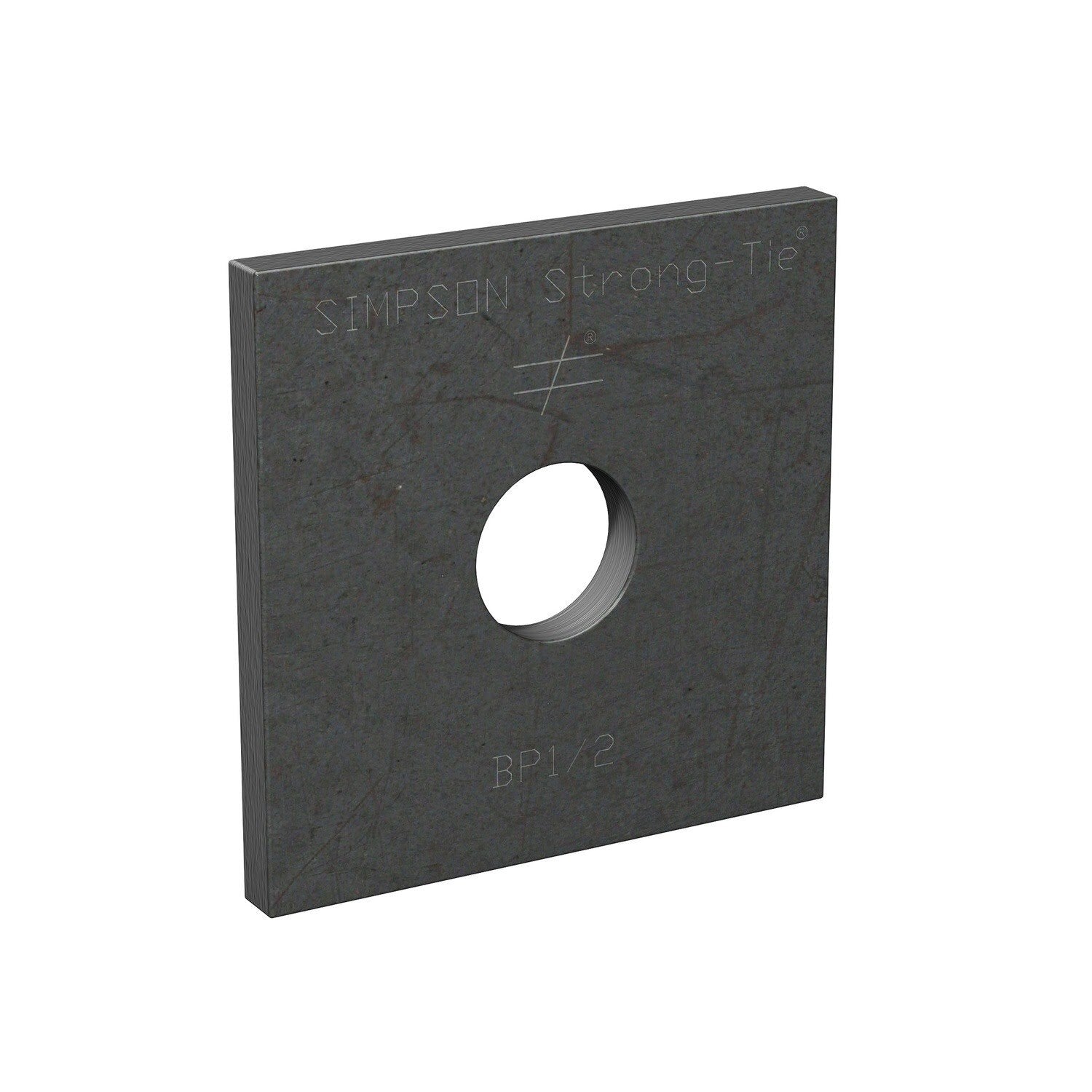

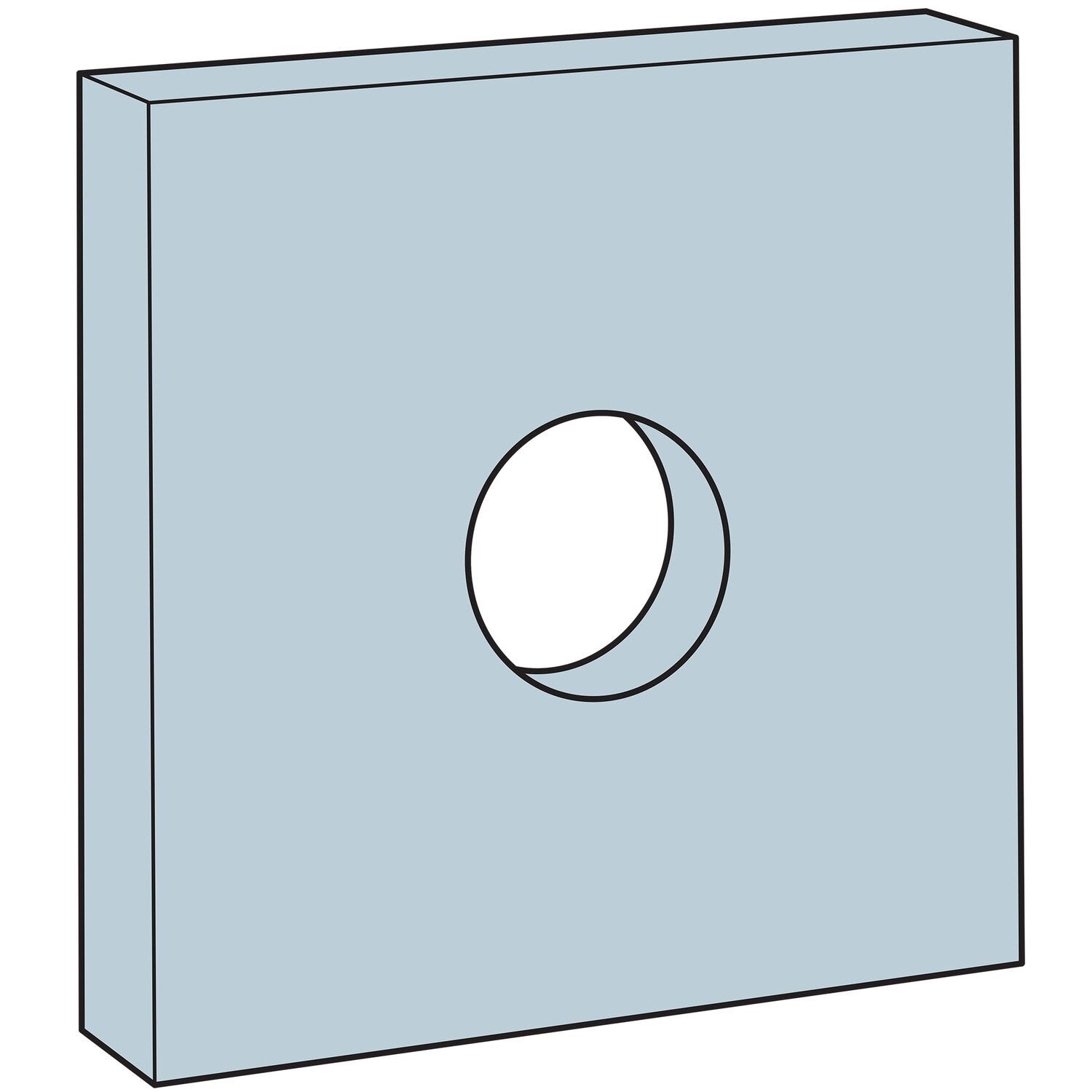

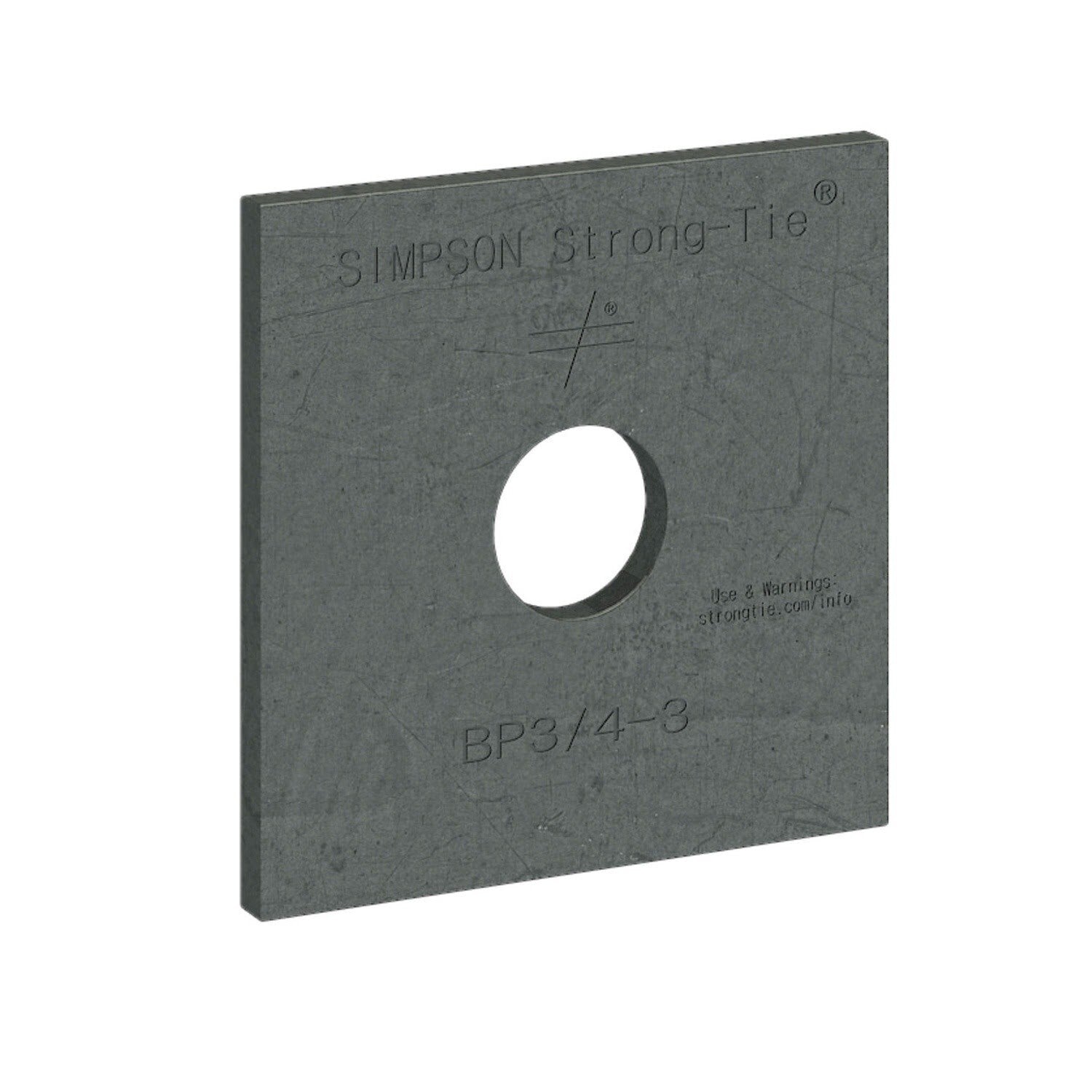

Simpson Strong-Tie BPS 5/8-3 (3 in. x 3 in.) Slotted Bearing Plate with 5/8" Bolt Dia.
$2.40
$3.44
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson BPS 5/8-3 Description
The Simpson BPS 5/8-3 Slotted Bearing Plate is designed for structural reinforcement and stability in wood and steel construction projects.
Simpson BPS 5/8-3 Includes
- (1) Slotted Bearing Plate with 5/8" Bolt Dia.
Simpson BPS 5/8-3 Features

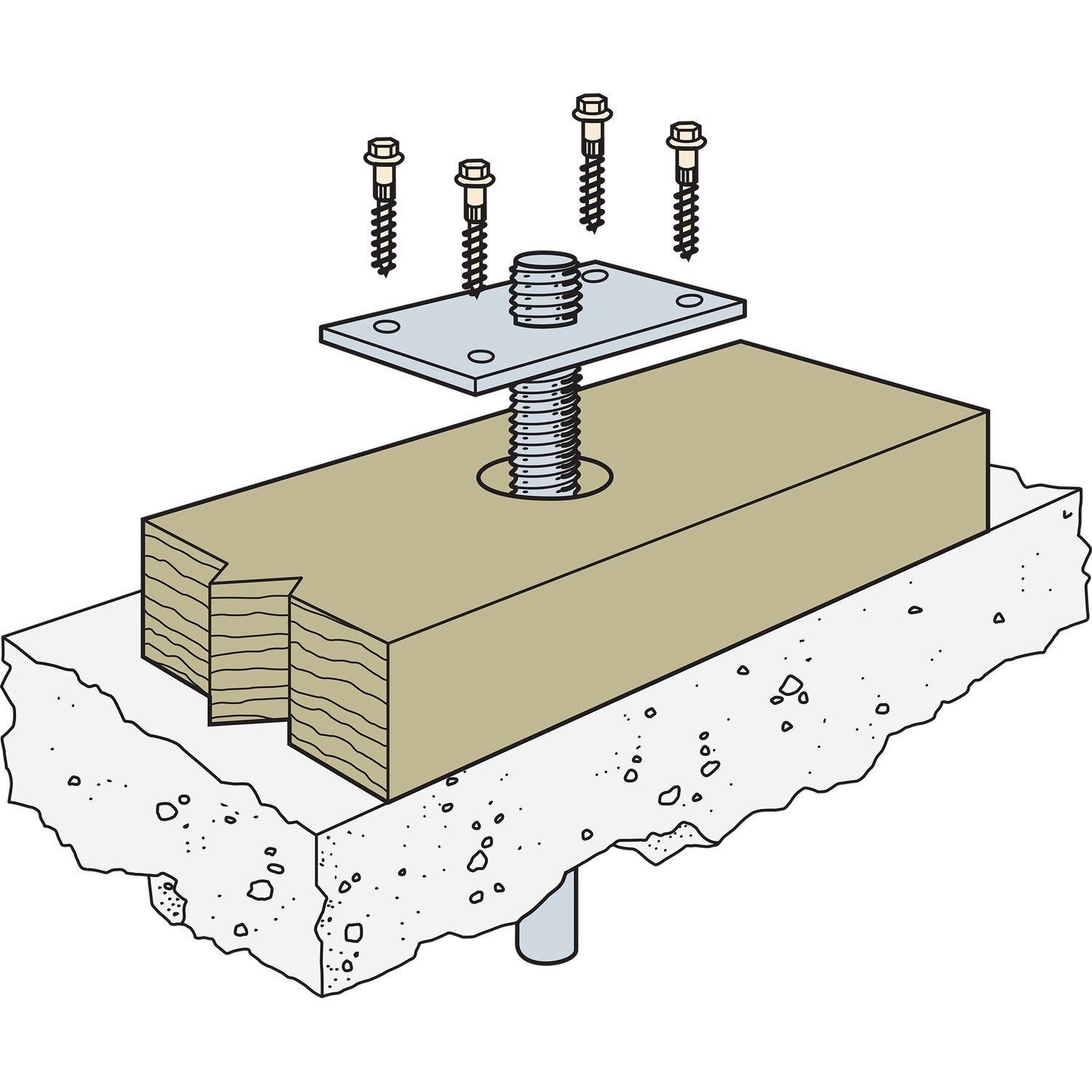

- Eliminates the need for standard-cut washers when used with Titen HD heavy-duty screw anchors
- Slotted hole allows for adjustability
- May be ordered with a hot-dip galvanized (HDG) finish for higher corrosion resistance
- Heavy-duty construction from 3 Gauge steel
- Compact 3" x 3" size for versatile applications
Simpson BPS 5/8-3 Applications

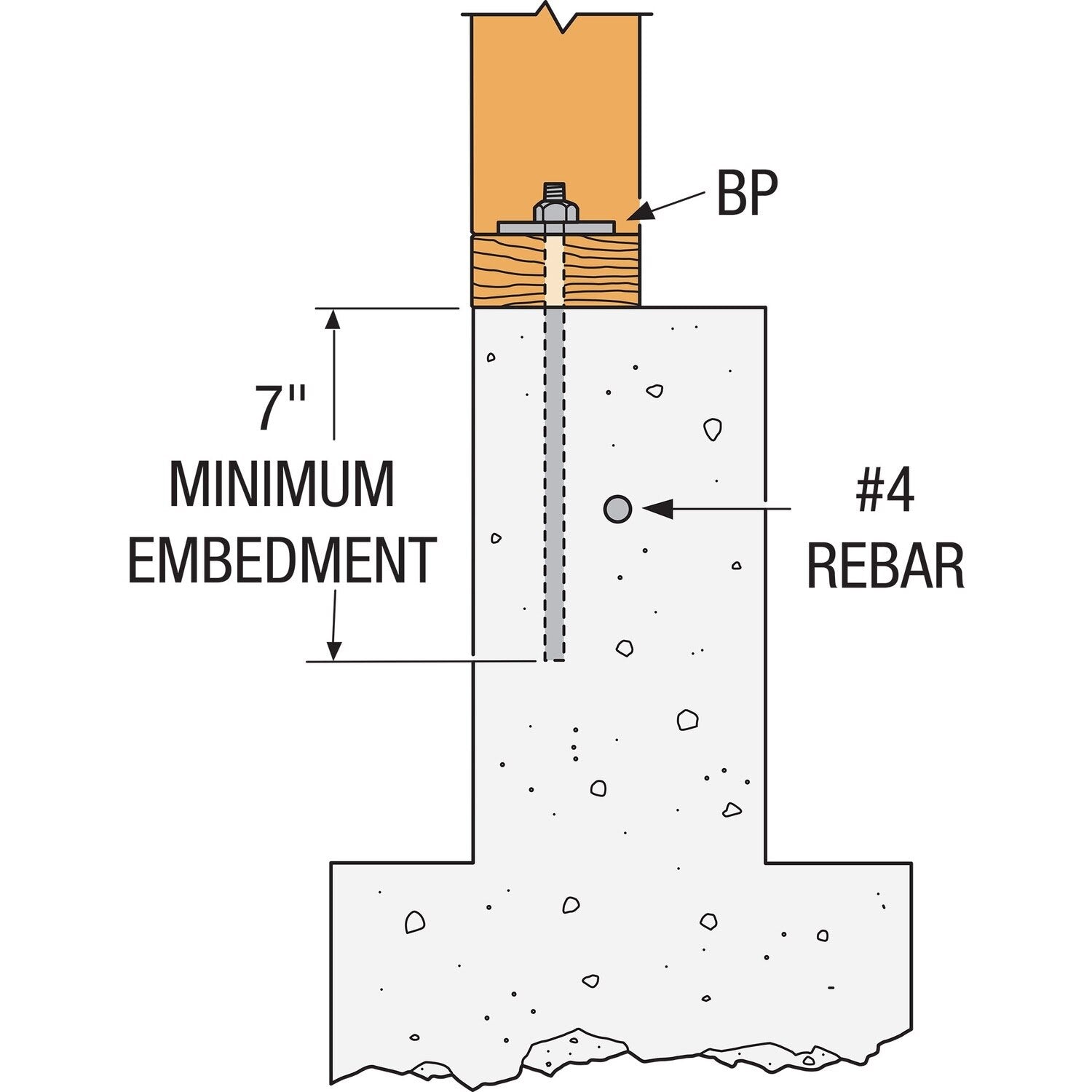

- Wood-to-concrete fastening for structural reinforcement
- Masonry anchoring for stability in construction projects

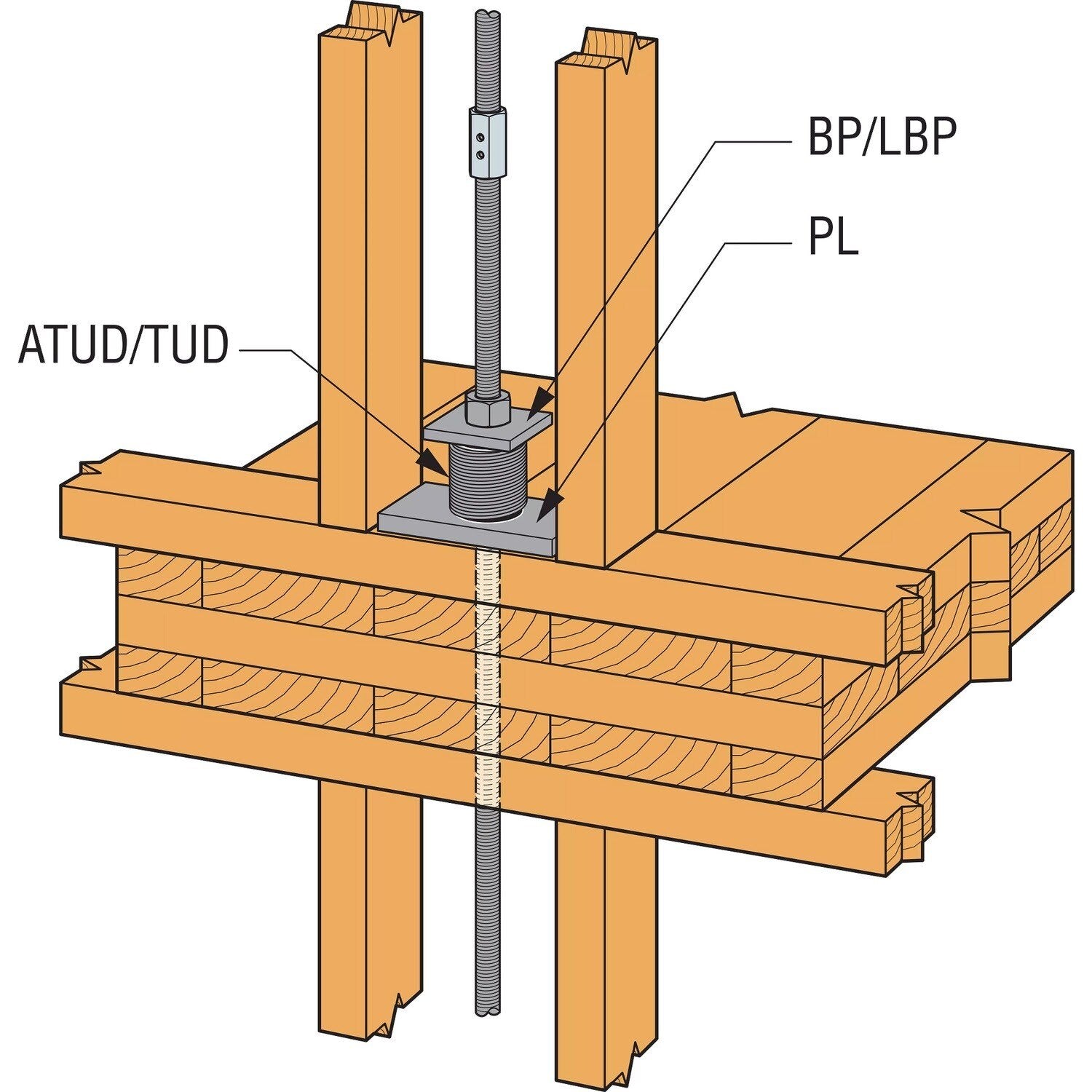

- Heavy framing and critical structural connections

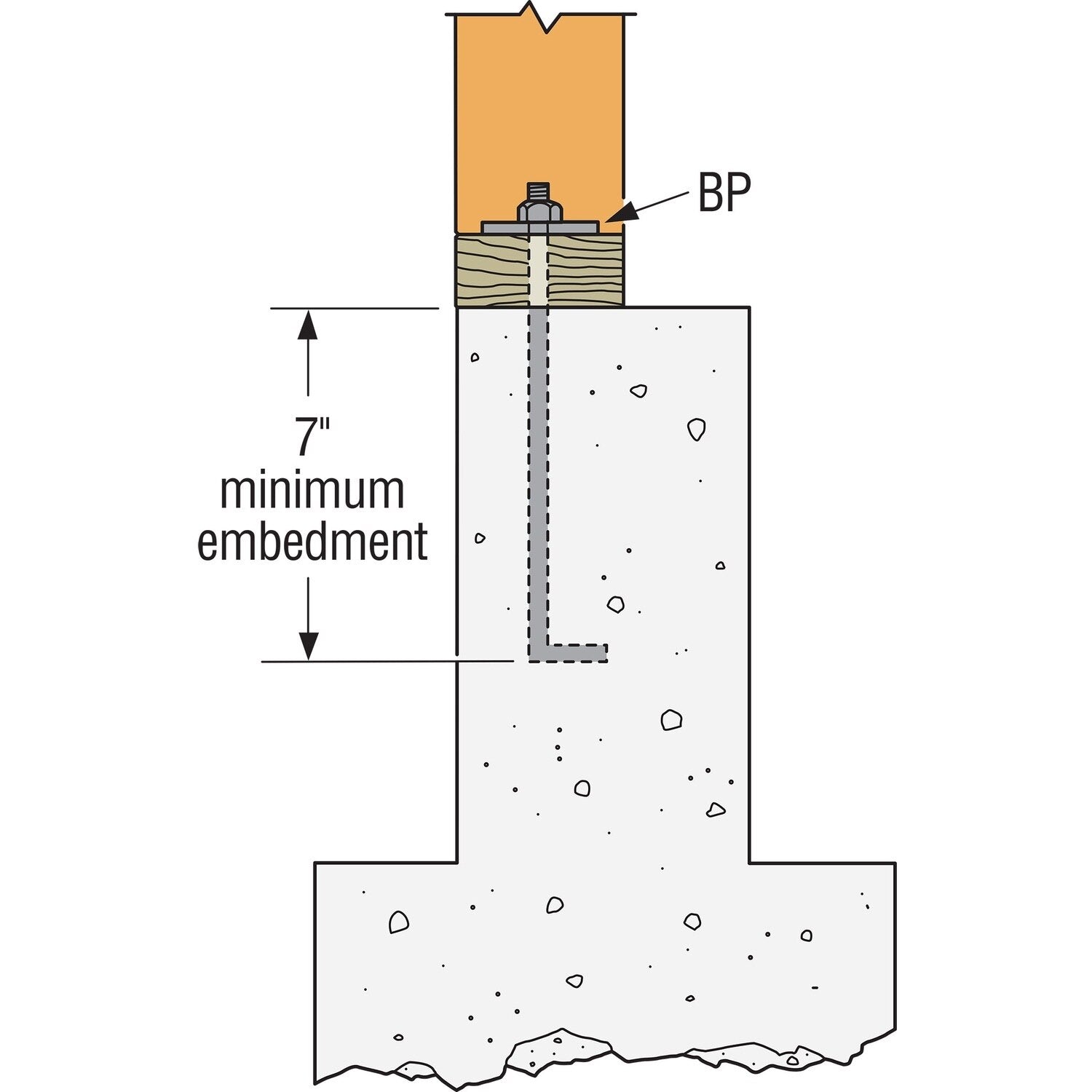

Simpson BPS 5/8-3 Installation Overview
- Position edge of plate washer within 1/2" of sheathed edge of sill plate for shearwall applications
- Tighten BPS to each anchor bolt with nut and standard cut-washer
- Ensure proper alignment and secure fastening

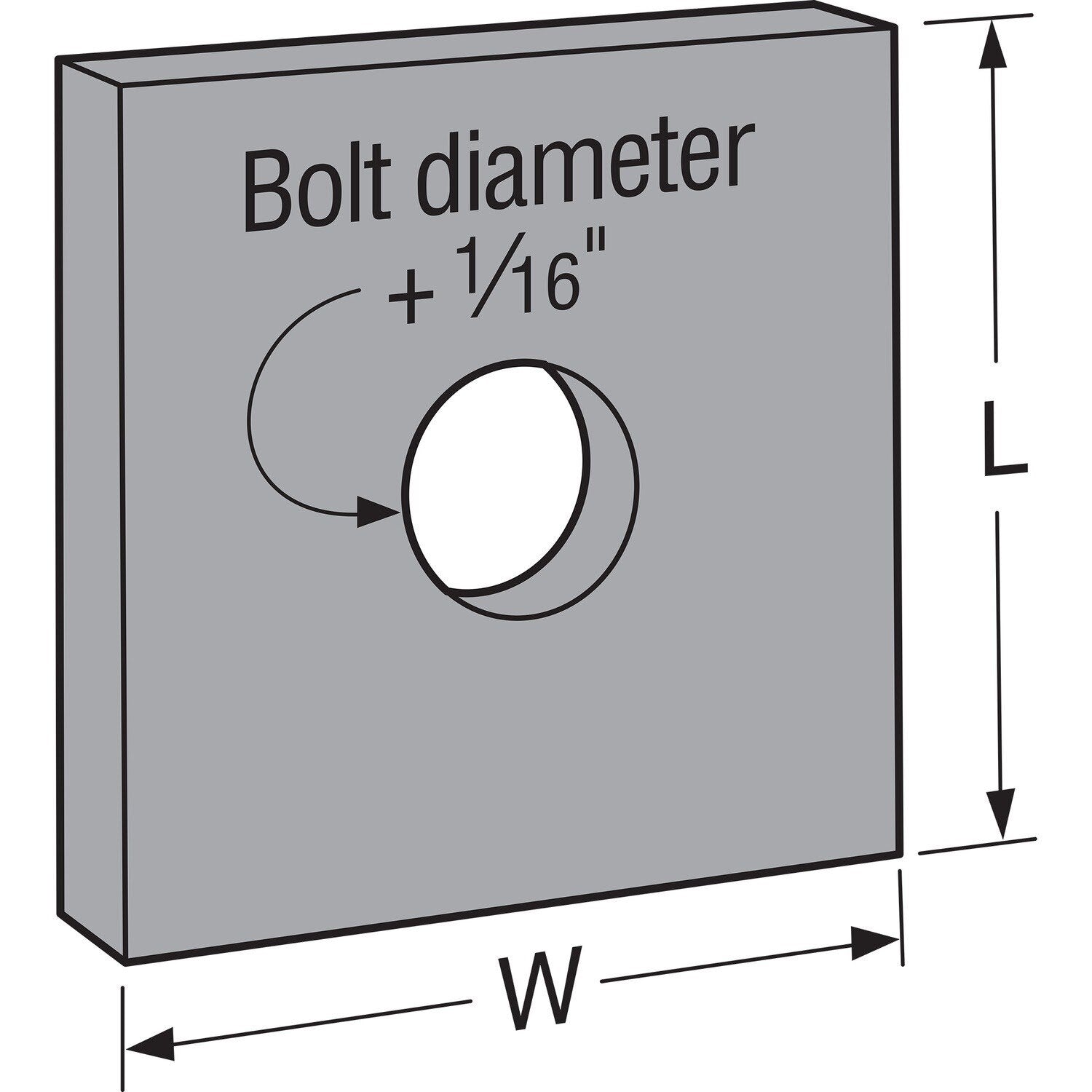

Simpson BPS 5/8-3 Specifications
| Material | 3 Gauge Steel |
| Finish | Hot Dip Galvanized |
| Bolt Diameter | 5/8" |
| Width | 3" |
| Length | 3" |
| Weight | 0.6 lb |
NOTE: Standard cut-washer required with BPS slotted bearing plates. Washer not required when used with Titen HD heavy-duty screw anchors.
