Simpson Strong-Tie BVLZ-KT1 Description
The Simpson Strong-Tie BVLZ brick veneer ledger connector provides a code-compliant solution for attaching a wood ledger to a house with a brick veneer exterior, eliminating the need to remove or replace large sections of brick.

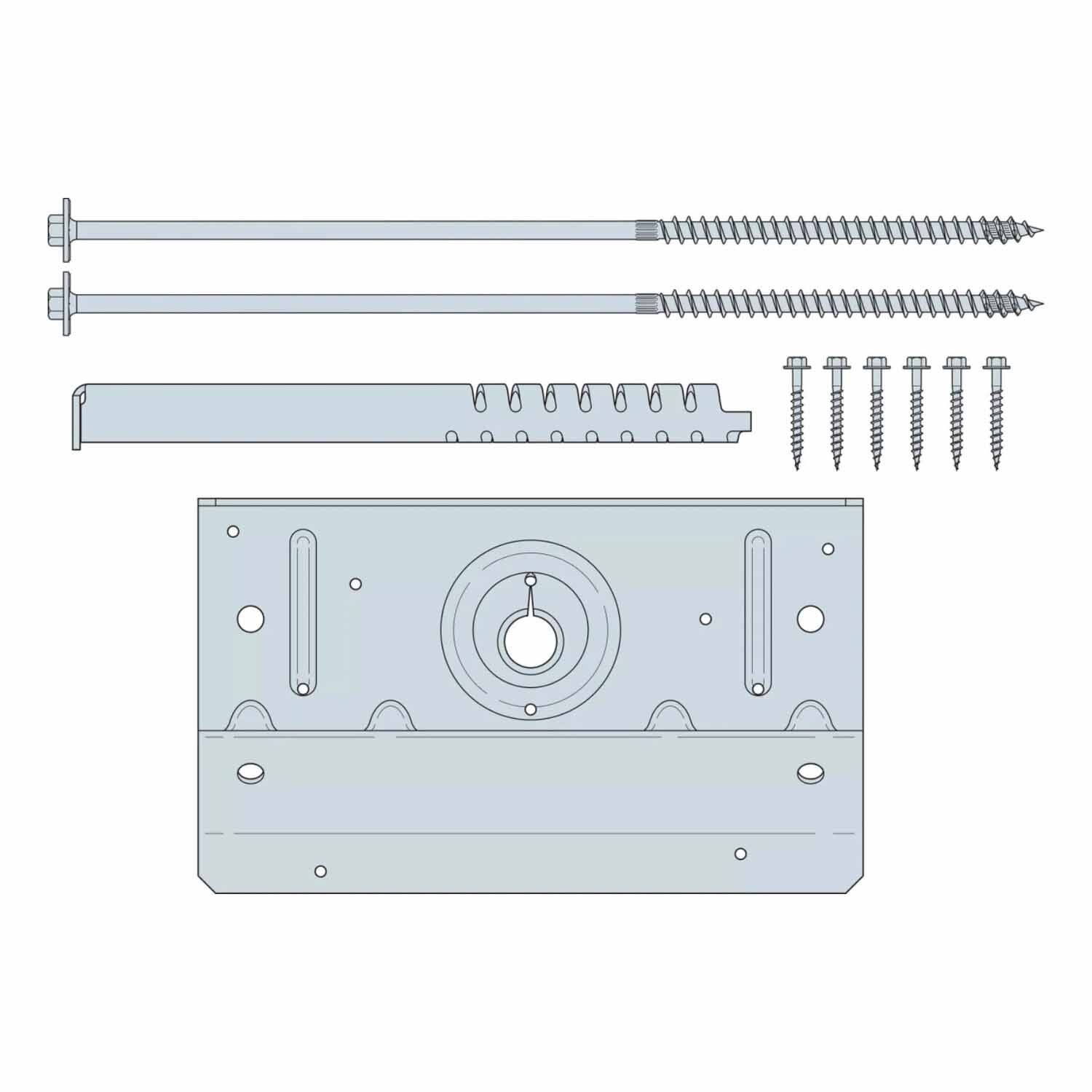

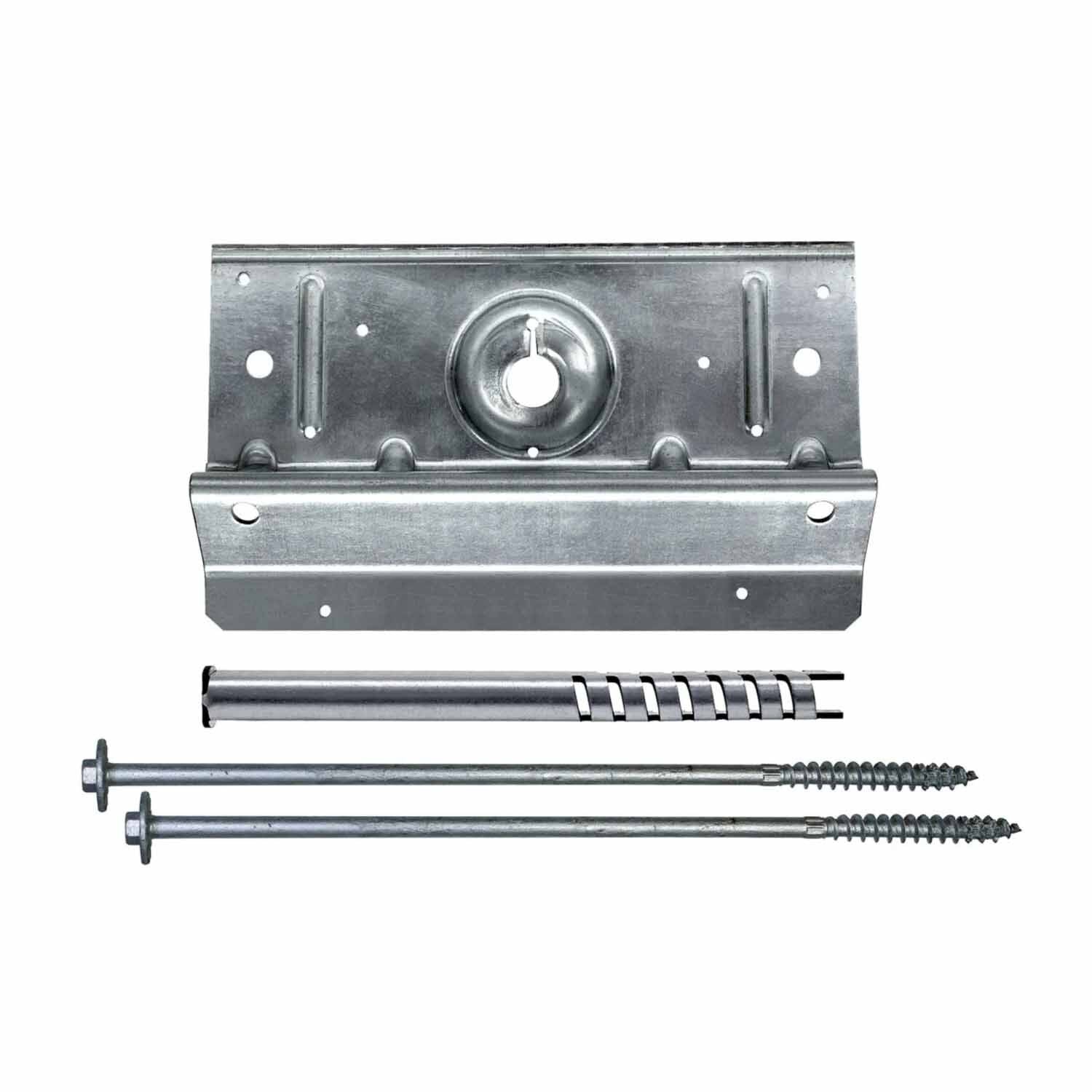

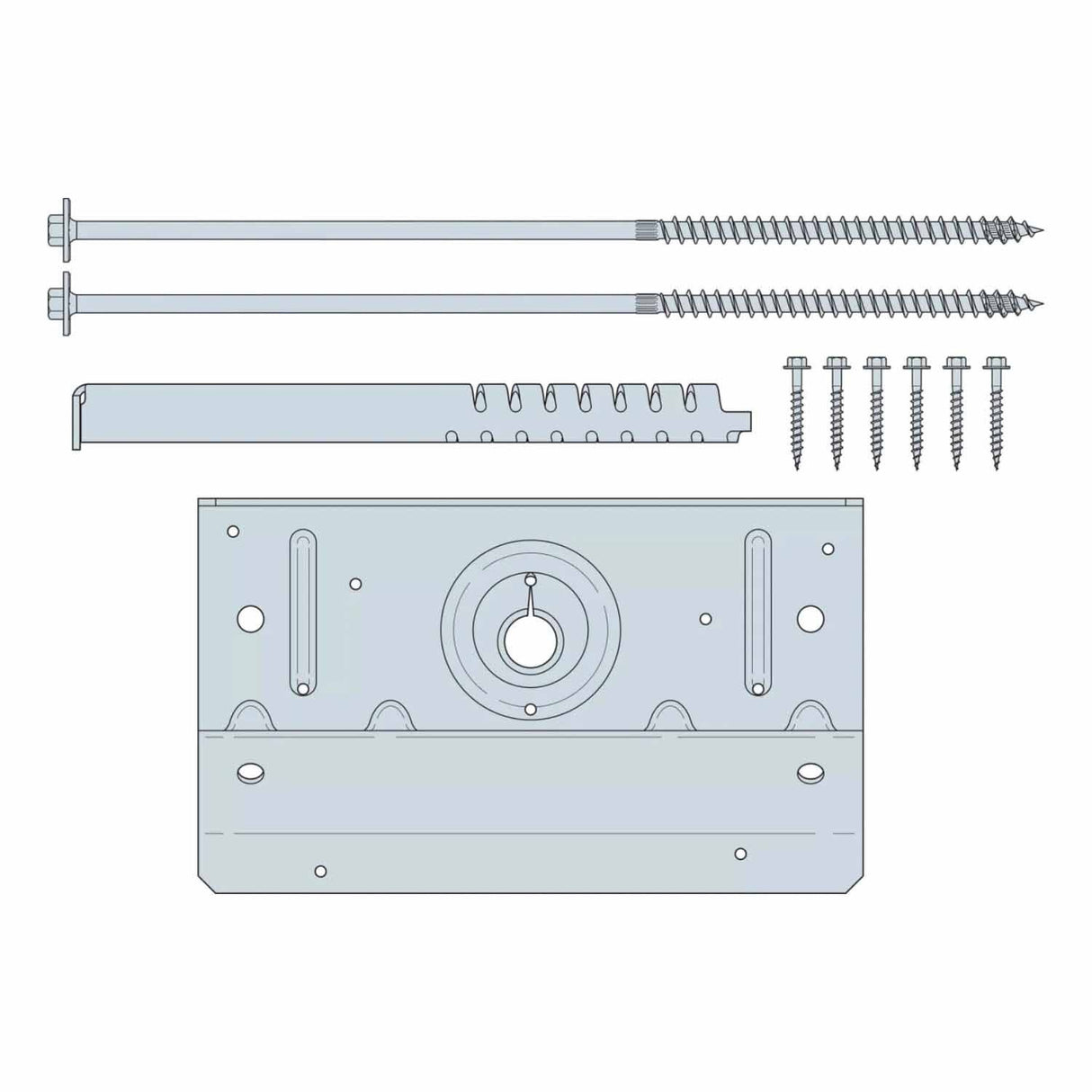

Simpson Strong-Tie BVLZ-KT1 Includes
- (1) Steel Ledger Plate
- (1) Compression Strut
- (1) Installation Guide
- (2) 14-in. Strong-Drive SDWH Timber-Hex HDG Tension Screws
- (6) Strong-Drive SD Connector Shear Screws
Simpson Strong-Tie BVLZ-KT1 Features
- Allows for drilling through the mortar joints
- Enables inspection/approval by building departments in a retrofit construction application
- Accommodates a wide range of air gaps and brick sizes
- Minimizes penetrations through existing exterior water barriers
Simpson Strong-Tie BVLZ-KT1 Applications

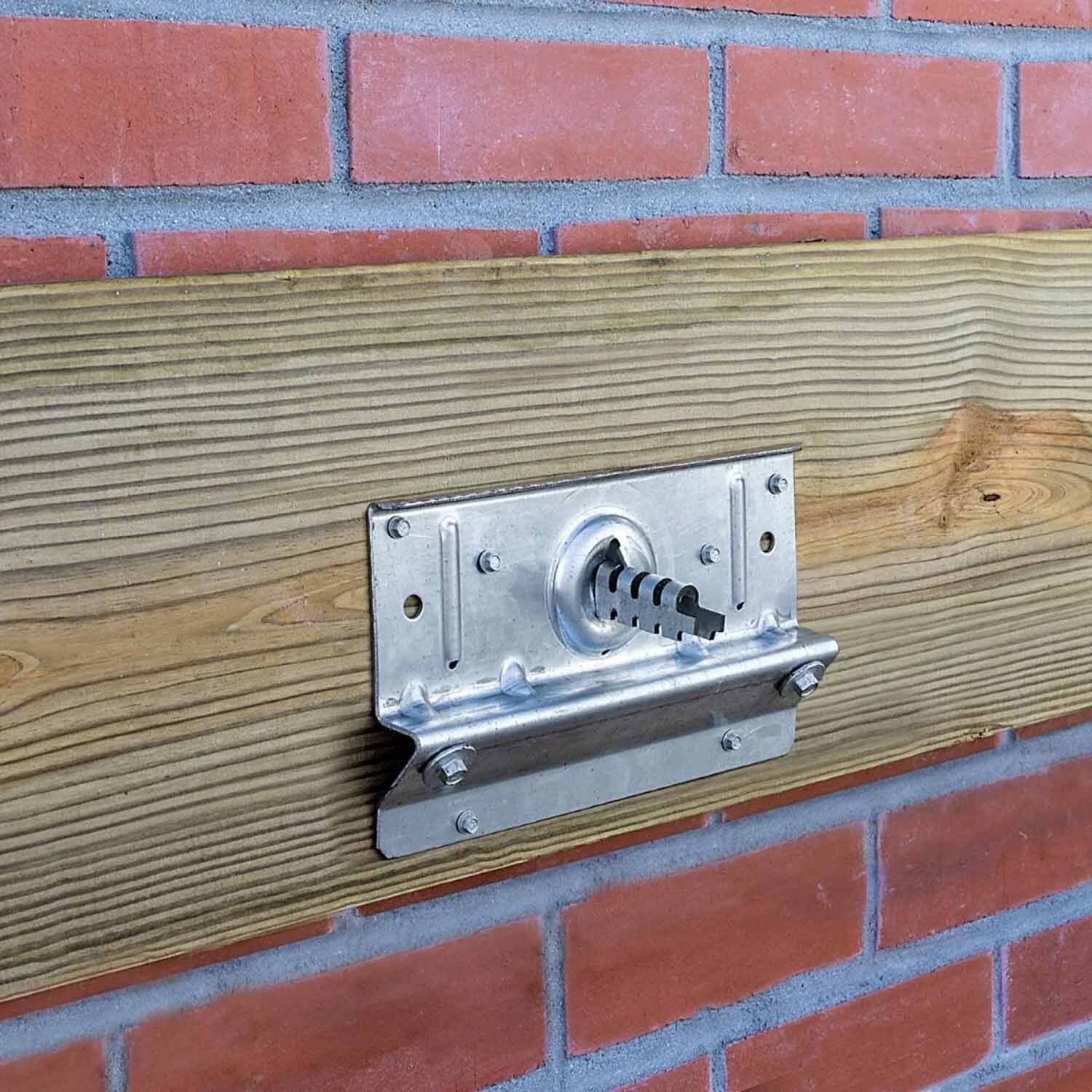

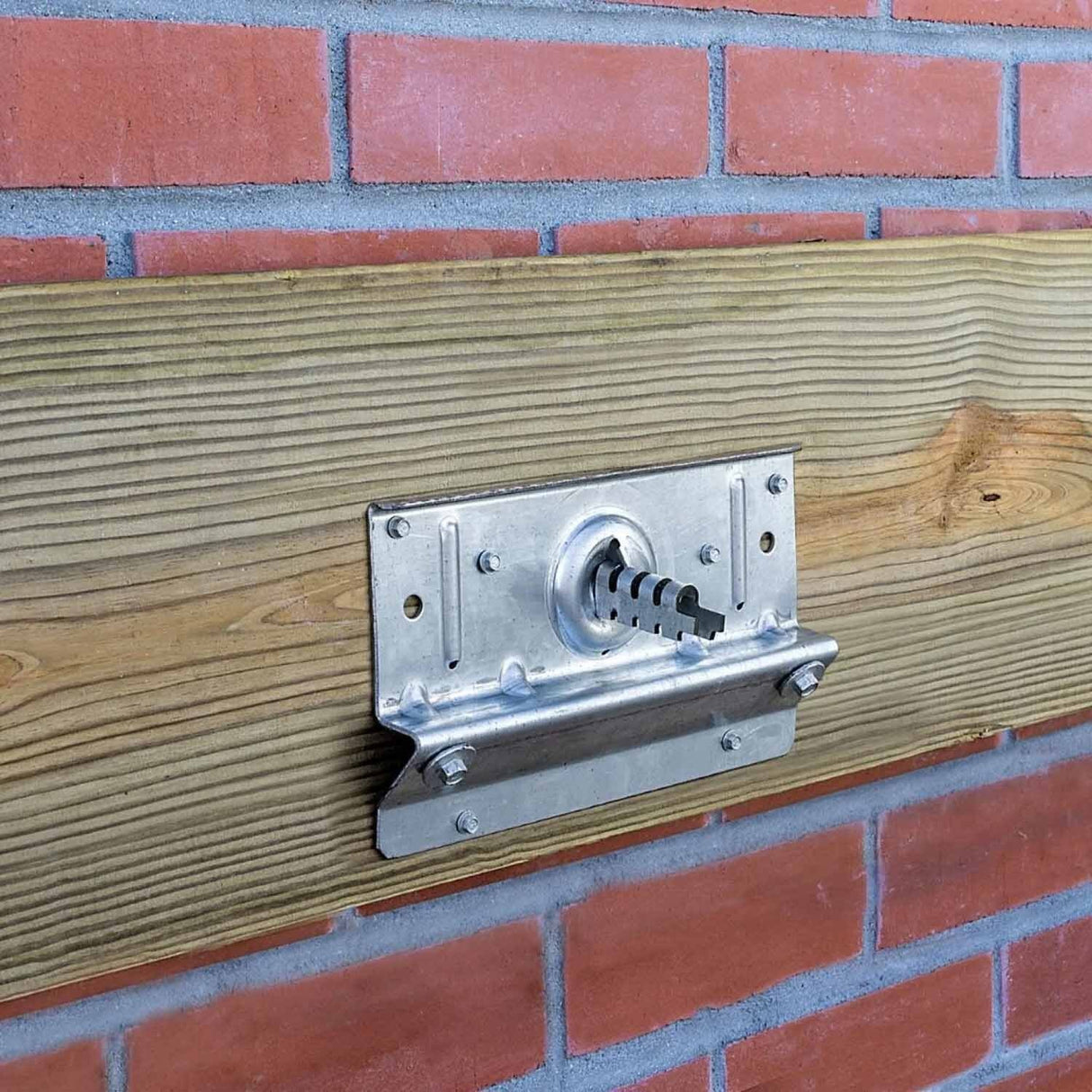

- Decks: Securely attaches wood ledgers to brick veneer exteriors
Simpson Strong-Tie BVLZ-KT1 Installation Overview
- Use all specified fasteners provided with the connector.
- Align the installation guide with the mortar joint and drill through the center hole.
- Drill two 40° upward-angled holes using the guide.
- Mark and drill corresponding holes on the ledger board.
- Thread the compression strut into the ledger plate and attach plates to the ledger.
- Install the ledger board against the brick veneer and secure with screws.
- Rotate compression struts until they bear tightly against the framing.

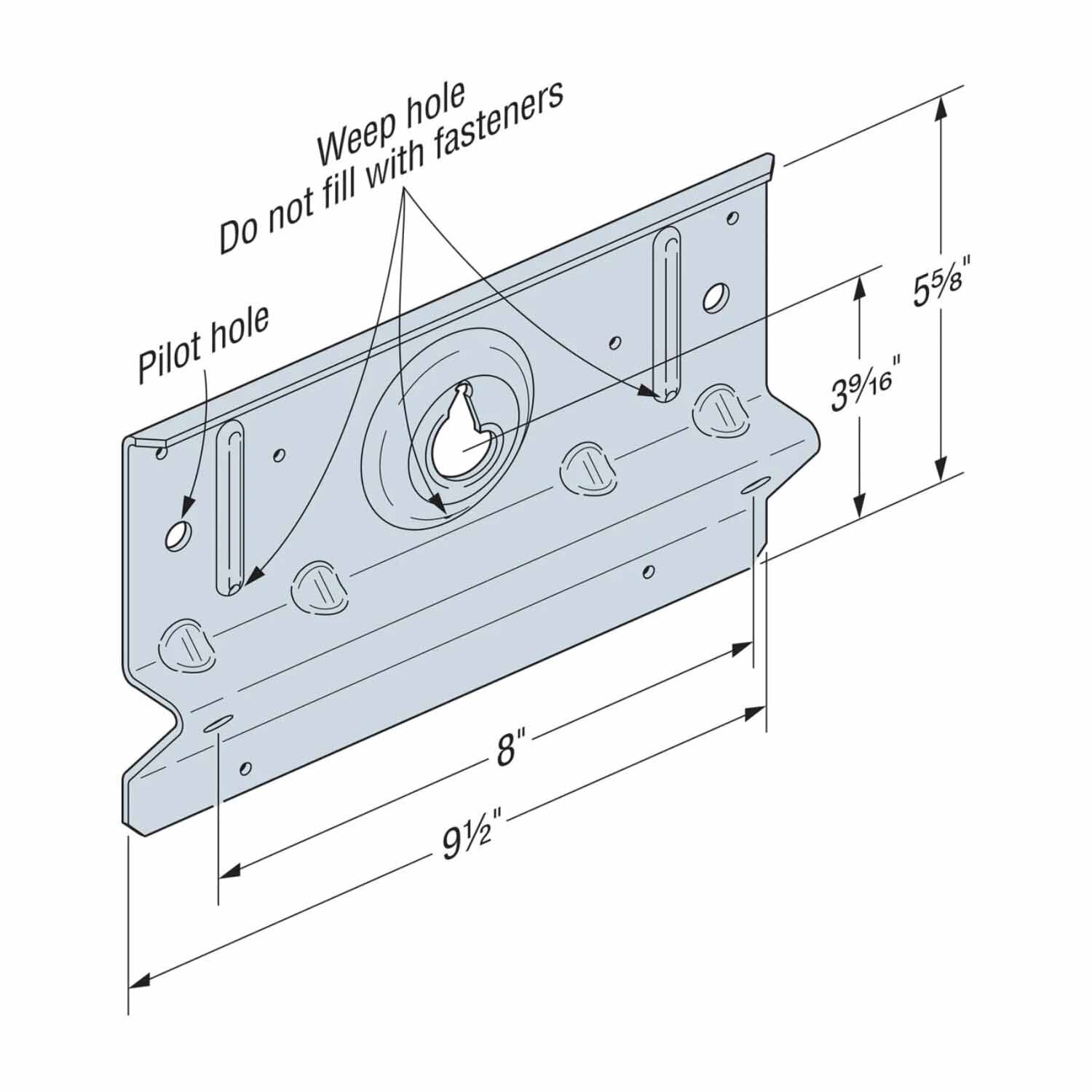

Simpson Strong-Tie BVLZ-KT1 Specifications
| Material | Carbon Steel |
| Finish | ZMAX |
| Gauge | 12 |
| For Treated Lumber | Yes |
Toolup Part # :
820921
