Simpson Anchors | SKU:
CB1010
Simpson Strong-Tie CB1010 (10" x 10") Column Base, Gray Painted
$132.31
Unit price
/
Unavailable
Description
Description

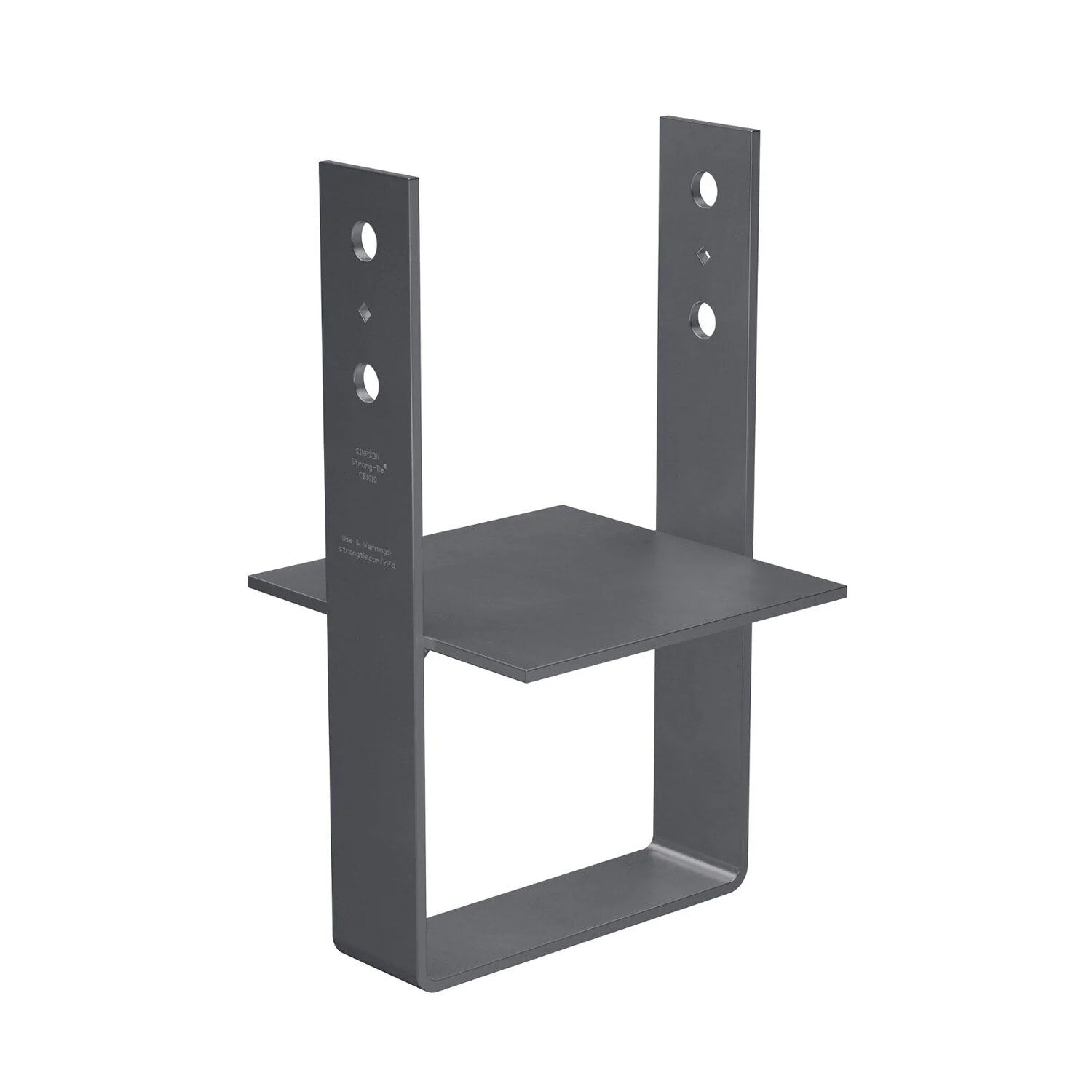

Simpson Strong-Tie CB1010 Description
The Simpson CB1010 10x10 Column Base enhances the strength and stability of construction projects, designed for connecting columns or posts to concrete foundations.
Simpson Strong-Tie CB1010 Includes
- (1) 10x10 Column Base Gray Painted
Simpson Strong-Tie CB1010 Features
- Designed to be cast-in-place or wet-set into concrete for connecting columns to foundations
- Intended for use with 10x10 posts or columns
- Made from heavy-gauge steel with a gray paint finish
- Provides increased uplift resistance for wind or seismic loading
Simpson Strong-Tie CB1010 Applications
- Connecting columns or posts to concrete foundations
- Providing structural stability in construction projects
- Enhancing uplift resistance in wind or seismic conditions

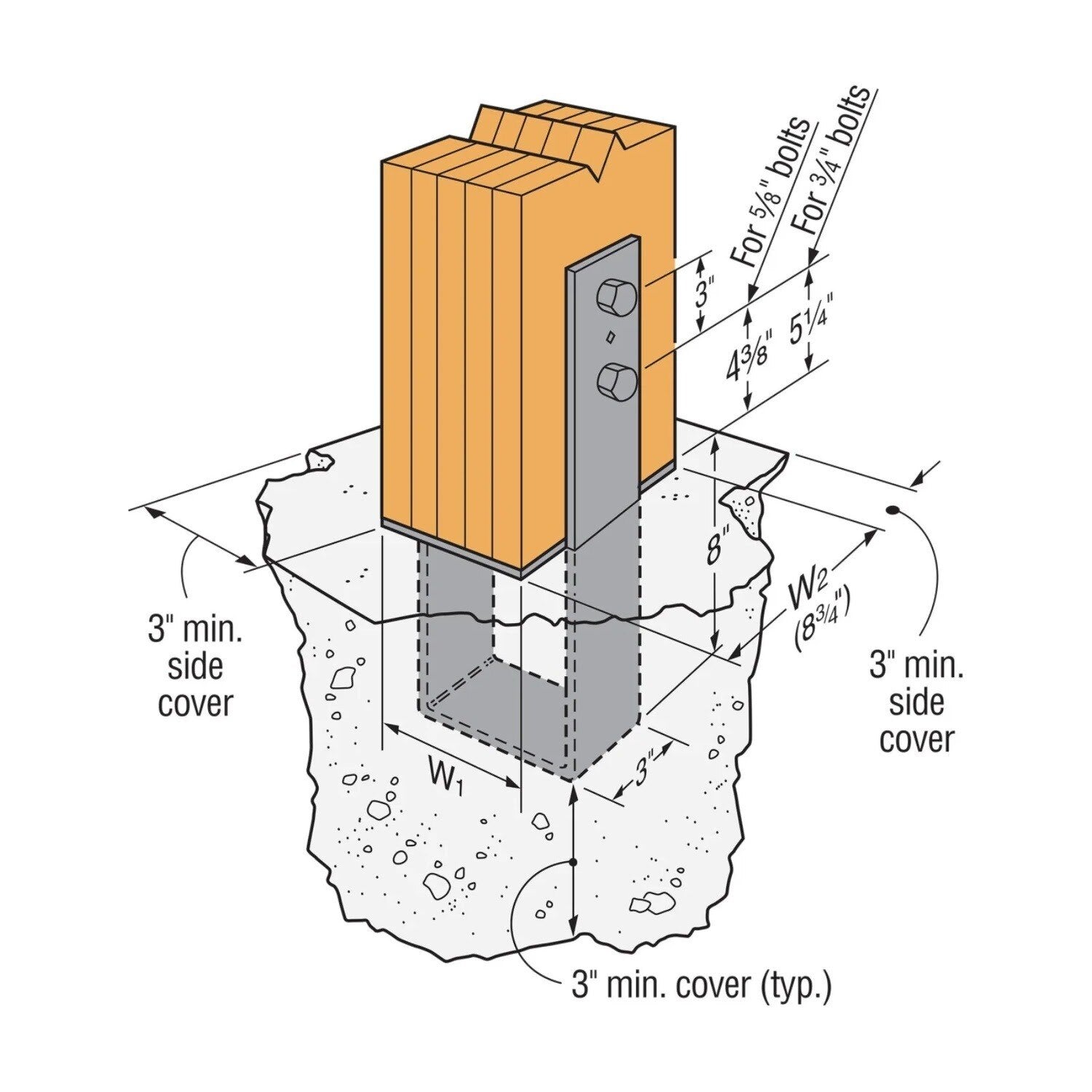

Simpson Strong-Tie CB1010 Installation Overview
- Position the column base in the desired location on the concrete foundation
- Secure the base using the specified bolts (2) 3/4"
- Ensure the base is flush with the concrete for full post bearing
Simpson Strong-Tie CB1010 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Column size | 10X10 |
| Fasteners required | Bolts - (2) 3/4" |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
