Simpson Anchors | SKU:
CB1212

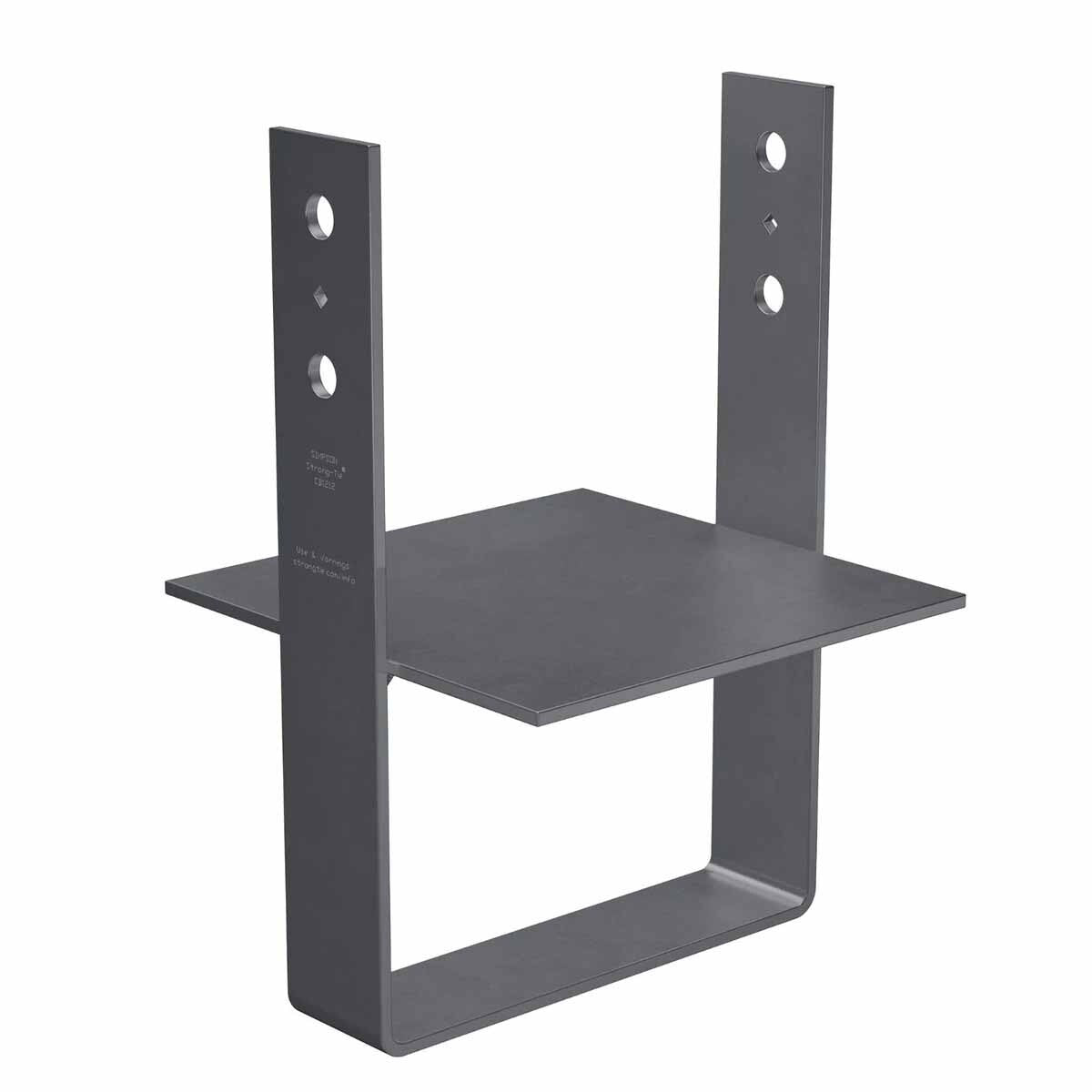

Simpson Strong-Tie CB1212 (12" x 12") Heavy-Duty Column Base for Concrete Foundations
$162.04
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CB1212 Description
The Simpson CB1212 12x12 Column Base enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column base is designed to connect columns or posts to concrete foundations.
Simpson Strong-Tie CB1212 Includes
- (1) Strong-Tie Heavy-Duty 12x12 Column Base for Concrete Foundations
Simpson Strong-Tie CB1212 Features
- Increased uplift resistance for wind or seismic loading
- Bolt hole locations meet code-required spacing for optimal capacity
- Designed to be cast-in-place or wet-set into concrete
- Made from heavy-gauge steel for durability
- Finished with gray paint coating
Simpson Strong-Tie CB1212 Applications
- Decks: Post-to-Footings
- Columns requiring high structural values and long-lasting performance

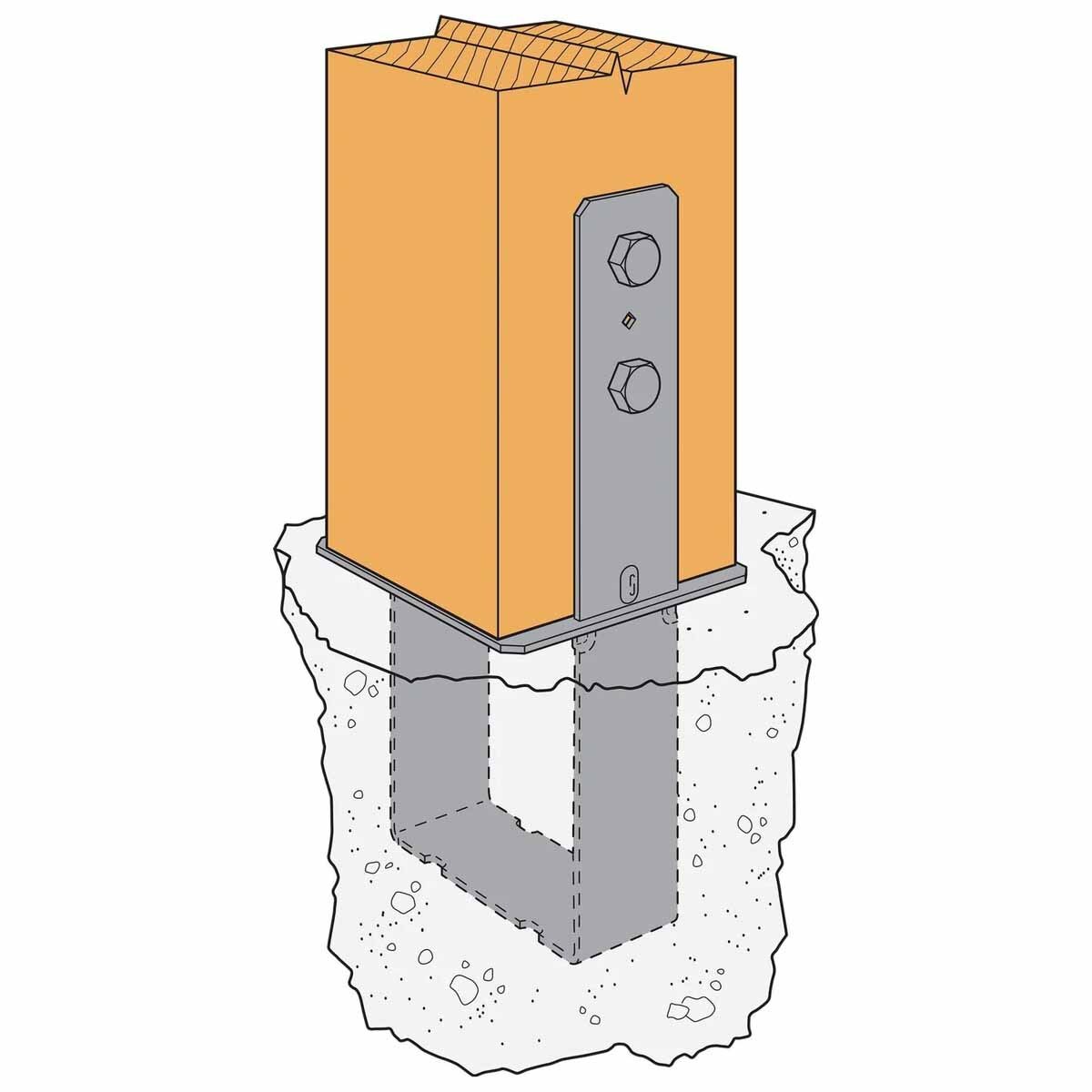

Simpson Strong-Tie CB1212 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure minimum side cover of 3 inches for CB
- Install with the bottom of the base plate flush with concrete
- Not recommended for non-top-supported installations

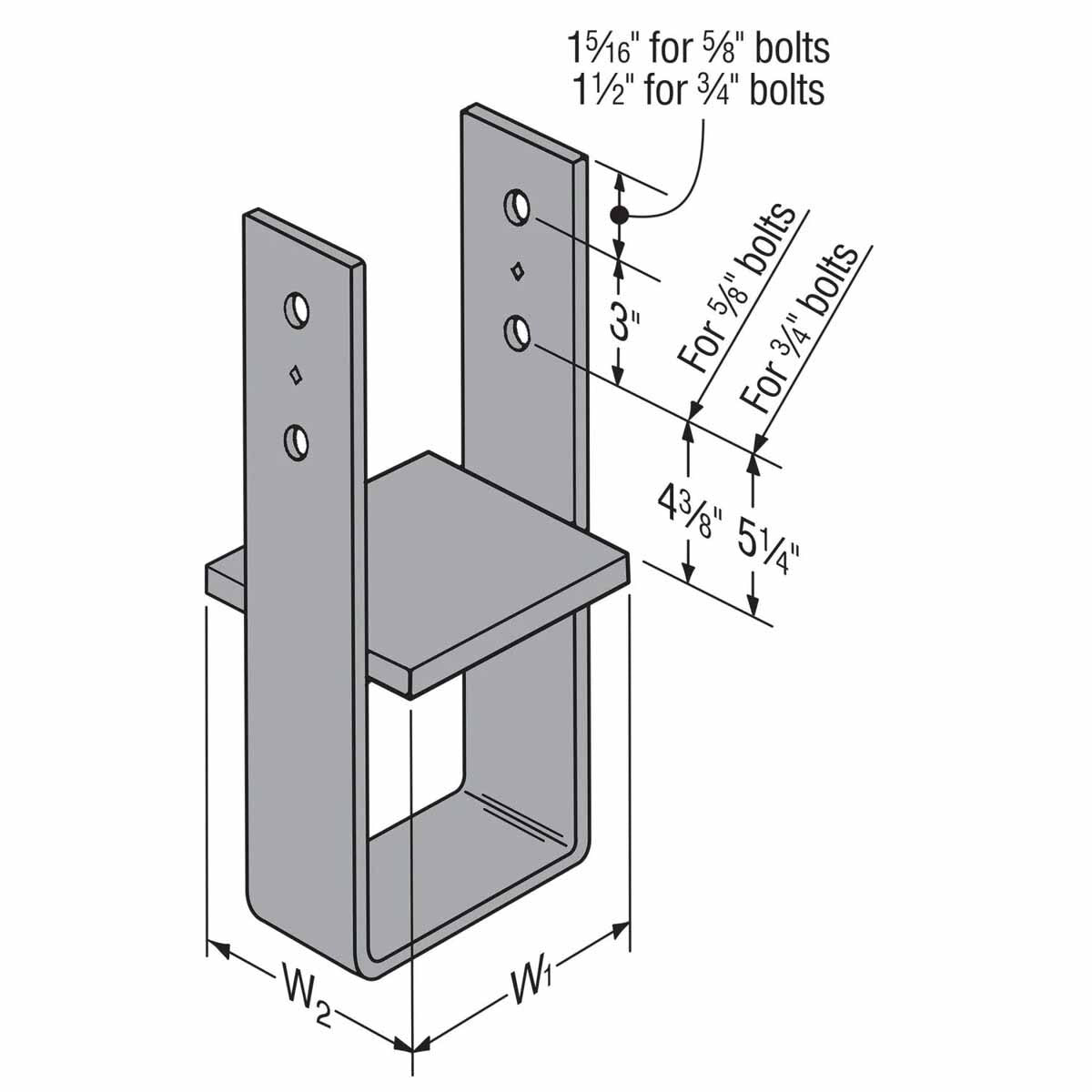

Simpson Strong-Tie CB1212 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Column size | 12x12 |
| Fasteners required | Bolts - (2) 3/4" |
| For Treated Lumber | No |
| Weight | 17.6 lb |
