Simpson Anchors | SKU:
CB44R

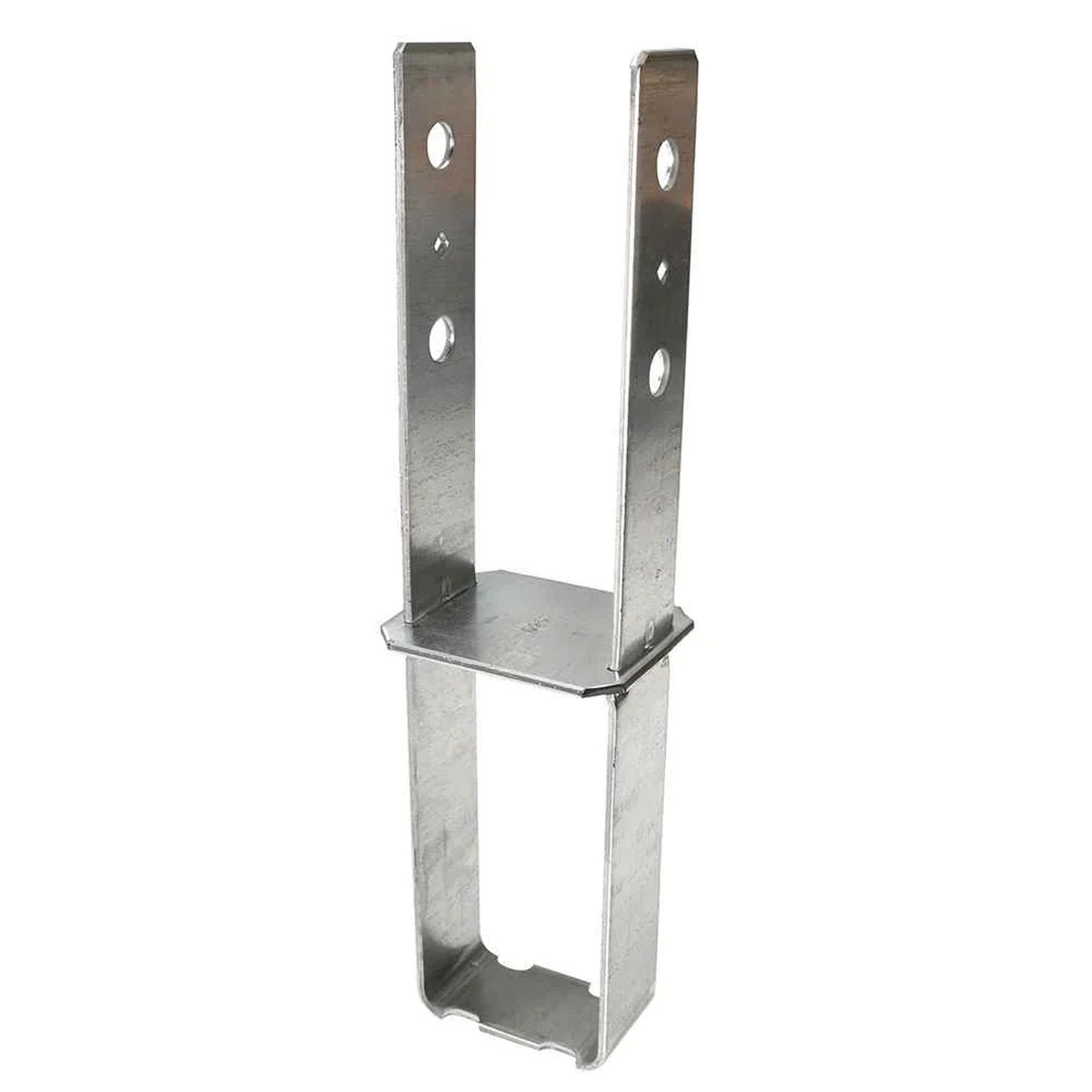

Simpson Strong-Tie CB44R Galvanized Column Base for 4x4 Rough
$46.28
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CB44R Description
The Simpson CB44R 4x4 Rough Column Base enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column base is designed to connect columns or posts to concrete foundations.
Simpson Strong-Tie CB44R Includes
- (1) 4x4 Rough Column Base
Simpson Strong-Tie CB44R Features
- Designed to be cast-in-place or wet-set into concrete
- Intended for use with 4x4 posts/columns
- Made from Heavy Gauge Steel for durability
- Finished with G90 Galvanized coating
- Increased uplift resistance for wind or seismic loading
Simpson Strong-Tie CB44R Applications
- Connecting columns or posts to concrete foundations
- Providing structural support for rough-cut lumber columns
Simpson Strong-Tie CB44R Installation Overview
- Prepare the concrete foundation for the column base.
- Position the column base in the desired location.
- Secure the base using the specified bolts.
- Ensure the base is flush with the concrete for full post bearing.
Simpson Strong-Tie CB44R Specifications
| Finish | G90 Galvanized |
| Material | Heavy Gauge Steel |
| Column size | 4X4 |
| Fasteners required | Bolts - (2) 5/8" |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
NOTE: This connector is designed for Rough Cut lumber NOT nominal lumber (most common).
