Simpson Anchors | SKU:
CB44W
Simpson Strong-Tie CB44W 4" x 4" Column Base for Wood Construction
$36.15
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CB44W Description

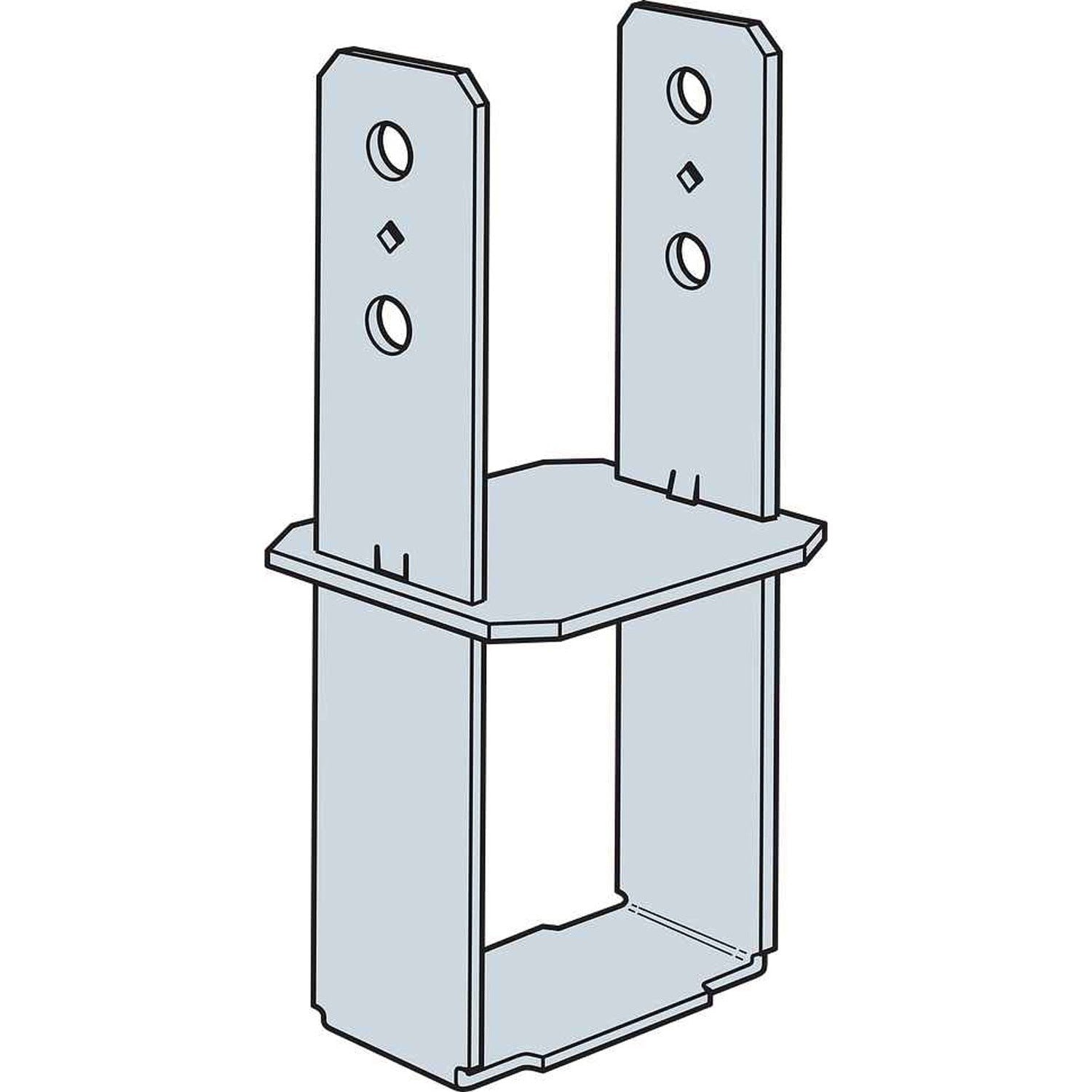

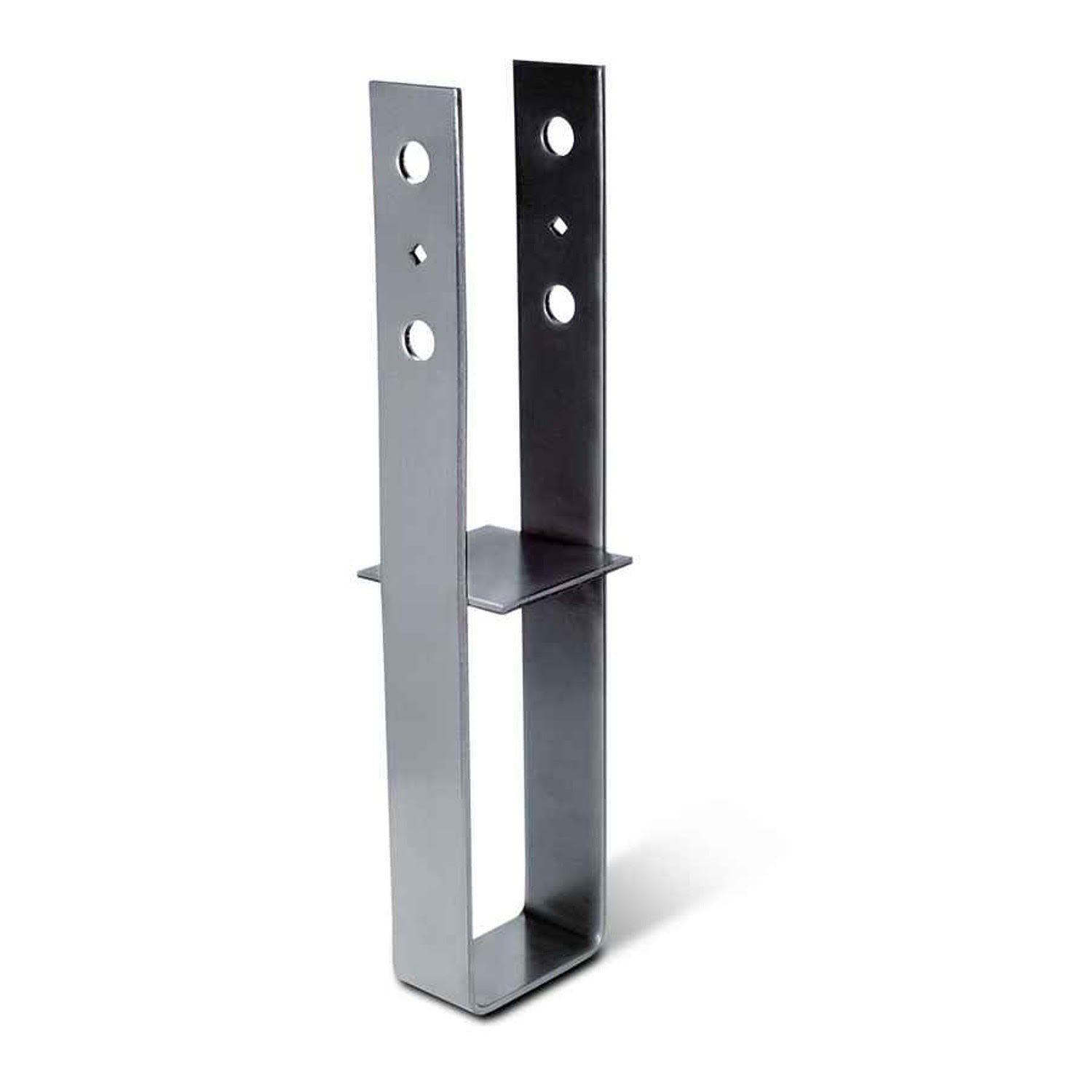

The CB44W Column Base is designed for wood construction, providing increased uplift resistance and meeting code-required spacing for optimal capacity.
Simpson Strong-Tie CB44W Includes
- (1) 4 x 4 Column Base for Wood Construction
Simpson Strong-Tie CB44W Features
- Increased uplift resistance for wind or seismic loading

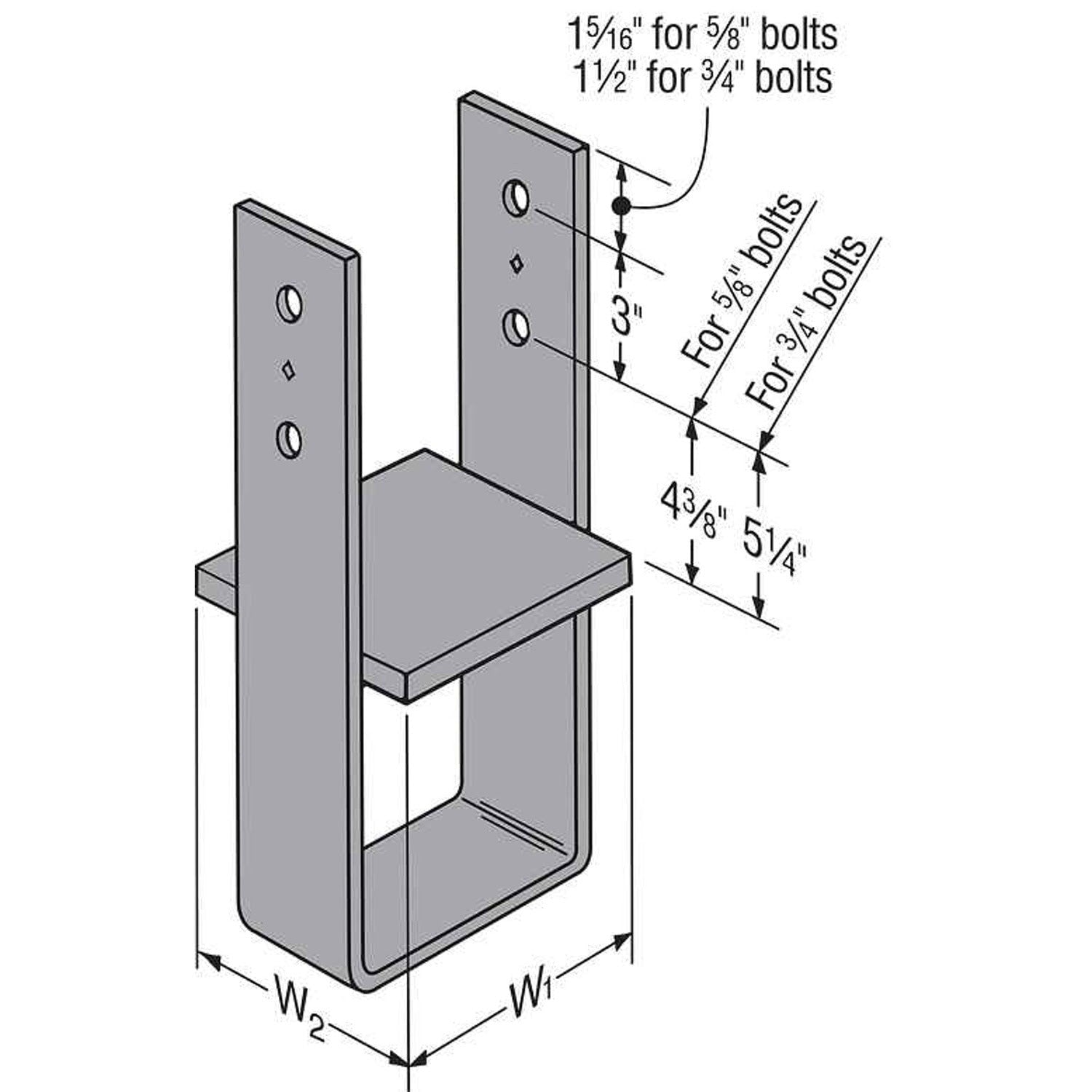

- Bolt hole locations meet code-required spacing for optimal capacity
Simpson Strong-Tie CB44W Applications
- Decks: Post-to-Footings
Simpson Strong-Tie CB44W Installation Overview
- Use all specified fasteners; see General Notes
- For full loads, minimum side cover required is 3" for CB

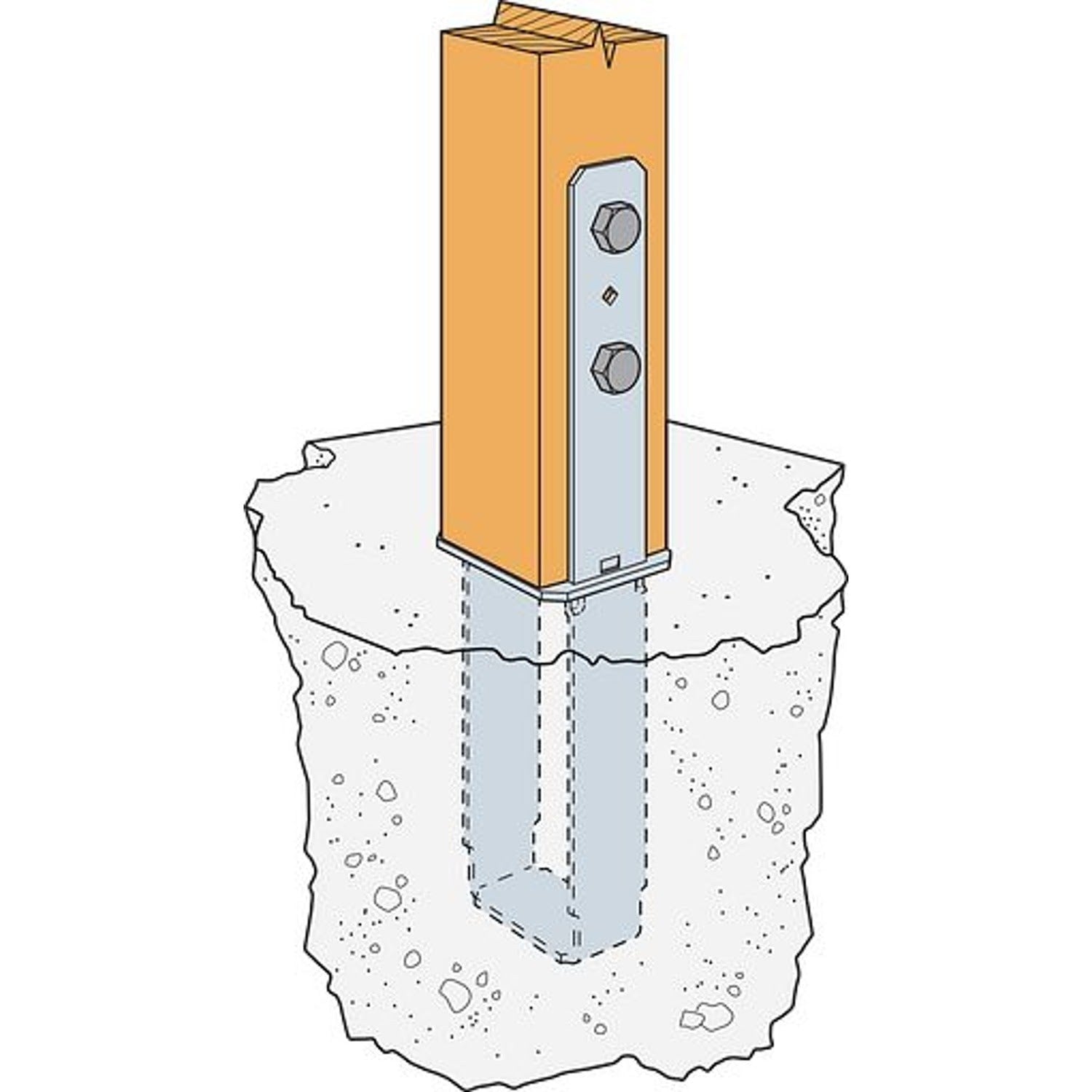

- Install all models with bottom of base plate flush with concrete
Simpson Strong-Tie CB44W Specifications
| Material | Strap: CB4x, CB5x, CB6x — 7 gauge; CB7x and larger — 3 gauge |
| Base | CB4x through CB9x — 7 gauge; CB10x — 3 gauge |
| Finish | CB44, CB46, CB48, CB66, CB68, CB610 — galvanized; all other CB — Simpson Strong-Tie gray paint or HDG |
NOTE: Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
