Simpson Anchors | SKU:
CB46W

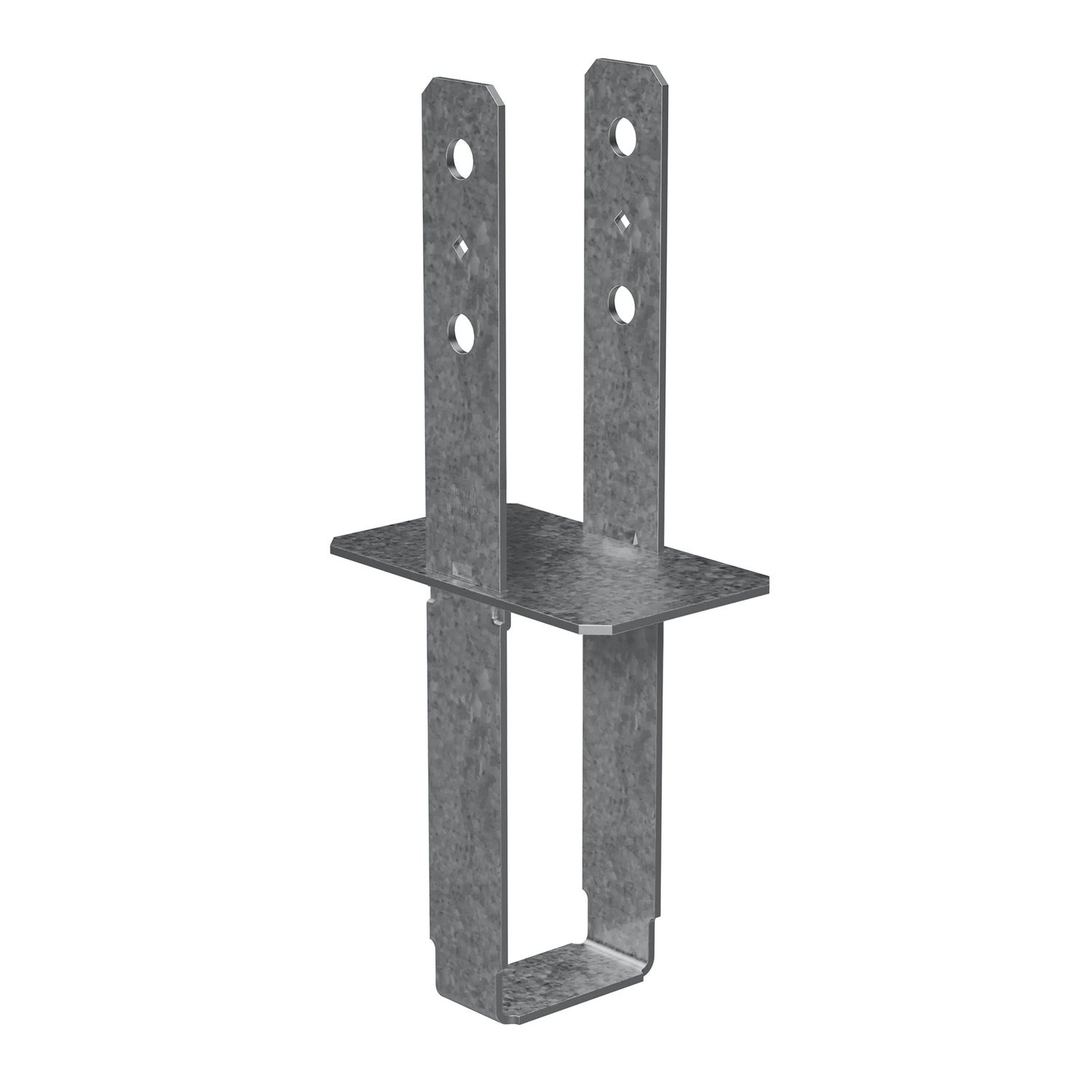

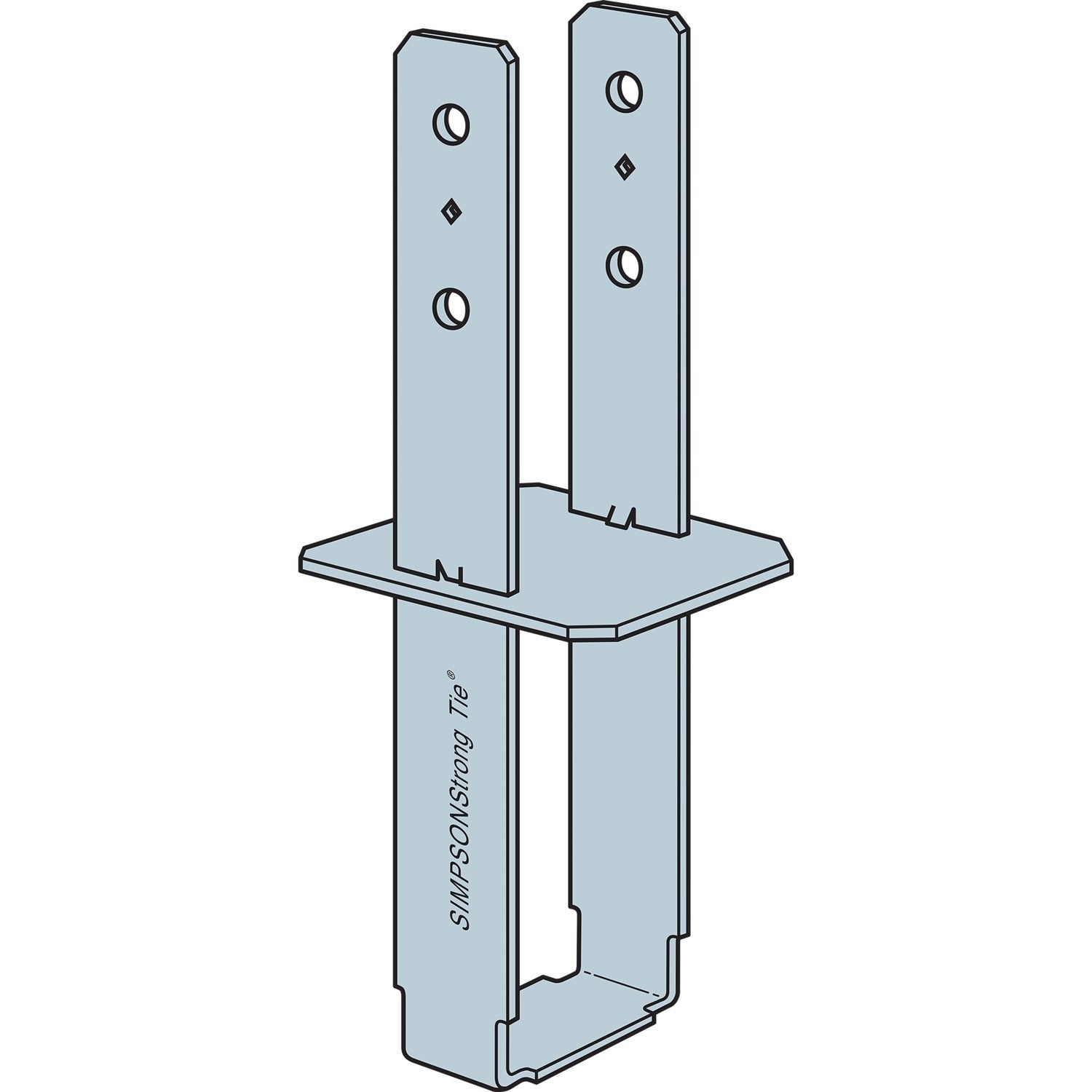

Simpson Strong-Tie CB46W (4" x 6") Column Base for Heavy Duty Column Loads
$49.70
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CB46W Description
The Simpson Strong-Tie CB46W Column Base is designed for heavy-duty column loads, featuring a sturdy cast-in-place anchor and a Gray Painted coating for corrosion resistance.
Simpson Strong-Tie CB46W Includes
- (1) 4 x 6 Column Base
Simpson Strong-Tie CB46W Features
- Heavy-duty design for column loads
- Gray Painted coating for corrosion resistance
- Compatible with specified fasteners for secure installation
Simpson Strong-Tie CB46W Applications
- Heavy-duty column support in construction
- Use in structures requiring cast-in-place anchors

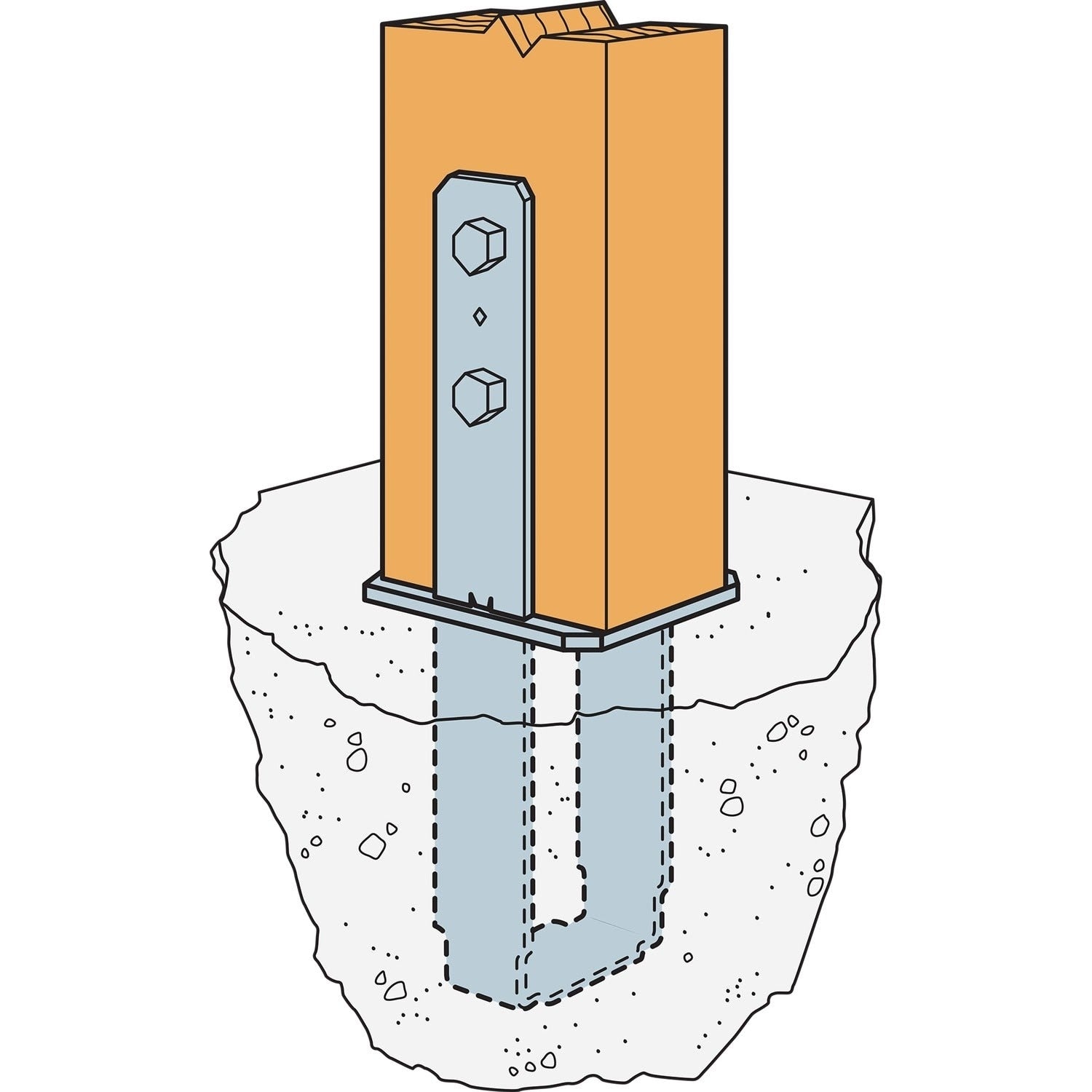

Simpson Strong-Tie CB46W Installation Overview
- Use all specified fasteners
- Ensure minimum side cover of 3" for CB and 2" for LCB for full loads
- Install with the bottom of the base plate flush with concrete
- Avoid use in non top-supported installations

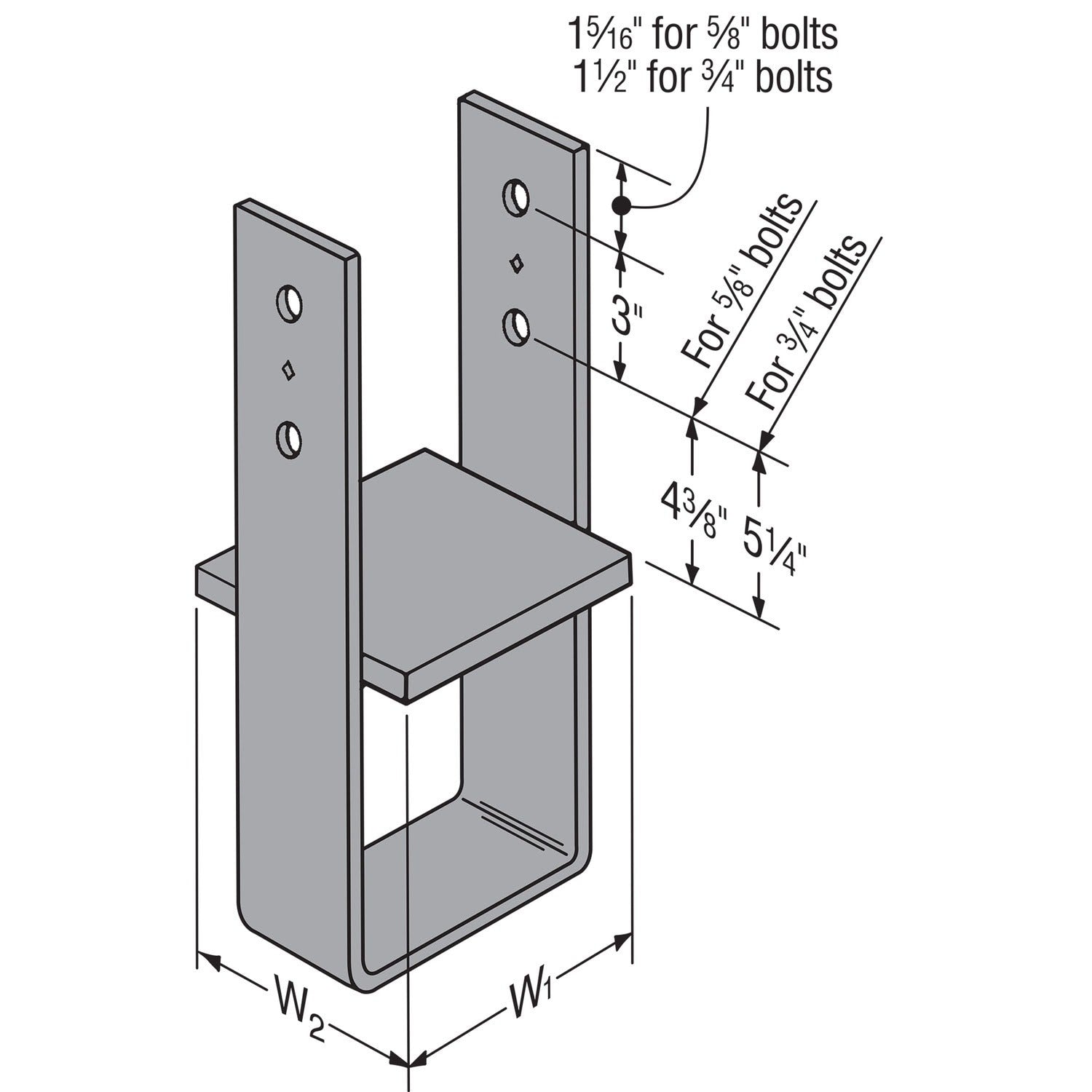

Simpson Strong-Tie CB46W Specifications
| Finish | Gray Paint |
| Fasteners required | Bolts - (2) 5/8" |
| Thickness | 7 Gauge |
| Width | W1: 3-9/16"; W2: 5-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
