Simpson Anchors | SKU:
CB66
Simpson CB66 Strong-Tie Galvanized Column Base for 6x6 Posts
$42.65
$62.33
Unit price
/
Unavailable
Description
Description

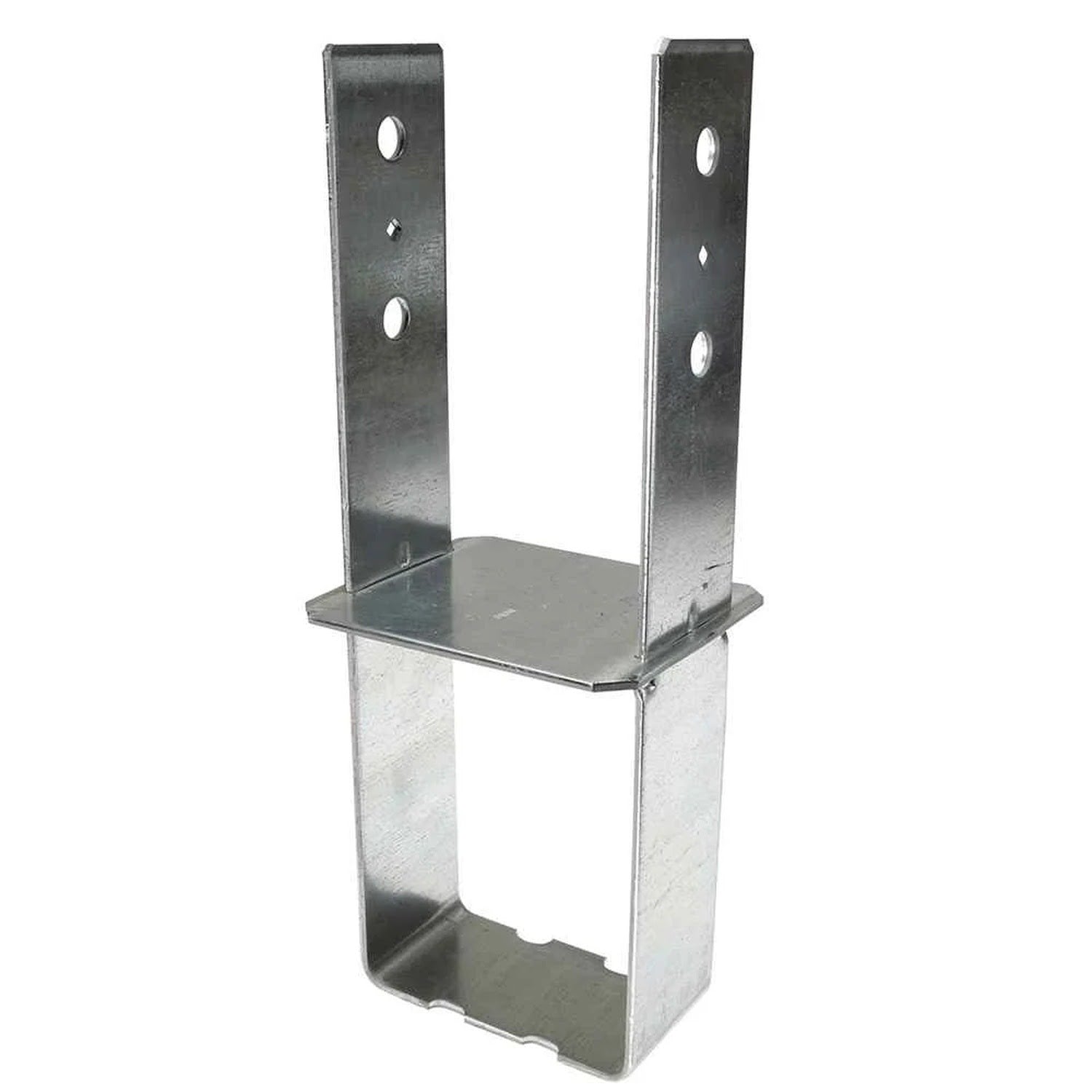

Simpson CB66 Description
The Simpson CB66 6x6 Column Base enhances the strength and stability of your construction projects, connecting columns or posts to concrete foundations.
Simpson CB66 Includes
- (1) Galvanized Column Base for 6x6 Posts
Simpson CB66 Features
- Designed to be cast-in-place or wet-set into concrete
- Intended for use with 6x6 posts/columns
- Made from Heavy Gauge Steel for durability
- Finished with G90 Galvanized coating
- Increased uplift resistance for wind or seismic loading
Simpson CB66 Applications
- Connecting columns or posts to concrete foundations
- Providing structural support for construction projects
- Enhancing stability in seismic or wind-prone areas

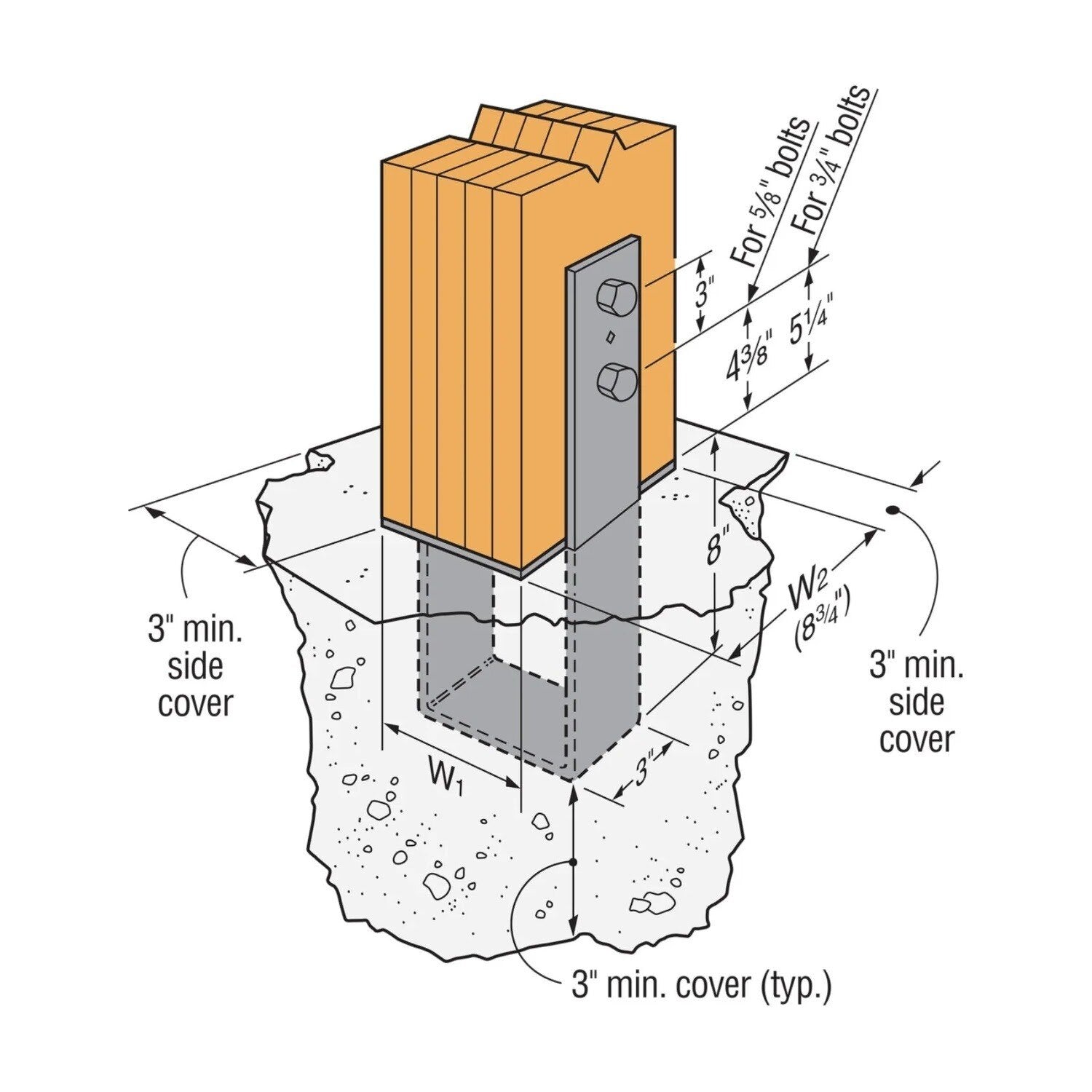

Simpson CB66 Installation Overview
- Prepare the concrete foundation for installation
- Position the column base in the desired location
- Secure the base using the specified bolts
- Ensure the column is properly seated and aligned
Simpson CB66 Specifications
| Finish | G90 Galvanized |
| Material | Heavy Gauge Steel |
| Column size | 6X6 |
| Fasteners required | Bolts - (2) 5/8" |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
