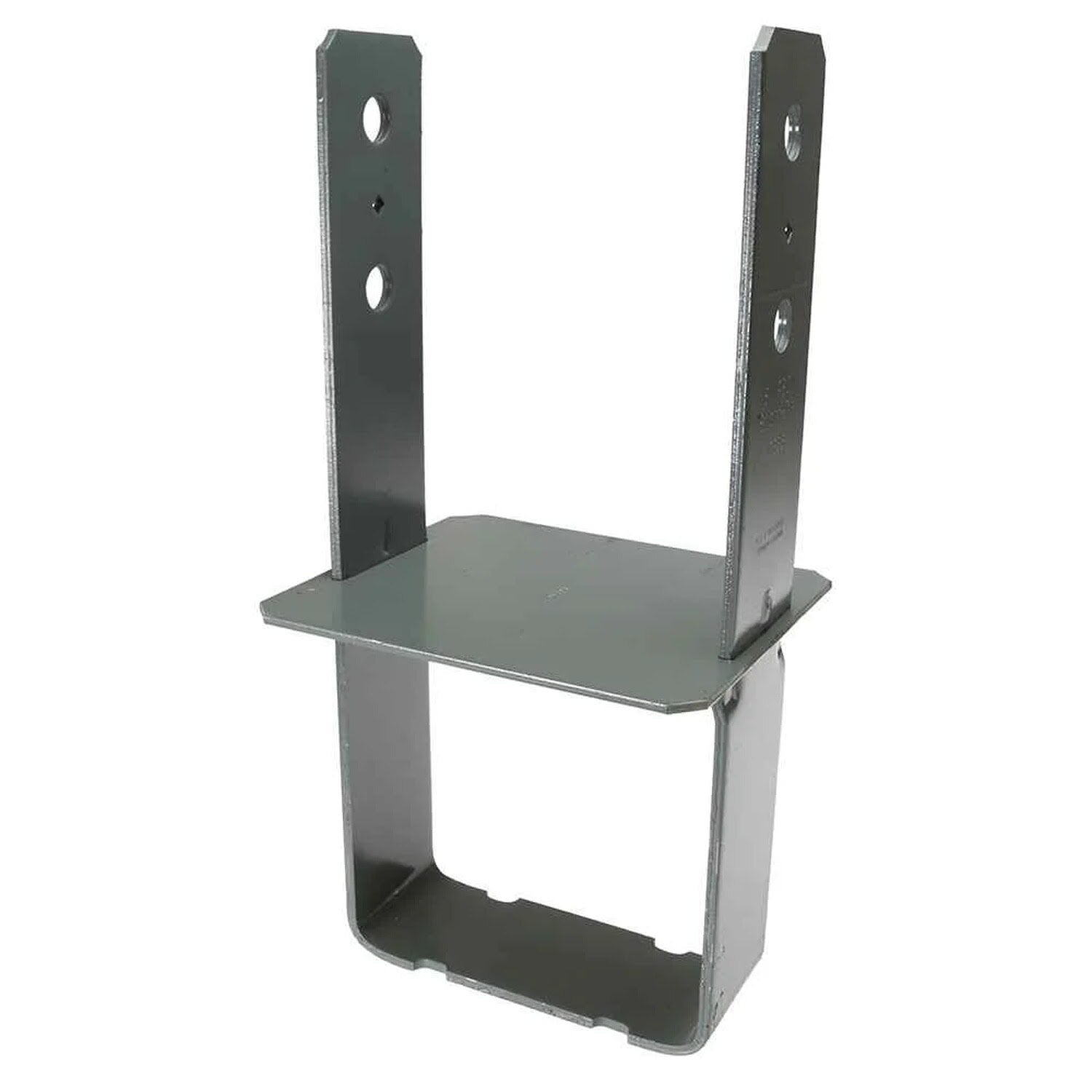

Simpson Strong-Tie CB86 Description
The Simpson CB86 6x8 Column Base enhances the strength and stability of construction projects, connecting columns or posts to concrete foundations.
Simpson Strong-Tie CB86 Includes
- (1) 6x8 Column Base Gray Painted
Simpson Strong-Tie CB86 Features
- Designed to be cast-in-place or wet-set into concrete
- Intended for use with 8x6 posts/columns
- Made from Heavy Gauge Steel for durability
- Finished with Gray Paint coating
- Increased uplift resistance for wind or seismic loading
Simpson Strong-Tie CB86 Applications
- Connecting columns or posts to concrete foundations
- Enhancing structural stability in construction projects
- Providing uplift resistance for wind or seismic loading

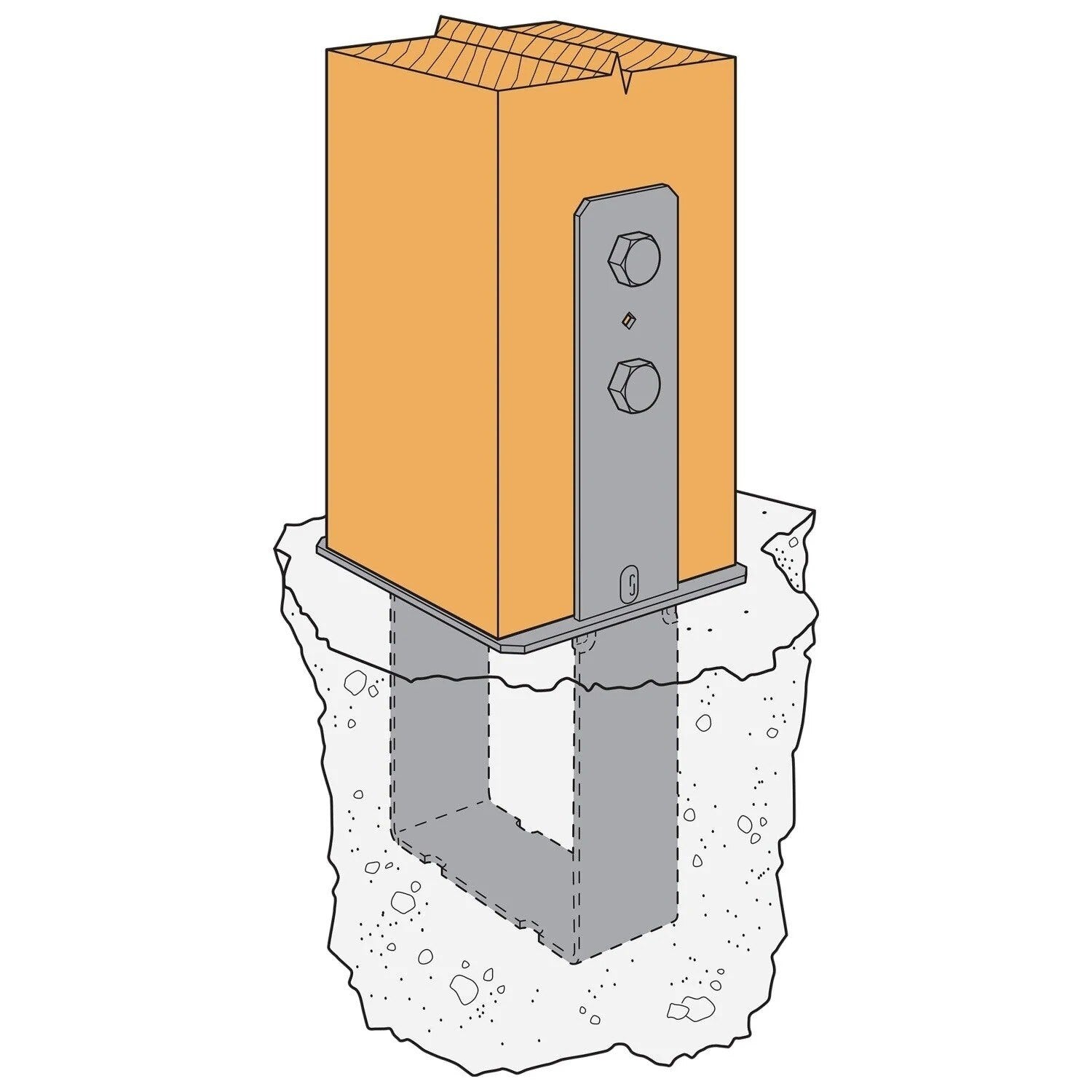

Simpson Strong-Tie CB86 Installation Overview
- Prepare the concrete foundation for casting or wet-setting
- Position the column base in the desired location
- Secure the column base using the specified bolts
- Ensure the column base sits flush with the concrete for full post bearing

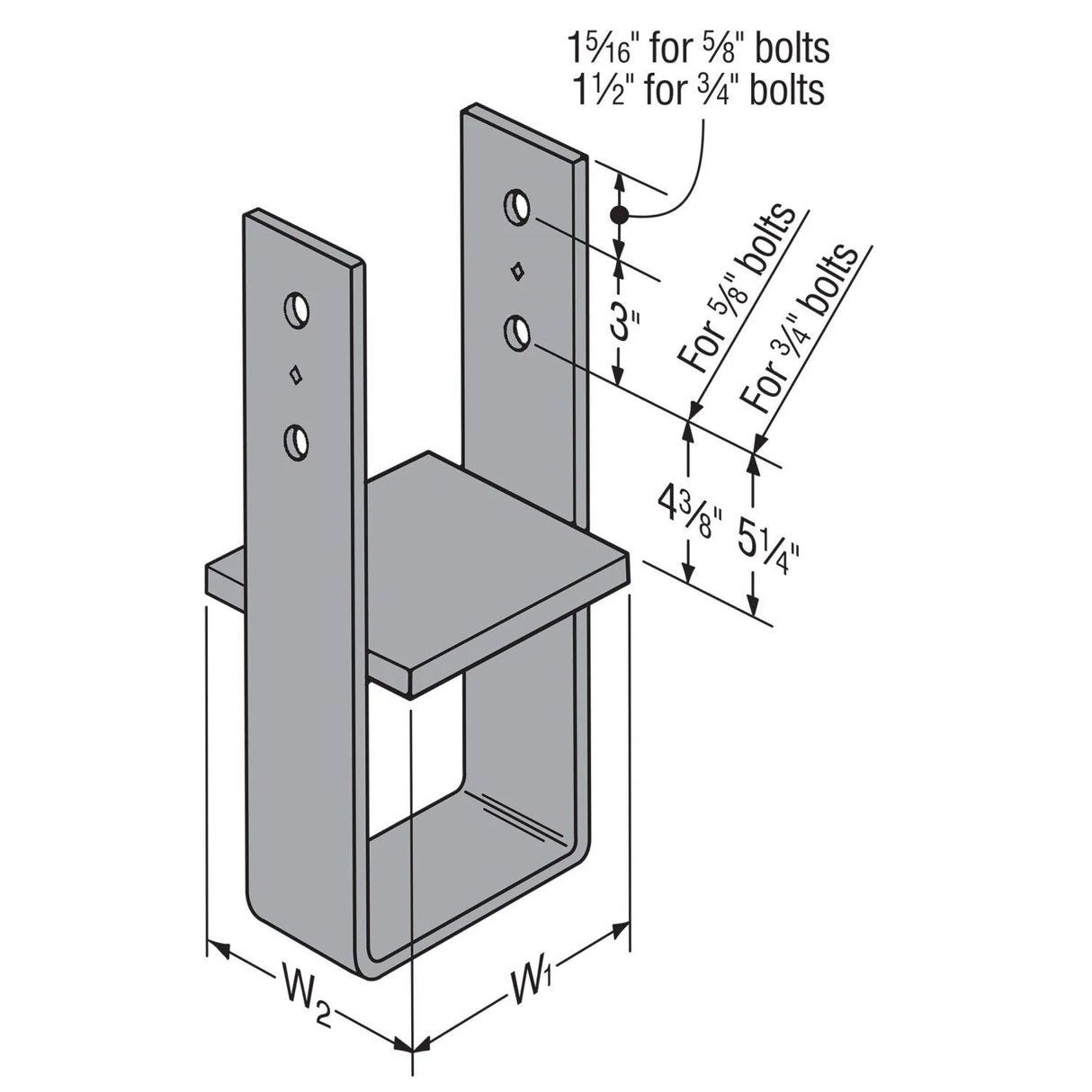

Simpson Strong-Tie CB86 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Column size | 8X6 |
| Fasteners required | Bolts - (2) 3/4" |
| For Treated Lumber | No |
| Post size | 6x8 |
Toolup Part # :
248641
