Simpson Anchors | SKU:
CB88R

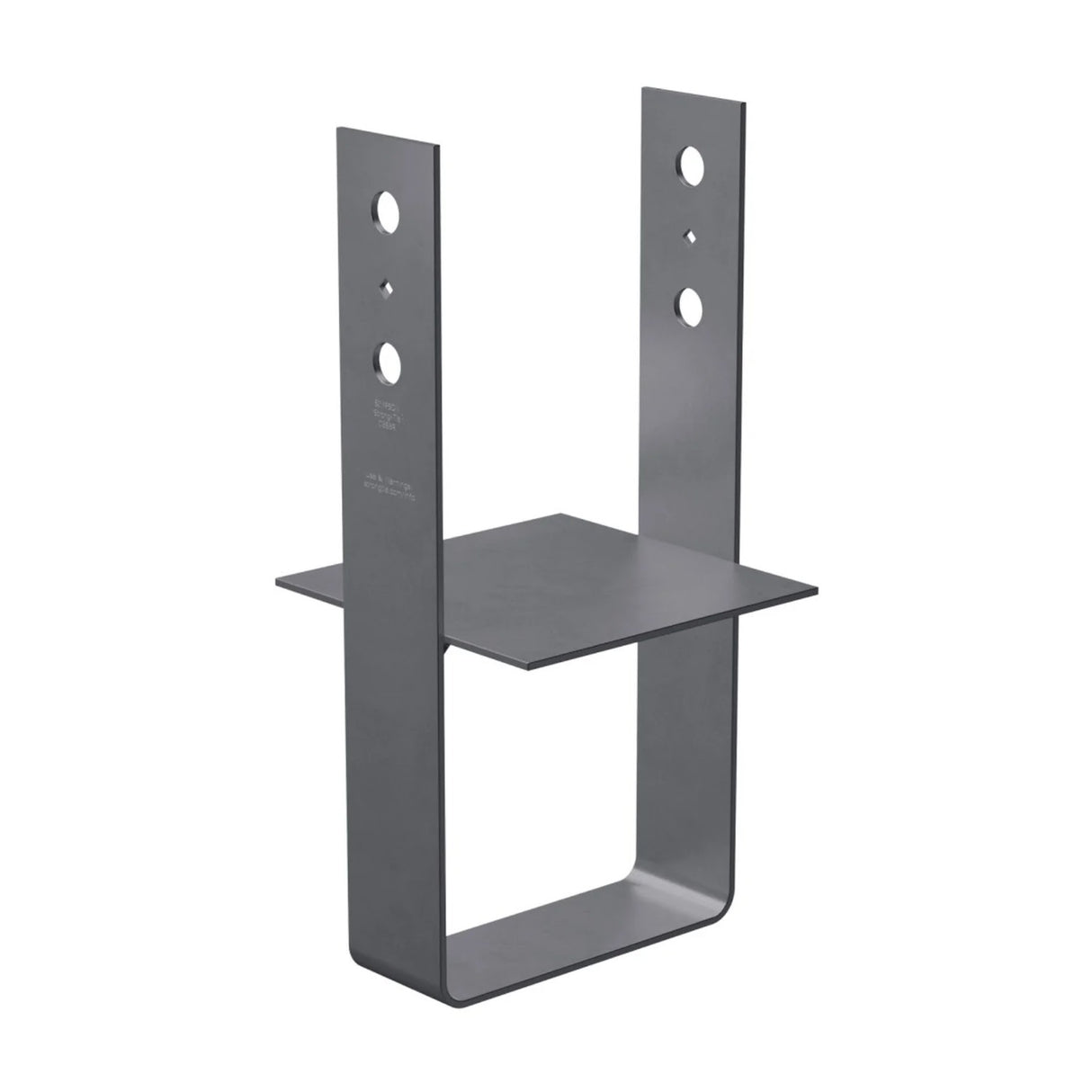

Simpson Strong-Tie CB88R (8" x 8") Column Base - Gray Painted
$119.15
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CB88R Description
The Simpson CB88R 8x8 Column Base enhances the strength and stability of your construction projects, crafted from durable heavy-gauge steel and finished with a gray paint coating.
Simpson Strong-Tie CB88R Includes
- (1) 8x8 Column Base - Gray Painted
Simpson Strong-Tie CB88R Features
- Designed to be cast-in-place or wet-set into concrete for connecting columns to foundations
- Intended for use with 8x8 posts or columns
- Made from heavy-gauge steel for durability
- Finished with a gray paint coating for enhanced protection
- Provides increased uplift resistance for wind or seismic loading
Simpson Strong-Tie CB88R Applications
- Connecting columns or posts to concrete foundations
- Providing structural support for 8x8 posts or columns
- Enhancing stability in construction projects requiring high structural values

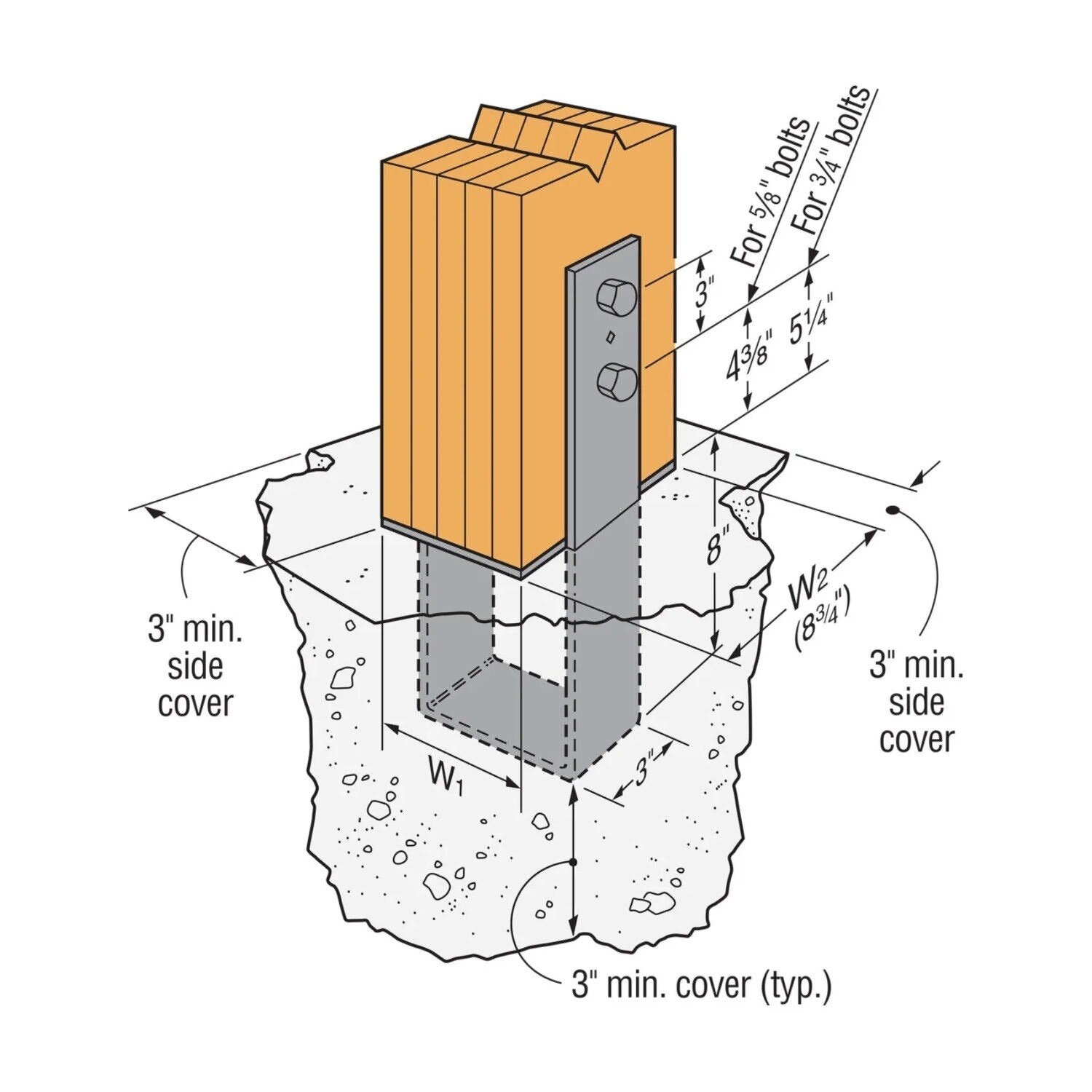

Simpson Strong-Tie CB88R Installation Overview
- Prepare the concrete foundation for the column base
- Position the CB88R column base in the desired location
- Cast-in-place or wet-set the base into the concrete
- Ensure the base sits flush with the concrete for full post bearing
- Secure the column or post to the base using the required fasteners
Simpson Strong-Tie CB88R Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Column size | 8X8 |
| Fasteners required | Bolts - (2) 3/4" |
| For Treated Lumber | No |
| Post size | 8x8 |
NOTE: This connector is designed for Rough Cut lumber NOT nominal lumber (most common).
