Simpson Anchors | SKU:
CBH2.37X5.5B-KT
Simpson Strong-Tie CBH2.37X5.5B-KT (2-3/8" x 5-1/2") Concealed Joist-to-Beam Hanger Kit
$106.68
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CBH2.37X5.5B-KT Description

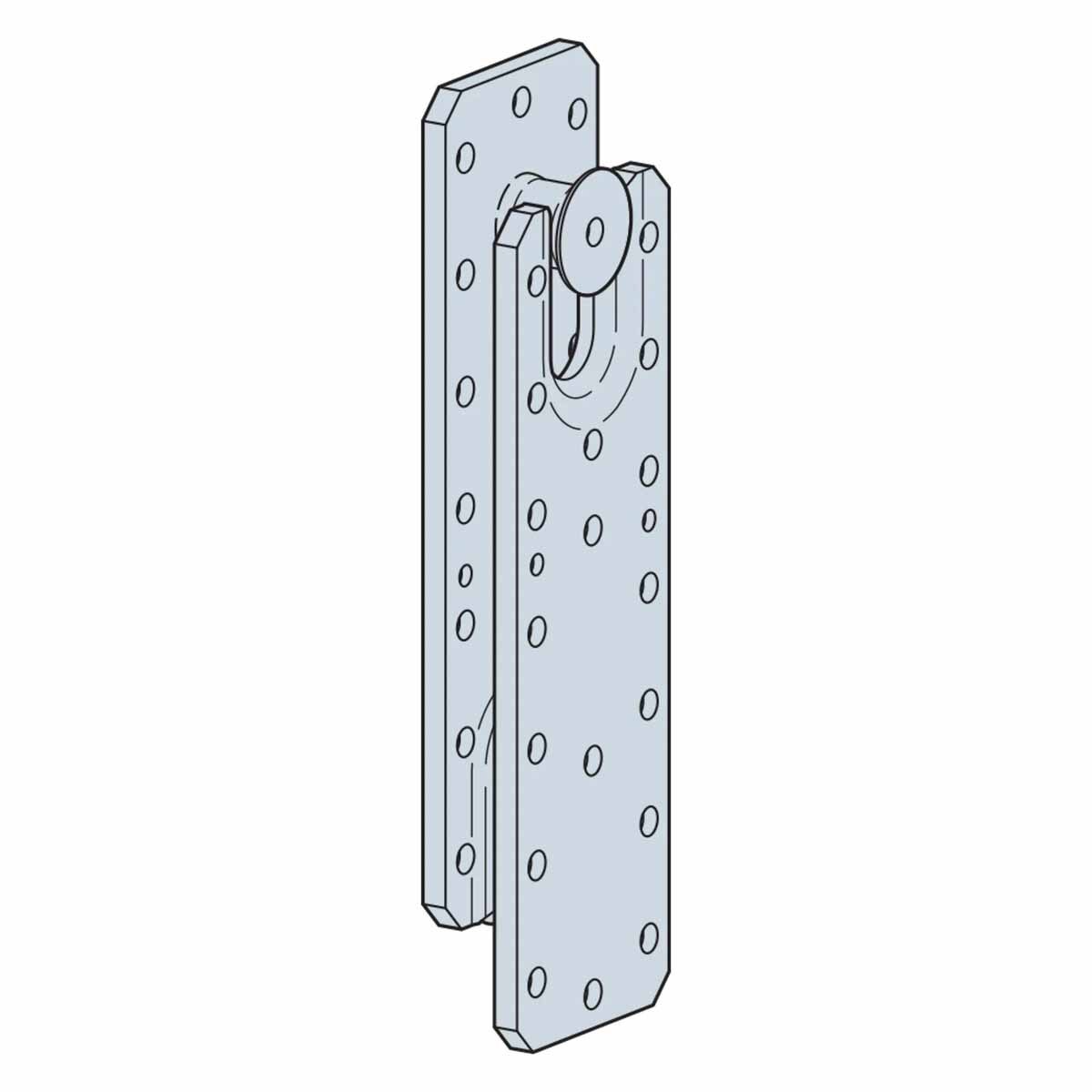

The CBH2.37X5.5B-KT from Simpson Strong-Tie is a concealed beam hanger kit designed for engineered wood applications that require hidden yet high-capacity connections.
Simpson Strong-Tie CBH2.37X5.5B-KT Includes

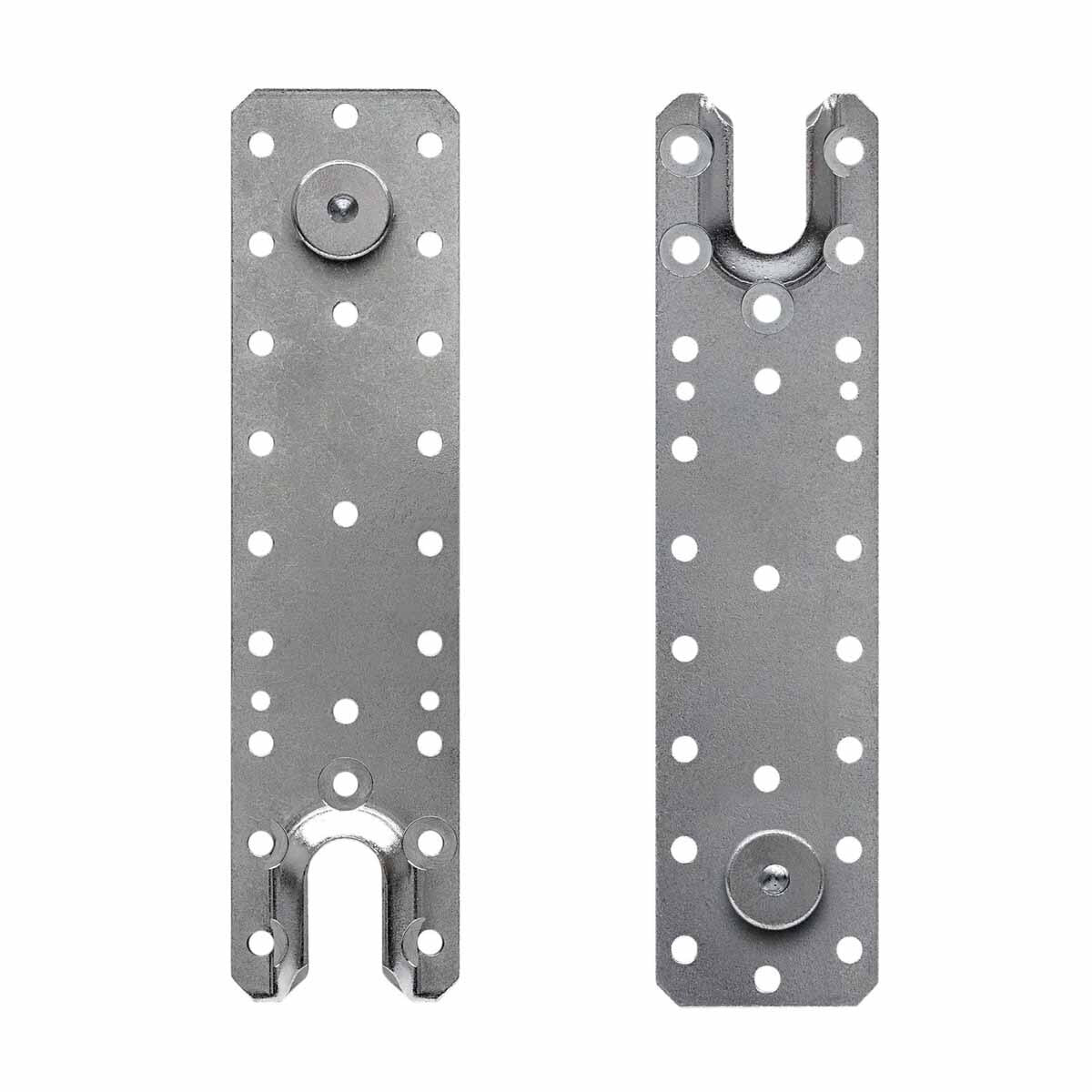

- (2) CBH2.37X5.5B Concealed Beam Hanger Back Plates
- (13) SDS25300 1/4" x 3" Strong-Tie SDS25300 Heavy-Duty Connector Screws
- (13) SDS25600 1/4" x 6" Strong-Tie SDS25600 Heavy-Duty Connector Screws
Simpson Strong-Tie CBH2.37X5.5B-KT Features
- Code-listed per ICC-ESR-2552
- Concealed for architectural aesthetics and fire-rated performance
- Multiple router options to suit jobsite needs
- +/- 1/32" beam length tolerance on each end enables easier installation
- 1-hr and 2-hr fire resistance ratings per ASTM E119
- Seismic deformation compatibility
Simpson Strong-Tie CBH2.37X5.5B-KT Applications

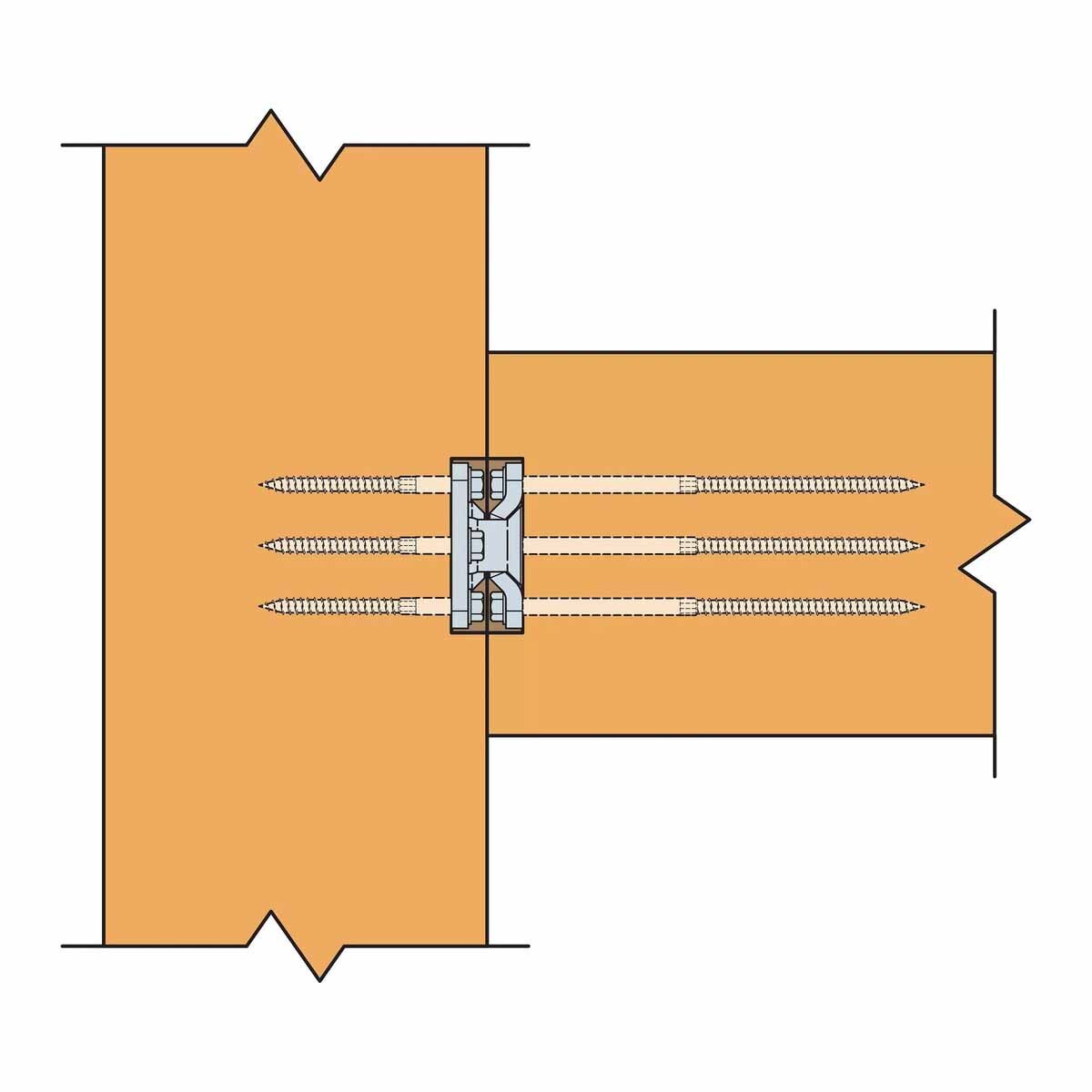

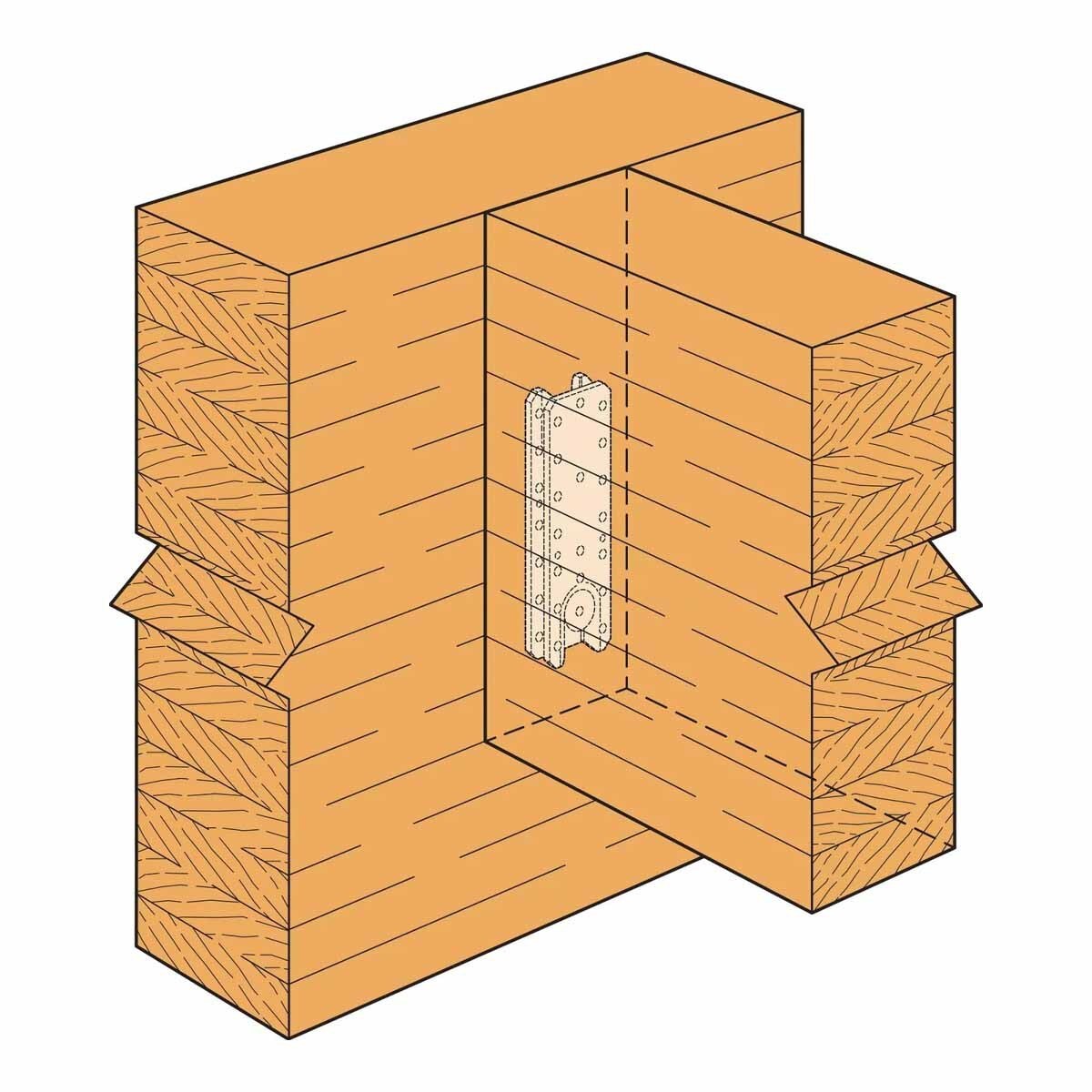

- Engineered wood-to-wood beam-to-column connections
- Architectural projects requiring hidden connections
- Interior framing and exposed timber designs

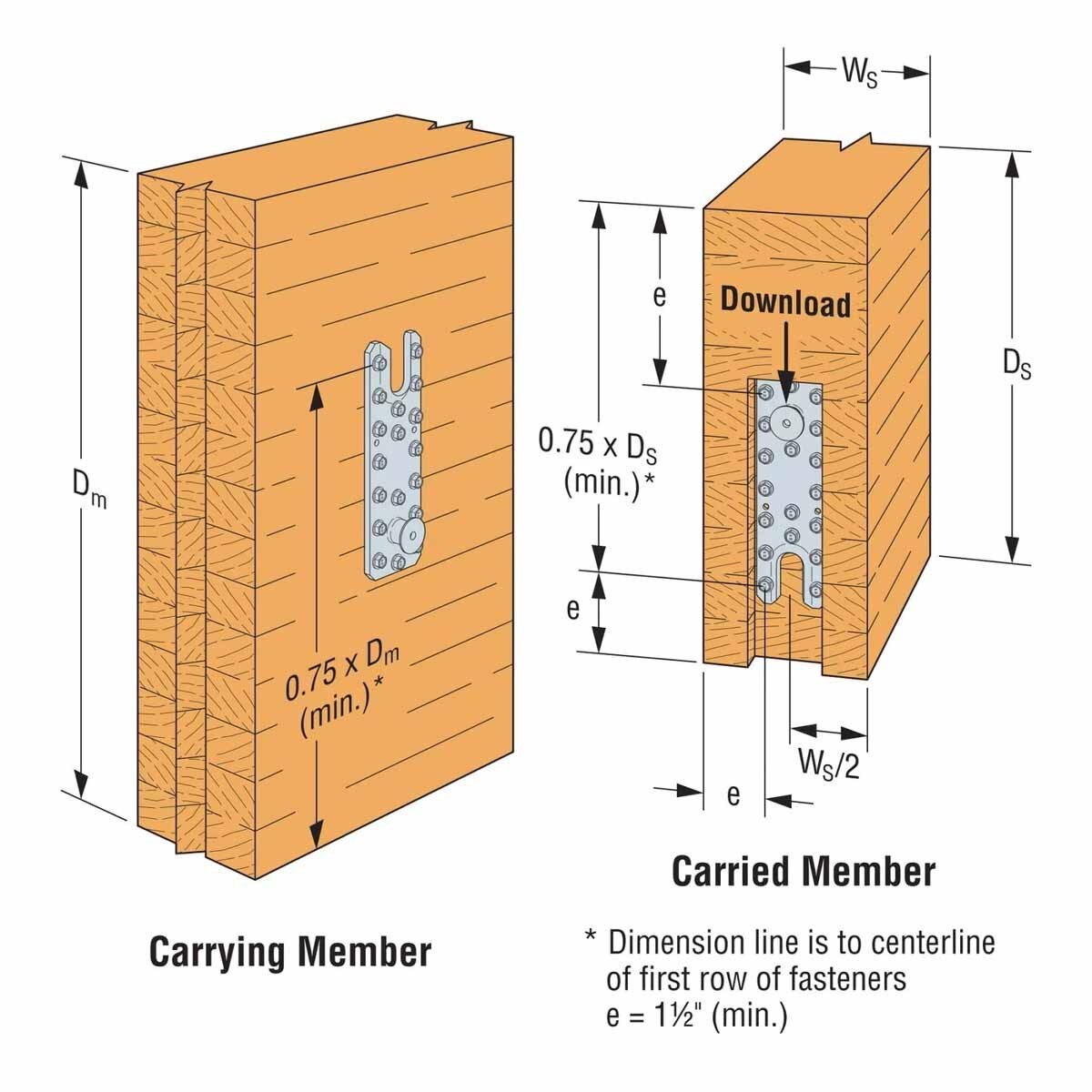

Simpson Strong-Tie CBH2.37X5.5B-KT Installation Overview
- Inspect: Ensure all kit components are present and undamaged.
- Align: Position the hanger on the column face and mark predrill locations.
- Fasten: Attach the hanger using the included structural screws per design specs.
- Set Beam: Insert the beam into the hanger pocket, confirming full seating and flush fit.
- Verify: Perform a final inspection of the connection before loading.
Simpson Strong-Tie CBH2.37X5.5B-KT Specifications
| Finish | Electro-Galvanized |
| Length | 5-1/2" |
| Material | Carbon Steel |
| Fasteners required | Includes- (13) SDS25300 & (13) SDS25600 Screws |
| For Treated Lumber | No |
| Height | 7" |
| Manufacturer name | Simpson Strong-Tie |
| Width | 2-3/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
